2018 铃木(豪爵铃木) GSX GSX150F — Engine parts

CN market150 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 16Cylinder Head & Parts · 16Seals & Gaskets · 23Lubrication System · 5Belt/Chain Drive · 26Engine Hardware · 97

Part numbers

Every genuine engine part fitted to the 2018 铃木(豪爵铃木) GSX GSX150F. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
01547C0625BW000BOLTSTARTING MOTOR.................30Enquire
11171C34J60W000COVER, CYLINDER HEADCYLINDER HEAD COVER............ 9Enquire
11173C34J50W000GASKET, CYL HEAD COVERCYLINDER HEAD COVER............ 9Enquire
09106C07011W000BOLT (7X37)CYLINDER HEAD COVER............ 9Enquire
11100C34J60W000HEAD ASSY, CYLINDERCYLINDER HEAD..................10Enquire
09103C06316W000.BOLTCYLINDER HEAD..................10Enquire
09103C06015W000BOLT (6X110)CYLINDER HEAD..................10Enquire
09103C08531W000BOLT (L140)CYLINDER HEAD..................10Enquire
09160C08173W000WASHERCYLINDER HEAD..................10Enquire
09206C10016W000PIN (8.2X10X13)CYLINDER HEAD..................10Enquire
09482C00621W000SPARK PLUG (CPR7EA-9)CYLINDER HEAD..................10Enquire
11210C34J70W0F0CYLINDER (YELLOW)CYLINDER.......................11Enquire
11300C34J60W000CRANKCASE ASSYCRANKCASE......................12Enquire
01500C1016AW000BOLT OIL DRAINCRANKCASE......................12Enquire
09168C10037W000GASKETCRANKCASE......................12Enquire
11971C26HA0W000.LENS, OIL LEVEL CHECKCRANKCASE COVER................13Enquire
01547C0630BW000BOLTCRANKCASE COVER................13Enquire
01547C0640BW000BOLTCRANKCASE COVER................13Enquire
01547C0695BW000BOLTCRANKCASE COVER................13Enquire
11971C26H10W000PLUG, OIL FILLERCRANKCASE COVER................13Enquire
09280C17011W000O RING (D:3.1,ID:16.8) 11300C10K00W000 CRANKCASE SETCRANKCASE COVER................13Enquire
01550C0812BW000BOLTCRANKCASE COVER................13Enquire
09259C36032W000PLUGCRANKCASE COVER................13Enquire
11352C34J00W000PLUG, TOPCRANKCASE COVER................13Enquire
09181C28187W000SHIM (T:0.6)CRANKSHAFT.....................14Enquire
09181C28021W000SHIM (T:0.65)CRANKSHAFT.....................14Enquire
09181C28188W000SHIM (T:0.7)CRANKSHAFT.....................14Enquire
09181C28189W000SHIM (T:0.75)CRANKSHAFT.....................14Enquire
09181C28190W000SHIM (T:0.8)CRANKSHAFT.....................14Enquire
09181C28191W000SHIM (T:0.85)CRANKSHAFT.....................14Enquire
09181C28192W000SHIM (T:0.9)CRANKSHAFT.....................14Enquire
09181C28193W000SHIM (T:0.95)CRANKSHAFT.....................14Enquire
09181C28194W000SHIM (T:1.0)CRANKSHAFT.....................14Enquire
09181C28197W000SHIM (T:1.05)CRANKSHAFT.....................14Enquire
09181C28200W000SHIM (T:1.1)CRANKSHAFT.....................14Enquire
09181C28202W000SHIM (T:1.15)CRANKSHAFT.....................14Enquire
09181C28204W000SHIM (T:1.2)CRANKSHAFT.....................14Enquire
09181C28207W000SHIM (T:1.25)CRANKSHAFT.....................14Enquire
09181C28209W000SHIM (T:1.3)CRANKSHAFT.....................14Enquire
09262C28059W000BEARING RHCRANKSHAFT.....................14Enquire
09262C35106W000BEARING (35X72X17)CRANKSHAFT.....................14Enquire
09282C12014W000OIL SEAL (10.8X21X7)CRANKSHAFT.....................14Enquire
08331C41229W000CIRCLIP RHCRANKSHAFT.....................14Enquire
21143C34J00W000WASHER, PRIMARY DRIVE GEAR WAVECRANKSHAFT.....................14Enquire
08211C16281W000WASHERCRANKSHAFT.....................14Enquire
09263C22076W000BEARINGSTARTER CLUTCH.................16Enquire
12669C34J50W000RACE, CRK BAL DRIVEN GEAR INNERCRANK BALANCER.................17Enquire
08331C31359W000CIRCLIPCRANK BALANCER.................17Enquire
12668C34J00W000SPACER, CRANK BAL DRN GEARCRANK BALANCER.................17Enquire
12710C34J10W000CAM SHAFTHANDLE LEVER.................. 53Enquire
09262C30127W000BEARING,CAMSHAFT LHHANDLE LEVER.................. 53Enquire
12740C34J20W000SPROCKET, CAMSHAFT (NT:34)HANDLE LEVER.................. 53Enquire
12714C34J10W000WASHER, SPROCKETHANDLE LEVER.................. 53Enquire
09106C05028W000BOLT (5X15)HANDLE LEVER.................. 53Enquire
12749C34J00W000C RING, CAMSHAFTHANDLE LEVER.................. 53Enquire
12951C34J20W000CAM, DECOMPRESSIONHANDLE LEVER.................. 53Enquire
09261C05005W000PIN (5X8)HANDLE LEVER.................. 53Enquire
12840C34J20W000ARM ASSY, VALVE ROCKERHANDLE LEVER.................. 53Enquire
12871C34J10W000SHAFT, VALVE ROCKER ARM EXHHANDLE LEVER.................. 53Enquire
01550C0516AW000BOLTHANDLE LEVER.................. 53Enquire
09164C09006W000WASHERHANDLE LEVER.................. 53Enquire
12911C34J10W000VALVE, INTAKEHANDLE LEVER.................. 53Enquire
13450C34JB0W000.UNIT, DEVICE SUBTHROTTLE BODY..................20Enquire
13454C34JB0W000.SCREWTHROTTLE BODY..................20Enquire
13465C34JB0W000.O RINGTHROTTLE BODY..................20Enquire
15710C34JB0W000INJECTOR ASSY, FUELTHROTTLE BODY..................20Enquire
15722C21H00W000.SEAL RINGTHROTTLE BODY..................20Enquire
13128C34JC0W000INSULATOR, INTAKE PIPETHROTTLE BODY..................20Enquire
09401C12305W000.CLIPAIR CLEANER....................21Enquire
09401C14101W000.CLIPAIR CLEANER....................21Enquire
09402C40L01W000.CLAMPAIR CLEANER....................21Enquire
02142C0516AW000.SCREWAIR CLEANER....................21Enquire
03541C0516AW000SCREWAIR CLEANER....................21Enquire
16520C09440W000STRAINER, ENGINE OILOIL PUMP.......................23Enquire
16510C05240W888FILTER, ENGINE OILOIL PUMP.......................23Enquire
15424C09JB0W000.O RINGFUEL PUMP......................24Enquire
21252C29J00W000WASHER, PRIMARY DRIVEN GEARCLUTCH.........................25Enquire
09169C16003W000WASHERCLUTCH.........................25Enquire
09116C05020W000BOLT (5X16)CLUTCH.........................25Enquire
23165C34J50W000RACK, CLUTCH RELEASECLUTCH.........................25Enquire
08110C62000W000BEARINGCLUTCH.........................25Enquire
08331C41309W000CIRCLIPCLUTCH.........................25Enquire
23261C13A01W000PINION, CLUTCH RELEASE (NT:12)CLUTCH.........................25Enquire
09380C14004W000CIRCLIPTRANSMISSION...................26Enquire
02112C0612AW000SCREWTRANSMISSION...................26Enquire
24132C34J30W000BEARING, COUNTERSHAFT LHTRANSMISSION...................26Enquire
24130C34J60W000SHAFT, DRIVE (NT:19)TRANSMISSION...................26Enquire
24311C34J10W000GEAR, 1ST DRIVEN (NT:33)TRANSMISSION...................26Enquire
08110C62020W000BEARING RHTRANSMISSION...................26Enquire
27512C25H00W000WASHER, ENGINE SPROCKET LOCKTRANSMISSION...................26Enquire
25231C34J10W000FORK, GEAR SHIFTING NO.3GEAR SHIFTING..................28Enquire
25411C34J00W000SHAFT, GEAR SHIFT FORK NO.1GEAR SHIFTING..................28Enquire
25421C34J00W000SHAFT, GEAR SHIFT FORK NO.2GEAR SHIFTING..................28Enquire
25381C34J50W000PLATE, GEAR SHIFT CAMGEAR SHIFTING..................28Enquire
09283C14017W000OIL SEALGEAR SHIFTING..................28Enquire
09181C14167W000SHIM (14X22X1)GEAR SHIFTING..................28Enquire
09280C26003W000O RING (D:2.4,ID:26.2)GEAR SHIFTINGEnquire
09440C04010W000SPRINGGEAR SHIFTINGEnquire
25617C03F20W000SHAFT, GEAR SHIFT LEVERGEAR SHIFTINGEnquire
09160C12011W000WASHER (12.5X20X1)GEAR SHIFTINGEnquire
31175C34J20W000.FRAME ASSYSTARTING MOTOR.................30Enquire
32371C16H10W000CLAMP, STATOR LEADMAGNETO........................31Enquire
33419C34J00W000SPACER, IGNITION COILELECTRICAL.....................33Enquire
33510C04H20W000CAP, SPARK PLUG 14 33541C33GK1W000 SEAL, SPARK PLUG 1 15 33542C33GK1W000 SEAL, HIGH TENSION CORD 1ELECTRICAL.....................33Enquire
34149C12K00W000.SCREW (3X16)SPEEDOMETER....................34Enquire
34189C30H30W000CUSHION, SPEEDOMETERSPEEDOMETER....................34Enquire
09160C04026W000WASHER (4.5X16X1.2)SPEEDOMETER....................34Enquire
03541C0416AW000SCREWSPEEDOMETER....................34Enquire
35623C20K00W000.SCREWTURNSIGNAL LAMP................36Enquire
09407C16402W000CLIPWIRING HARNESS.................38Enquire
36990C32G40W000CLAMP, WIRING HARNESSHANDLE SWITCH..................40Enquire
43211C23JA0W000SPRING, BRAKE PEDALSTAND..........................42Enquire
09404C06429W000CLAMP (L:45)FUEL TANK..................... 45Enquire
09401C09002W000CLIP NO.2EVAP SYSTEM................... 48Enquire
18560C34JE0W000CANISTER ASSY, EVAPEVAP SYSTEM................... 48Enquire
02142C0616AW000SCREWFRAME LOWER COVER............. 50Enquire
47161C48H00W000CUSHION, FRAME COVER UPPERFRAME LOWER COVER............. 50Enquire
03541C0516BW000SCREWFRAME LOWER COVER............. 50Enquire
47921C34J50W000COVER, FRAME LOWER LHFRAME LOWER COVER............. 50Enquire
02112C0510AW000SCREWHANDLEBAR..................... 52Enquire
58621C34J10W000GUIDE, CABLE NO.1HANDLEBAR..................... 52Enquire
69688C34200W000.SCREWHANDLE LEVER.................. 53Enquire
01547C0620BW000BOLTHANDLE LEVER.................. 53Enquire
02112C0410AW000.SCREWHANDLE LEVER.................. 53Enquire
08322C01103W000.WASHERSEAT.......................... 62Enquire
02122C0630AW000SCREWSEAT.......................... 62Enquire
51189C34JA0W000.BOLTFRONT FORK DAMPER............. 63Enquire
51148C34JA0W000.GASKET LOWERFRONT FORK DAMPER............. 63Enquire
51153C34JA0W000.OIL SEALFRONT FORK DAMPER............. 63Enquire
51168C34JA0W000.SPACERFRONT FORK DAMPER............. 63Enquire
51117C34JA0W000.O RINGFRONT FORK DAMPER............. 63Enquire
51195C34JA0W000.PIECE, OIL LOCKFRONT FORK DAMPER............. 63Enquire
51356C34JA0W000WASHER, STEMSTEERING STEM................. 65Enquire
09263C17051W000.BEARINGREAR SWINGINGARM.............. 69Enquire
09181C12025W000SHIMREAR SWINGINGARM.............. 69Enquire
25515C34J00W000SPRING, GEAR SHIFT PLATEGEAR SHIFTING..................28Enquire
11191C27E60W000WASHER, HEAD COVERCYLINDER HEAD COVER............ 9Enquire
01550C0820BW000BOLTCYLINDER HEAD..................10Enquire
13640C34J00W000SENSOR, ENGINE TEMPCYLINDER.......................11Enquire
09289C05016W000OIL SEAL (5X10X8)HANDLE LEVER.................. 53Enquire
09280C29007W000O RINGTHROTTLE BODY..................20Enquire
09280C13010W000O RING (D:1.9,ID:12.5)OIL PUMP.......................23Enquire
16512C36H20W000CAP, OIL FILTEROIL PUMP.......................23Enquire
09280C54005W000O RINGOIL PUMP.......................23Enquire
16519C09J10W000SPRING, OIL FILTEROIL PUMP.......................23Enquire
01500C0610AW000BOLTTRANSMISSION...................26Enquire
25382C34J00W000PIN, GEAR SHIFT CAM PLATEGEAR SHIFTINGEnquire
07130C0512BW000BOLTMAGNETO........................31Enquire
SENSOR定子螺钉MAGNETO........................31Enquire
09401C11L05W000CLIP 碳罐净化管NO.1夹 碳罐净化管NO.2夹EVAP SYSTEM................... 48Enquire

Exploded diagrams — Engine

2018 铃木(豪爵铃木) GSX GSX150F CRANKSHAFT.....................14 exploded diagram
CRANKSHAFT.....................14 · 21
2018 铃木(豪爵铃木) GSX GSX150F HANDLE LEVER.................. 53 exploded diagram
HANDLE LEVER.................. 53 · 14
2018 铃木(豪爵铃木) GSX GSX150F GEAR SHIFTING..................28 exploded diagram
GEAR SHIFTING..................28 · 13
2018 铃木(豪爵铃木) GSX GSX150F CRANKCASE COVER................13 exploded diagram
CRANKCASE COVER................13 · 12
2018 铃木(豪爵铃木) GSX GSX150F FRONT FORK DAMPER............. 63 exploded diagram
FRONT FORK DAMPER............. 63 · 12
2018 铃木(豪爵铃木) GSX GSX150F CYLINDER HEAD..................10 exploded diagram
CYLINDER HEAD..................10 · 8
2018 铃木(豪爵铃木) GSX GSX150F THROTTLE BODY..................20 exploded diagram
THROTTLE BODY..................20 · 8
2018 铃木(豪爵铃木) GSX GSX150F CLUTCH.........................25 exploded diagram
CLUTCH.........................25 · 8
2018 铃木(豪爵铃木) GSX GSX150F TRANSMISSION...................26 exploded diagram
TRANSMISSION...................26 · 8
2018 铃木(豪爵铃木) GSX GSX150F OIL PUMP.......................23 exploded diagram
OIL PUMP.......................23 · 7

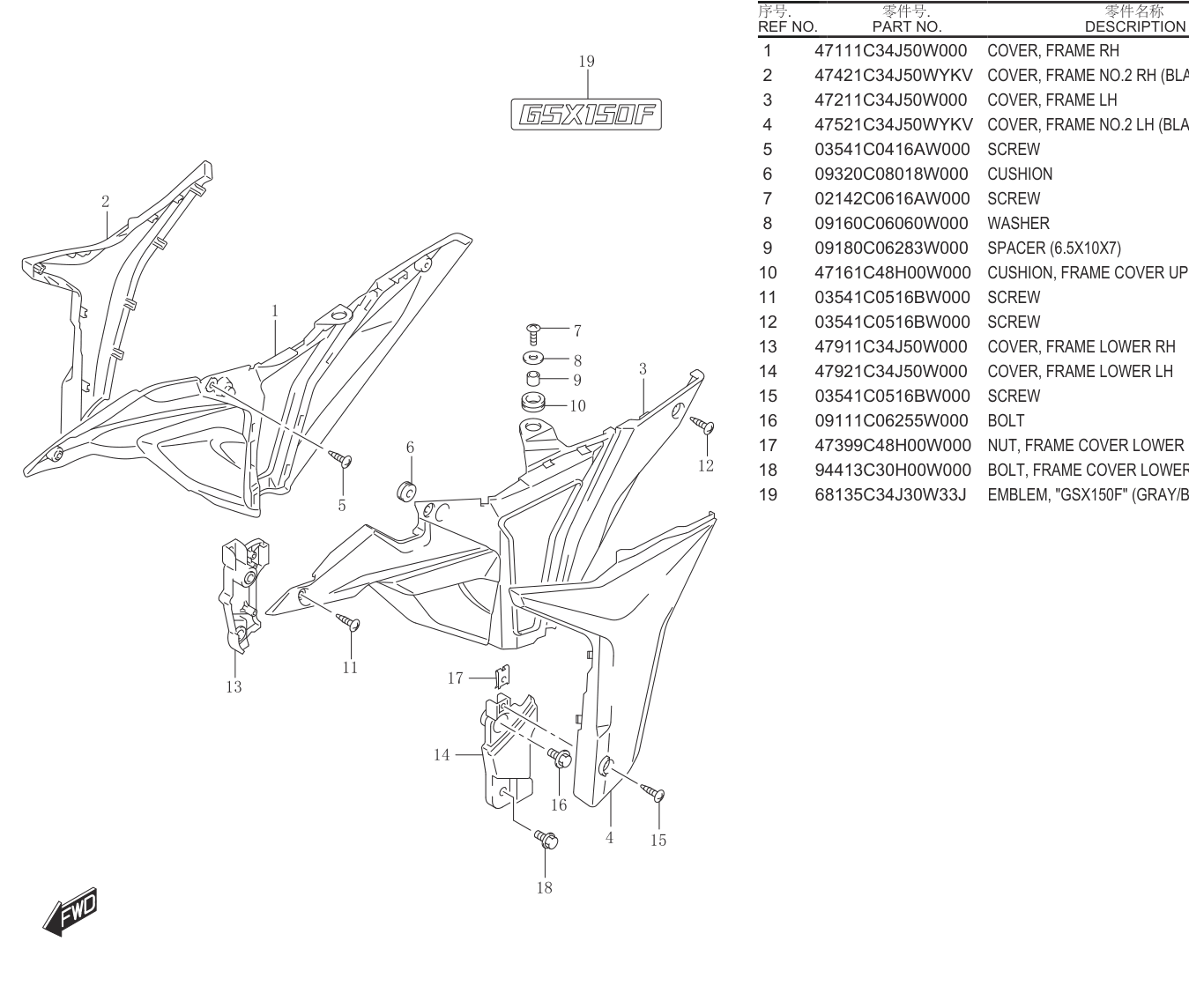

2018 铃木(豪爵铃木) GSX GSX150F FRAME LOWER COVER............. 50 exploded diagram
FRAME LOWER COVER............. 50 · 7
2018 铃木(豪爵铃木) GSX GSX150F AIR CLEANER....................21 exploded diagram
AIR CLEANER....................21 · 5

Browse the catalogue interactively

Open Engine in the interactive 2018 铃木(豪爵铃木) GSX GSX150F catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Body · 219Brake System · 85Gearbox · 73Electrical System · 62Fuel Supply System · 55Steering System · 43Wheels & Tyres · 34Suspension · 32Clutch & Parts · 29Filters · 20Exhaust System · 17Cooling System · 5Interior · 2Unclassified · 26
