2018 铃木(豪爵铃木) GSX GSX150F — Steering System parts
CN market36 genuine parts8 diagrams
Subgroups
Part numbers
Every genuine steering system part fitted to the 2018 铃木(豪爵铃木) GSX GSX150F. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 01547C0620AW000 | BOLT | THROTTLE BODY..................20 | Enquire | |
| 25311C34J50W000 | CAM, GEAR SHIFT | GEAR SHIFTING..................28 | Enquire | |
| 35610C20K00W000 | .LENS | TURNSIGNAL LAMP................36 | Enquire | |
| 35615C20K00W000 | .HOUSING RH | TURNSIGNAL LAMP................36 | Enquire | |
| 35618C20K00W000 | .CORD RH | TURNSIGNAL LAMP................36 | Enquire | |
| 35630C20K00W000 | .LENS | TURNSIGNAL LAMP................36 | Enquire | |
| 35635C20K00W000 | .HOUSING LH | TURNSIGNAL LAMP................36 | Enquire | |
| 35638C20K00W000 | .CORD LH | TURNSIGNAL LAMP................36 | Enquire | |
| 38621C34J00W000 | BRACKET, TURNSIGNAL RELAY | TURNSIGNAL LAMP................36 | Enquire | |

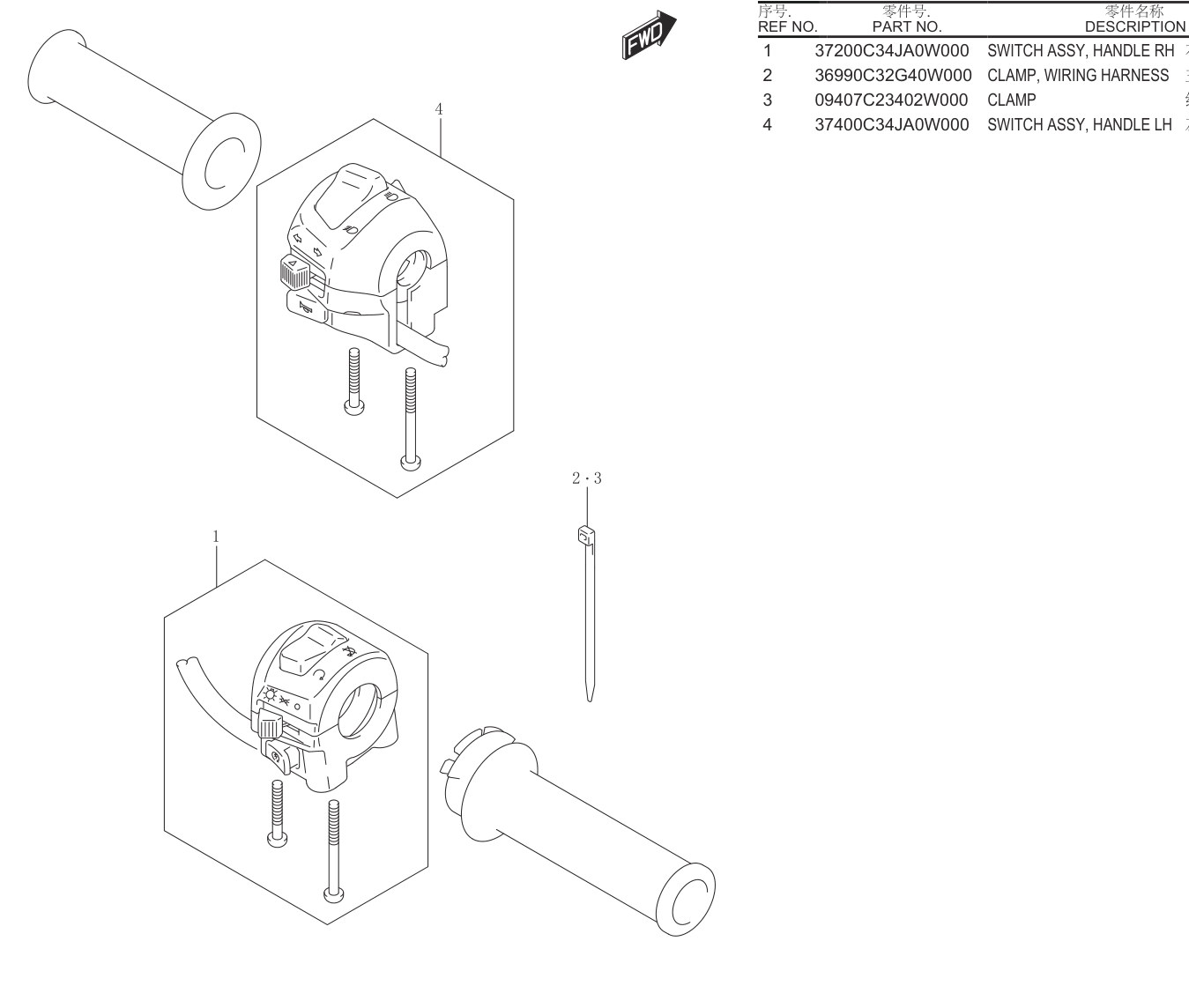

| 37200C34JA0W000 | SWITCH ASSY, HANDLE RH | HANDLE SWITCH..................40 | Enquire | |

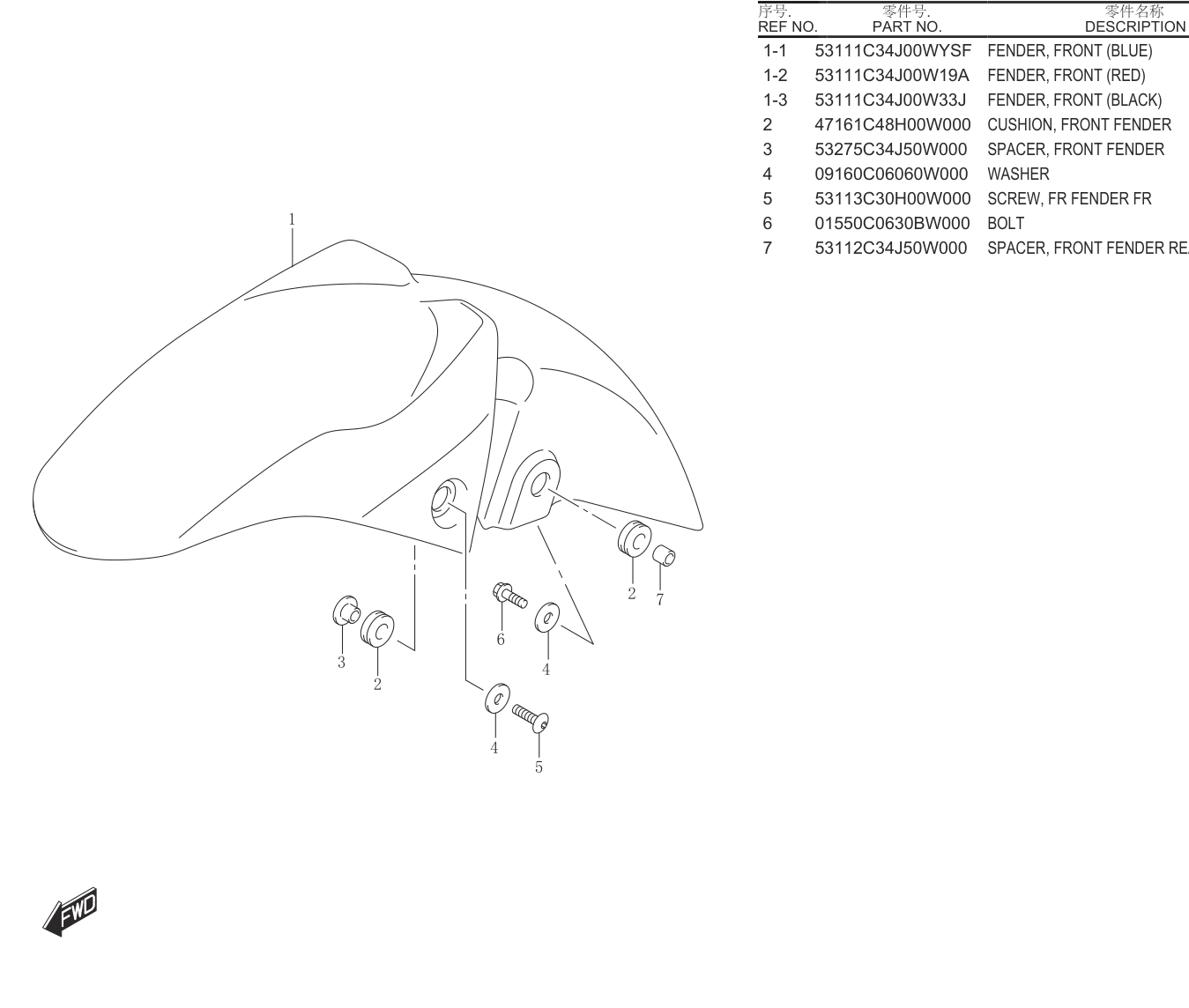

| 53111C34J00WYSF | FENDER, FRONT (BLUE) | FRONT FENDER.................. 51 | Enquire | |
| 53111C34J00W19A | FENDER, FRONT (RED) | FRONT FENDER.................. 51 | Enquire | |
| 53111C34J00W33J | FENDER, FRONT (BLACK) | FRONT FENDER.................. 51 | Enquire | |
| 53275C34J50W000 | SPACER, FRONT FENDER | FRONT FENDER.................. 51 | Enquire | |
| 53113C30H00W000 | SCREW, FR FENDER FR | FRONT FENDER.................. 51 | Enquire | |
| 01550C0630BW000 | BOLT | FRONT FENDER.................. 51 | Enquire | |
| 56111C34J30W000 | HANDLEBAR | HANDLEBAR..................... 52 | Enquire | |
| 56500C20K10W000 | MIRROR ASSY, REAR VIEW RH | HANDLEBAR..................... 52 | Enquire | |
| 56600C20K10W000 | MIRROR ASSY, REAR VIEW LH | HANDLEBAR..................... 52 | Enquire | |
| 01550C0612BW000 | BOLT,FRONT | HANDLEBAR..................... 52 | Enquire | |
| 09250C05009W000 | CAP (OD:10) | HANDLEBAR..................... 52 | Enquire | |
| 57110C22D20W000 | GRIP, THROTTLE | HANDLE LEVER.................. 53 | Enquire | |
| 57300C21D40W000 | LEVER ASSY, BRAKE | HANDLE LEVER.................. 53 | Enquire | |
| 57433C21D40W000 | .BOLT (6X30) | HANDLE LEVER.................. 53 | Enquire | |
| 57421C21D40W000 | .LEVER, BRAKE | HANDLE LEVER.................. 53 | Enquire | |
| 57211C22D40W000 | GRIP, LH | HANDLE LEVER.................. 53 | Enquire | |
| 57500C053E0W000 | LEVER ASSY, CLUTCH | HANDLE LEVER.................. 53 | Enquire | |
| 57621C053C0W000 | .LEVER, CLUTCH | HANDLE LEVER.................. 53 | Enquire | |
| 57431C45C01W000 | .BOLT, LEVER SET | HANDLE LEVER.................. 53 | Enquire | |
| 57560C28G11W000 | .SWITCH ASSY, CLUTCH | HANDLE LEVER.................. 53 | Enquire | |
| 57661C05300W000 | COVER, CLUTCH LEVER | HANDLE LEVER.................. 53 | Enquire | |
| 56211C34JB0W000 | HOLDER, HANDLE UPPER | STEERING STEM................. 65 | Enquire | |
| 06111C06004W000 | BALL | STEERING STEM................. 65 | Enquire | |
| 53112C34J50W000 | SPACER, FRONT FENDER REAR | FRONT FENDER.................. 51 | Enquire | |
| 37400C34JA0W000 | SWITCH ASSY, HANDLE LH | HANDLE SWITCH..................40 | Enquire | |
| 09250C09001W000 | CAP (OD:14) | HANDLE LEVER.................. 53 | Enquire |
Exploded diagrams — Steering System
