Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

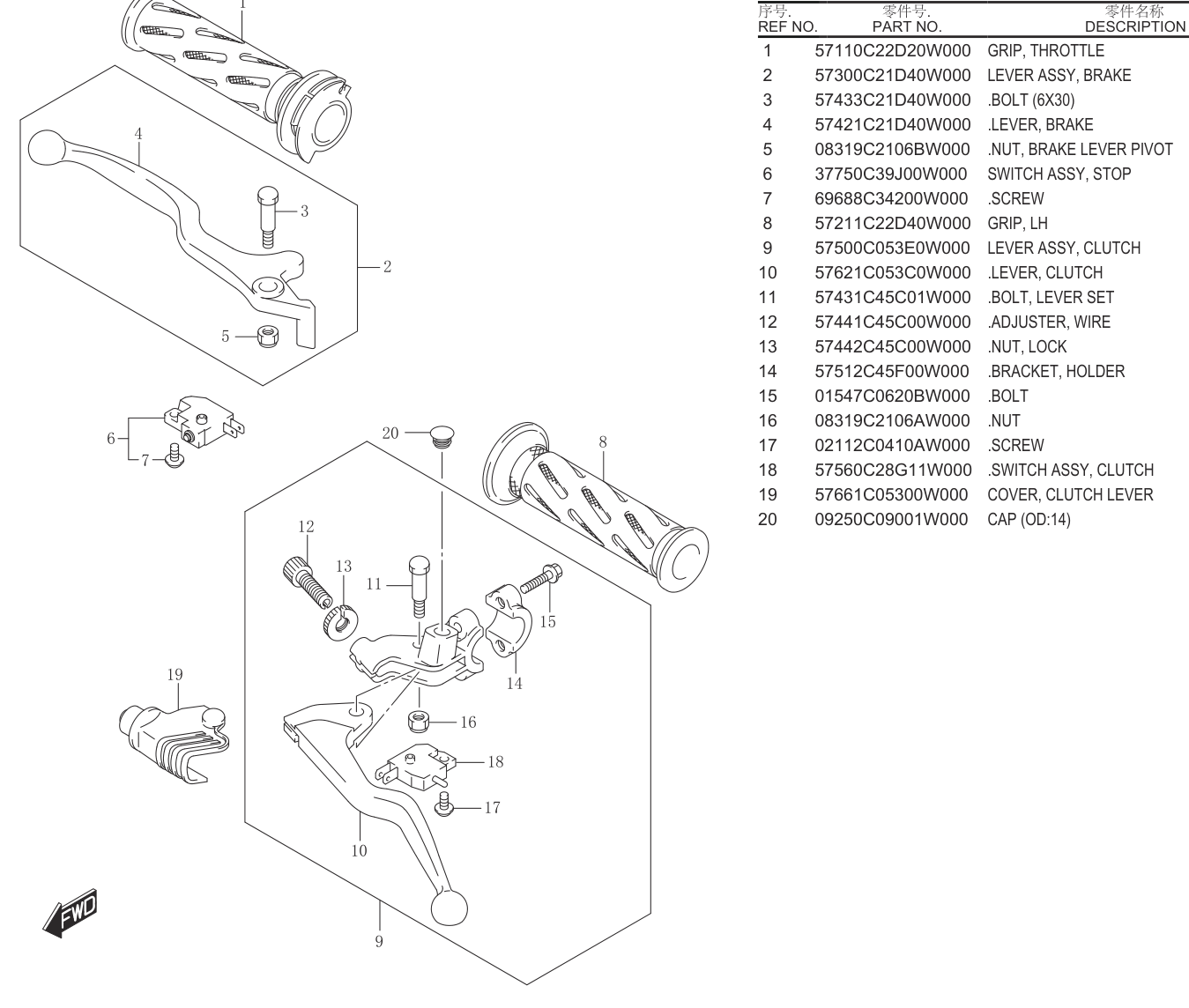

Other parts on this diagram — HANDLE LEVER.................. 53
- #1 57110C22D20W000 — GRIP, THROTTLE
- #2 57300C21D40W000 — LEVER ASSY, BRAKE
- #3 57433C21D40W000 — .BOLT (6X30)
- #4 57421C21D40W000 — .LEVER, BRAKE
- #5 08319C2106BW000 — .NUT, BRAKE LEVER PIVOT
- #6 37750C39J00W000 — SWITCH ASSY, STOP
- #7 69688C34200W000 — .SCREW
- #8 57211C22D40W000 — GRIP, LH
- #9 57500C053E0W000 — LEVER ASSY, CLUTCH
- #10 57621C053C0W000 — .LEVER, CLUTCH
- #11 57431C45C01W000 — .BOLT, LEVER SET
- #12 57441C45C00W000 — .ADJUSTER, WIRE
- #13 57442C45C00W000 — .NUT, LOCK
- #14 57512C45F00W000 — .BRACKET, HOLDER
- #16 08319C2106AW000 — .NUT
- #17 02112C0410AW000 — .SCREW
- #18 57560C28G11W000 — .SWITCH ASSY, CLUTCH
- #19 57661C05300W000 — COVER, CLUTCH LEVER
- #20 09250C09001W000 — CAP (OD:14)
