Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

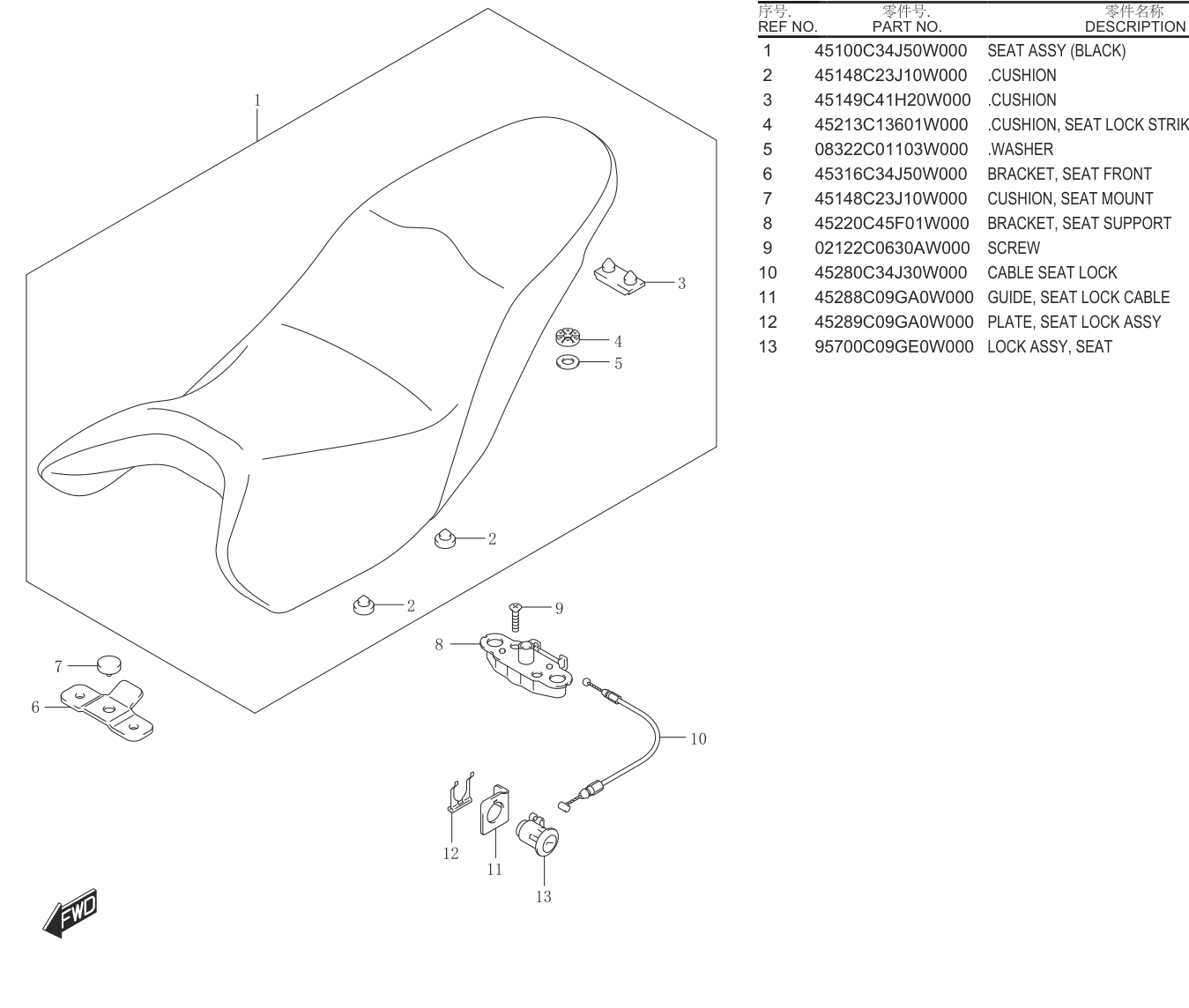

Other parts on this diagram — SEAT.......................... 62
- #1 45100C34J50W000 — SEAT ASSY (BLACK)
- #2 45148C23J10W000 — .CUSHION
- #3 45149C41H20W000 — .CUSHION
- #4 45213C13601W000 — .CUSHION, SEAT LOCK STRIKER
- #6 45316C34J50W000 — BRACKET, SEAT FRONT
- #8 45220C45F01W000 — BRACKET, SEAT SUPPORT
- #9 02122C0630AW000 — SCREW
- #10 45280C34J30W000 — CABLE SEAT LOCK 11 45288C09GA0W000 GUIDE, SEAT LOCK CABLE 1 12 45289C09GA0W000 PLATE, SEAT LOCK ASSY 1 13 95700C09GE0W000 LOCK ASSY, SEAT
