Location in exploded diagrams

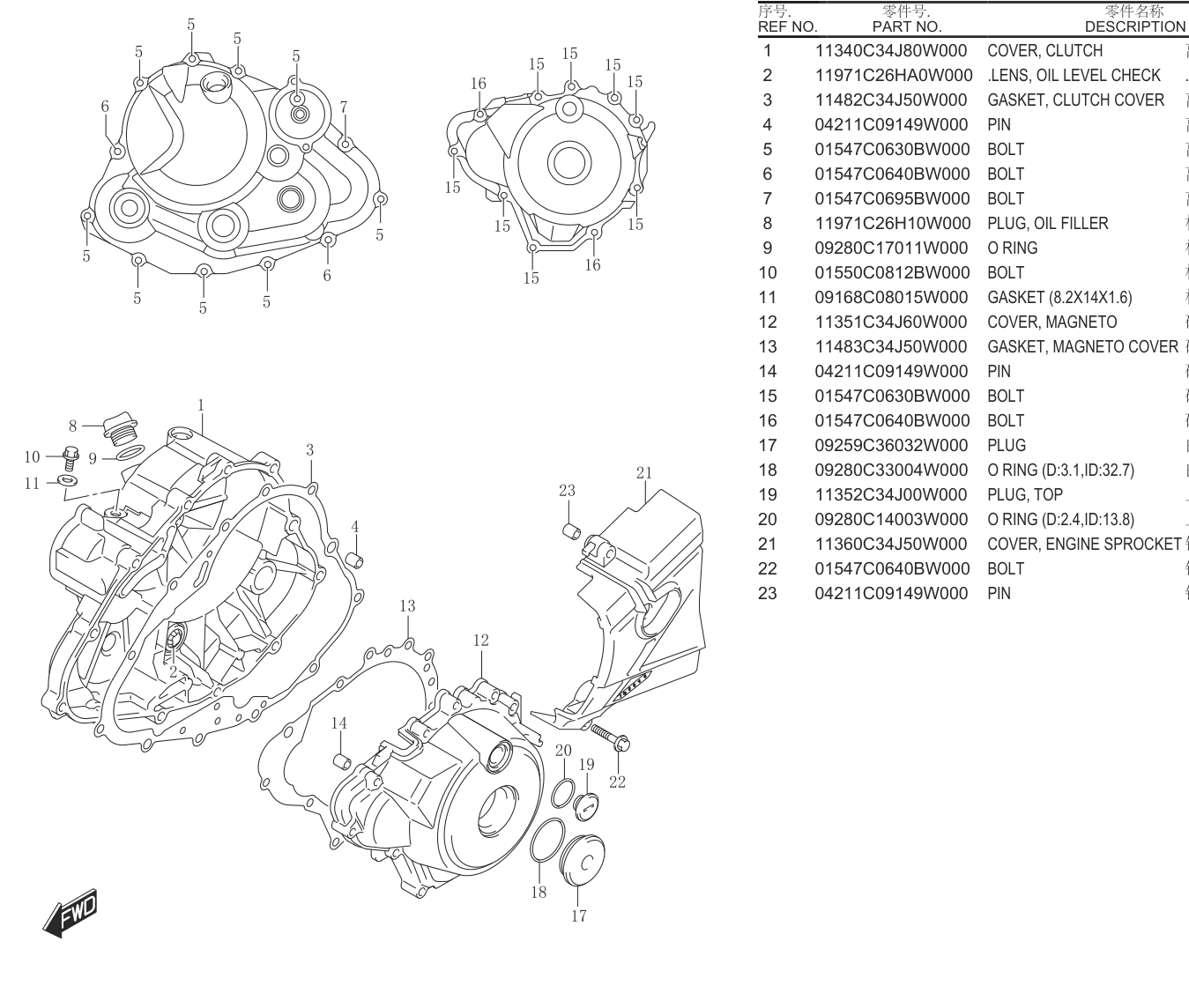

Other parts on this diagram — CRANKCASE COVER................13
- #1 11340C34J80W000 — COVER, CLUTCH
- #2 11971C26HA0W000 — .LENS, OIL LEVEL CHECK
- #3 11482C34J50W000 — GASKET, CLUTCH COVER
- #4 04211C09149W000 — PIN
- #5 01547C0630BW000 — BOLT
- #6 01547C0640BW000 — BOLT
- #8 11971C26H10W000 — PLUG, OIL FILLER
- #9 09280C17011W000 — O RING
- #10 01550C0812BW000 — BOLT
- #11 09168C08015W000 — GASKET (8.2X14X1.6)
- #12 11351C34J60W000 — COVER, MAGNETO
- #13 11483C34J50W000 — GASKET, MAGNETO COVER
- #17 09259C36032W000 — PLUG
- #18 09280C33004W000 — O RING (D:3.1,ID:32.7)
- #19 11352C34J00W000 — PLUG, TOP
- #20 09280C14003W000 — O RING (D:2.4,ID:13.8)
- #21 11360C34J50W000 — COVER, ENGINE SPROCKET
