Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

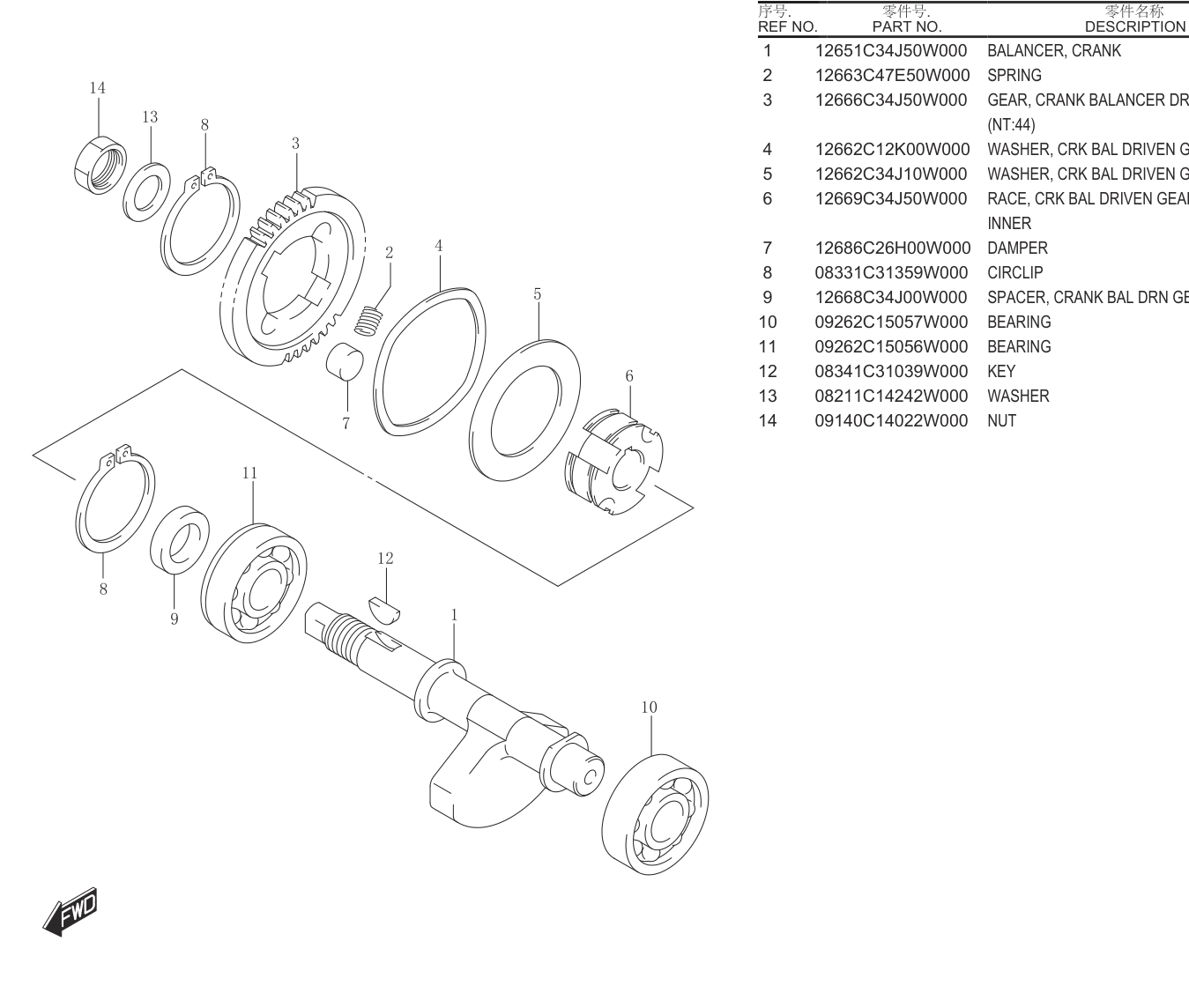

Other parts on this diagram — CRANK BALANCER.................17
- #1 12651C34J50W000 — BALANCER, CRANK
- #2 12663C47E50W000 — SPRING
- #3 12666C34J50W000 — GEAR, CRANK BALANCER DRIVEN (NT:44)
- #4 12662C12K00W000 — WASHER, CRK BAL DRIVEN GR NO.1
- #5 12662C34J10W000 — WASHER, CRK BAL DRIVEN GR NO.2
- #6 12669C34J50W000 — RACE, CRK BAL DRIVEN GEAR INNER
- #7 12686C26H00W000 — DAMPER
- #9 12668C34J00W000 — SPACER, CRANK BAL DRN GEAR
- #10 09262C15057W000 — BEARING LH
- #11 09262C15056W000 — BEARING RH
- #12 08341C31039W000 — KEY
- #13 08211C14242W000 — WASHER
- #14 09140C14022W000 — NUT
