Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

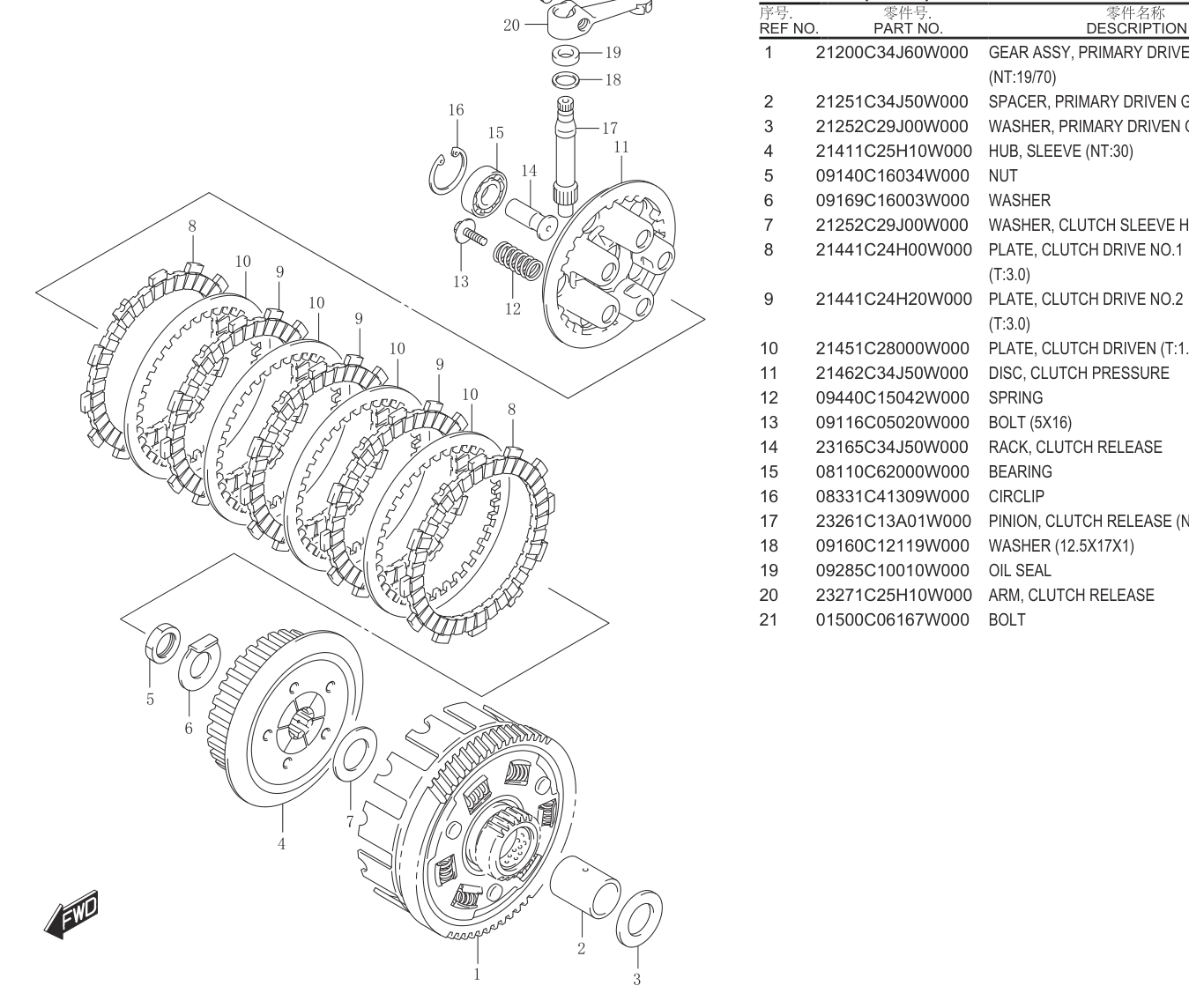

Other parts on this diagram — CLUTCH.........................25
- #1 21200C34J60W000 — GEAR ASSY, PRIMARY DRIVEN (NT:19/70)
- #2 21251C34J50W000 — SPACER, PRIMARY DRIVEN GEAR
- #3 21252C29J00W000 — WASHER, PRIMARY DRIVEN GEAR
- #4 21411C25H10W000 — HUB, SLEEVE (NT:30)
- #5 09140C16034W000 — NUT
- #6 09169C16003W000 — WASHER
- #8 21441C24H00W000 — PLATE, CLUTCH DRIVE NO.1 (T:3.0)
- #9 21441C24H20W000 — PLATE, CLUTCH DRIVE NO.2 (T:3.0)
- #10 21451C28000W000 — PLATE, CLUTCH DRIVEN (T:1.6)
- #11 21462C34J50W000 — DISC, CLUTCH PRESSURE
- #12 09440C15042W000 — SPRING
- #13 09116C05020W000 — BOLT (5X16)
- #14 23165C34J50W000 — RACK, CLUTCH RELEASE
- #16 08331C41309W000 — CIRCLIP
- #17 23261C13A01W000 — PINION, CLUTCH RELEASE (NT:12)
- #18 09160C12119W000 — WASHER (12.5X17X1)
- #19 09285C10010W000 — OIL SEAL
- #20 23271C25H10W000 — ARM, CLUTCH RELEASE
- #21 01500C06167W000 — BOLT
