2023 铃木(轻骑铃木) UY UY125 LED款 — Engine Hardware parts
CN market44 genuine parts12 diagrams
Part numbers
Every genuine engine hardware part fitted to the 2023 铃木(轻骑铃木) UY UY125 LED款. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|
| 02112C0610AW000 | SCREW | 鞍座 | Enquire | |
| 03541C0516BW000 | SCREW | REAR LEG SHIELD | Enquire | |
| 08332C1104AW000 | .E RING | REAR LEG SHIELD | Enquire | |
| 03541C0416BW000 | SCREW | REAR LEG SHIELD | Enquire | |
| 03541C0412BW000 | SCREW 14 48291C32GH0W000 CLIP,COVER & LEG FRONT 1 | FRAME COVER(UY125T-A) | Enquire | |
| 92125Q45K00W000 | SCREW,FRAME COVER PANEL | FRAME COVER(UY125T-A) | Enquire | |
| 03241C0412BW000 | SCREW,LID MAINTENANCE 14 48291C32GH0W000 CLIP,COVER & LEG FRONT 1 | FRAME COVER(UY125T-A) | Enquire | |
| 56322Q45KA0W000 | COVER,METER | HANDLE COVER | Enquire | |
| 09280C26015W000 | O RING (D:2.4,ID:25.7) | 汽缸头 | Enquire | |
| 09108-08302-000 | STUD BOLT (L:192) | 汽缸 | Enquire | |
| 01547-0690A-000 | BOLT | 箱体 | Enquire | |
| 11430C39J70W000 | COVER SET, GEAR BOX | 箱体 | Enquire | |
| 09106C05028W000 | BOLT (5X15) | 配气凸轮轴 | Enquire | |
| 09261C05005W000 | PIN (5X8) | 配气凸轮轴 | Enquire | |
| 12842-34J10-000 | .SCREW, TAPPET ADJUSTING | 配气凸轮轴 | Enquire | |
| 01550-0512A-000 | BOLT | 配气凸轮轴 | Enquire | |
| 13824-29J00-000 | .CLIP | 空滤器 | Enquire | |
| 03541C0516AW000 | SCREW | 冷却风扇 | Enquire | |
| 31170C12K00W000 | .WASHER SET | 启动电机 | Enquire | |
| 31264C05530W000 | .O RING | 启动电机 | Enquire | |
| 02162-0612A-000 | BOLT | 电器件 | Enquire | |
| 33510-04H10-000 | CAP ASSY, SPARK PLUG | 电器件 | Enquire | |
| 33541-42J00-000 | SEAL, SPARK PLUG | 电器件 | Enquire | |
| 09407C10404W000 | CLAMP | 速度表 | Enquire | |
| 18567-10K00-000 | HOSE, CSTR AIR | 燃油系统 | Enquire | |
| 18572-10K00-000 | CLAMP, PURGE HOSE | 燃油系统 | Enquire | |
| 09169C06082W000 | WASHER 9 92223C33GA0W000 CAP, HELMET BOX CENTER BOLT 1 | 头盔箱 | Enquire | |
| 01550C0610AW000 | BOLT | 车把组合 | Enquire | |
| 01547-0620A-000 | .BOLT | 握把 | Enquire | |
| 02112C0510AW000 | SCREW | 汽缸头盖 | Enquire | |
| 02112C0612AW000 | SCREW | 汽缸头 | Enquire | |
| 16526C09J00W000 | PLUG, OIL STRAINER | 机油泵 | Enquire | |
| 17136-20E00-000 | PLUG, COWLING FAN | 冷却风扇 | Enquire | |
| 02122C0616AW000 | SCREW | 变速器 | Enquire | |
| 09137C05004W000 | SCREW (5X8) | 启动电机 | Enquire | |
| 09401C09L02W000 | CLIP, EVAP HOSE NO.2 | 燃油系统 | Enquire | |
| 09401C10L03W000 | CLIP, EVAP HOSE NO.1 | 燃油系统 | Enquire | |
| 02142-0510B-000 | SCREW | 车把组合 | Enquire | |
| 03541-0620A-000 | SCREW | REAR FENDER | Enquire | |
| 09160-08173-000 | WASHER (8.5X18X2.3) | 汽缸头 | Enquire | |
| 13826-39J01-000 | .CLAMP | 空滤器 | Enquire | |
| 09407C16402W000 | CLIP | 空滤器 | Enquire | |
| 31134C12K00W000 | .SCREW | 启动电机 | Enquire | |
| 03241C0516BW000 | SCREW | 头盔箱 | Enquire | |
Exploded diagrams — Engine Hardware
汽缸头 · 4
配气凸轮轴 · 4
启动电机 · 4
燃油系统 · 4

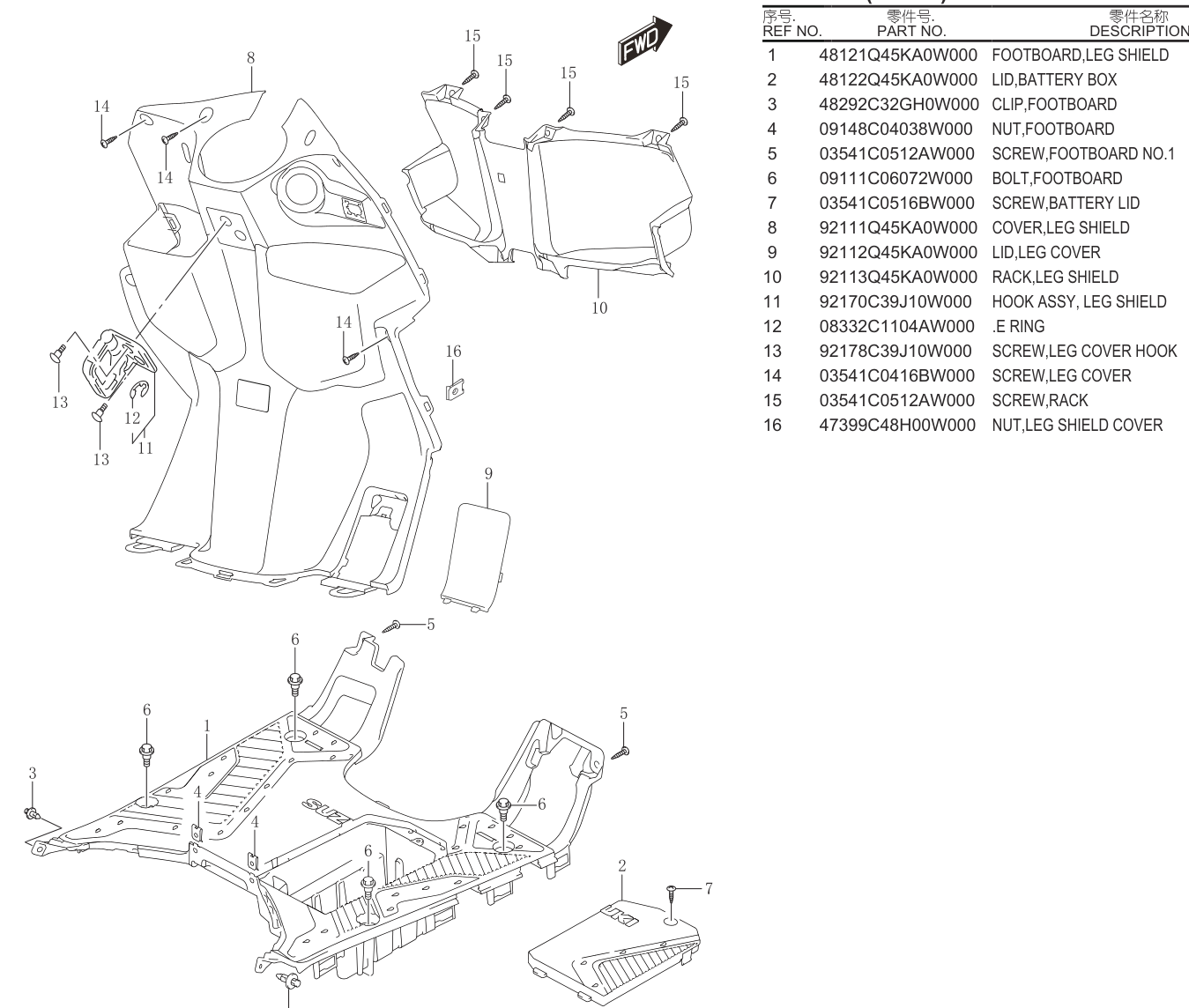

REAR LEG SHIELD · 3
FRAME COVER(UY125T-A) · 3

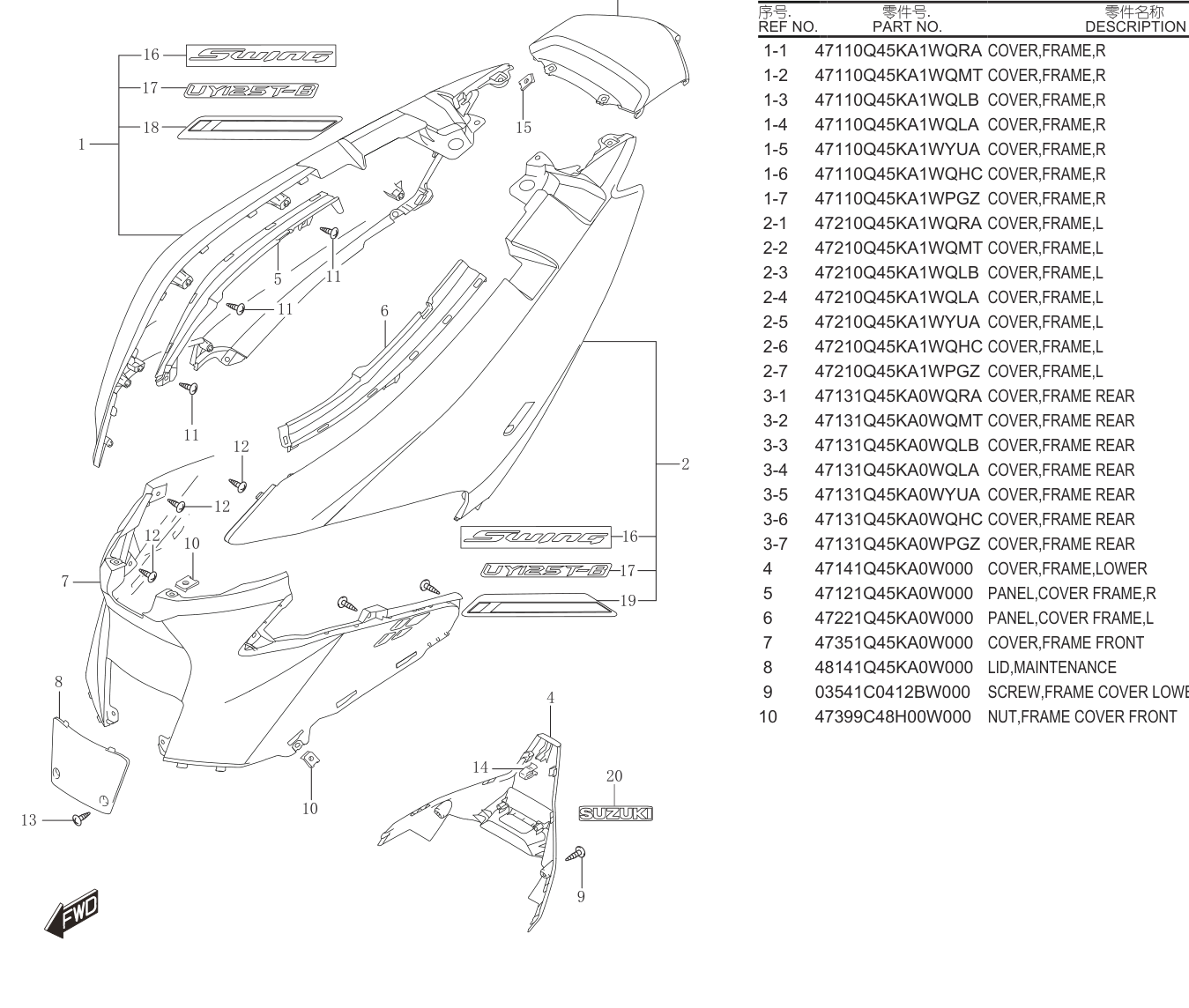

FRAME COVER(UY125T-B) · 3
箱体 · 3
空滤器 · 3

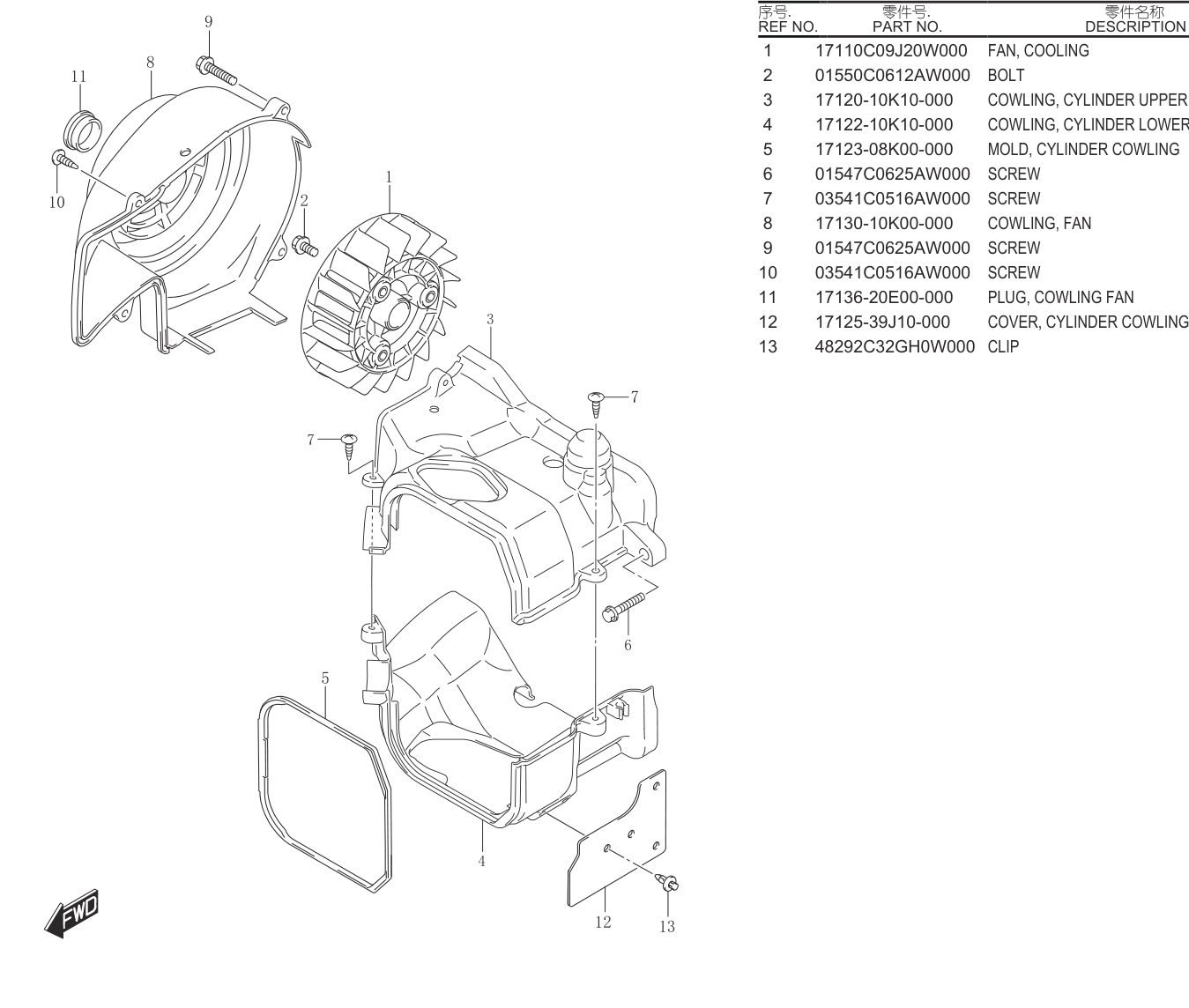

冷却风扇 · 3
电器件 · 3

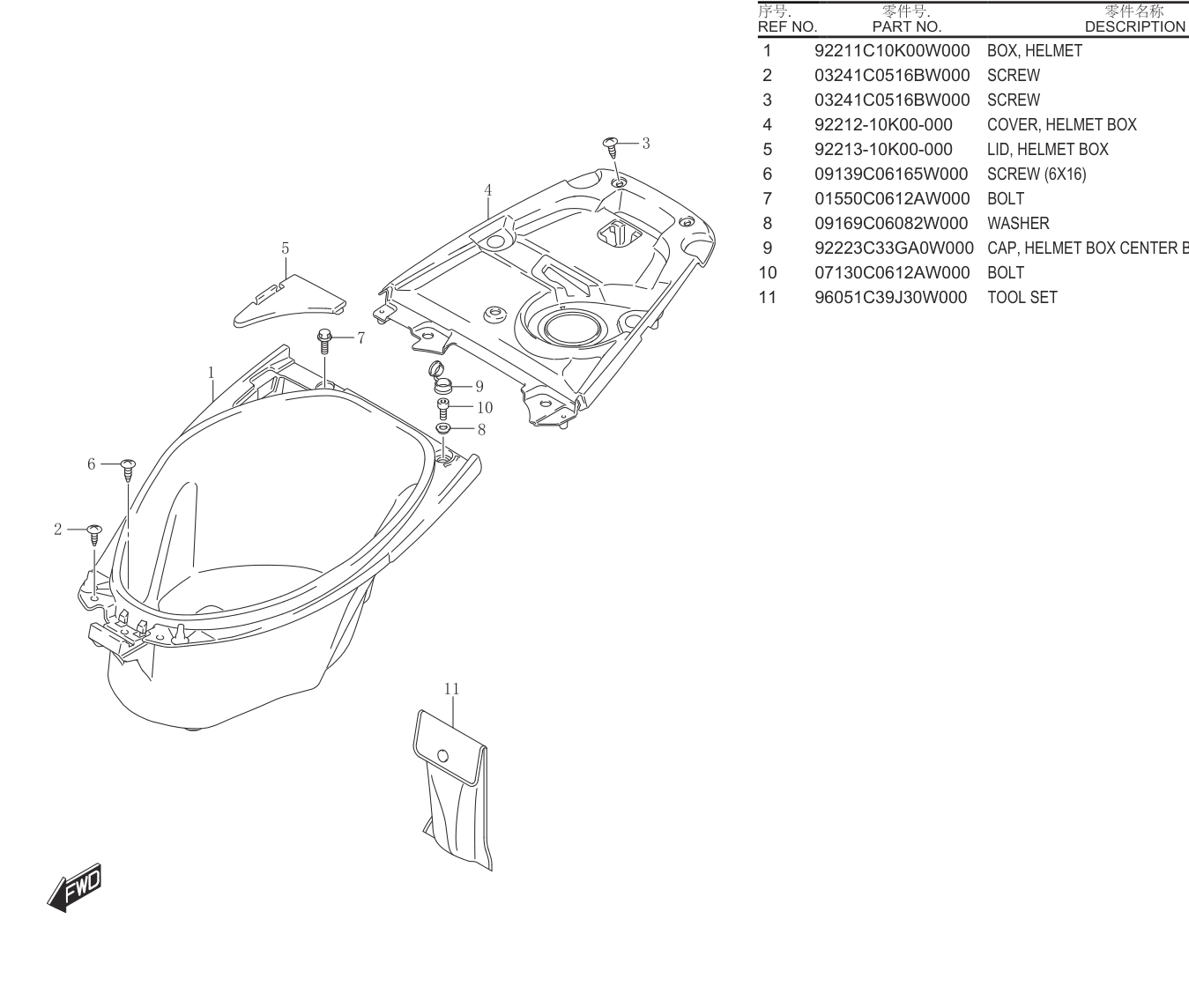

头盔箱 · 3Browse the catalogue interactively
Open Engine Hardware in the interactive 2023 铃木(轻骑铃木) UY UY125 LED款 catalogue to drill into diagrams, check availability and add parts to your cart.
