Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 12.96 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 11.99 | listing | cfmoto.quadzillaparts.co.uk |
Location in exploded diagrams

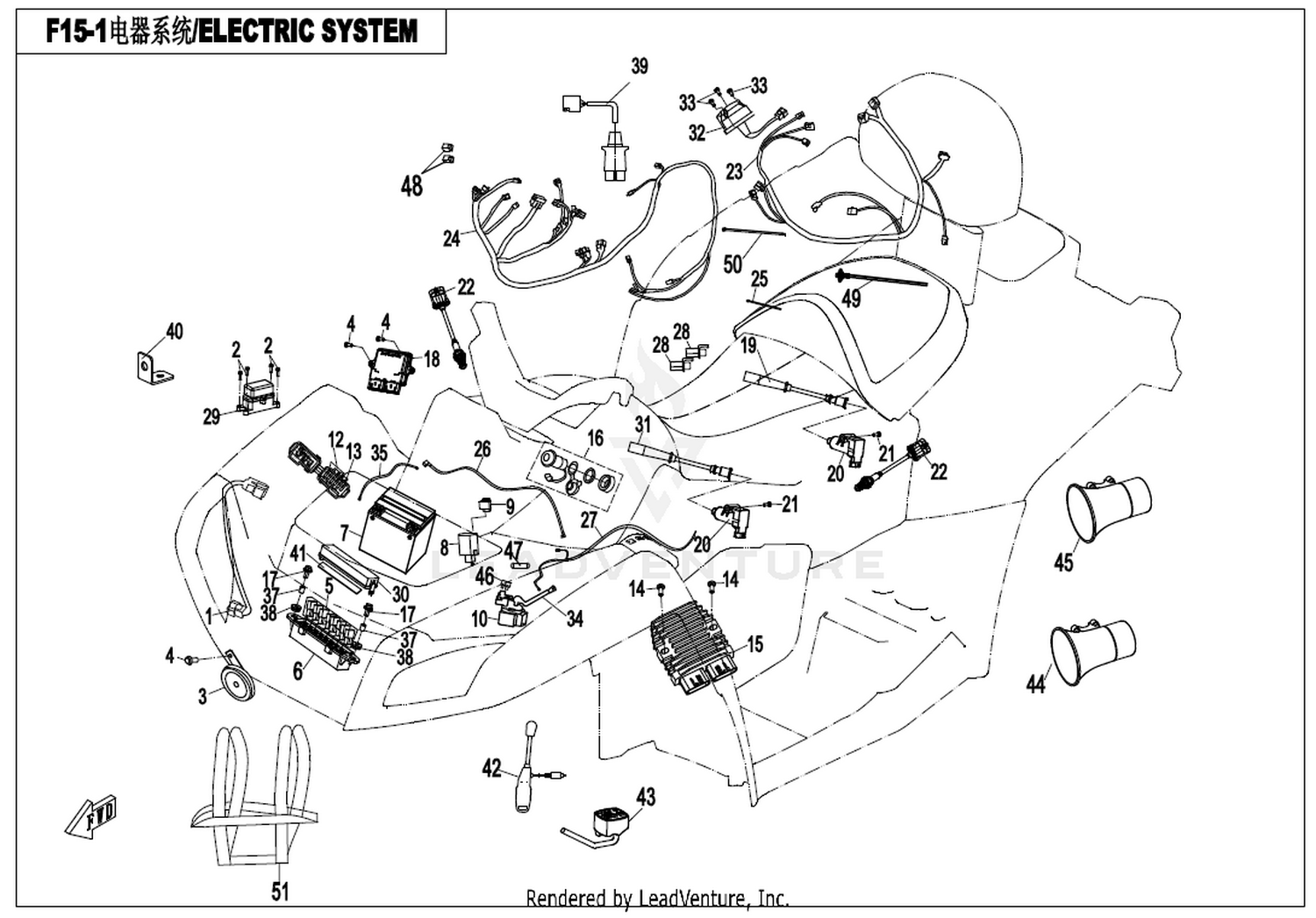

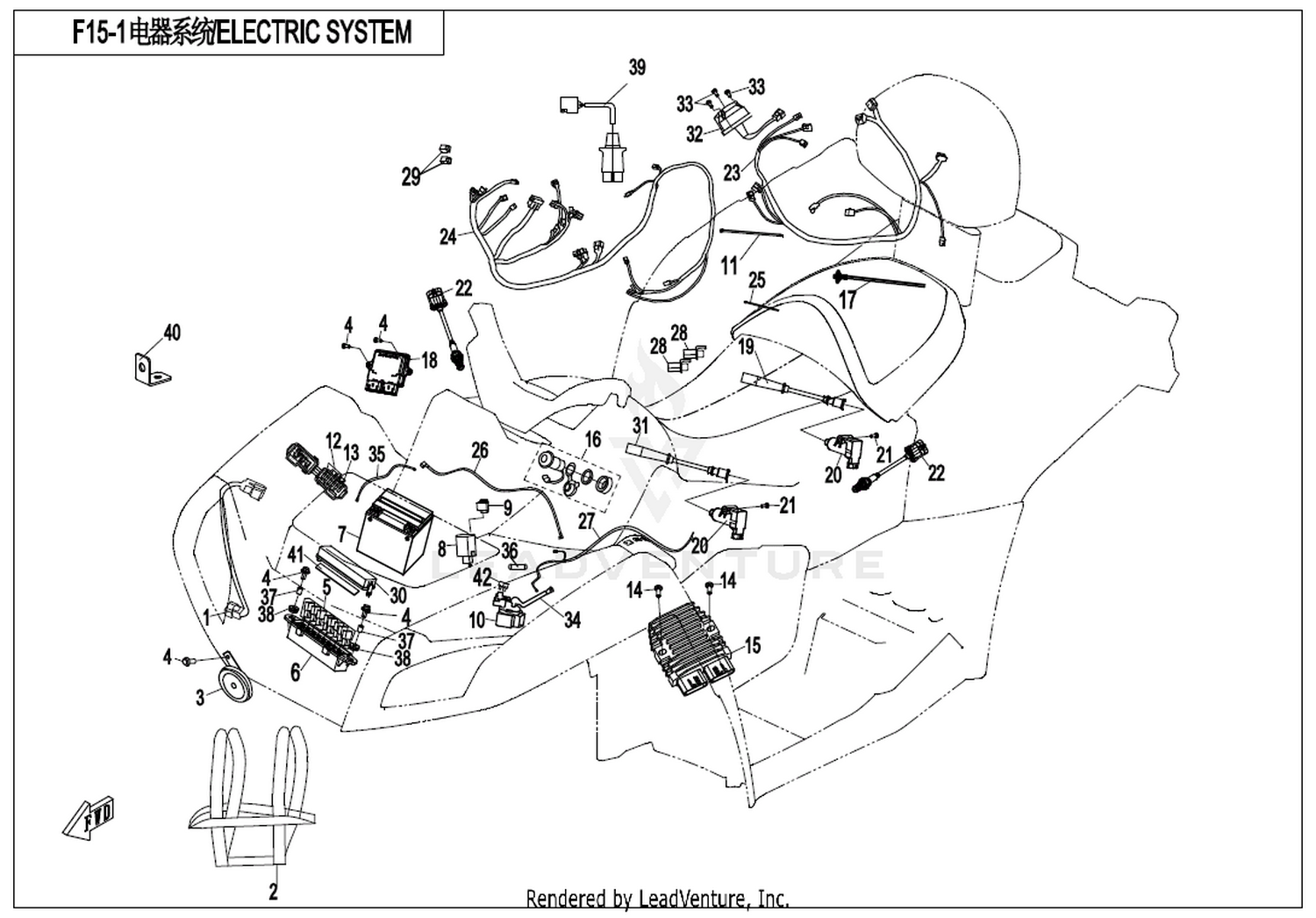

Other parts on this diagram — Electric System
- #07 30006-060025810 — Bolt M6×25
- #07 31023004 — Battery Dynavolt,12V 32Ah
- #23 806A-151302 — Fuse 10A 10A
- #18 0800-174000 — Ecu Delphi Mt05.3
- #23 7020-150300-1000 — Efi Auxiliary Cable, X8 Sumitomo Plug
- #26 7020-150220 — Cable, Starting Motor
- #32 7020-150800-1000 — Trailer Power Socket Sumitomo Plug
- #22 0180-015003 — Rubber Sleeve
- #44 8030-151640 — Speaker
- #11 9010-150004 — Tie Band
- #03 5020-150700 — Electric Horn
- #08 8010-151000 — Flasher
- #06 30006-060030810 — Bolt M6×30
- #18 0800-174000-3000 — Ecu Assy Mt05.2
- #23 7020-150300 — Efi Auxiliary Cable, X8
- #27 7020-150210 — Negative Cable, Long
- #32 9010-151010-1000 — Trailer Power Socket Lof
- #39 9010-151020 — Trailer Power Adaptor Seat
- #45 8030-151650 — Speaker
- #49 9060-152100 — Battery Belt
- #08 9GQV-161000-7000 — Flasher
- #15 01AA-177000 — Regulator 330W
- #19 0800-179100-10000 — High Voltage Cable Assy 1
- #24 7020-150100-30001 — Main Cable Eps
