Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 207.66 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 191.99 | listing | cfmoto.quadzillaparts.co.uk |

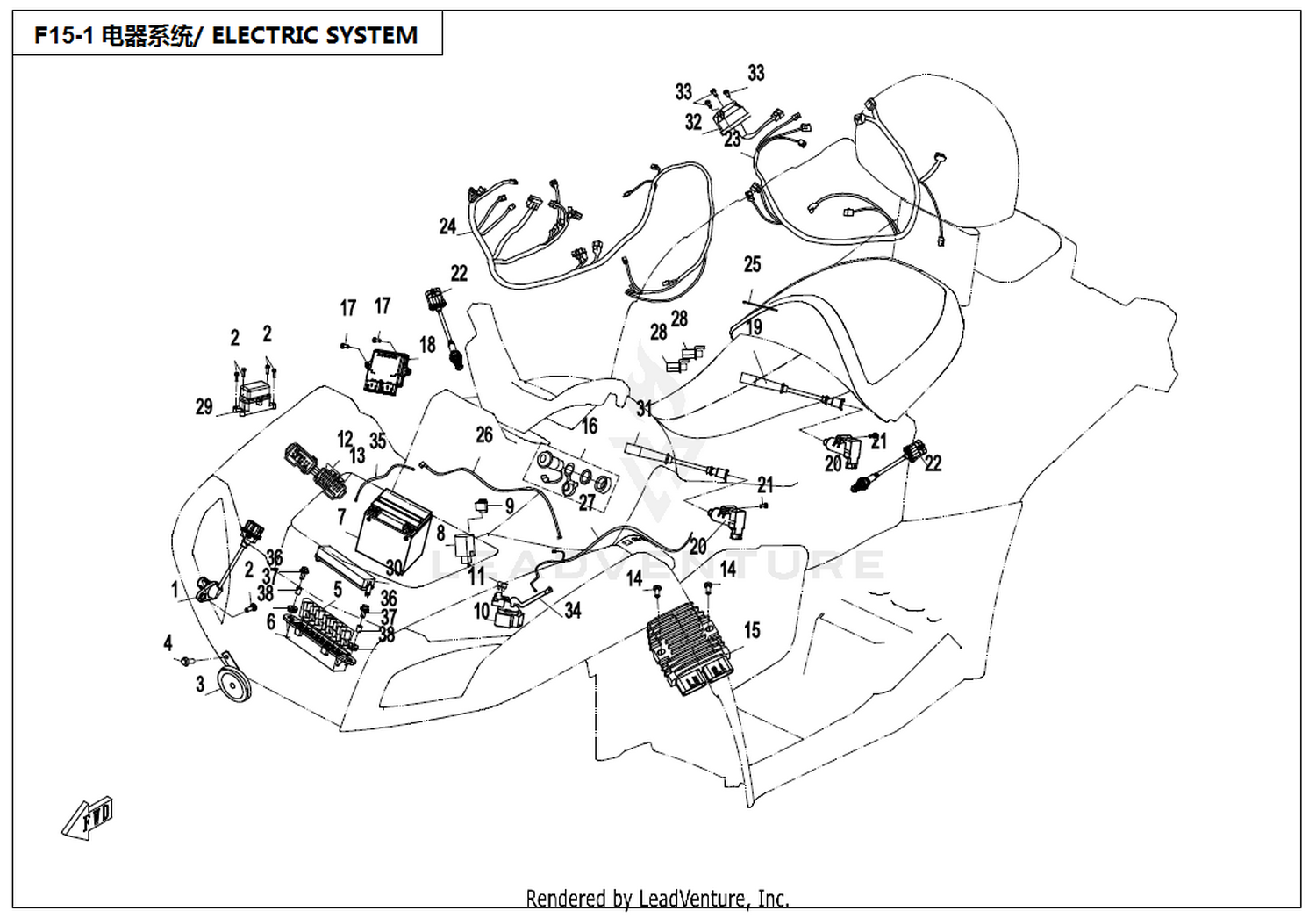

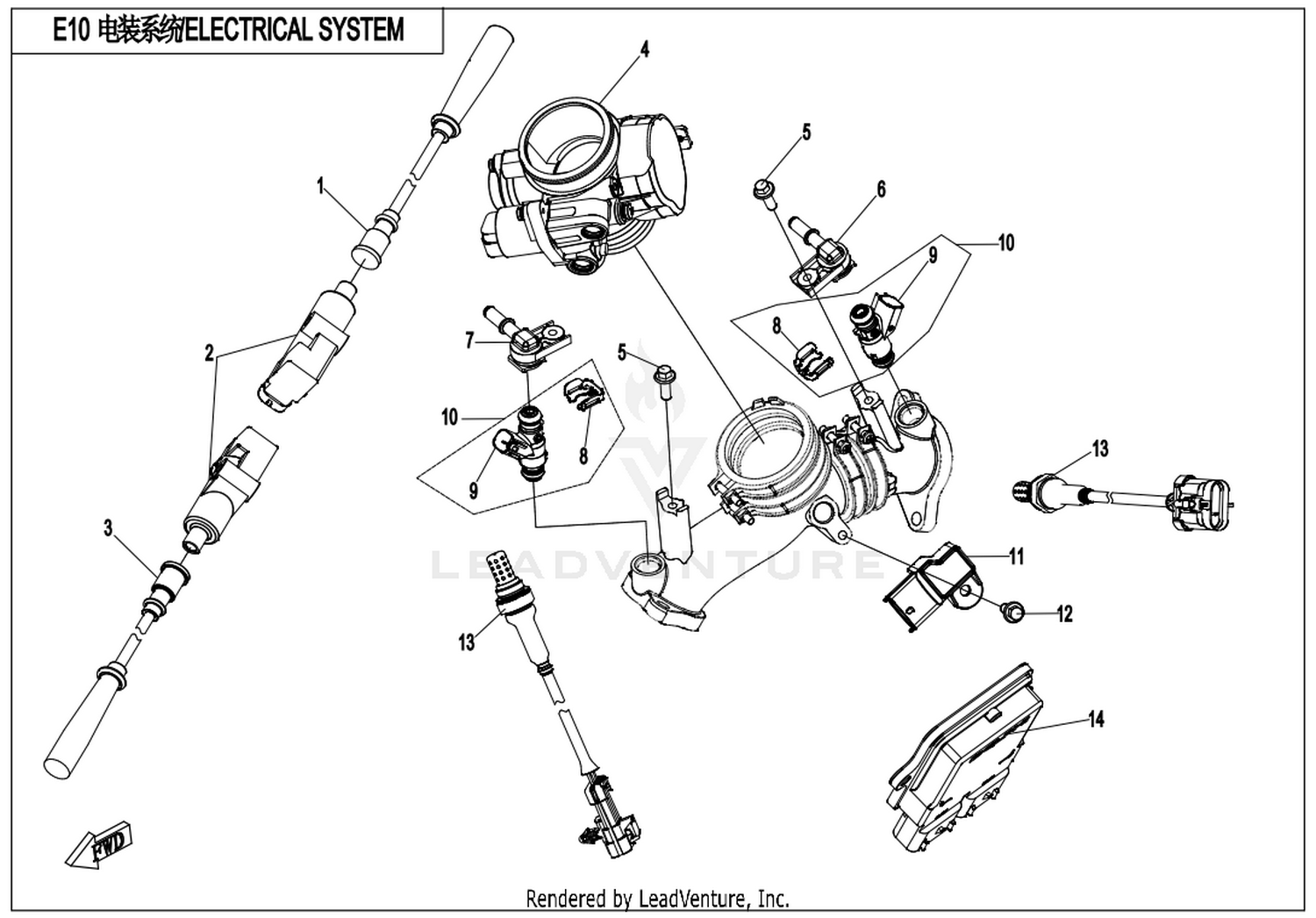

Location in exploded diagrams
Other parts on this diagram — Electric System
- #31 0800-179200-10000 — High Voltage Cable Assy 2
- #09 0800-170002 — Fuel Injector Cap 1
- #04 0800-173000-5000 — Throttle Body Assy Limited Power, No Fuel Evaporation System
- #10 0800-171000 — Fuel Injector Assy
- #18 0800-174000-3000 — Ecu Assy Mt05.2
- #22 0010-080013-0010 — Bolt M6X22 Galvanized Trivalent Chromium
- #11 0800-171100 — Fuel Injector
- #03 0800-173003 — Seal Cover
- #06 080V-170020-10000 — Fuel Injector Hose Bracket 2
- #01 0800-175000 — Air Intake Temp. & Pressure Sensor
- #19 0800-179100-10000 — High Voltage Cable Assy 1
- #07 080V-170010-10000 — Fuel Injector Hose Bracket 1
- #06 0010-090005-0010 — Bolt M6X16 Galvanized Trivalent Chromium
- #20 0800-178000 — Ignition Coil
- #08 0800-170003 — Fuel Injector Cap 2
- #22 0800-176000 — Oxygen Sensor
