7020-150210NEGATIVE CABLE, STARTER MOTOR — Genuine CF MOTO Part
CF MOTOoem
7020-150210 - NEGATIVE CABLE, STARTER MOTOR #9
Verified fitment — 14 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (13)
Australia (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 20.10 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 18.59 | listing | cfmoto.quadzillaparts.co.uk |

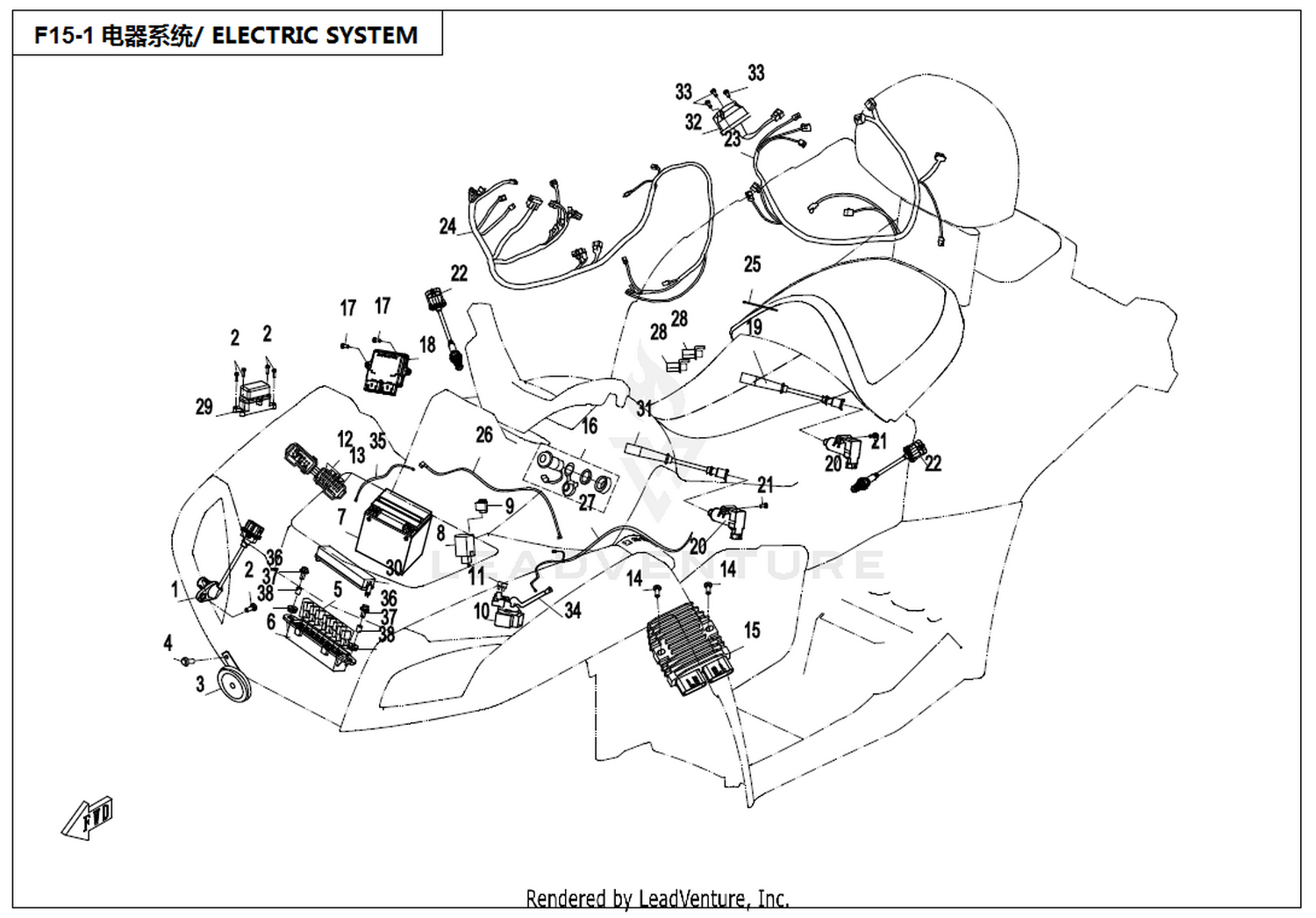

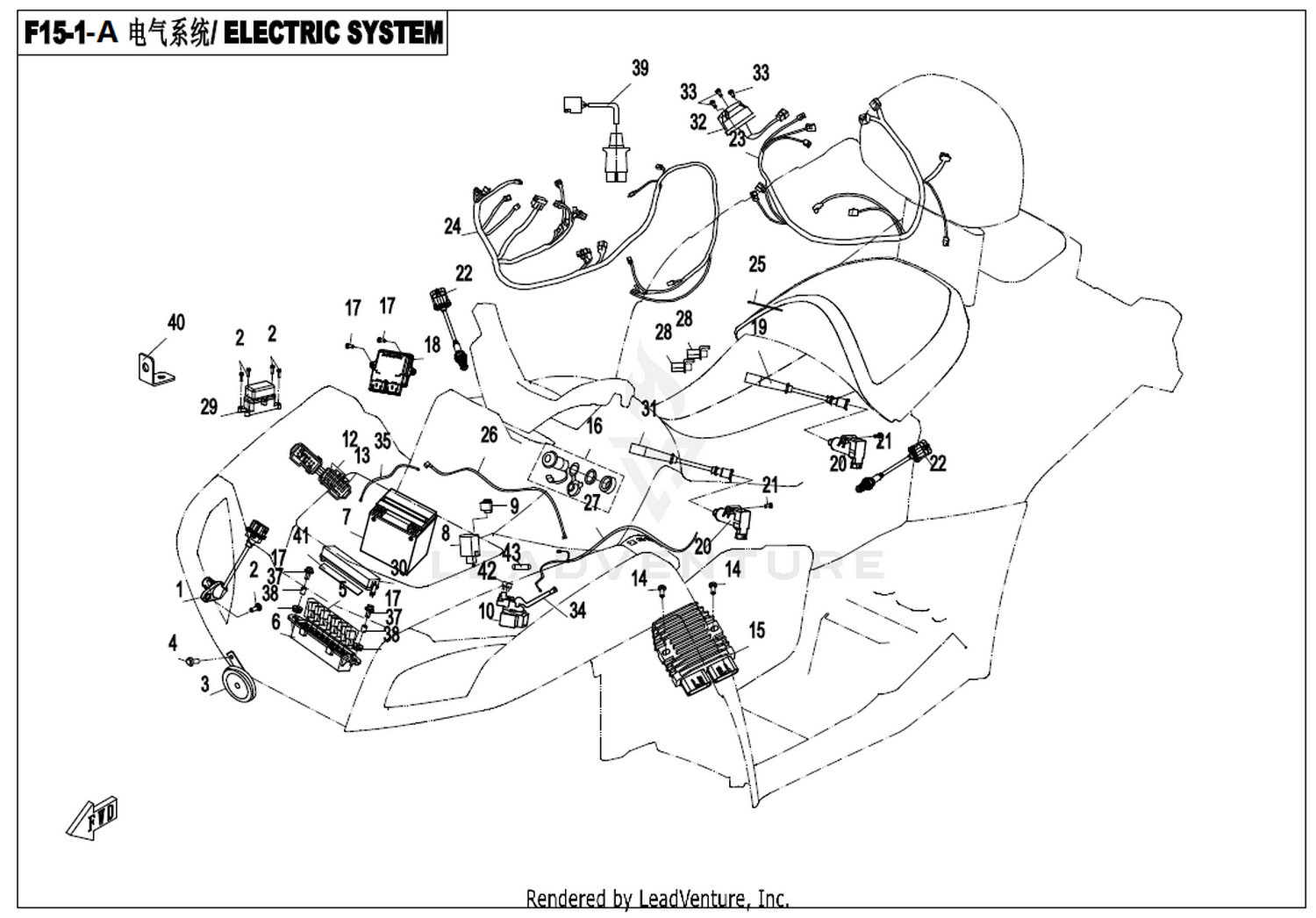

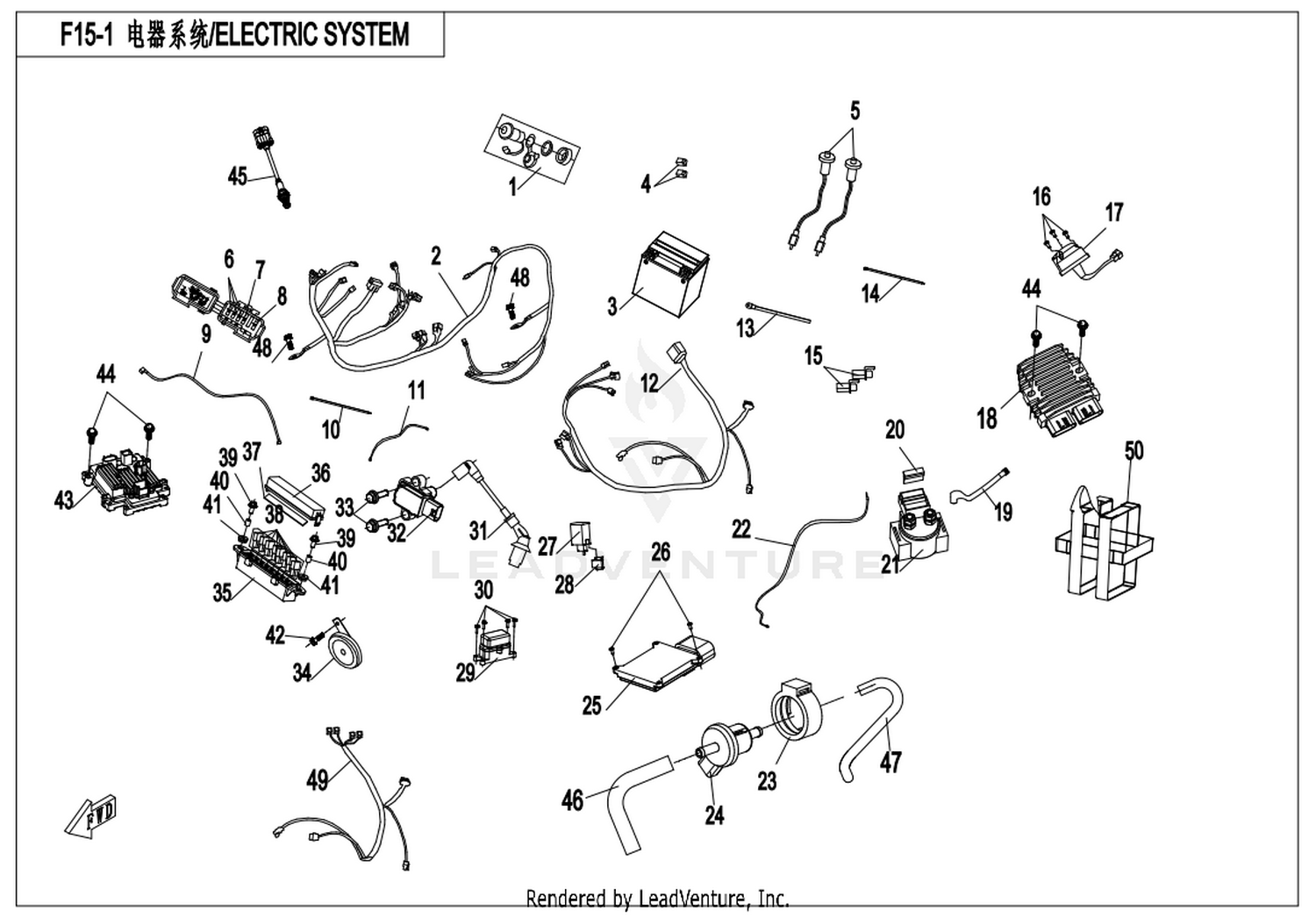

Location in exploded diagrams
Other parts on this diagram — ELECTRIC SYSTEM
- #1 9GQ0-150500-10000 — OUTPUT SEAT,POWER Replacing: 9GQ0-150500 - OUTPUT SEAT, POWER
- #2 9CRB-150100-20000 — MAIN CABLE
- #3 31023004 — BATTERY DYNAVOLT GHD32HL-BS 12V 30A/H Replacing: 31023000 - BATTERY DYNAVOLT DTX30L-BS
- #4 9GQA-001001 — INLET PIPE, STEPPER MOTOR SEAT
- #5 A010-170300-2000 — ADJUSTING BUTTON, CLOCK
- #6 806A-151305 — FUSE (15A) Replacing: 806A-151303 - FUSE
- #7 806A-151302 — FUSE 10A
- #8 8080-151301 — FUSE (5A)
- #10 8010-150003 — TIE BAND 5X250
- #11 9CR6-150240 — NEGATIVE CABLE, BATTERY
- #12 9CRB-150300 — AUXILIARY CABLE, EFI
- #13 30105-050030410 — SCREW M5X30
- #14 0010-021019-0010 — BOLT M6X12
- #15 30601-117010 — CLAMP D17
- #16 9GQA-001002 — EXHAUST PIPE,STEEPING MOTOR
- #17 7020-150800 — POWER SOCKET, TRAILER
- #18 0800-177000-10000 — REGULATOR
- #19 7020-150230 — POSITIVE CABLE, BATTERY
- #20 9010-150301 — FUSE
- #21 9CR6-150310 — STARTER RELAY
- #22 9CR6-150220 — CABLE,STARTING MOTOR
- #23 9GQA-030010 — BRACKET,STEEPING MOTOR
- #24 0GQ0-175000 — STEPPER MOTOR
- #25 0GS0-174000 — ECU
