Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)
Location in exploded diagrams

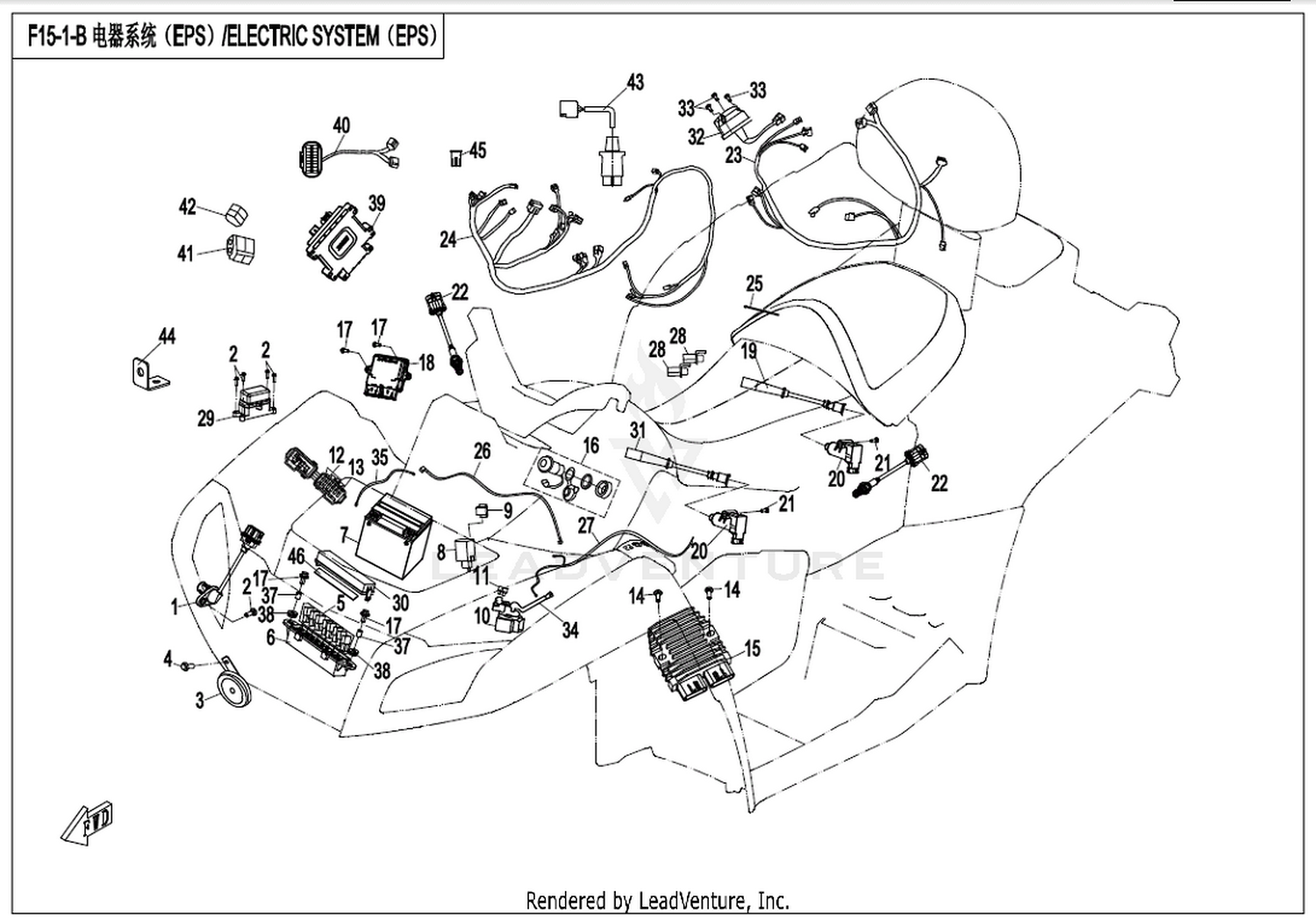

Other parts on this diagram — Electric System (Eps)
- #06 7020-040411 — Relay Box
- #24 806A-151305 — Fuse 15A 15A
- #04 30006-060016870 — Bolt M6×16
- #22 0800-176000 — Oxygen Sensor
- #26 7020-150220 — Cable, Starting Motor
- #32 7020-150800-1000 — Trailer Power Socket Sumitomo Plug
- #39 7020-151000 — Eps Controller
- #24 7020-150103 — Fuse 60A 60A
- #01 7020-150401 — Speed Sensor Adaptor Wire
- #07 31023004 — Battery Dynavolt,12V 32Ah
- #23 806A-151302 — Fuse 10A 10A
- #18 0800-174000-3000 — Ecu Assy Mt05.2
- #23 7020-150300 — Efi Auxiliary Cable, X8
- #27 7020-150210 — Negative Cable, Long
- #29 30105-050030410 — Screw M5X30
- #33 7020-151010 — Eps Link Cable
- #41 7020-040414 — Rubber Washer, Relay Box Cover
- #13 30006-060025840 — Needs Description
- #08 8010-151000 — Flasher
- #15 0800-177000-10000 — Regulator High Power, Chinese
- #18 0800-174000 — Ecu Delphi Mt05.3
- #23 7020-150300-1000 — Efi Auxiliary Cable, X8 Sumitomo Plug
- #28 6090-150500 — Diode, Starter
- #34 7020-150230 — Battery Positive Wire
