Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

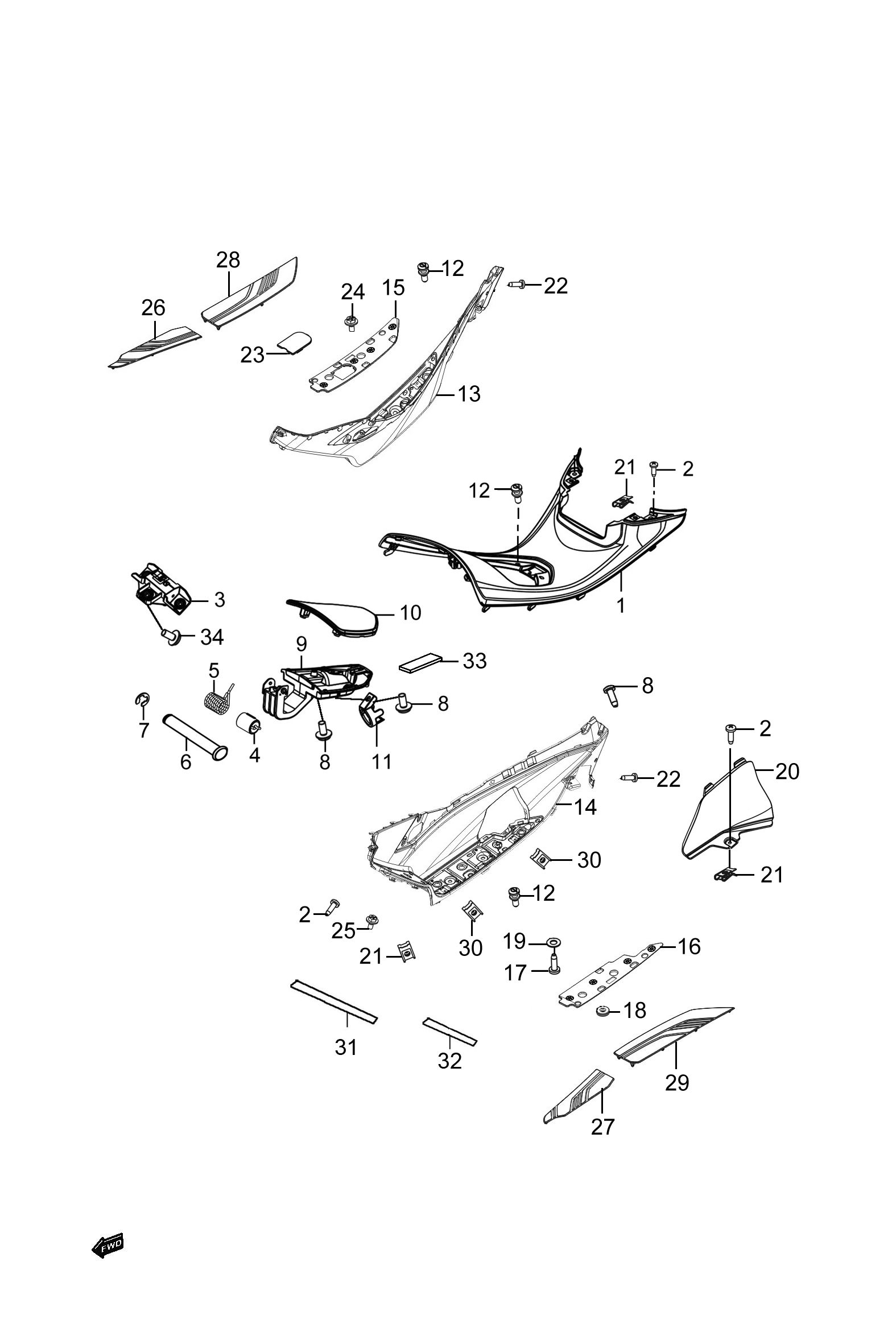

Other parts on this diagram — 脚踏板组
- #18 09320-10073-000 — 减震垫
- #19 09181H05001H000 — 垫圈
- #20 48127H7R000H000 — 火花塞保养盖
- #21 09148-05077-000 — 锁片螺母
- #22 02142-0508A-000 — 十字槽球头小螺钉
- #23 48124H7R000H000 — 副水箱保养盖
- #24 09111-06102-000 — 轴肩螺栓
- #25 09136H06153H000 — 螺栓组合
- #1 47351H7R000H000 — 前中心盖
- #2 03241-0516B-000 — 十字槽自攻螺钉
- #3 48128H7R001H000 — 油箱口盖板固定板
- #4 48314H7R000H000 — 加油口盖板阻尼器组成
- #5 09448H08001H000 — 扭转弹簧
- #6 09208H04001H000 — 开槽销
- #7 09383H03001H000 — E形环
- #8 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
- #9 48129H7R000H000 — 油箱口盖板内衬板
- #11 47375H7R000H000 — 油箱盖罩
- #12 48278H7R000H000 — 脚踏板减震垫
- #13 48121H7R000H000 — 右脚踏板
- #14 48131H7R000H000 — 左脚踏板
- #26 43612H7R000H000 — 右踏垫
- #27 43712H7R000H000 — 左踏垫
- #34 09136H04003H000 — 平垫螺钉组合
