09136H06153H000螺栓组合 — Genuine HAOJUE Part

HAOJUEoem

Check availability / enquire

Verified fitment — 23 vehicles

Fitment is sourced from official parts catalogues, listed per catalogue market.

China (23)

Location in exploded diagrams

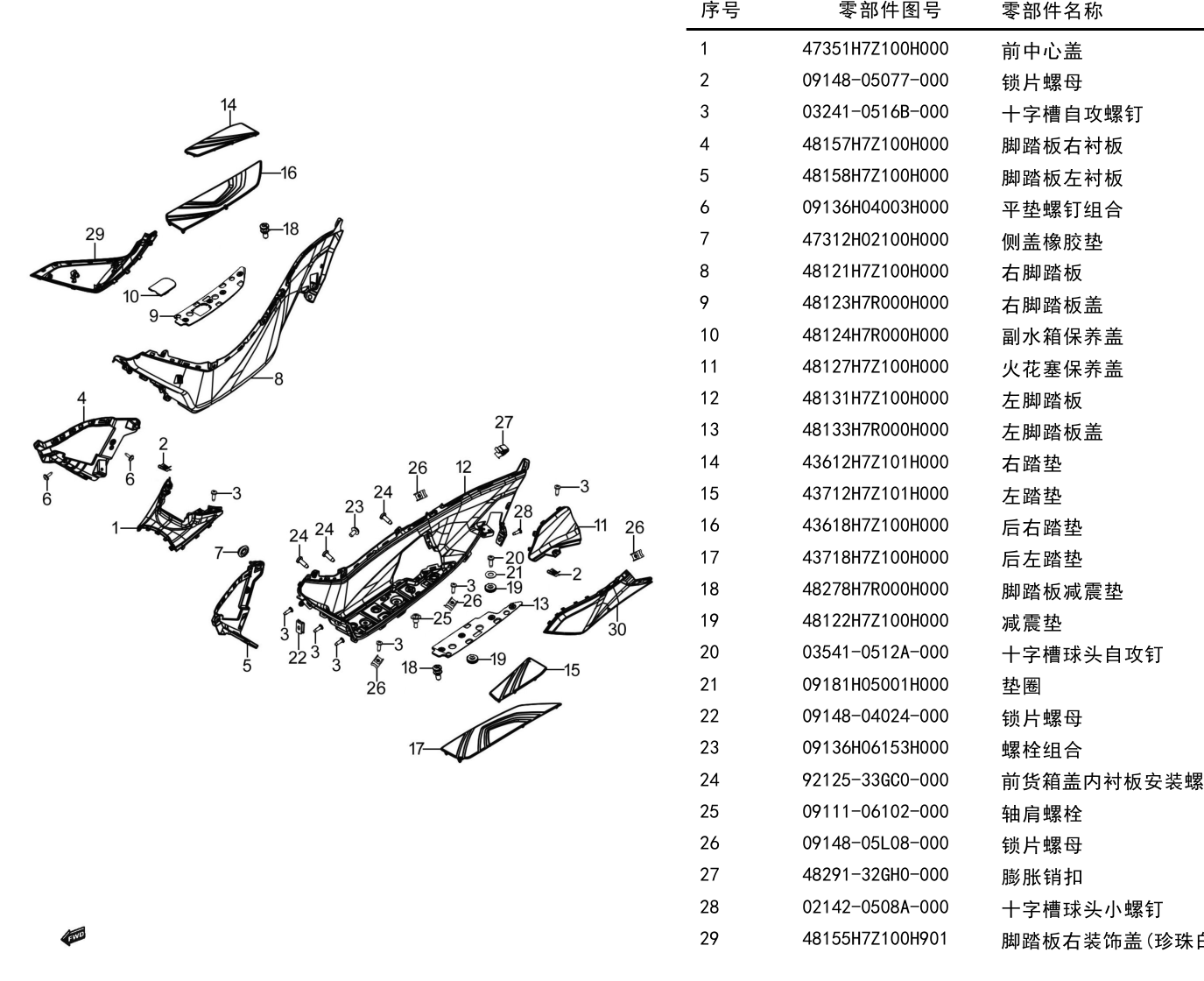

脚踏板组
脚踏板组 — position 25 · UHR150新款HJ150T-28A

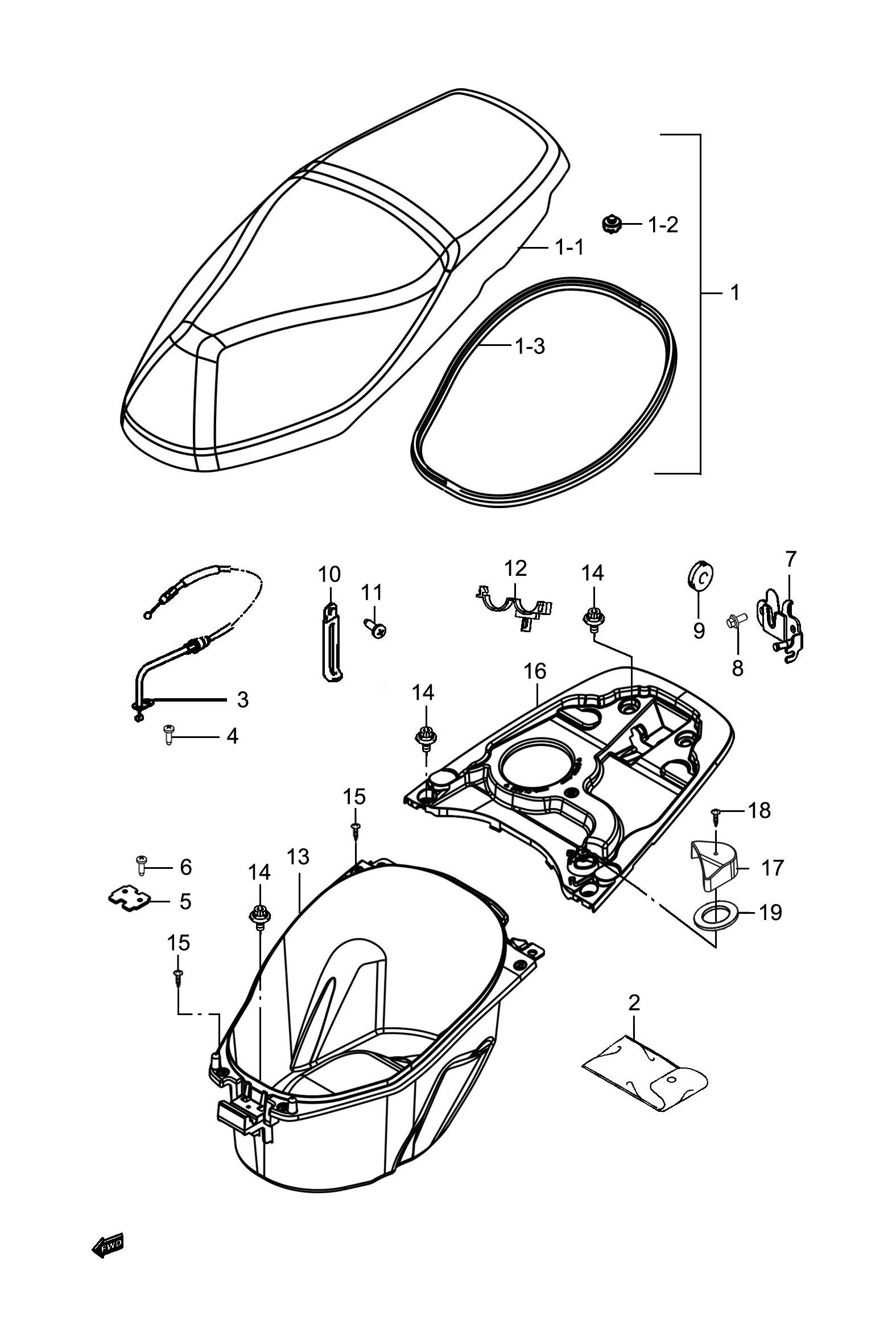

座垫组
座垫组 — position 14 · UCR125HJ125T-31图册

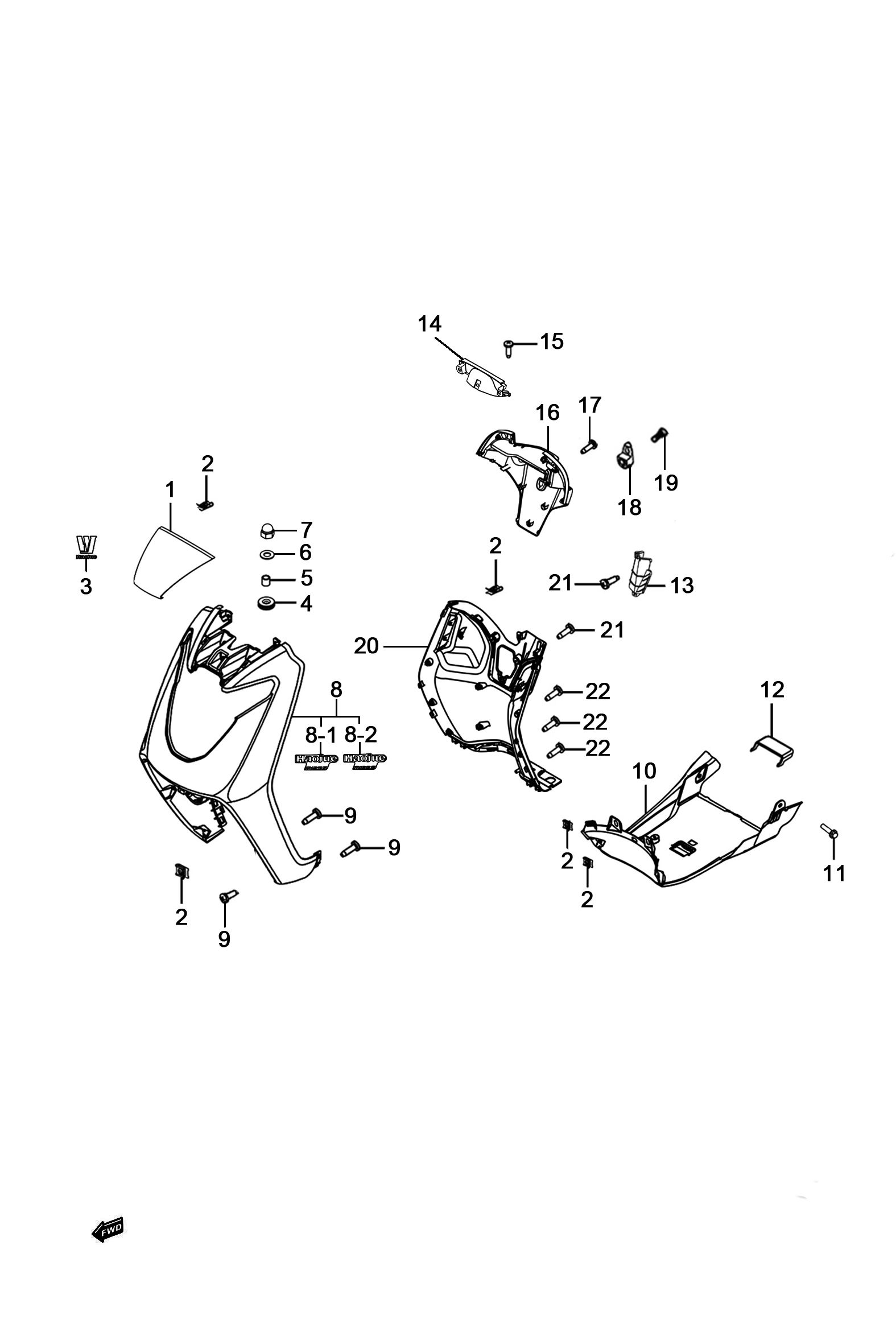

护罩组
护罩组 — position 28 · UHR150新款HJ150T-28A

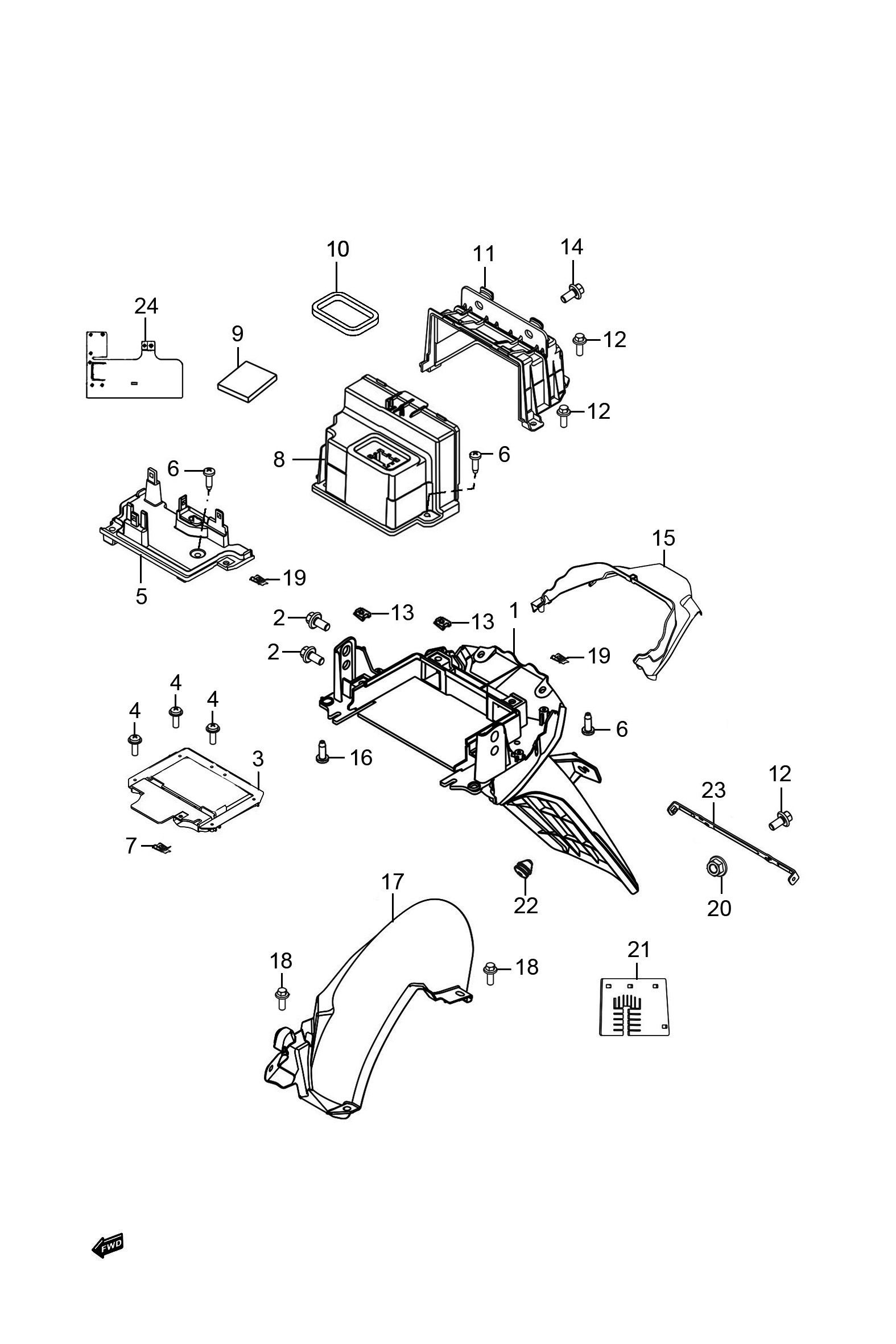

后挡泥板组
后挡泥板组 — position 2 · UHR150新款HJ150T-28A

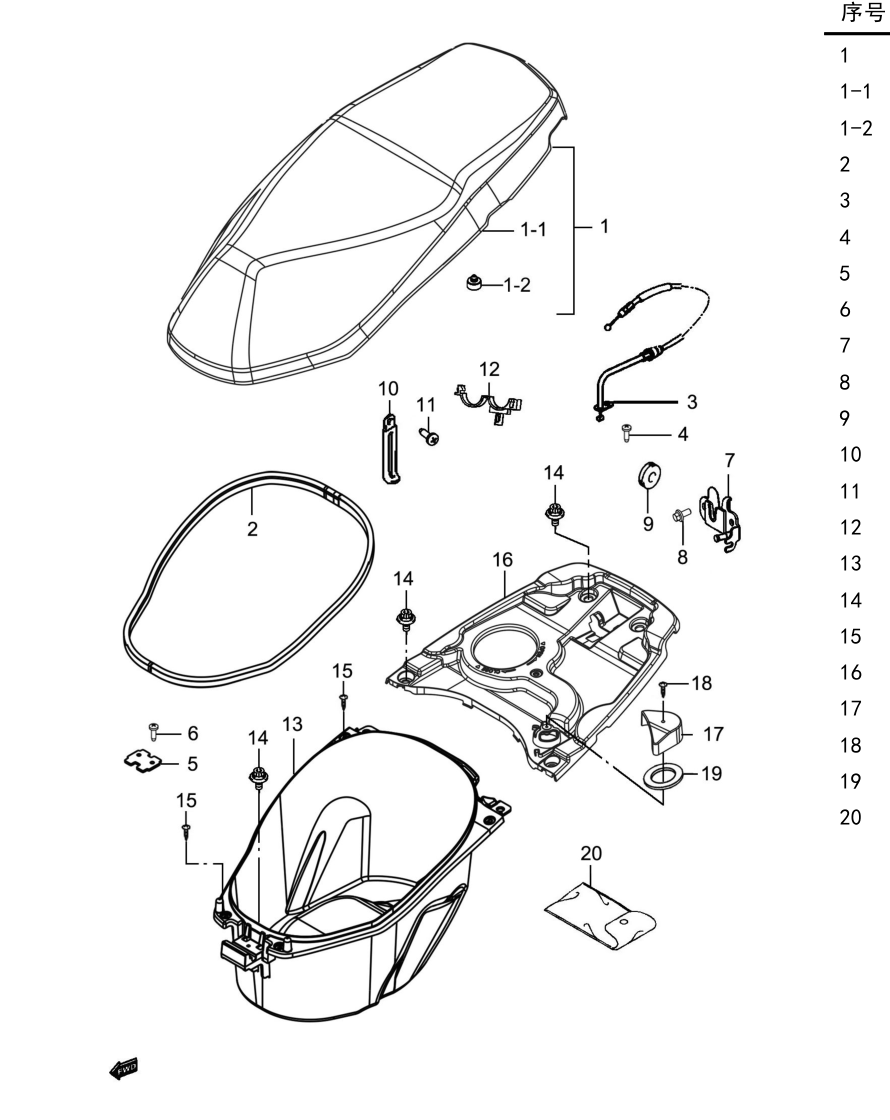

座垫组
座垫组 — position 15 · USR125HJ125T-21图册

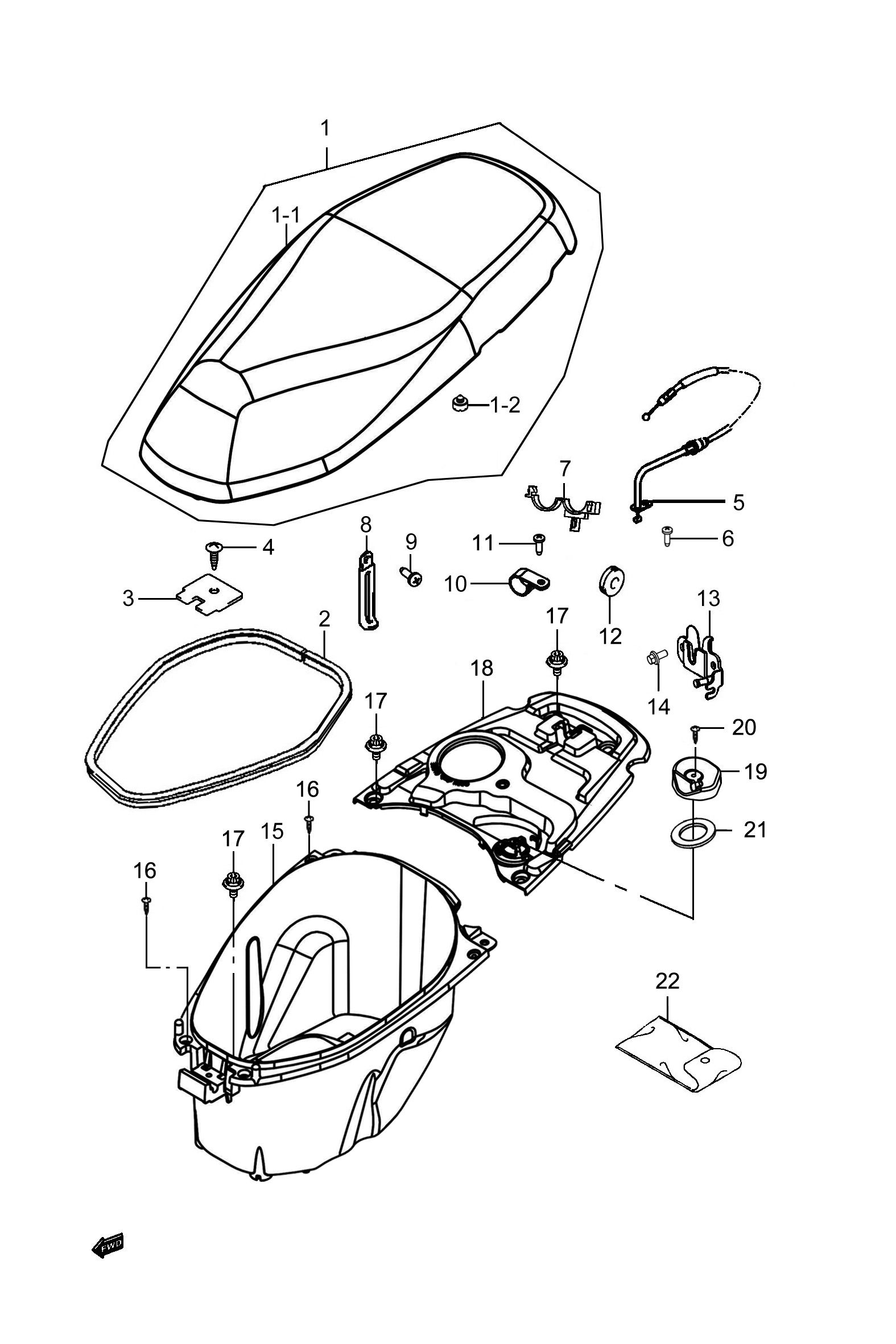

座垫组
座垫组 — position 14 · 豪爵AFR125X图册HJ125T-27E双启ABS快拆尾箱碳钢护杠

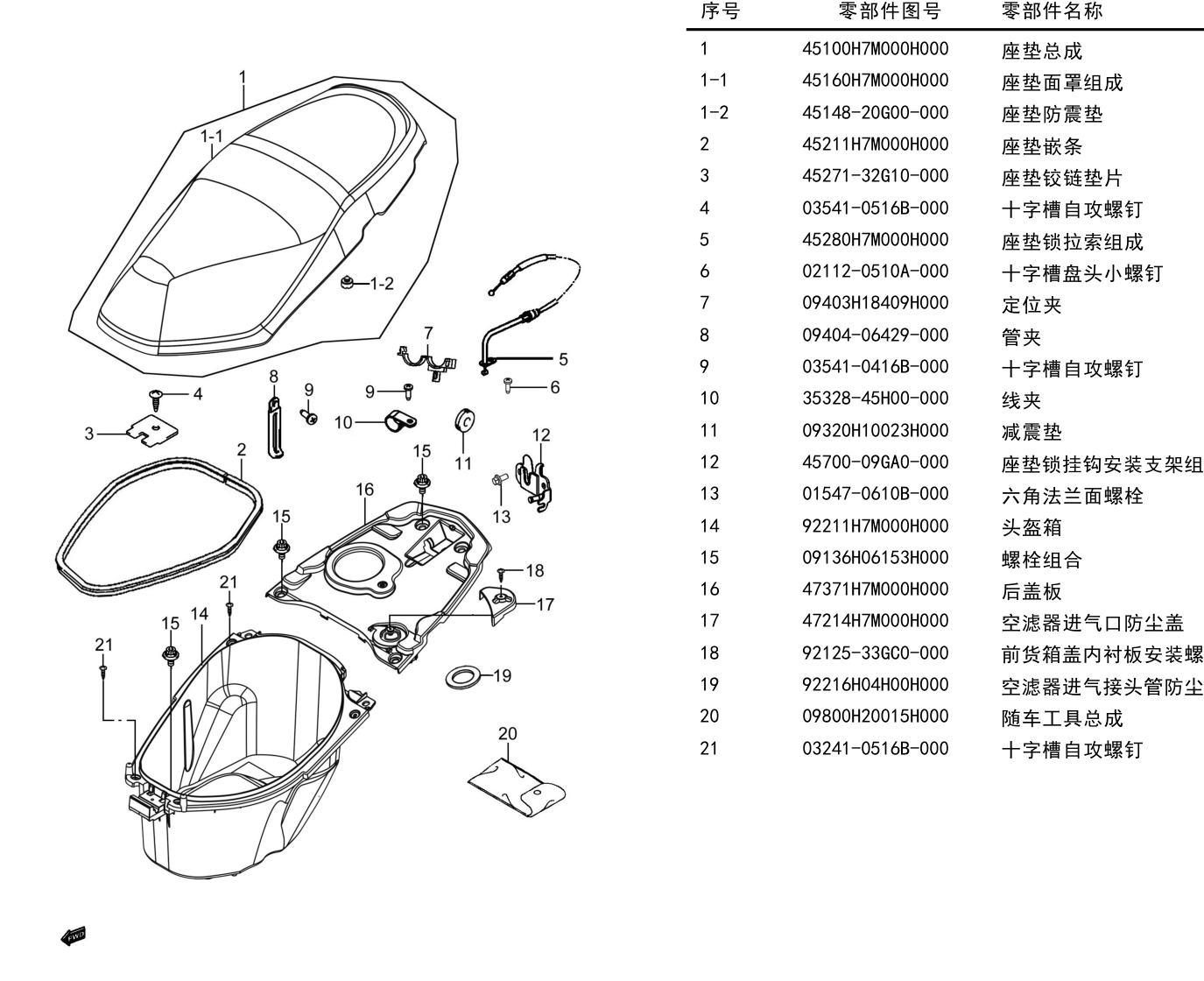

座垫组
座垫组 — position 14 · 豪爵AFR125X图册HJ125T-27E电启ABS快拆尾箱碳钢护杠
座垫组
座垫组 — position 14 · 豪爵AFR125X图册HJ125T-27F电启ABS扶手
脚踏板组
脚踏板组 — position 23 · 豪爵UFR125HJ125T-29A
脚踏板组
脚踏板组 — position 23 · 豪爵UFR150图册HJ150T-29电启水冷尾箱护杠手刹
护罩组
护罩组 — position 11 · 豪爵萌哥图册M-boyHJ125T-35
座垫组
座垫组 — position 17 · 豪爵萌哥图册M-boyHJ125T-35

Other parts on this diagram — 脚踏板组
