09136H04003H000平垫螺钉组合 — Genuine HAOJUE Part

HAOJUEoem

Check availability / enquire

Verified fitment — 41 vehicles

Fitment is sourced from official parts catalogues, listed per catalogue market.

China (41)

Location in exploded diagrams

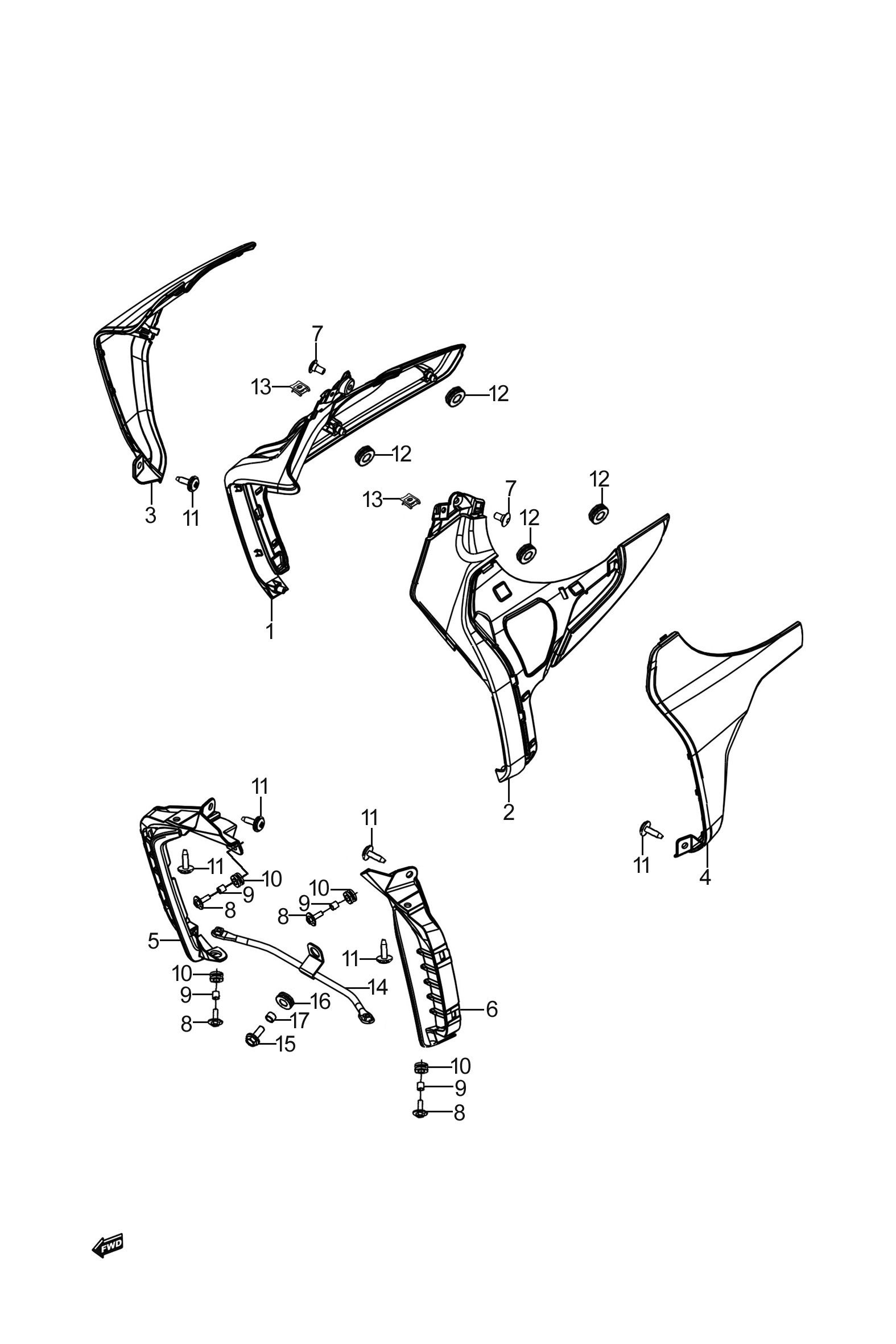

护罩组
护罩组 — position 11 · TR300PLUS旅行版HJ300-5A

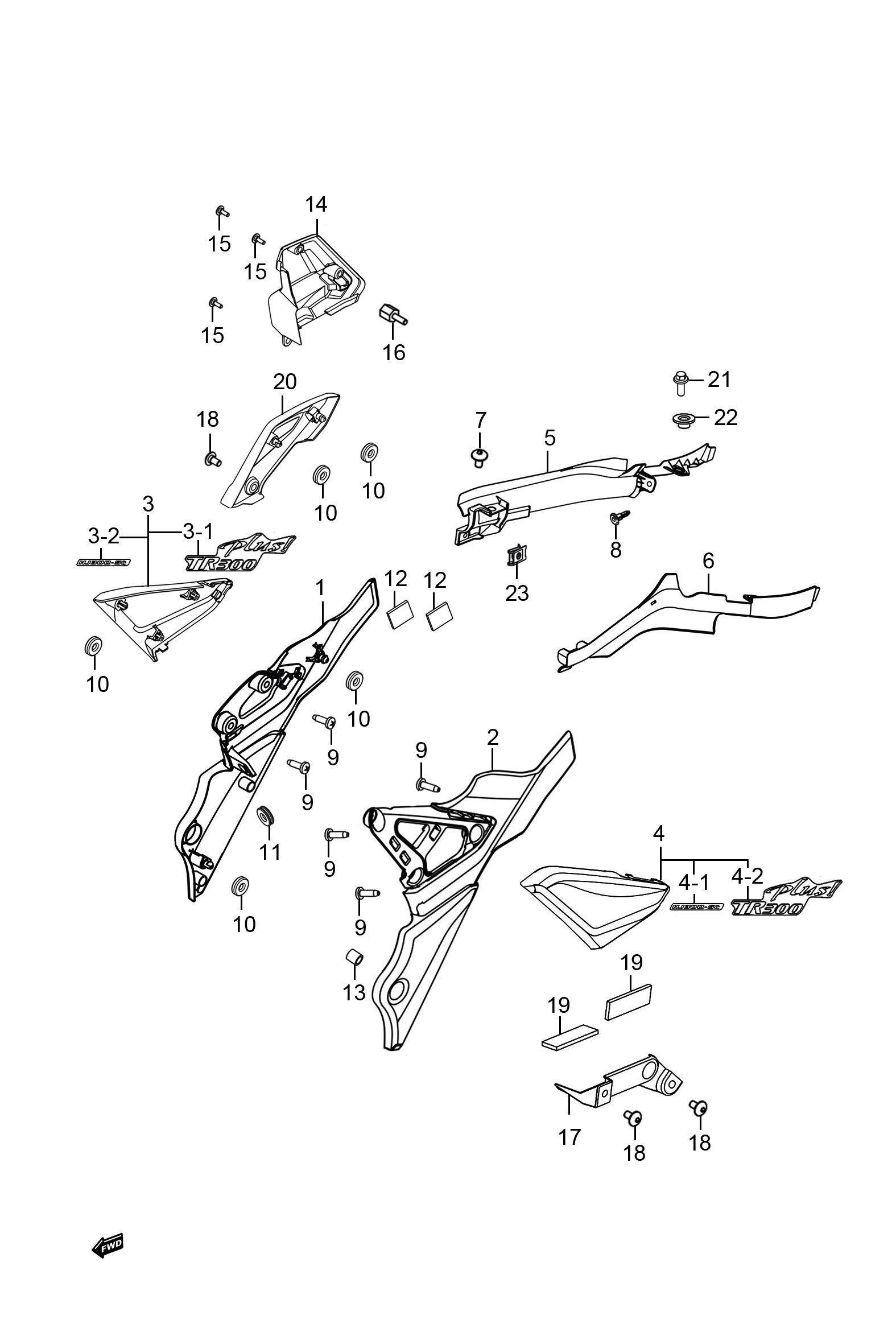

车体盖组
车体盖组 — position 9 · TR300PLUS旅行版HJ300-5A

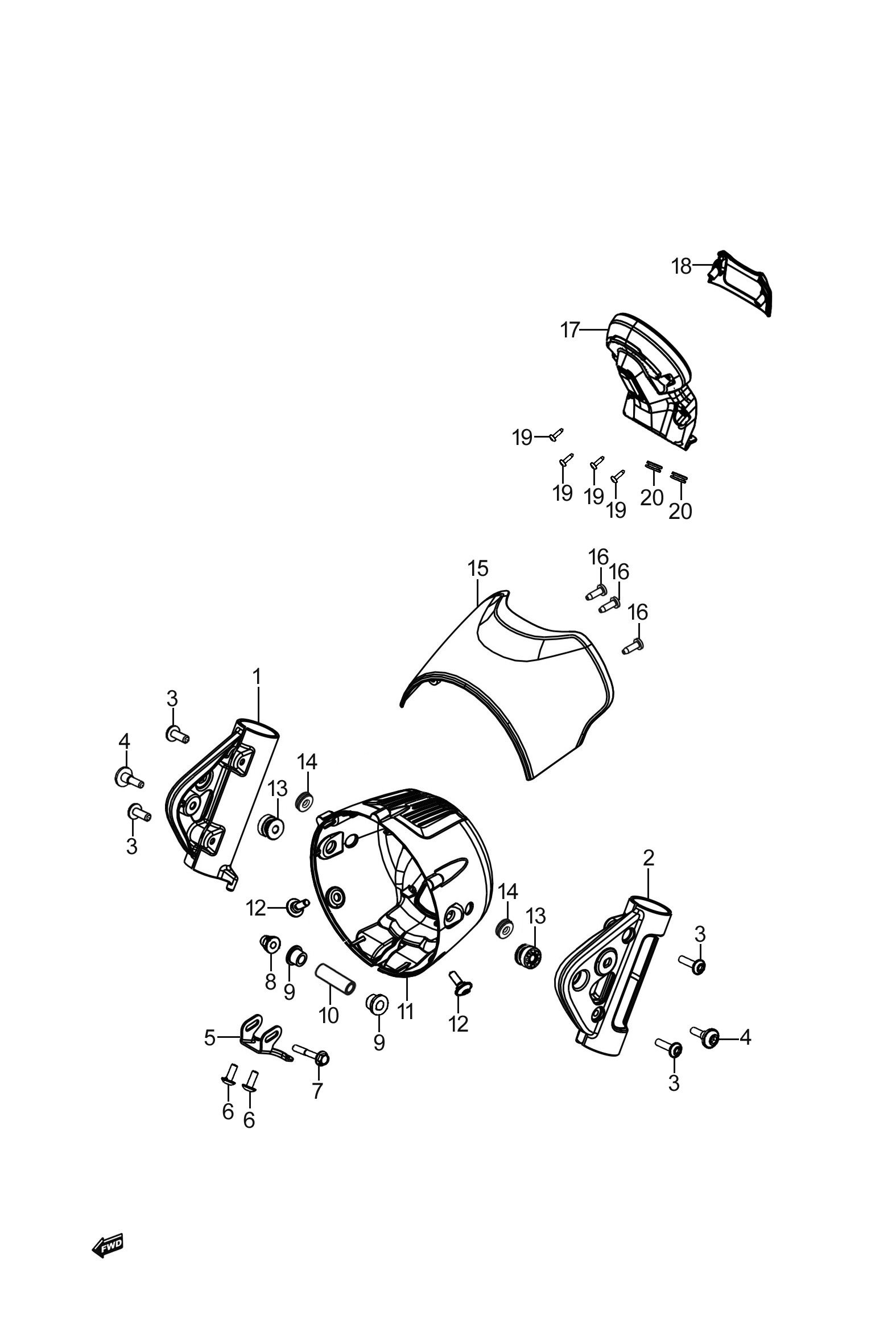

导流罩组
导流罩组 — position 16 · TR300PLUS旅行版HJ300-5A
车体盖组
车体盖组 — position 15 · ADX125HJ125T-58A(1)

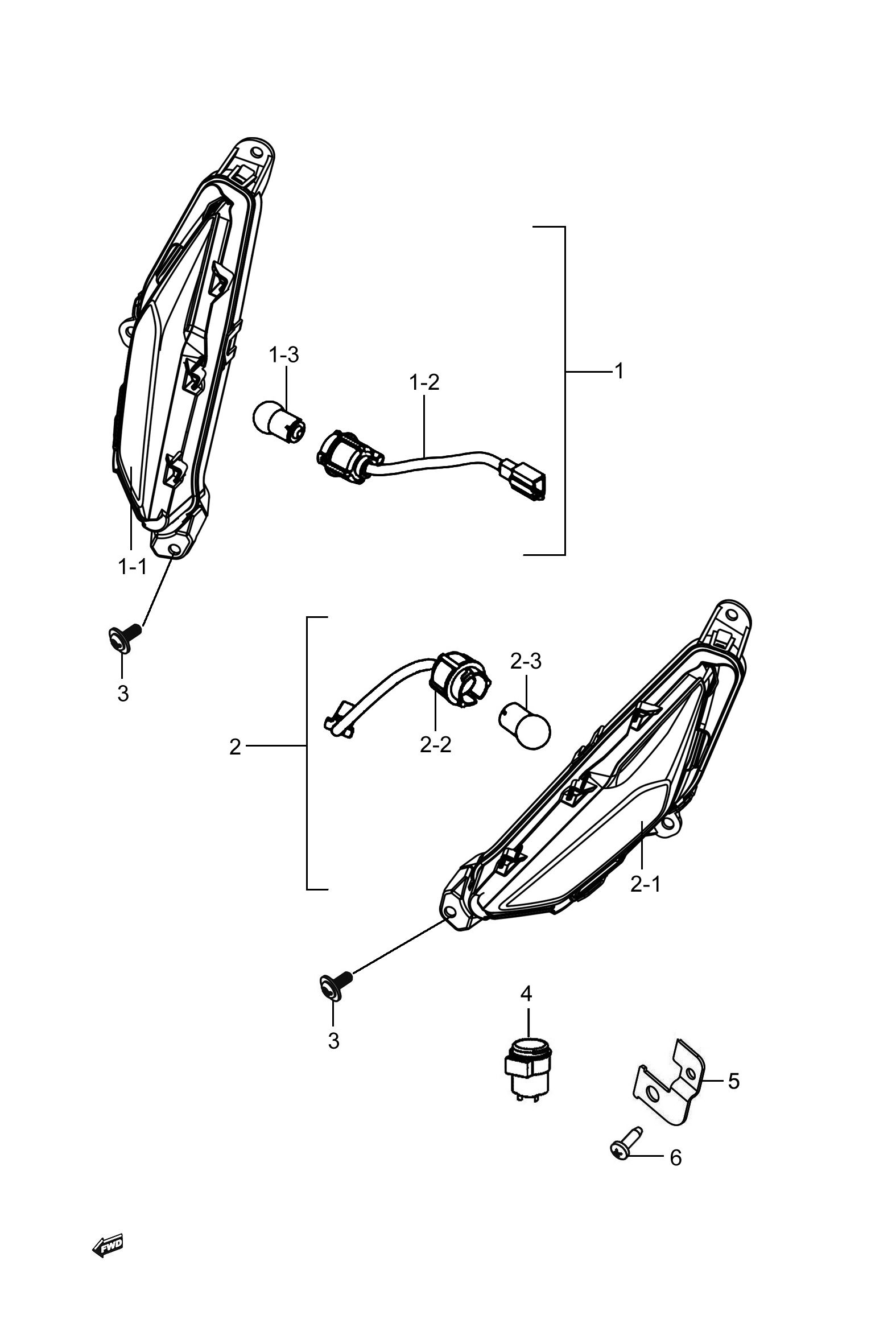

转向灯组
转向灯组 — position 3 · VD125HJ125T-55图册
护罩组
护罩组 — position 11 · TR300PLUS旅行版带边箱HJ300-5C
车体盖组
车体盖组 — position 9 · TR300PLUS旅行版带边箱HJ300-5C
导流罩组
导流罩组 — position 16 · TR300PLUS旅行版带边箱HJ300-5C
尾灯组
尾灯组 — position 2 · UCR125HJ125T-31图册
脚踏板组
脚踏板组 — position 4 · UCR125HJ125T-31图册
护罩组
护罩组 — position 9 · UCR125HJ125T-31图册
车体盖组
车体盖组 — position 11 · UCR125HJ125T-31图册

Other parts on this diagram — 护罩组
