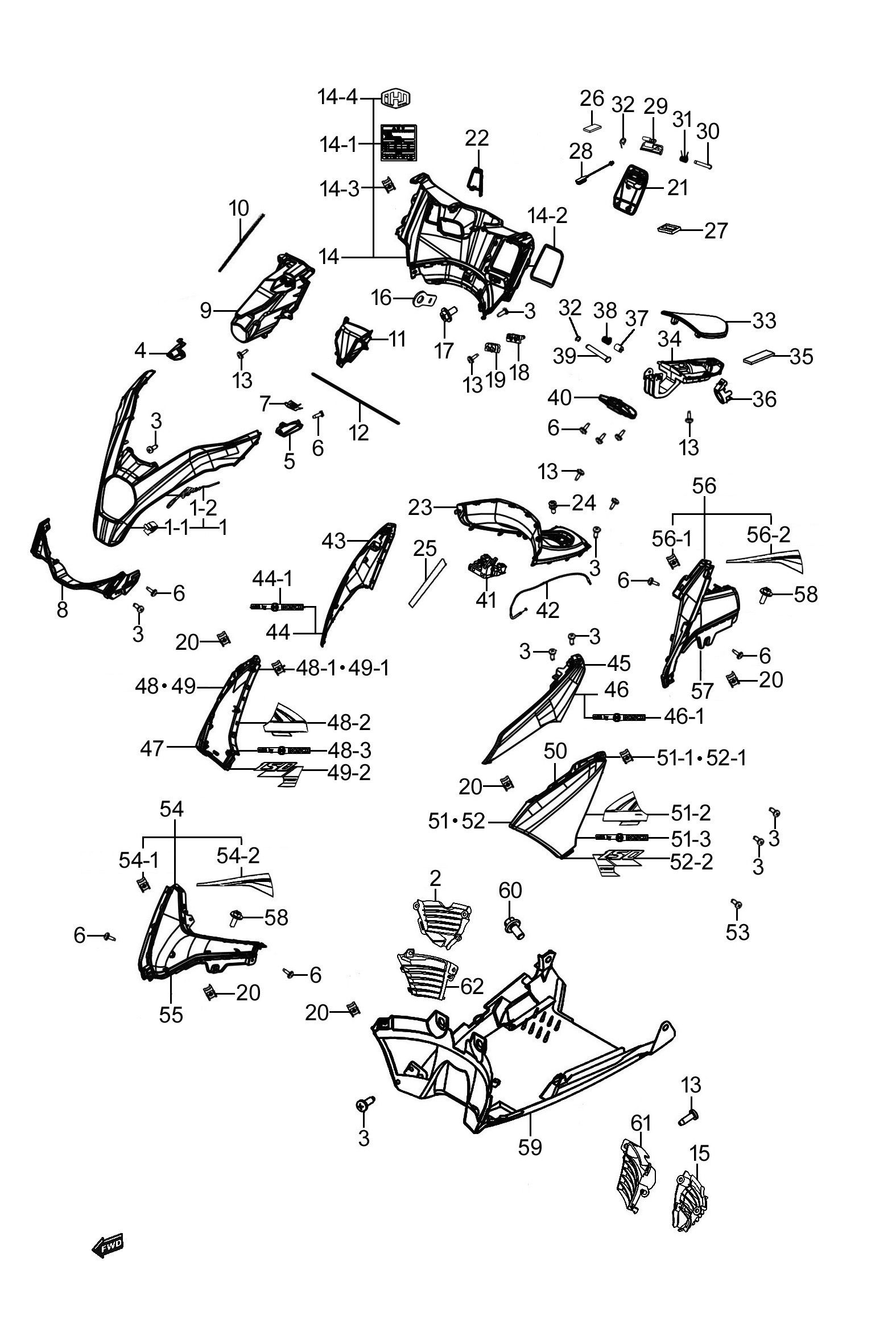

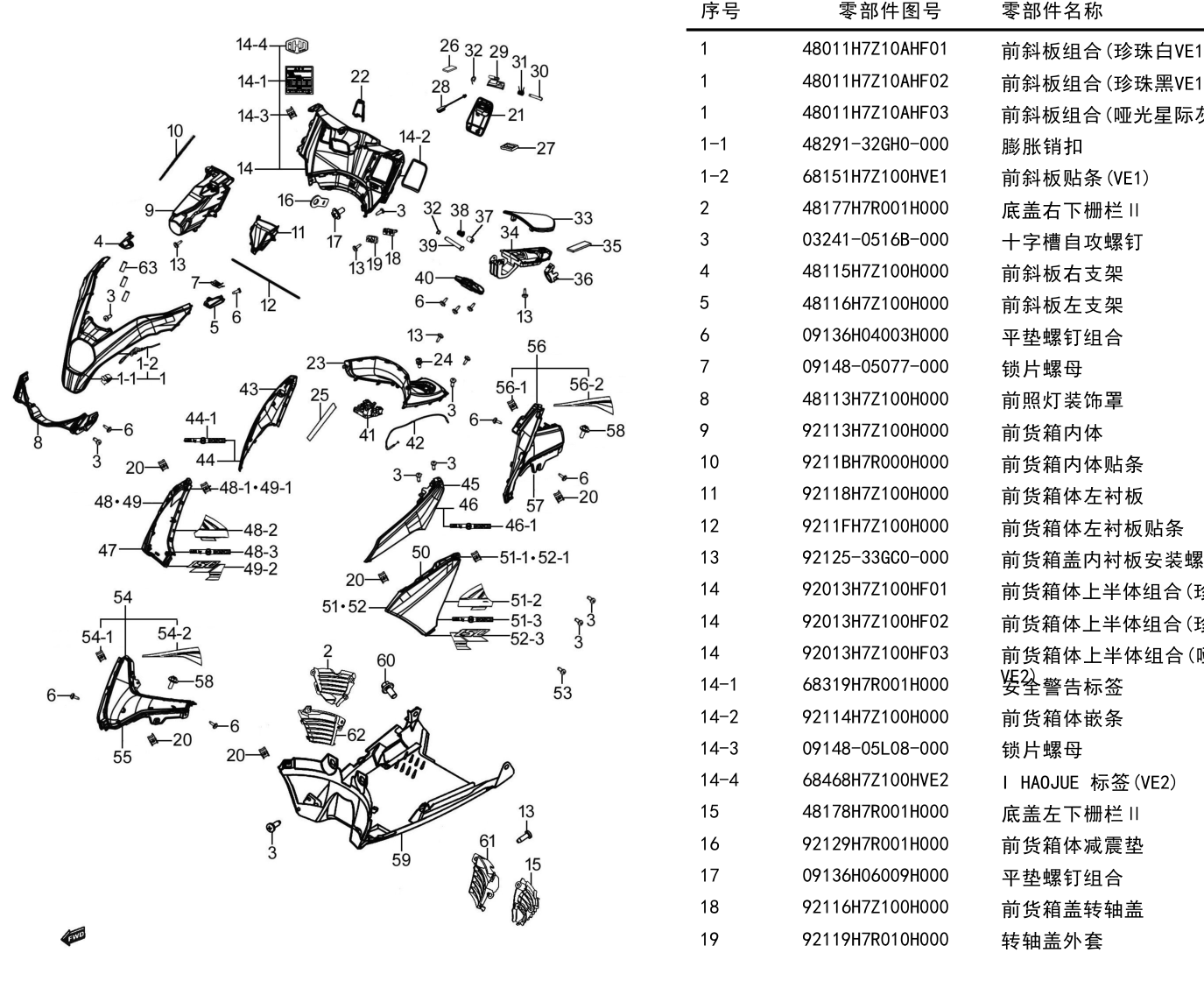

Location in exploded diagrams
Other parts on this diagram — 脚踏板组
- #15 48123H7R000H000 — 右脚踏板盖
- #16 48133H7R000H000 — 左脚踏板盖
- #17 03541-0512A-000 — 十字槽球头自攻钉
- #18 09320-10073-000 — 减震垫
- #19 09181H05001H000 — 垫圈
- #20 48127H7R000H000 — 火花塞保养盖
- #21 09148-05077-000 — 锁片螺母
- #29 43718H7R000H000 — 后左踏垫
- #30 09148-05L08-000 — 锁片螺母
- #34 09136H04003H000 — 平垫螺钉组合
- #31 48231H7R001H000 — 脚踏板贴条Ⅰ
- #32 48232H7R000H000 — 脚踏板贴条Ⅱ
- #33 47372H7R000H000 — 油箱口盖板贴条
- #1 47351H7R000H000 — 前中心盖
- #2 03241-0516B-000 — 十字槽自攻螺钉
- #3 48128H7R001H000 — 油箱口盖板固定板
- #4 48314H7R000H000 — 加油口盖板阻尼器组成
- #6 09208H04001H000 — 开槽销
- #7 09383H03001H000 — E形环
- #8 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
- #9 48129H7R000H000 — 油箱口盖板内衬板
- #10 47371H7R000H000 — 油箱口盖板
- #11 47375H7R000H000 — 油箱盖罩
- #12 48278H7R000H000 — 脚踏板减震垫
