2017 春风 NK 150NK — Engine parts
CN market60 genuine parts12 diagrams
Subgroups
Crankcase & Crankshaft · 3Cylinder Head & Parts · 1Seals & Gaskets · 13Belt/Chain Drive · 5Engine Hardware · 123
Part numbers
Every genuine engine part fitted to the 2017 春风 NK 150NK. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 30102-060012830 | INNER HEX SCREW M6x12 | 排气消声器(ABS/国内状态) MUFFLER(ABS/ONLY FOR CHINA) | Enquire | |
| 30006-060035810 | BOLT | 车架(ABS/国内状态) FRAME(ABS/ONLY FOR CHINA) | Enquire | |

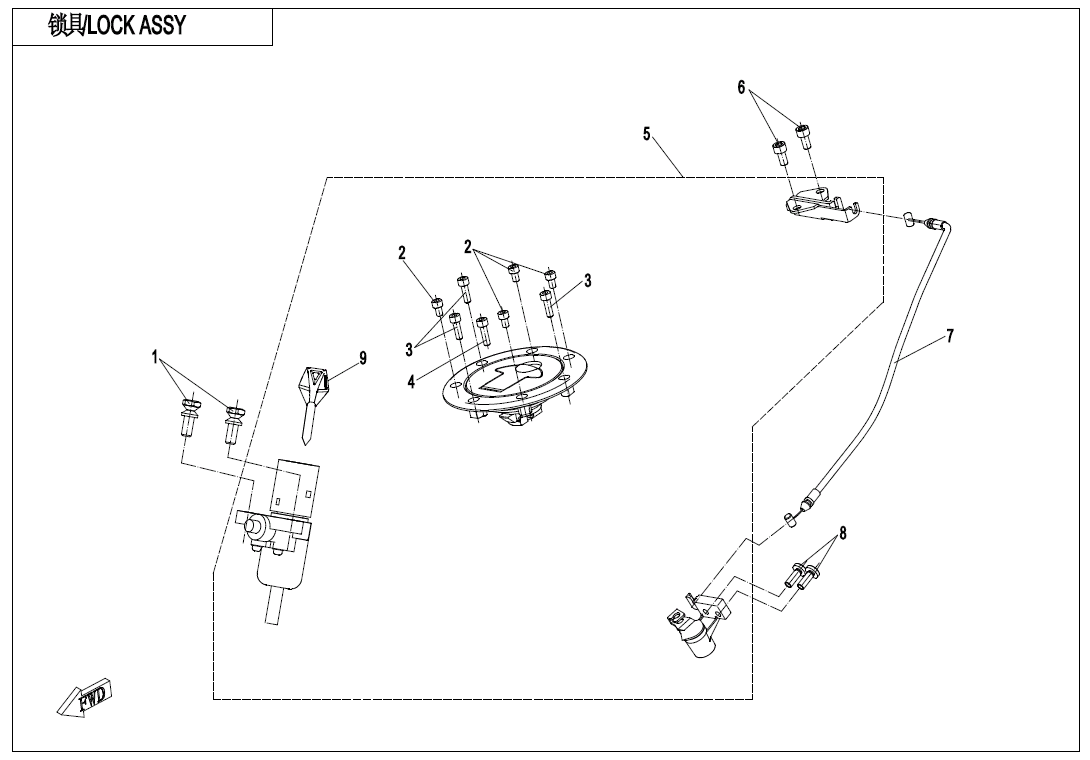

| 30102-050008900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 30102-060012810 | SCREW | 锁具 LOCK KIT | Enquire | |
| A000-040702 | INNER HEX SCREW M6x12 | 排气消声器(国外状态) MUFFLER(ENGLISH) | Enquire | |
| 5280-020002 | RUBBER DAMPER | 排气消声器(ABS/国内状态) MUFFLER(ABS/ONLY FOR CHINA) | Enquire | |

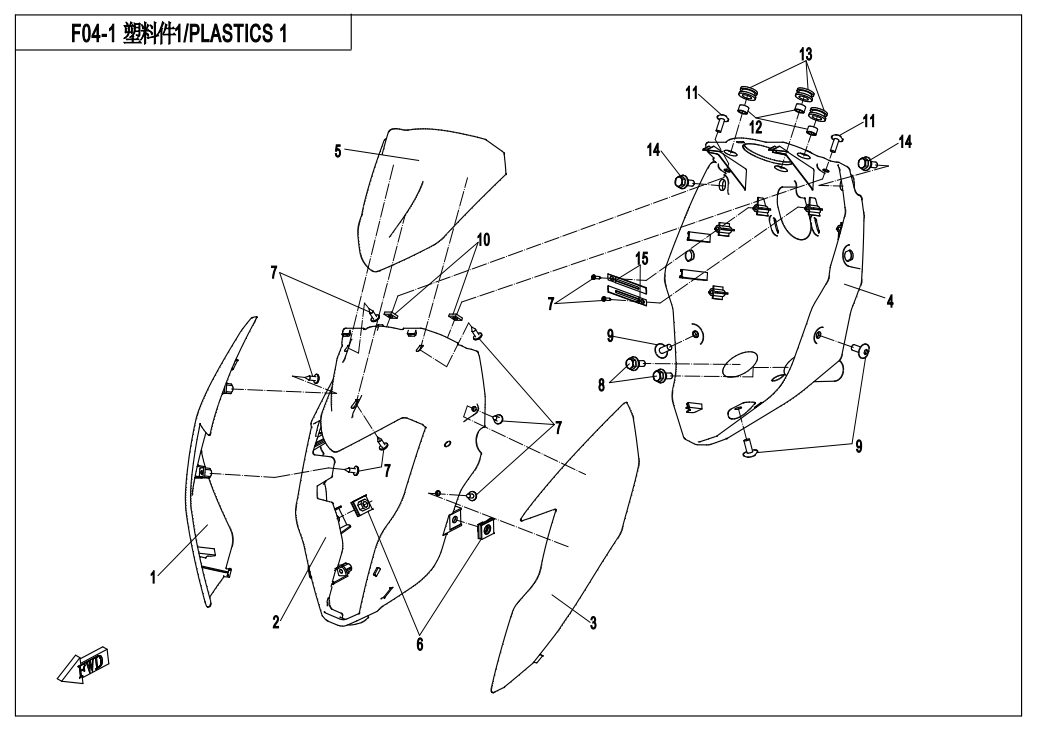

| 30110-421130010 | SELF-TAPPING SCREW | 塑料件1 PLASTIC1 | Enquire | |
| 30110-481130010 | SELF-TAPPING SCREW | 塑料件3 PLASTIC3 | Enquire | |

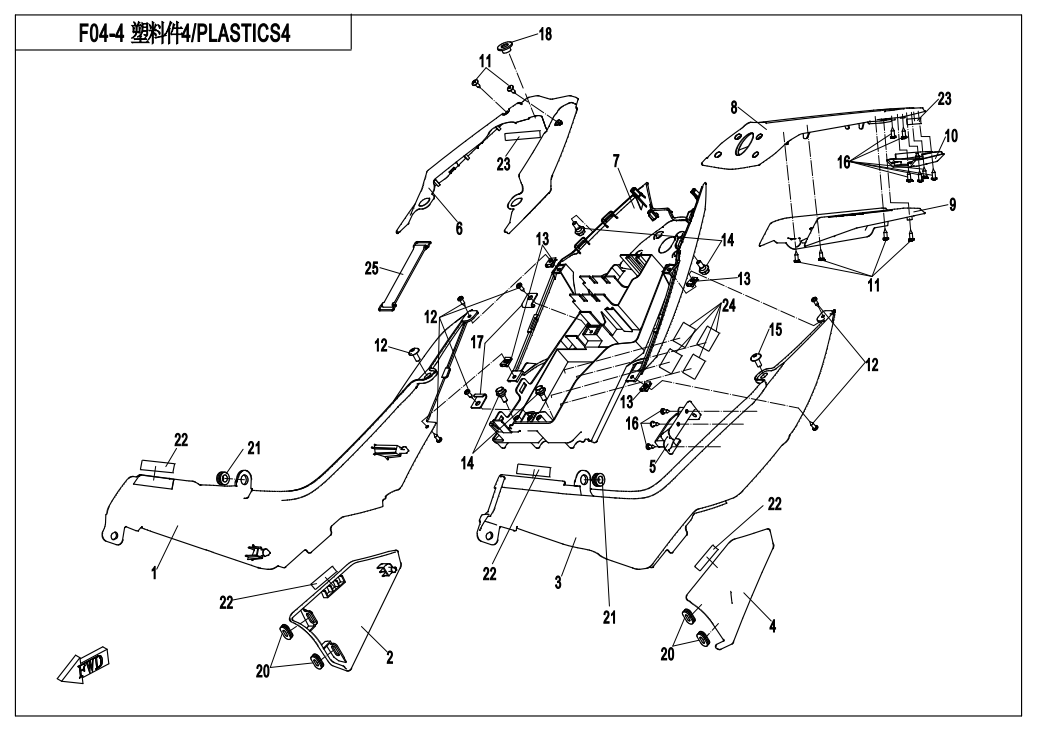

| 30110-420130010 | SELF-TAPPING SCREW_ST4.2x13 | 塑料件4 PLASTIC4 | Enquire | |

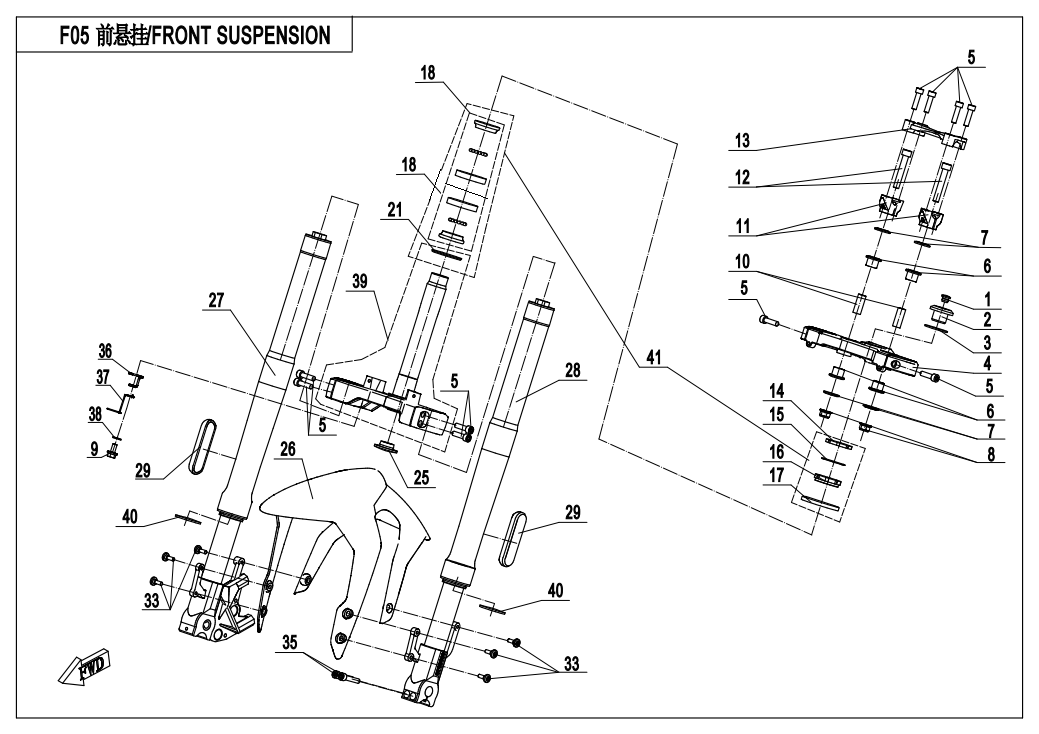

| A000-050100 | STEERING BEARING ASSY | 前悬架 FRONT SUSPENSION | Enquire | |
| 6KJ0-050006 | LINER, UPPER TRIPLE CLAMP | 前悬架(低配/国内状态) FRONT SUSPENSION(LOW CONFIGURATION/ONLY FOR CHINA) | Enquire | |

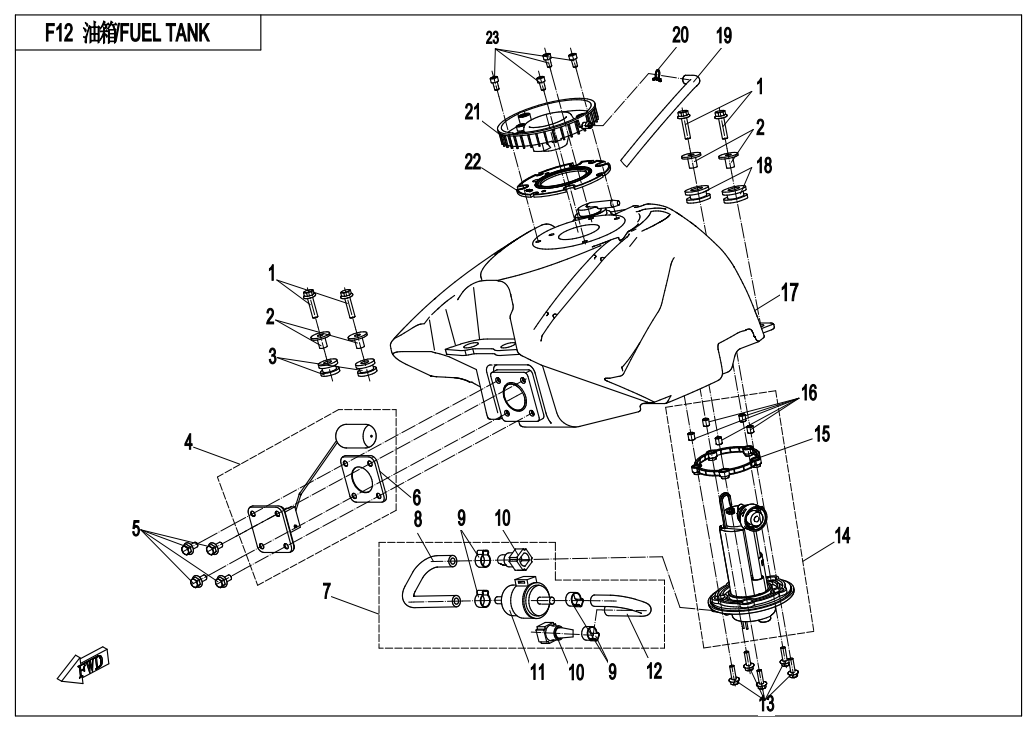

| 6070-120400 | CLAMP(Φ14.5) | 油箱 FUEL TANK | Enquire | |
| 30601-109010 | CLAMP | 油箱 FUEL TANK | Enquire | |
| 0180-014010 | WIRE CLAMP | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30802-00603 | SPLIT WASHER 6 | 后扶手与脚蹬(低配/国内状态) REAR HANDRAIL&FOOTREST(LOW CONFIGURATION/ONLY FOR CHINA) | Enquire | |

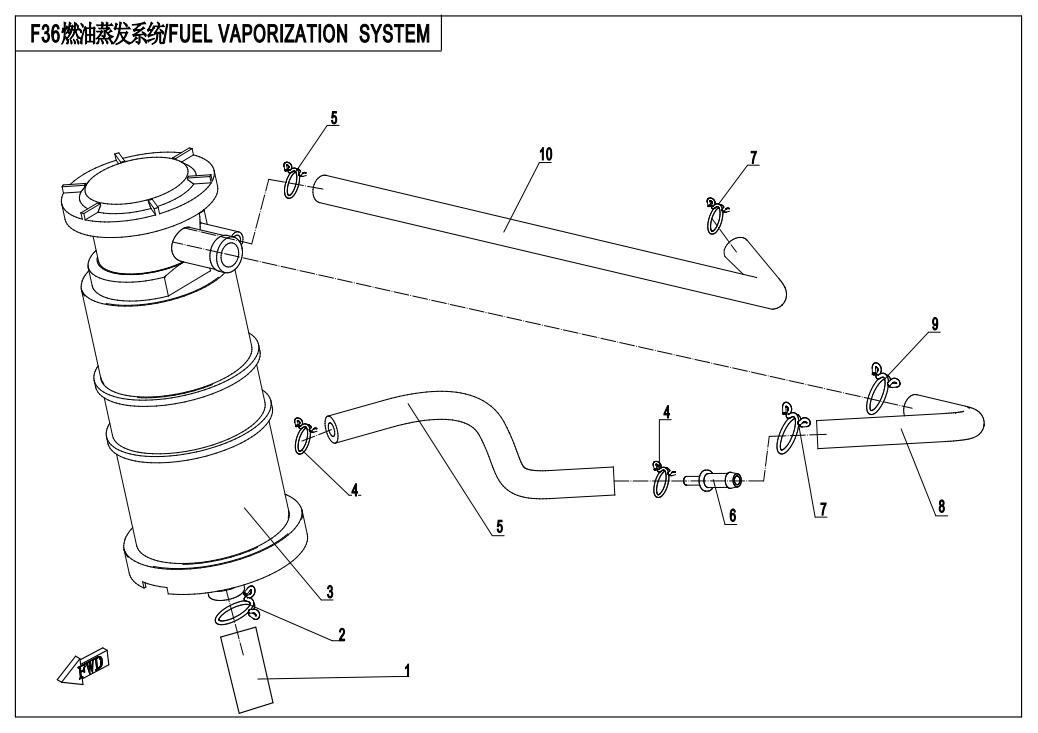

| 30601-111010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 0010-080008 | DOWEL PIN | 右曲轴箱分总成 RIGHT CRANKCASE ASSY | Enquire | |

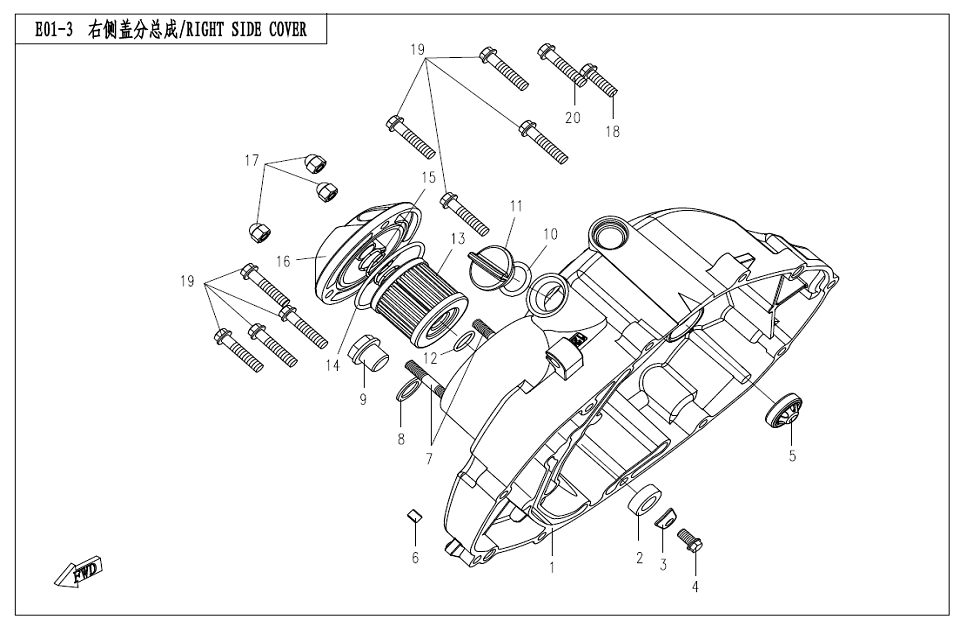

| 0010-023010-0010 | BOLT M6x20 | 右侧盖分总成 RIGHT SIDE COVER ASSY | Enquire | |

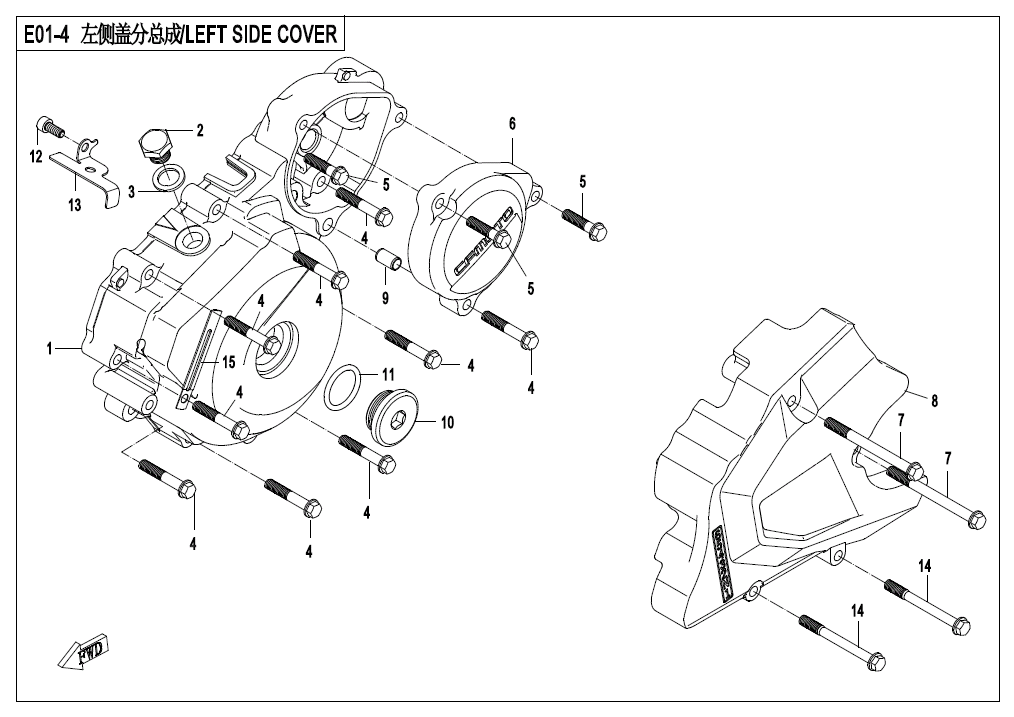

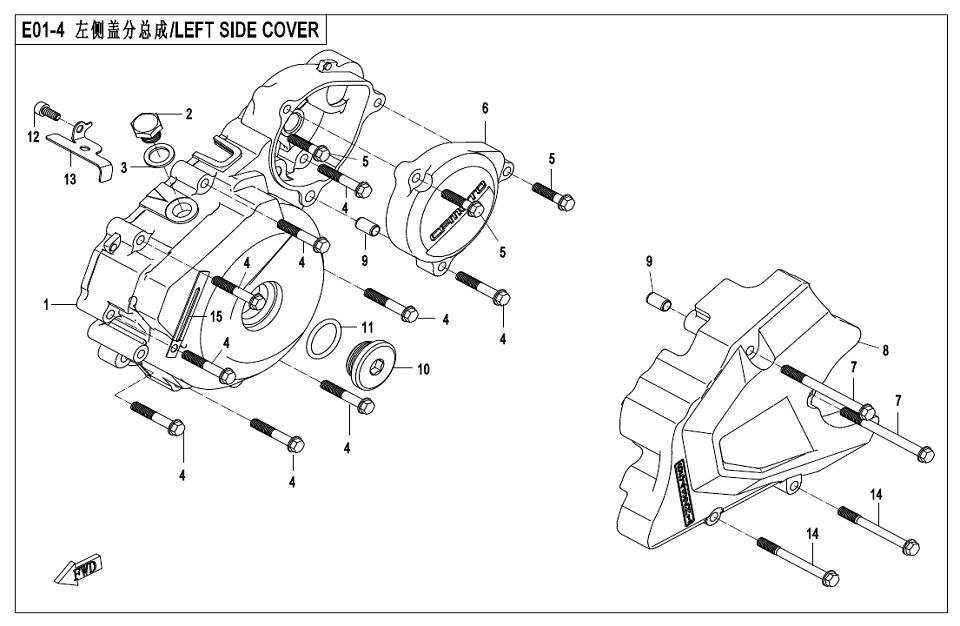

| 0A80-014005 | WIRE PRESS PLATE | 左侧盖分总成 LEFT SIDE COVER ASSY | Enquire | |
| 018B-022810 | COOLANT TEMP. SENSOR | 气缸盖分总成 CYLINDER HEAD ASSY | Enquire | |
| 30102-050012810 | SCREW | 磁电机总成 MAGNETO STATOR ASSY | Enquire | |
| 0010-021017-0010 | BOLT M6x25 | 机油泵总成 OIL PUMP | Enquire | |

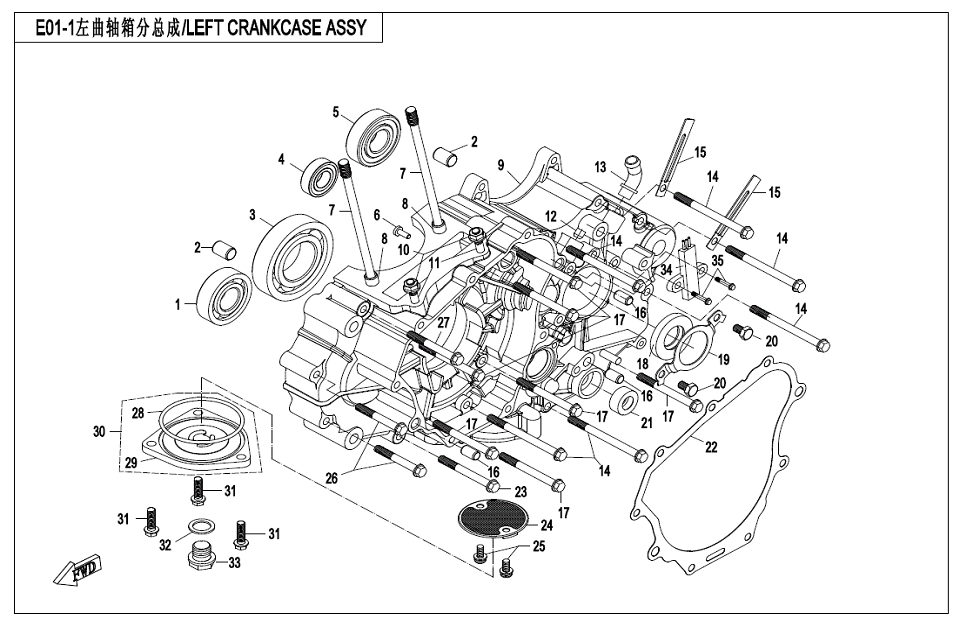

| 0A70-013004 | PLUG | 左曲轴箱分总成 LEFT CRANKCASE ASSY | Enquire | |
| 01A0-013005 | O-SEAL RING | 右侧盖分总成 RIGHT SIDE COVER ASSY | Enquire | |
| 30601-207050 | CLAMP B7 | 气缸盖分总成 CYLINDER HEAD ASSY | Enquire | |
| 01A0-056004 | DOWEL PIN Φ6×12 | 气缸分总成 CYLINDER BODY ASSY | Enquire | |
| 0A70-060014 | O-RING | 换挡变速总成 TRANSMISSION ASSY | Enquire | |
| 30116-050020410 | SCREW ASSY | 换挡变速总成 TRANSMISSION ASSY | Enquire | |
| 0010-021019-0010 | BOLT M6x12 | 水泵总成 WATER PUMP ASSY | Enquire | |
| A000-040202 | INNER HEX SCREW M5x14 | 塑料件1 PLASTIC1 | Enquire | |
| 6100-120005 | INNER HEX SCREW M6x8 | 后悬架 REAR SUSPENSION | Enquire | |
| 30802-00605 | SPLIT WASHER | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30102-050020810 | SCREW | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6100-180001 | CLAMP B24 | 冷却系统(带热敏开关) COOLING SYSTEM(WITH THERMAL SWITCH) | Enquire | |
| 0010-136100 | WATER FILLING PORT CAP ASSY | 冷却系统(带热敏开关) COOLING SYSTEM(WITH THERMAL SWITCH) | Enquire | |
| 6KJ0-180302 | RESERVOIR CAP | 冷却系统(带热敏开关) COOLING SYSTEM(WITH THERMAL SWITCH) | Enquire | |
| 0010-021018-0010 | BOLT M6x55 | 左曲轴箱分总成 LEFT CRANKCASE ASSY | Enquire | |
| 30105-060012410 | SCREW | 右侧盖分总成 RIGHT SIDE COVER ASSY | Enquire | |
| 0180-022003-0010 | STUD M8x42 | 气缸盖分总成 CYLINDER HEAD ASSY | Enquire | |
| 30004-060010150 | BOLT M6x10 | 凸轮轴分总成 CAMSHAFT ASSY | Enquire | |
| 30102-050016810 | SCREW | 锁具 LOCK KIT | Enquire | |
| 30121-050020900 | SCREW | 锁具 LOCK KIT | Enquire | |
| 30105-060016410 | SCREW | 锁具 LOCK KIT | Enquire | |
| 30110-420095010 | SELF-TAPPING SCREW | 塑料件4 PLASTIC4 | Enquire | |
| A000-050005 | RUBBER PLUG 1 | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-050003 | FIXING SCREW, UPPER TRIPLE CLAMP | 前悬架 FRONT SUSPENSION | Enquire | |
| 30102-080030860 | SCREW | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-050011 | RUBBER PLUG 2 | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-060002 | CHAIN GUARD SCREW | 前悬架 FRONT SUSPENSION | Enquire | |
| 30102-080040810 | SCREW M8x40 | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-060201-0BB0 | CHAIN ADJUSTER GUARD | 后悬架(低配/国内状态) REAR SUSPENSION(LOW CONFIGURATION/ONLY FOR CHINA) | Enquire | |
| 6KJ0-070024 | OIL SEAL | 前轮(轮辋-亚光黑) FRONT WHEEL(RIM-MATTE BLACK) | Enquire | |
| 30102-060075810 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 30500-027800N | OIL SEAL | 后轮(轮辋-亚光黑) REAR WHEEL(RIM-MATTE BLACK) | Enquire | |
| 9010-170121 | SEAL RING | 油箱 FUEL TANK | Enquire | |
| 6KJ0-130102 | RUBBER DAMPER | 座垫(海绵较硬) SEAT(SPONGE HARDER) | Enquire | |
| 30105-050012410 | SCREW | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30601-112010 | CLAMP | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 30601-108010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-113010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire |
Exploded diagrams — Engine
Browse the catalogue interactively
Open Engine in the interactive 2017 春风 NK 150NK catalogue to drill into diagrams, check availability and add parts to your cart.
