2017 春风 NK 150NK — Electrical System parts
CN market39 genuine parts12 diagrams
Subgroups
Part numbers
Every genuine electrical system part fitted to the 2017 春风 NK 150NK. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 6KJ0-150600 | ROLL-OVER SENSOR | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 30006-080014810 | BOLT | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6100-150500 | RUBBER SLEEVE, FLASHER | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 9010-150002 | AUXILIARY RELAY RUBBER RING | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 8010-090005 | BOLT M6x16 | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 806A-151302 | FUSE 10A | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6070-151200-1000 | SIDE STAND SWITCH | 电器系统(低配/国内状态) ELECTRIC SYSTEM(LOW CONFIGURATION/ONLY FOR CHINA) | Enquire | |
| 0A80-177000 | REGULATOR | 电器系统(低配/国内状态) ELECTRIC SYSTEM(LOW CONFIGURATION/ONLY FOR CHINA) | Enquire | |
| 6090-150500 | DIODE, STARTER | 电器系统(低配/国内状态) ELECTRIC SYSTEM(LOW CONFIGURATION/ONLY FOR CHINA) | Enquire | |
| 018B-172000 | IDLE AIR CONTROL VALVE | 电器系统(低配/国内状态) ELECTRIC SYSTEM(LOW CONFIGURATION/ONLY FOR CHINA) | Enquire | |

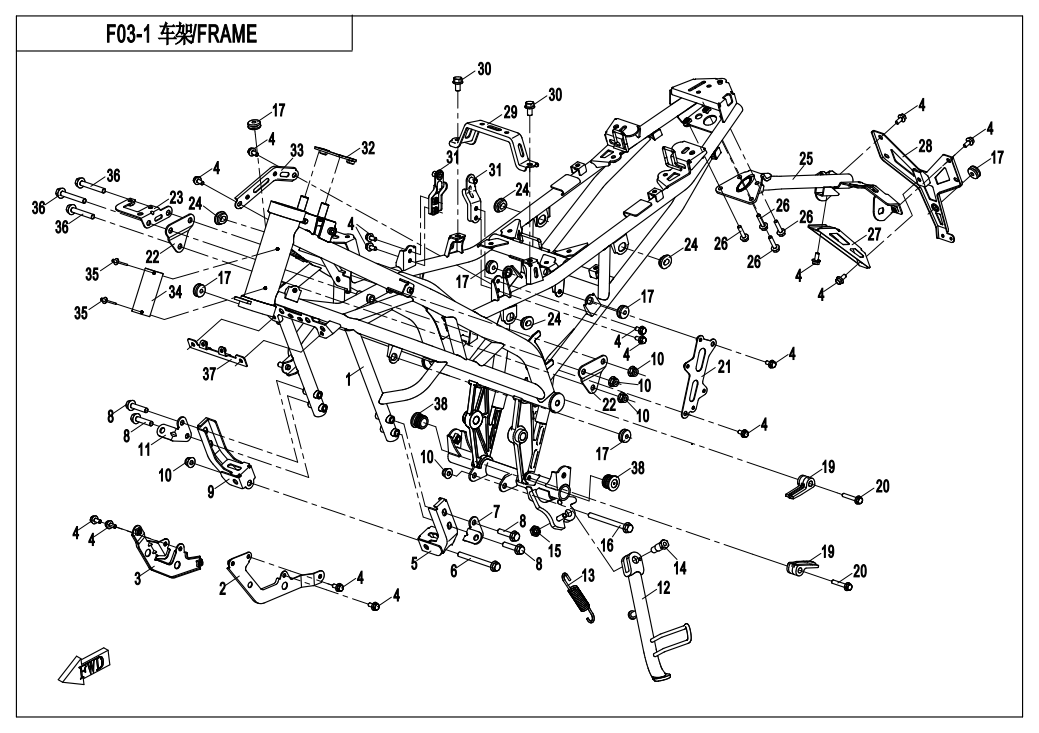

| 6KJ0-030880 | IGNITION COIL BRACKET SEAT | 车架 FRAME | Enquire | |
| 1080-150700 | BATTERY TIE BAND | 塑料件4 PLASTIC4 | Enquire | |
| 6KJ0-050011 | FIXING WIRE, FRONT BRAKE HOSE | 前悬架 FRONT SUSPENSION | Enquire | |

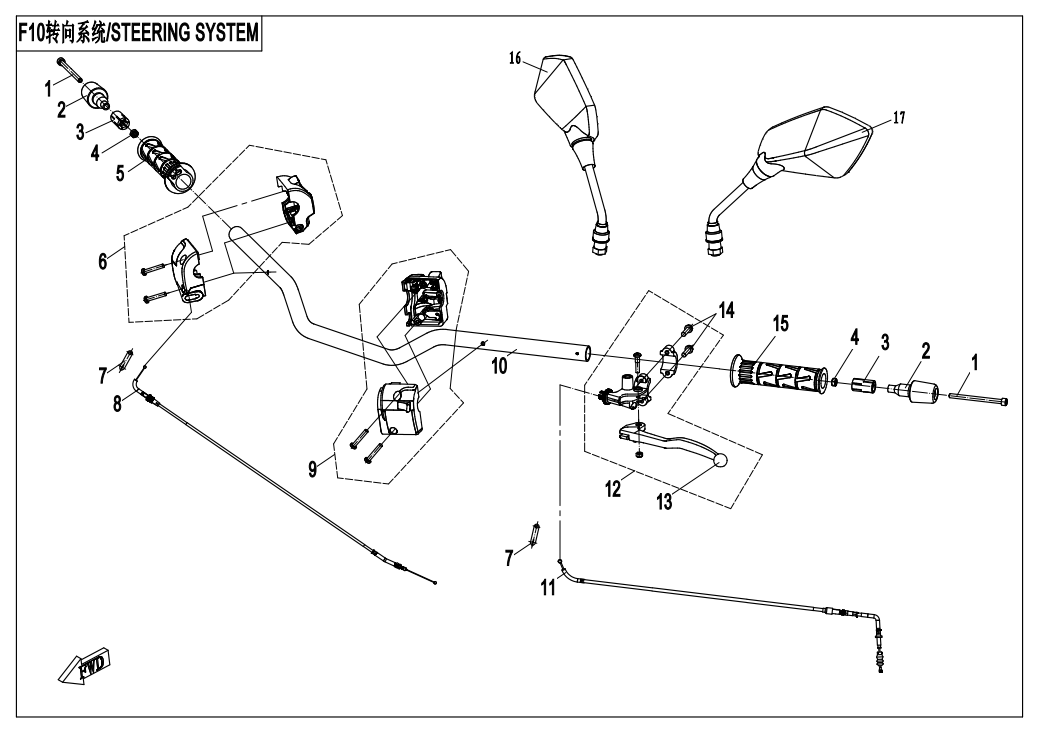

| 6KJ0-100100 | CLUTCH CABLE | 转向系统 STEERING SYSTEM | Enquire | |
| 6KJ0-110004 | LOCK PAD | 后轮(轮辋-亚光黑) REAR WHEEL(RIM-MATTE BLACK) | Enquire | |
| 30006-050016810 | BOLT | 油箱 FUEL TANK | Enquire | |
| 6050-150500 | ELECTRIC HORN | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6KJ0-150100-40000 | MAIN CABLE | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6KJ0-150100-50000 | MAIN CABLE | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 018B-178000 | IGNITION COIL | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 01AA-178200 | HIGH-TENSION IGNITION CABLE | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6KJ0-150340 | FLASHER | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 9010-150350 | AUXILIARY RELAY | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6KJ0-150500 | RELAY, STARTER | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6KJ0-150030 | STARTER MOTOR NEGATIVE CABLE | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6KJ0-150020 | STARTER MOTOR POSITIVE CABLE | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 0A70-014004 | BOLT M5x25 | 磁电机总成 MAGNETO STATOR ASSY | Enquire | |
| 6KJ0-010100 | LOCK KIT | 锁具 LOCK KIT | Enquire | |
| 6KJ0-041901 | DECO BLOCK, LH | 塑料件4 PLASTIC4 | Enquire | |
| 6KJ0-041801-00001 | GUARD, SEAT LOCK | 塑料件4 PLASTIC4 | Enquire | |
| 6KJ0-050012 | LIMIT WIRE, FRONT BRAKE HOSE | 前悬架 FRONT SUSPENSION | Enquire | |
| 6KJ0-060002-0BB0 | ADJUSTING BLOCK | 后悬架 REAR SUSPENSION | Enquire | |
| 6KJ0-170200 | FUEL LEVEL SENSOR ASSY | 油箱 FUEL TANK | Enquire | |
| 901F-000005 | IDLE VALVE RUBBER SLEEVE | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 0A80-174000-10000 | ECU | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 31020600 | BATTERY | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 806A-151301 | FUSE 7.5A | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 806A-151305 | FUSE 15A | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6KJ0-150100-60000 | MAIN CABLE | 电器系统(ABS/国内状态) ELECTRIC SYSTEM(ABS/ONLY FOR CHINA) | Enquire |
Exploded diagrams — Electrical System
Browse the catalogue interactively
Open Electrical System in the interactive 2017 春风 NK 150NK catalogue to drill into diagrams, check availability and add parts to your cart.
