2025 CF MOTO CF125-11HOEM parts & exploded diagrams
EE market471 parts14 groups12+ diagrams
Vehicle #2076
- CC
- —
- HP
- —
- 年款
- —
Exploded diagrams — 2025 CF MOTO CF125-11H
Part numbers on the 2025 CF MOTO CF125-11H
Each number has a dedicated cross-reference & fitment page.
- 3120962 — Chain
- 0UIV-178000-1000 — Ignition Coil
- 0UIV-178100-1000 — Spark Plug Cap
- 0UIV-173000-1000 — Throttle Body Assy "
- 6KMV-011000-B001 — LOCK KIT
- 6KJ0-010001 — BOLT
- 6FIV-177000-7000 — REGULATOR
- 6KIV-001000-2000 — Ecm Assy Mt05.2
- 30110-421130010 — SELF-TAPPING SCREW
- 6KMV-151500-3000 — SIDE STAND SWITCH
- 8010-090005 — BOLT M6x16
- 6KM0-010010 — SEAT CABLE
- 6KMV-011020-B001 — KEY

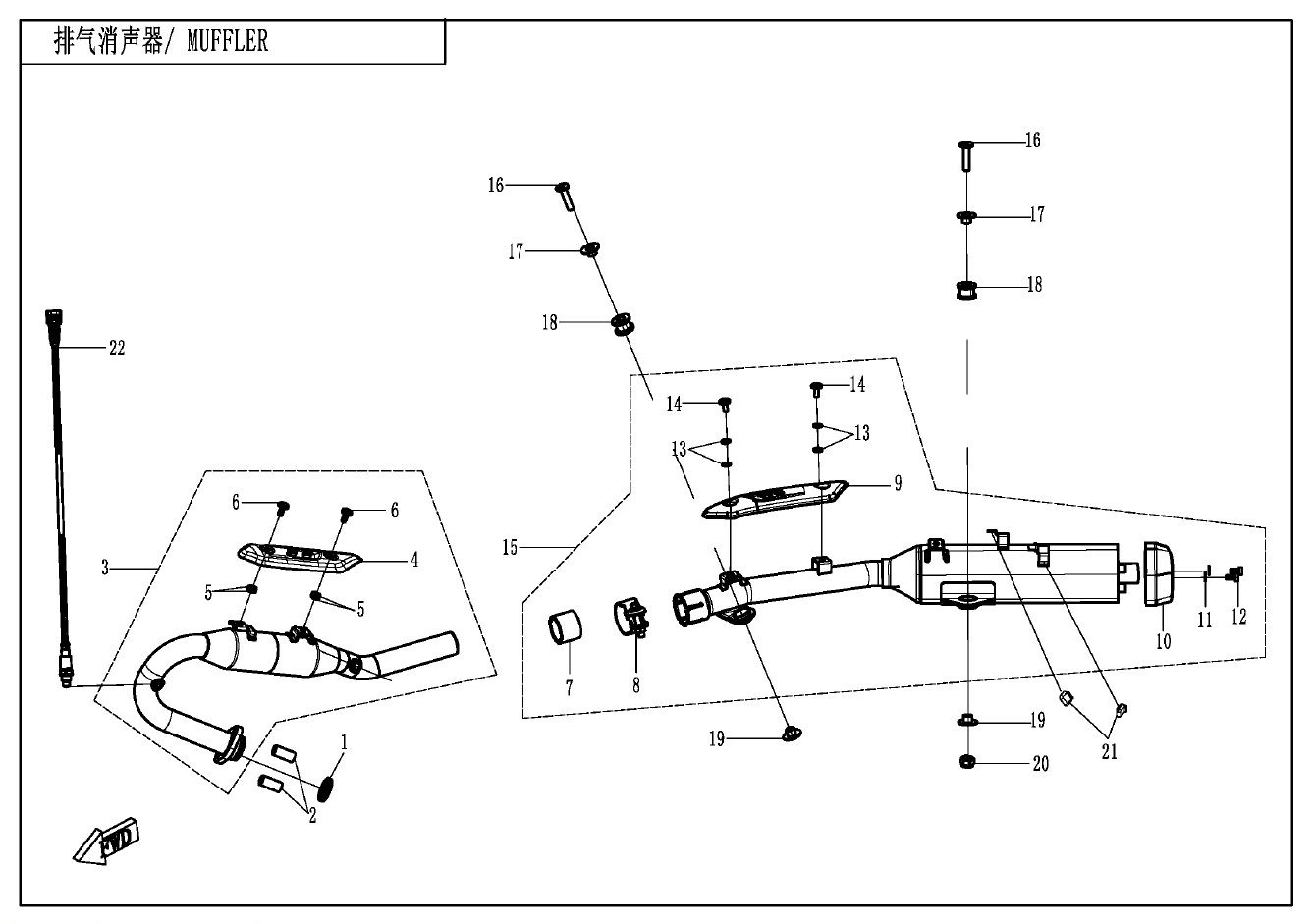

- 6KIV-020001-2000 — Exhaust Pipe Gasket
- 6KIV-021001-2000 — Exhaust Pipe Nut
- 6KIV-021100-2000-0D700 — Exhaust Pipe Assy Matte Black
- 6KIV-021100-2001-0D700 — Exhaust Pipe Assy
- 6KIV-021140-2000 — Exhaust Pipe Guard
- 6KIV-021100-2000-33 — Wire Mesh Pad
- 6WWV-046703-5000 — INNER HEX SCREW M6x12
- 6KIV-021300-2000-33 — Clamp Assy
- 6KIV-021320-2000 — Guard
- 6KIV-021301-2000 — Tail Cover
- 6KIV-021300-2000-38 — Circlip
- 6KIV-021300-2000-37 — Screw M6X12
- 6KIV-021300-2000-39 — Wire Mesh Pad
- 6KIV-021300-2000-0D700 — Muffler Assy Matte Black
- 6KIV-021300-2001-0D700 — Muffler Body Assy
- 6GU#-020002-6001 — BUSHING
- A000-020004 — DAMPER, MUFFLER
- 6KIV-020002-2000 — Muffler Bushing
- 30204-080810 — LOCK NUT
- 6GU#-021005-6000 — GUARD RUBBER SLEEVE
- 6KMV-004100-M300 — OXYGEN SENSOR

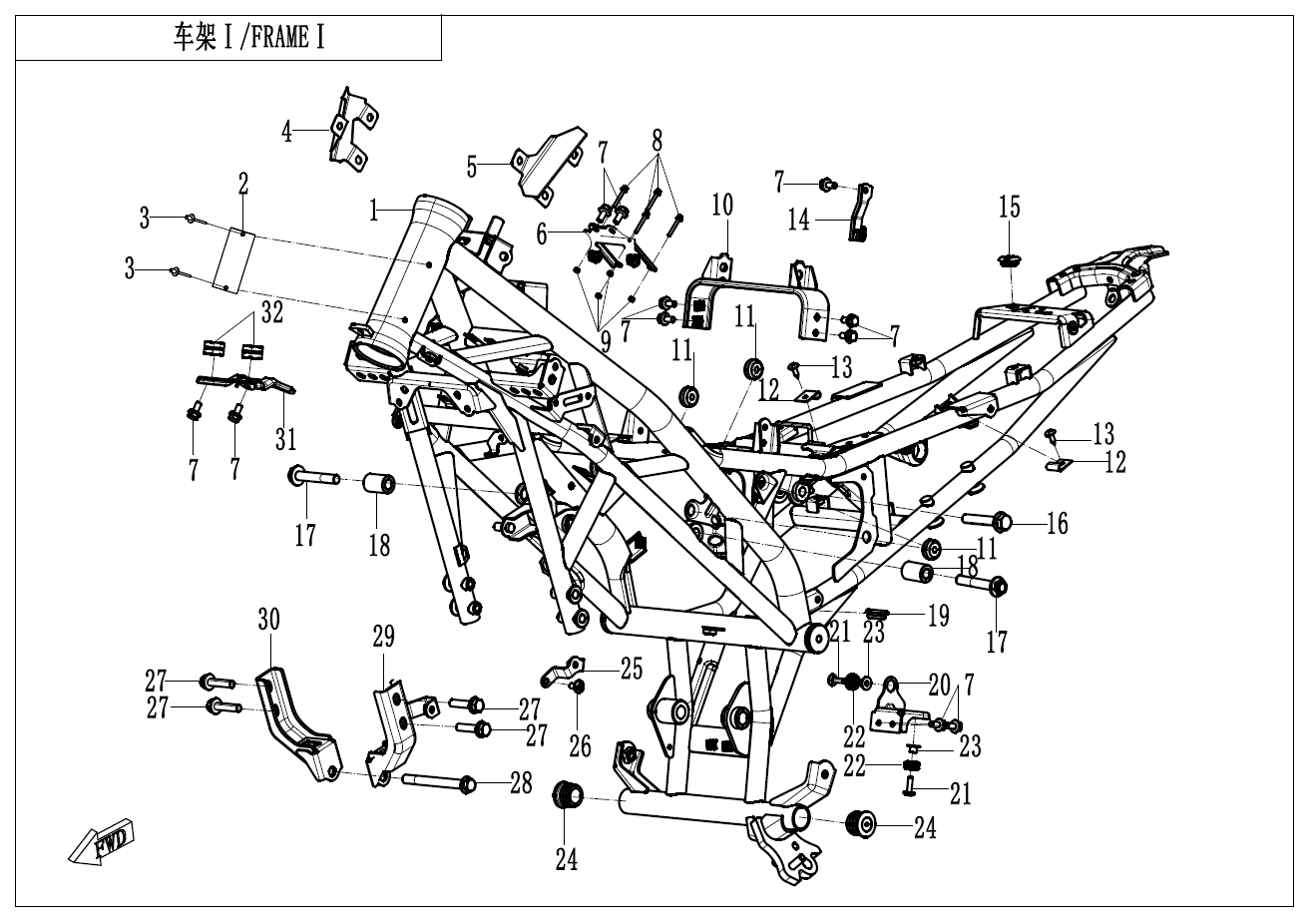

- 6KIV-030000-2000-0BP00 — Frame Assy Maud Spirit Black
- 6KIV-190011-2001 — Vin Plate
- 6KIV-190011-2002 — Vin Plate
- 6KIV-041105-2000-0BP00 — Fuel Tank Front Rh Panel Deco Net Maud Spirit Black
- 6KIV-041005-2000-0BP00 — Fuel Tank Front Lh Panel Deco Net Maud Spirit Black
- 6KIV-035540-2000 — Ignition Coil Bracket
- 30144-030025810 — Screw
- 30200-030810 — Nut M3
- 6KM0-030100-2B200 — REAR MOUNTING ASSY,FUEL TANK
- A000-040302 — RUBBER DAMPER
- A000-030005 — VEHICLE TOOLS TIE BAND BRACKET
- 30118-420095010 — SELF-TAPPING SCREW
- 6KIV-030895-2000 — Rear Brake Reservoir Bracket Assy
- 5BY0-040010 — RUBBER SLEEVE
- 6KIV-030001-2000 — Engine Upper Bolt
- 6KIV-030053-2000 — Engine Upper Bushing
- 8080-040064 — FRONT FENDER DAMPER
- 6KIV-030801-2000 — Abs Bracket
- A000-040703 — INNER HEX SCREW
- 6WWV-030019-5000 — RUBBER BUSHING
- 6AQV-021002-1000 — BUSHING
- 6KJ0-030503 — RUBBER PLUG
- 6KIV-033601-2000 — Canister Bracket
- 6KM#-040702-8000 — SCREW
- 6KIV-030035-2000 — Engine Front Suspension Shaft
- 6KIV-030010-2000-0BP00 — Engine Lh Bracket Assy Maud Spirit Black
