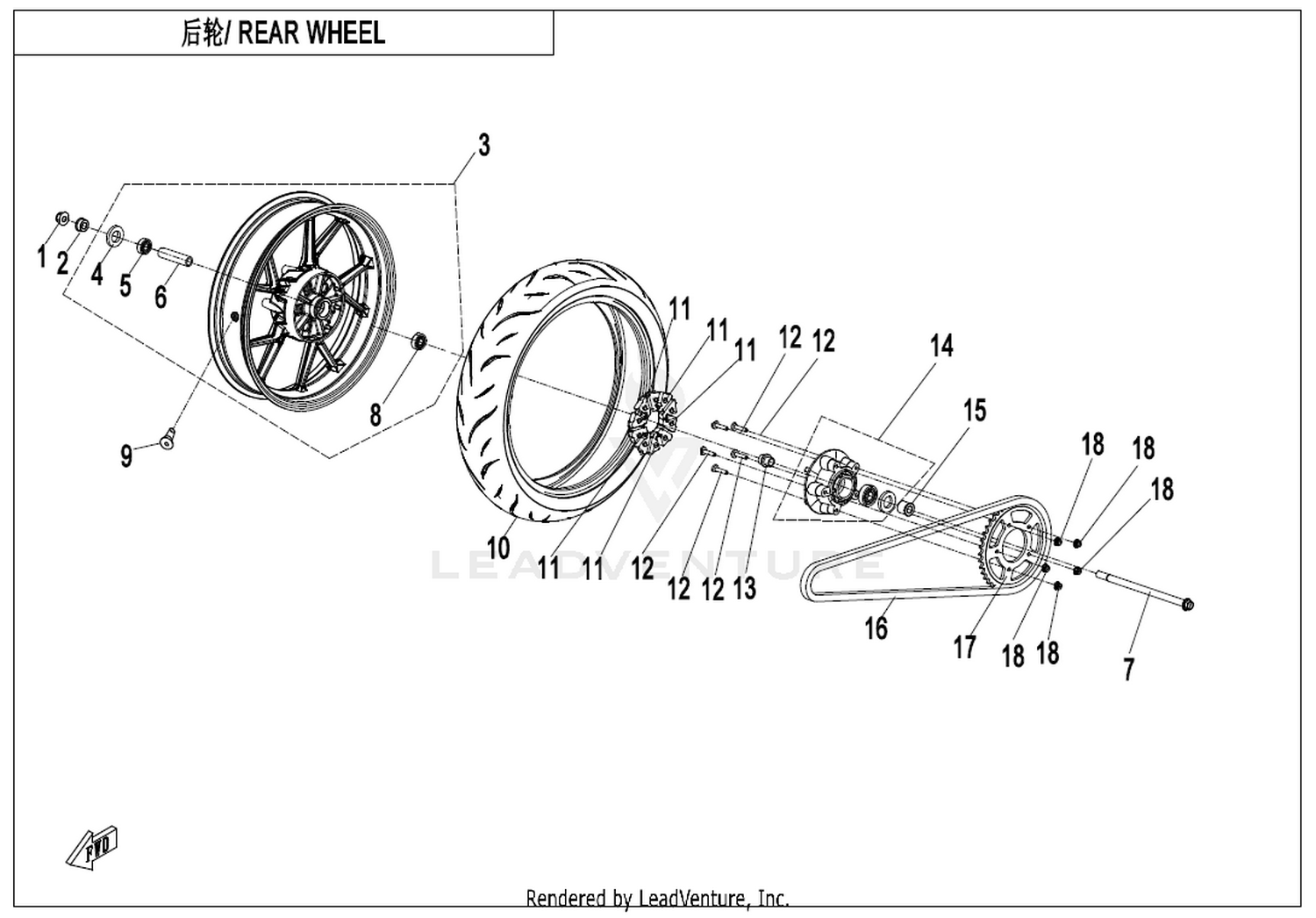

Location in exploded diagrams


Other parts on this diagram — Rear Wheel
- #04 30500-027800N — Oil Seal Fb27X47X7
- #10 30705-1788 — Tire
- #05 30400-01583 — Bearing 6302-2Rs
- #11 6KM0-110004 — Sprocket Seat Rubber Damper
- #17 6KIV-100006-2001-M1 — Sprocket
- #06 6KM#-110103-6001 — Rear Rim Middle Spacer
- #12 6KJ0-110003 — Bolt
- #15 30204-080810 — Lock Nut M8
- #01 30204-143810 — Nut M14×1.5
- #07 6KJ0-110005-20000 — Rear Wheel Shaft
- #13 6KM0-110003-10000 — Sprocket Seat Bushing
- #02 6KJ0-110001-10000 — Rear Wheel Rh Shaft Sleeve
- #08 30400-01580 — Bearing 6202-2Rs
- #14 6KM0-110200-10000 — Sprocket Assy
- #03 6KNV-110100-4001-0DH00 — Rear Rim Assy High Bright Black
- #07 5190-070030-1000 — Inflation Valve
- #15 6KM0-110002-10000 — Rear Wheel Shaft Sleeve
