2020 CF MOTO CF250-A(EU4) — Wheels & Tyres parts
EE market39 genuine parts12 diagrams
Subgroups
Part numbers
Every genuine wheels & tyres part fitted to the 2020 CF MOTO CF250-A(EU4). Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 6KJ0-080002-10000 | REAR BRAKE DISC | REAR BRAKE SYSTEM(HANGTE) - F08-B-2 | Enquire | |
| A000-050015 | WIRE CLIP, FRONT BRAKE FLUID HOSE | REAR SUSPENSION - F06-A | Enquire | |

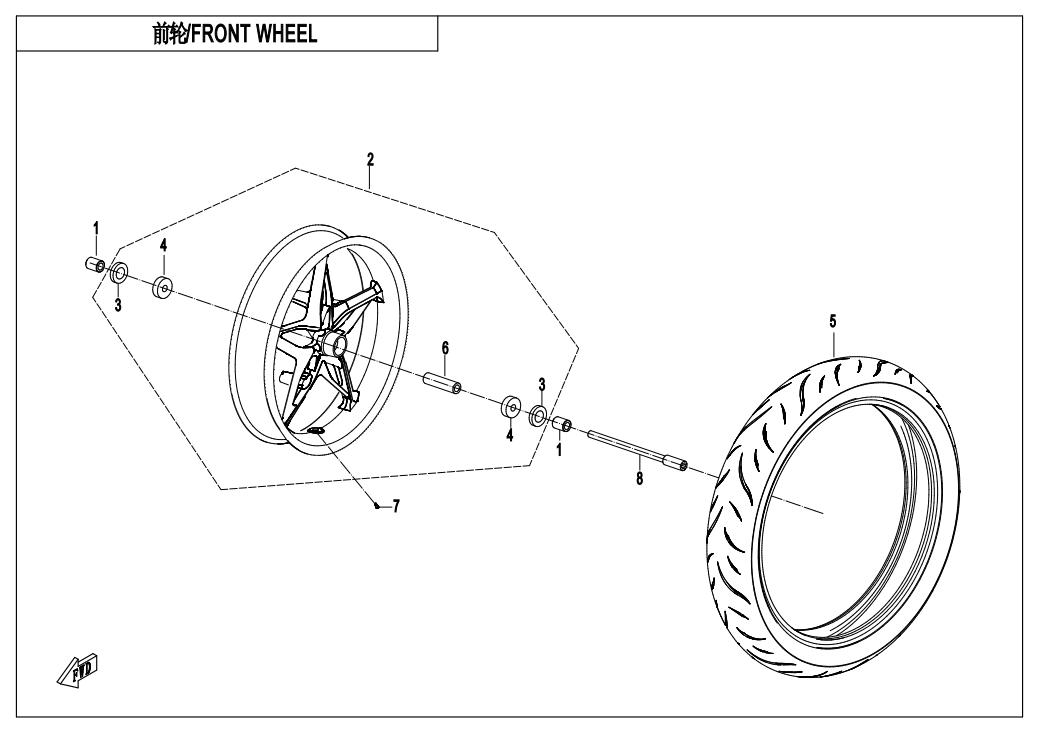

| 6KJ0-070002 | COLLAR, FRONT WHEEL AXLE | FRONT WHEEL - F07-V1 | Enquire | |
| 6KM0-070100-0B200 | FRONT RIM 17X3.5MT MATTE BLACK | FRONT WHEEL - F07-V1 | Enquire | |
| 6KM0-070100-0E800 | FRONT RIM 17X3.5MT CORAL BLUE | FRONT WHEEL - F07-V1 | Enquire | |
| 30400-01281 | BEARING | FRONT WHEEL - F07-V1 | Enquire | |
| 30705-1723 | FRONT TYRE | FRONT WHEEL - F07-V1 | Enquire | |
| 6KJ0-070022 | MIDDLE BUSHING, FRONT RIM | FRONT WHEEL - F07-V1 | Enquire | |
| 5190-070030-1000 | VALVE, INFLATION | FRONT WHEEL - F07-V1 | Enquire | |
| 6KJ0-070001-10000 | AXLE, FRONT WHEEL | FRONT WHEEL - F07-V1 | Enquire | |

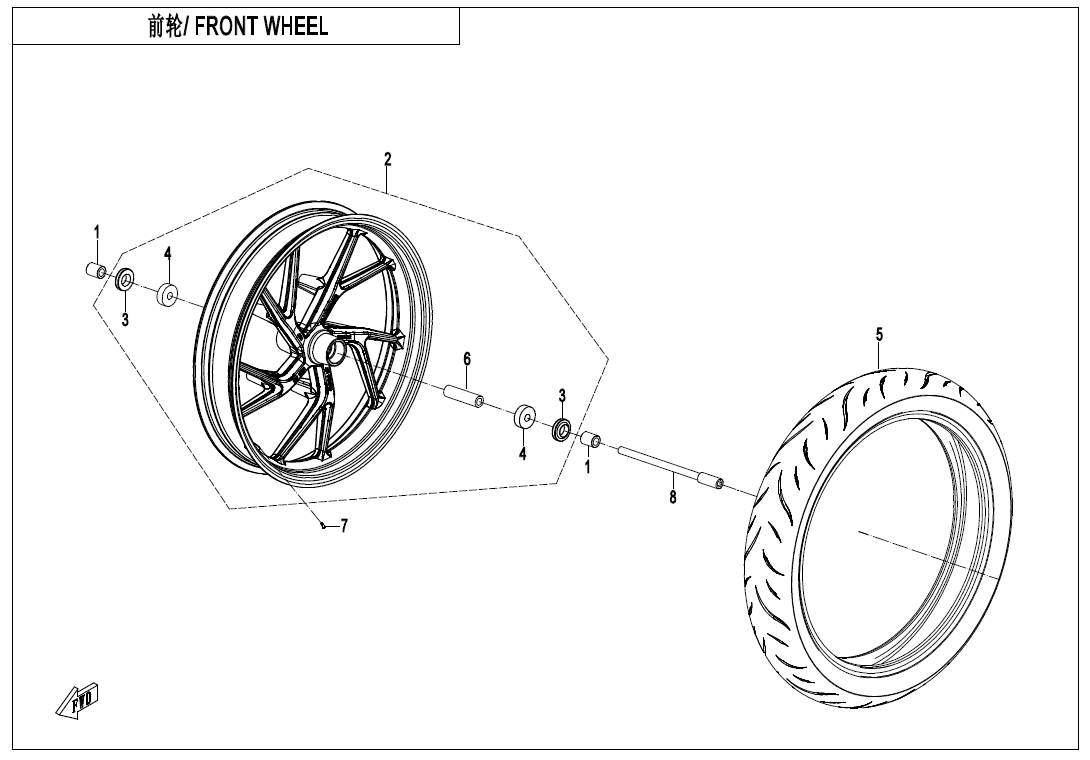

| 6KM#-070100-6001-10 | FRONT RIM ASSY MATTE BLACK | FRONT WHEEL(NEW) - F07-V2 | Enquire | |
| 6KM#-070103-6001 | MIDDLE SPACER, FRONT RIM | FRONT WHEEL(NEW) - F07-V2 | Enquire | |
| 6KJ0-080001-20000 | FRONT BRAKE DISC | FRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2 | Enquire | |
| 6KM0-081010-30000 | FRONT BRAKE FLUID HOSE ASSY Replacing: 6KM0-081010-20000 - FRONT BRAKE HOSE COMP | FRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2 | Enquire | |
| 6KM#-081020-6001 | FRONT CALIPER OIL OUTLET HOSE | MAB BRAKE ASSY(HANGTE) - F08-E-V1 | Enquire | |
| 6KM#-081010-6001 | FLUID INLET PIPE, FRONT CALIPER | MAB BRAKE ASSY(HANGTE) - F08-E-V1 | Enquire | |
| 6KJ0-110001 | REAR WHEEL RH SHAFT SLEEVE | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KJ0-110001-10000 | REAR WHEEL RH SHAFT SLEEVE | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM0-110100-0B200 | REAR RIM ASSY MATTE BLACK | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 30400-01583 | BEARING | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM0-110102 | CENTER SPACER, REAR RIM | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KJ0-110005-10000 | SHAFT, REAR WHEEL | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KJ0-110005-20000 | REAR WHEEL SHAFT | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 30400-01580 | BEARING | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 30705-1724 | REAR TYRE | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KJ0-110003 | BOLT | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM0-110003 | BUSHING, SPROCKET SOCKET | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM0-110003-10000 | SPROCKET SEAT BUSHING | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM0-110200 | SPROCKET SOCKET | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM0-110200-10000 | SPROCKET ASSY | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM0-110002 | SHAFT SLEEVE, REAR WHEEL | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM0-110002-10000 | REAR WHEEL SHAFT SLEEVE | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 3120910 | CHAIN | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 3120922 | CHAIN | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM0-110005 | REAR SPROCKET | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM#-110005-6000 | REAR SPROCKET | REAR WHEEL(MATTE BLACK-RIM) - F11-A | Enquire | |
| 6KM0-110100-0E800 | REAR RIM ASSY CORAL BLUE | REAR WHEEL(CORAL BLUE-RIM) - F11-B | Enquire | |
| 6KM#-110103-6001 | REAR RIM MIDDLE SPACER | REAR WHEEL(NEW) - F11-V2 | Enquire | |
| 6KM#-110005-6001 | REAR SPROCKET Replacing: 6KM0-110005 - REAR SPROCKET | REAR WHEEL(NEW) - F11-V2 | Enquire |
Exploded diagrams — Wheels & Tyres
