2020 CF MOTO CF250-A(EU4) — Brake System parts

EE market86 genuine parts12 diagrams

Subgroups

Disc Brake · 43Dynamic Stability/ABS · 12Brake Fluid Reservoir & Parts · 9Brake Master Cylinder · 6Brake Pedal · 2Brake Lever · 4Brake Light Switch · 9Brake Hardware · 66Brake Assembly · 7

Part numbers

Every genuine brake system part fitted to the 2020 CF MOTO CF250-A(EU4). Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
6KM0-091100-40000REAR BRAKE CALIPER ASSYREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
A000-080006GASKET 17x24x1.6GEARSHIFT LEVER - F03-2Enquire
9010-120008SPONGE PAD, FUEL TANKPLASTICS3 - F04-3-V2Enquire
30102-102060810SCREWFRONT SUSPENSION - F05Enquire
6KM#-100002-8000CLUTCH LEVER PLUGREAR SUSPENSION(SHEET METAL) - F06-B-V2Enquire
6KJ0-080005FRONT BRAKE DISC BOLTFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
6KM0-0812B0FRONT BRAKE PAD ASSYFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
6KM0-081000-30000FRONT HYDRAULIC BRAKEFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
6KM0-081200-30000FRONT BRAKE CALIPER ASSY Replacing: 6KM0-081200-20000 - FRONT CALIPER COMPFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
A000-080102-2000WASHERFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
7020-081004BANJO BOLTFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
30116-040010470SCREW KITFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
6KM0-081102-20000BRAKE SWITCHFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
6KM0-081117-20000HALF-CAP BOLTFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
6090-080126HALF COVERFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
6KM0-081116-20000BOLT, HAND LEVERFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
6KM0-081101-20000BRAKE LEVERFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
6KM0-081100-30000MASTER CYLINDER, HAND BRAKEFRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2Enquire
6KJ0-080300-1H300REAR BRAKE PEDAL ASSYREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091200-20000MASTER PUMP, FOOT BRAKEREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091200-30000REAR BRAKE MASTER CYLINDERREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
30102-060022810SCREWREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
A000-080213-2000CLIPREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091010-20000REAR BRAKE FLUID HOSE ASSYREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091100-20000CALIPER, REAR BRAKEREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091101-20000BRAKE CALIPER HOUSINGREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-0911A0REAR BRAKE PAD ASSYREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
A000-080007GASKET 215x24x1REAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091000-20000REAR HYDRAULIC BRAKEREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091000-60000REAR HYDRAULIC BRAKEREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091204-20000RESERVOIRREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091203-20000FLUID RESERVOIR SEALING GASKETREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091202-20000FLUID RESERVOIR SEALING LINERREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
A000-080229-2000SCREW, FLUID RESERVOIR CAPREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091201-20000FLUID RESERVOIR CAPREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-091220-20000FLUID RESERVOIR HOSEREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KJ0-084416HYDRAULIC INDUCTION SWITCHREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM#-081700-8000-M1HYDRAULIC SWITCH ASSYREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6100-080005RETURN SPRINGREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
30904-0602240PIN SHAFTREAR BRAKE SYSTEM(HANGTE) - F08-B-2Enquire
6KM0-081000-40000MAB HYDRAULIC RRAKE ASSYBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-081000-50000MAB HYDRAULIC BRAKE ASSYBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-091100-00001REAR BRAKE CAPLIER ASSYBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6NTG-081500WHEEL SPEED SENSORBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6NTG-080009REAR GEAR RINGBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-091101-00001MOUNGTING BRACKET Replacing: 6KM0-091101 - MOUNGTING BRACKETBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-091200MASTER PUMP, REAR BRAKEBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
A000-080006-10000GASKET 1BRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
A000-080007-10000GASKET 2BRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-030040-0B200ABS BRACKETBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-081100MAB UNITBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
A000-080103-2000BANJO BOLT 2BRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KJ0-084200FRONT CALIPER ASSYBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KJ0-080004INDUCTION PLATE, COUNTERBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KJ0-0842A0FRONT BRAKE PAD ASSYBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-081020-10000FLUID OUTLET PIPE, FRONT CALIPERBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-081010-10000FLUID INLET PIPE, FRONT CALIPERBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KJ0-084104SWITCH, BRAKE LIGHTBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KJ0-084100HAND BRAKE MASTER CYLINDERBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KJ0-084105HALF CAPBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
30116-040010440SCREW ASSYBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KJ0-084108FRONT BRAKE LEVERBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-081030-10000FLUID INLET PIPE, REAR CALIPERBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KJ0-080270HYDRAULIC INDUCTION SWITCHBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-091205FLUID RESERVOIR PIPEBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-091203SEAL RING, FLUID RESERVOIRBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-091201CAP, FLUID RESERVOIRBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-091202GASKET, FLUID RESERVOIRBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-081040-20000OIL OUTLET HOSE, REAR CALIPERBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM#-080002-8000RUBBER OIL HOSE CLIPBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KJ0-0845A0REAR BRAKE PAD ASSYBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire
6KM0-091105-20000MOUNTING PLATEMAB BRAKE ASSY(HANGTE) - F08-E-V1Enquire
6KM0-091200-20001REAR BRAKE MASTER CYLINDERMAB BRAKE ASSY(HANGTE) - F08-E-V1Enquire
6KM#-080300-8000-0BP00BRAKE PEDAL ASSYMAB BRAKE ASSY(HANGTE) - F08-E-V1Enquire
6NTG-080005RETURN SPRINGMAB BRAKE ASSY(HANGTE) - F08-E-V1Enquire
6KM#-080103-8100BOLT, OIL HOSEMAB BRAKE ASSY(HANGTE) - F08-E-V1Enquire
6KM#-080103-8101PIPE BOLTMAB BRAKE ASSY(HANGTE) - F08-E-V1Enquire
6KM#-081000-8100-20WASHERMAB BRAKE ASSY(HANGTE) - F08-E-V1Enquire
6KM0-081200-20000FRONT CALIPER COMPMAB BRAKE ASSY(HANGTE) - F08-E-V1Enquire
6KM0-0812A0FRONT BRAKE PAD COMPMAB BRAKE ASSY(HANGTE) - F08-E-V1Enquire
6KM#-081030-6001REAR BRAKE CALIPER FLUID HOSEMAB BRAKE ASSY(HANGTE) - F08-E-V1Enquire
6KM#-081000-6005CBS HYDRAULIC BRAKE ASSYMAB BRAKE ASSY(HANGTE) - F08-E-V2Enquire
6KM#-081040-6002REAR CALIPER OIL OUTLET HOSEMAB BRAKE ASSY(HANGTE) - F08-E-V2Enquire
7030-150005TIE BANDELECTRIC SYSTEM - F15Enquire
30006-102050810BOLTREAR SUSPENSION - F06-AEnquire
30006-060025810BOLTBRAKE ASSY(ABS-JJUAN) - F08-C-V3Enquire

Exploded diagrams — Brake System

2020 CF MOTO CF250-A(EU4) BRAKE ASSY(ABS-JJUAN) - F08-C-V3 exploded diagram
BRAKE ASSY(ABS-JJUAN) - F08-C-V3 · 40
2020 CF MOTO CF250-A(EU4) MAB BRAKE ASSY(HANGTE) - F08-E-V2 exploded diagram
MAB BRAKE ASSY(HANGTE) - F08-E-V2 · 32
2020 CF MOTO CF250-A(EU4) MAB BRAKE ASSY(HANGTE) - F08-E-V1 exploded diagram
MAB BRAKE ASSY(HANGTE) - F08-E-V1 · 31
2020 CF MOTO CF250-A(EU4) REAR BRAKE SYSTEM(HANGTE) - F08-B-2 exploded diagram
REAR BRAKE SYSTEM(HANGTE) - F08-B-2 · 27
2020 CF MOTO CF250-A(EU4) FRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2 exploded diagram
FRONT BRAKE SYSTEM(HANGTE) - F08-B-1-V2 · 14
2020 CF MOTO CF250-A(EU4) REAR SUSPENSION(SHEET METAL) - F06-B-V2 exploded diagram
REAR SUSPENSION(SHEET METAL) - F06-B-V2 · 2
2020 CF MOTO CF250-A(EU4) REAR SUSPENSION(SHEET METAL) - F06-B-V3 exploded diagram
REAR SUSPENSION(SHEET METAL) - F06-B-V3 · 2
2020 CF MOTO CF250-A(EU4) ELECTRIC SYSTEM - F15 exploded diagram
ELECTRIC SYSTEM - F15 · 2

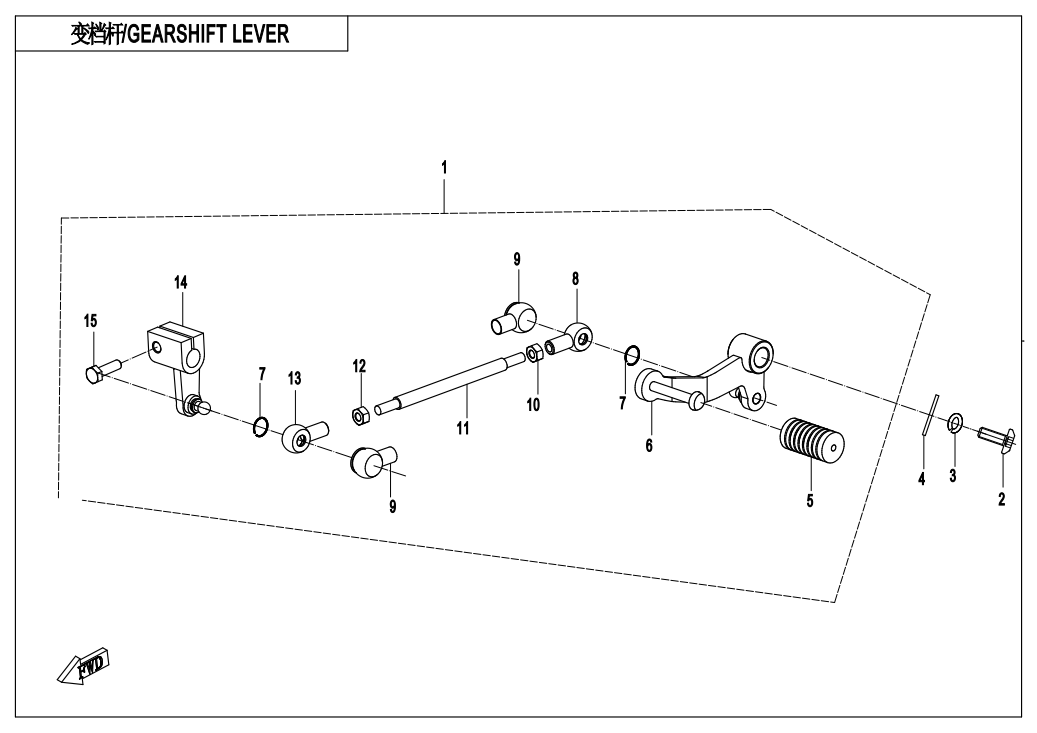

2020 CF MOTO CF250-A(EU4) GEARSHIFT LEVER - F03-2 exploded diagram
