2026 CF MOTO PAPIO RACEROEM parts & exploded diagrams
MY market668 parts16 groups12+ diagrams
Vehicle #1961
- CC
- —
- HP
- —
- 年款
- —
Exploded diagrams — 2026 CF MOTO PAPIO RACER
Part numbers on the 2026 CF MOTO PAPIO RACER
Each number has a dedicated cross-reference & fitment page.
- 8010-150003 — TIE BAND 5X250
- 801F-100101 — TIE BAND
- 6FIV-040011-7100 — SMALL SPROCKET GUARD
- 0010-021017-0010 — BOLT M6x25
- 0020-011018-00001 — BOLT
- 6FJV-011000-1200 — LOCK KIT
- 30102-080020810 — SCREW
- 6FIV-010010-7100 — SEAT CABLE
- 6GU#-010320-6000 — SEAT LOCK SEAT
- 30006-060016810 — BOLT
- 6FIV-011020-7100 — BLANK KEY
- 6FIV-021100-2500 — EXHAUST PIPE ASSY
- 30102-080025810 — SCREW
- 8AJV-004100-1000 — OXYGEN SENSOR
- 6090-020010 — EXHAUST PORT GASKET
- 30006-080035810 — BOLT
- 6WWV-020002-5001 — BUSHING, MUFFLER BODY
- 6WWV-020003-5000 — RUBBER SLEEVE, MUFFLER BODY
- 30204-080810 — LOCK NUT
- A000-020003 — GRAPHITE SEAL BUSHINGⅡ
- A000-020500 — CLAMP ASSY 1
- 6FIV-021200-9000 — REAR MUFFLER BODY ASSY
- 30006-060012870 — BOLTM6x12
- 9010-160101 — HEADLIGHT RUBBER DAMPER
- 6FIV-030400-7101 — FRONT BRACKET ASSY
- 30006-080045810 — BOLT
- 30303-080112 — WASHER
- 30306-080112 — WASHER
- 30206-080510 — NUT M8
- 30902-0401320 — RIVET
- 6FIA-190012 — VEHICLE PLATE
- 6FIV-030001-7100 — DASHBOARD BRACKET
- 30102-080016810 — INNER HEX SCREW

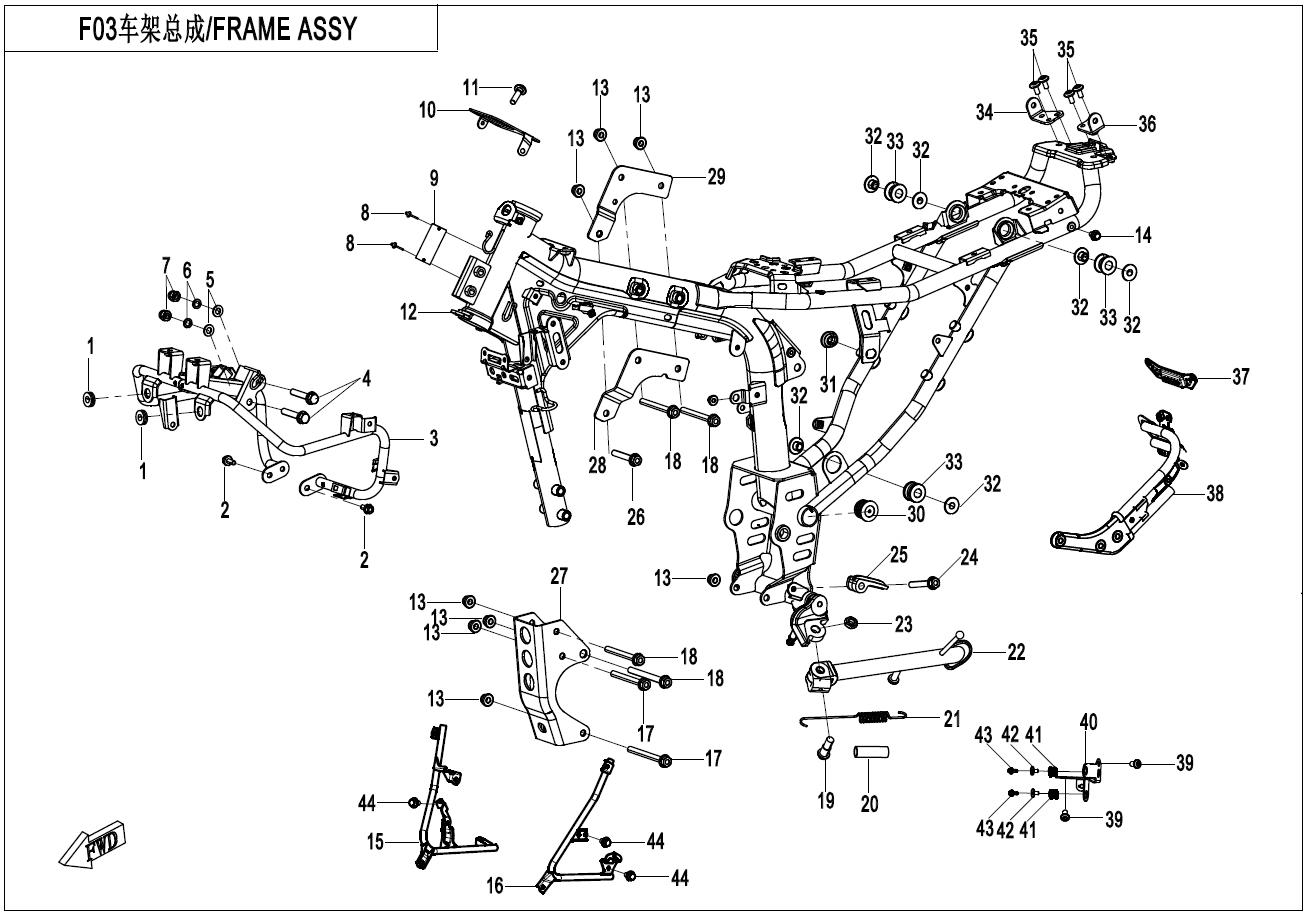

- 6FIV-031000-2500-01 — FRAME ASSY
- 6WWV-046802-5000 — INNER HEX SCREW M6x16
- 6FIV-030800-9200 — ENGINE RH GUARD BRACKET ASSY
- 6FIV-030700-9200 — ENGINE LH GUARD BRACKET ASSY
- 30006-080085810 — BOLT
- 30006-080075810 — BOLT M8X75
- A000-030006 — SIDE BRACKET BOLT
- A000-030004 — SPRING COLLAR, SIDE STAND
- 6KMV-030060-C000 — SIDE STAND SPRING ASSY
- 6FIV-030600-7101 — SIDE STAND ASSY
- 30208-102810 — NUT
- 30006-060035810 — BOLT
- 6KJ0-030510 — CHAIN GUARD ASSY
- 30102-080050870 — INNER HEX SCREW M8X50
- 5280-030004-1000 — FRONT UPPER SWING ARM, LH, BLACK
- 6FI2-030002 — LH UPPER BRACKET, ENGINE ELECTROPHORESIS BLACK
- 6FIV-030050-7100 — ENGINE RH UPPER BRACKET
- 6KJ0-030503 — RUBBER PLUG
- 8080-040064 — FRONT FENDER DAMPER
- 6FIV-030040-7100 — REAR SEAT RH BRACKET
- 6FIV-030030-7100 — REAR SEAT LH BRACKET
- 6FIV-030009-7100 — REAR LICENSE BRACKET
- 6FIV-030300-7100 — REAR FENDER
- 30006-060010810 — BOLT
- 6FIV-030002-7000 — ABS BRACKET
- 6WWV-030019-5000 — RUBBER BUSHING
- 6AQV-021002-1000 — BUSHING
