2026 CF MOTO PAPIO RACER — Engine parts

MY market131 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 15Cylinder Head & Parts · 12Seals & Gaskets · 16Lubrication System · 4Belt/Chain Drive · 4Engine Hardware · 131

Part numbers

Every genuine engine part fitted to the 2026 CF MOTO PAPIO RACER. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
0010-021017-0010BOLT M6x25ENGINE FITTINGSEnquire
30102-080020810SCREWLOCK KITEnquire
30102-080025810SCREWMUFFLEREnquire
A000-020500CLAMP ASSY 1MUFFLEREnquire
6WWV-046802-5000INNER HEX SCREW M6x16FRAMEEnquire
30006-060035810BOLTFRAMEEnquire
30102-080050870INNER HEX SCREW M8X50FRAMEEnquire
30110-420160070SELF-TAPPING SCREWPLASTICS 1Enquire
8080-041130EXPANSION RIVET ASSYPLASTICS 1Enquire
6WWV-047102-5000INNER HEX SCREW M5x14PLASTICS 1Enquire
6WWV-046502-5000STEPPED SCREW M5PLASTICS 2Enquire
9060-040310CLAMP ASSYPLASTICS 2Enquire
30110-420095010SELF-TAPPING SCREWPLASTICS 2Enquire
30105-050012410SCREWPLASTICS 2Enquire
6WWV-030080-8000CLIPPLASTICS 3Enquire
6WWV-046602-5000INNER HEX STEPPED SCREW M6x14PLASTICS 5Enquire
30118-420095010SELF-TAPPING SCREWPLASTICS 5Enquire
6WWV-046902-5000INNER HEX SCREW M6x20PLASTICS 5Enquire
30110-481130070SELF-TAPPING SCREWPLASTICS 8Enquire
6FJV-050001-1400UPPER TRIPLE CLAMPFRONT SUSPENSIONEnquire
30102-060016830INNER HEX SCREW M6X16FRONT SUSPENSIONEnquire
5280-050100UPPER STEERING BEARING ASSYFRONT SUSPENSIONEnquire
5280-050200LOWER STEERING BEARING ASSYFRONT SUSPENSIONEnquire
6FIV-050011-7000RUBBER PLUGFRONT SUSPENSIONEnquire
30102-080030810SCREWFRONT SUSPENSIONEnquire
6KJV-070103-8000OIL SEALFRONT WHEELEnquire
30102-060012810SCREWBRAKE SYSTEMEnquire
30102-060025810SCREW M6X25BRAKE SYSTEMEnquire
30903-0162010COTTER PINBRAKE SYSTEMEnquire
30500-027800NOIL SEALREAR WHEELEnquire
6KJV-110004-8000DAMPING RUBBER, SPROCKET SEATREAR WHEELEnquire
6070-120400CLAMP(Φ14.5)FUEL TANKEnquire
30601-111010CLAMPFUEL TANKEnquire
30802-00603SPLIT WASHER 6FOOTRESTEnquire
30903-0322210COTTER PINFOOTRESTEnquire
6GU#-000201-6000INNER HEX SCREW M6x25LIGHTSEnquire
30601-109010CLAMPFUEL VAPORIZATION SYSTEMEnquire
30601-108010CLAMPFUEL VAPORIZATION SYSTEMEnquire
30601-114010CLAMP D14FUEL VAPORIZATION SYSTEMEnquire
30601-112010CLAMPFUEL VAPORIZATION SYSTEMEnquire
0KIA-110100CLAMP ASSY D44AIR FILTEREnquire
30601-113510CLAMP D13.5AIR FILTEREnquire
30601-117010CLAMPAIR FILTEREnquire
30112-050016440SCREW ASSYAIR FILTEREnquire
30400-02006BEARINGLEFT CRANKCASE ASSY.Enquire
0C10-011007DOWEL PIN 11X16LEFT CRANKCASE ASSY.Enquire
30400-03503BEARINGLEFT CRANKCASE ASSY.Enquire
30400-01502BEARINGLEFT CRANKCASE ASSY.Enquire
0A70-011008SCREW 4X11LEFT CRANKCASE ASSY.Enquire
0010-011005-00002CYLINDER BOLT BLEFT CRANKCASE ASSY.Enquire
0A70-011009-00001SCREW PLUG M14X1.25X12LEFT CRANKCASE ASSY.Enquire
0KI2-011100-0B204LH CRANKCASELEFT CRANKCASE ASSY.Enquire
30011-060025820STUD M6X25LEFT CRANKCASE ASSY.Enquire
0A70-013004PLUGLEFT CRANKCASE ASSY.Enquire
0DM0-022201-10000DOWEL PINLEFT CRANKCASE ASSY.Enquire
0010-011017-0010BOLT M6X60LEFT CRANKCASE ASSY.Enquire
0A80-011500OIL SEAL 20X40X6LEFT CRANKCASE ASSY.Enquire
0A70-011006COUNTERSHAFT OIL SEAL PRESSLEFT CRANKCASE ASSY.Enquire
30004-060010850BOLT M6X10 (SILVER)LEFT CRANKCASE ASSY.Enquire
0A70-011400OIL SEAL 12X22X9LEFT CRANKCASE ASSY.Enquire
0010-021018-0010BOLT M6x55LEFT CRANKCASE ASSY.Enquire
0A70-011300FILTER ASSYLEFT CRANKCASE ASSY.Enquire
30116-050012410SCREW KIT M5X12LEFT CRANKCASE ASSY.Enquire
0A70-011002OIL STRAINER COVER O-RING 60.5X2.4LEFT CRANKCASE ASSY.Enquire
0A70-012007PLUGRIGHT CRANKCASE ASSY.Enquire
30400-02008BEARING 6104RIGHT CRANKCASE ASSY.Enquire
30400-02801BEARING 63/28/P53RIGHT CRANKCASE ASSY.Enquire
30400-02000BEARING 6204P6RIGHT CRANKCASE ASSY.Enquire
0A70-012002PRESS TOOL. BEARINGRIGHT CRANKCASE ASSY.Enquire
30107-060012410SCREW M6X12RIGHT CRANKCASE ASSY.Enquire
30400-01503BEARING 6202/P6RIGHT CRANKCASE ASSY.Enquire
0A70-012004-00002CYLINDER STUD M8X175RIGHT CRANKCASE ASSY.Enquire
0A70-012003-00002STUDRIGHT CRANKCASE ASSY.Enquire
0A70-013100CRANKCASE OIL SEAL 12X21X7RIGHT SIDE COVER ASSY.Enquire
0A80-013003OIL SEAL PRESS PLATERIGHT SIDE COVER ASSY.Enquire
30105-060012410SCREWRIGHT SIDE COVER ASSY.Enquire
0A70-013500OIL LEVEL VIEWERRIGHT SIDE COVER ASSY.Enquire
30017-060022110BOLTRIGHT SIDE COVER ASSY.Enquire
0A70-013007-00001SCREW PLUG M14X1.25X12RIGHT SIDE COVER ASSY.Enquire
0A70-013006O-SEAL RING 16.8X3.1RIGHT SIDE COVER ASSY.Enquire
0A70-013005OIL FILLING PORT BOLT PLUGRIGHT SIDE COVER ASSY.Enquire
01A0-013005O-SEAL RINGRIGHT SIDE COVER ASSY.Enquire
0A70-013200PAPER FILTER ELEMENTRIGHT SIDE COVER ASSY.Enquire
01A0-013003O-RING 53.6X2.4RIGHT SIDE COVER ASSY.Enquire
0C10-021003DOWEL PIN 8X12CYLINDER HEAD COVER ASSY.Enquire
0110-013028O-RING 30X3.55CYLINDER HEAD COVER ASSY.Enquire
0C10-021002PLUG, CAMSHAFTCYLINDER HEAD COVER ASSY.Enquire
0010-022020-00002BOLTCYLINDER HEAD COVER ASSY.Enquire
0A70-021005O-RING 8.6X1.9CYLINDER HEAD COVER ASSY.Enquire
0A70-021100SWING ARM ASSYCYLINDER HEAD COVER ASSY.Enquire
0A70-021102VALVE CLEARANCE ADJUST SCREWCYLINDER HEAD COVER ASSY.Enquire
0010-022013-00002BOLT M8CYLINDER HEAD ASSY.Enquire
0KIA-022005CYLINDER HEAD TEMP. SENSORCYLINDER HEAD ASSY.Enquire
0KIA-022003SEAL RING, INJECTOR SEATCYLINDER HEAD ASSY.Enquire
0KIA-022002HEAT INSULATOR, FUEL INJECTOR SEATCYLINDER HEAD ASSY.Enquire
0KIV-022201-4002INJECTOR SEATCYLINDER HEAD ASSY.Enquire
30603-050000CLAMP D50CYLINDER HEAD ASSY.Enquire
0KIV-171000-4000INJECTOR ASSYCYLINDER HEAD ASSY.Enquire
0KIV-170010-4000INJECTOR CAPCYLINDER HEAD ASSY.Enquire
0C10-023004-10000GASKET, CYLINDER HEADCYLINDER BODY ASSY.Enquire
0KIB-023100-0B201CYLINDER BODY ASSYCYLINDER BODY ASSY.Enquire
0C10-023200-1B200TENSIONER ASSYCYLINDER BODY ASSY.Enquire
0180-023007-00001BOLT, TENSIONER PLATE M8X39.5CYLINDER BODY ASSY.Enquire
0A70-023400CHAIN GUIDECYLINDER BODY ASSY.Enquire
0A70-024100TIMING CHAINCAMSHAFT ASSY.Enquire
30004-060010150BOLT M6x10CAMSHAFT ASSY.Enquire
0A70-024002TIMING SPROCKETCAMSHAFT ASSY.Enquire
0A80-024001CAMSHAFTCAMSHAFT ASSY.Enquire
30102-050012810SCREWMAGNETO ASSY.Enquire
0A70-040008-00001LOCK CIRCLIPCRANKSHAFT / CONNECTING ROD & PISTON ASSY.Enquire
0A70-040009OIL PUMP DRIVE GEARCRANKSHAFT / CONNECTING ROD & PISTON ASSY.Enquire
0A80-043000PRIMARY DRIVEN GEAR ASSYCRANKSHAFT / CONNECTING ROD & PISTON ASSY.Enquire
0A80-040003CRANKSHAFT BALANCER GEARCRANKSHAFT / CONNECTING ROD & PISTON ASSY.Enquire
0KIB-041000CRANKSHAFT & CONNECTING ROD ASSYCRANKSHAFT / CONNECTING ROD & PISTON ASSY.Enquire
0A70-040011WOODRUFF KEYCRANKSHAFT / CONNECTING ROD & PISTON ASSY.Enquire
0C10-040003CIRCLIP, PISTON PINCRANKSHAFT / CONNECTING ROD & PISTON ASSY.Enquire
0C1V-040002-1000-10PISTON PINCRANKSHAFT / CONNECTING ROD & PISTON ASSY.Enquire
0A80-050030THRUST BEARING AND BRACKET ASSYCLUTCH ASSY.Enquire
30112-050016410SCREW ASSY M5X16CLUTCH ASSY.Enquire
0110-080005OIL SEAL 10X20X5CLUTCH ASSY.Enquire
0180-021008-00001BOLTTRANSMISSION ASSY.Enquire
0A70-060014O-RINGTRANSMISSION ASSY.Enquire
30116-050020410SCREW ASSYTRANSMISSION ASSY.Enquire
30901-0400600PIN 4X6TRANSMISSION ASSY.Enquire
0A80-061008CIRCLIPTRANSMISSION ASSY.Enquire
0110-090009-00002INNER HEX SCREWTRANSMISSION ASSY.Enquire
30406-00201ROLLER NEEDLE P2.5X22OIL PUMP ASSY.Enquire
0A70-070001OIL PUMP DRIVEN GEAROIL PUMP ASSY.Enquire
30802-00605SPLIT WASHEROIL PUMP ASSY.Enquire
0A8A-090004-00002SCREWELECTRIC STARTING ASSY.Enquire
0A80-160005CIRCLIP 38BALANCE SHAFT ASSY.Enquire

Exploded diagrams — Engine

2026 CF MOTO PAPIO RACER LEFT CRANKCASE ASSY. exploded diagram
LEFT CRANKCASE ASSY. · 21

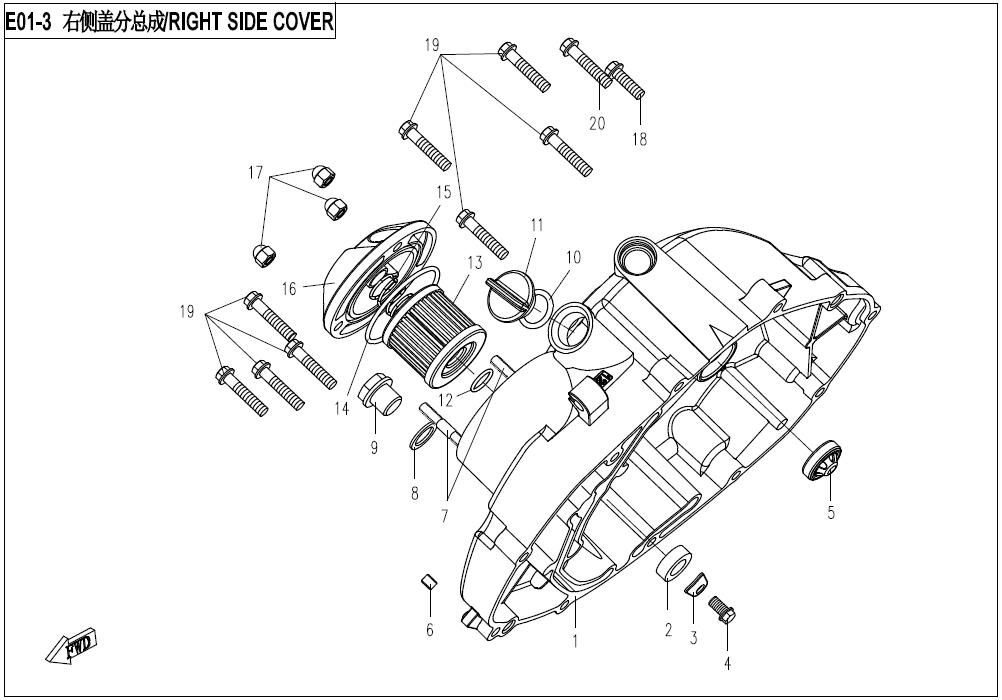

2026 CF MOTO PAPIO RACER RIGHT SIDE COVER ASSY. exploded diagram
RIGHT SIDE COVER ASSY. · 12

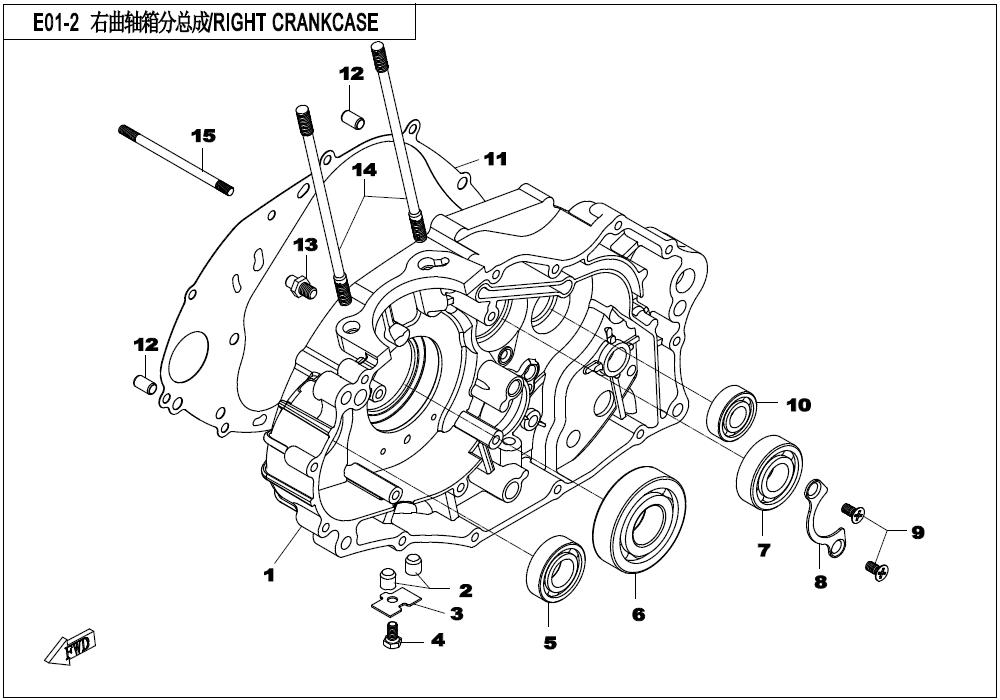

2026 CF MOTO PAPIO RACER RIGHT CRANKCASE ASSY. exploded diagram
RIGHT CRANKCASE ASSY. · 10
2026 CF MOTO PAPIO RACER CYLINDER HEAD ASSY. exploded diagram
CYLINDER HEAD ASSY. · 9
2026 CF MOTO PAPIO RACER TRANSMISSION ASSY. exploded diagram
TRANSMISSION ASSY. · 9
2026 CF MOTO PAPIO RACER PLASTICS 2 exploded diagram
PLASTICS 2 · 8
2026 CF MOTO PAPIO RACER CYLINDER HEAD COVER ASSY. exploded diagram
CYLINDER HEAD COVER ASSY. · 8

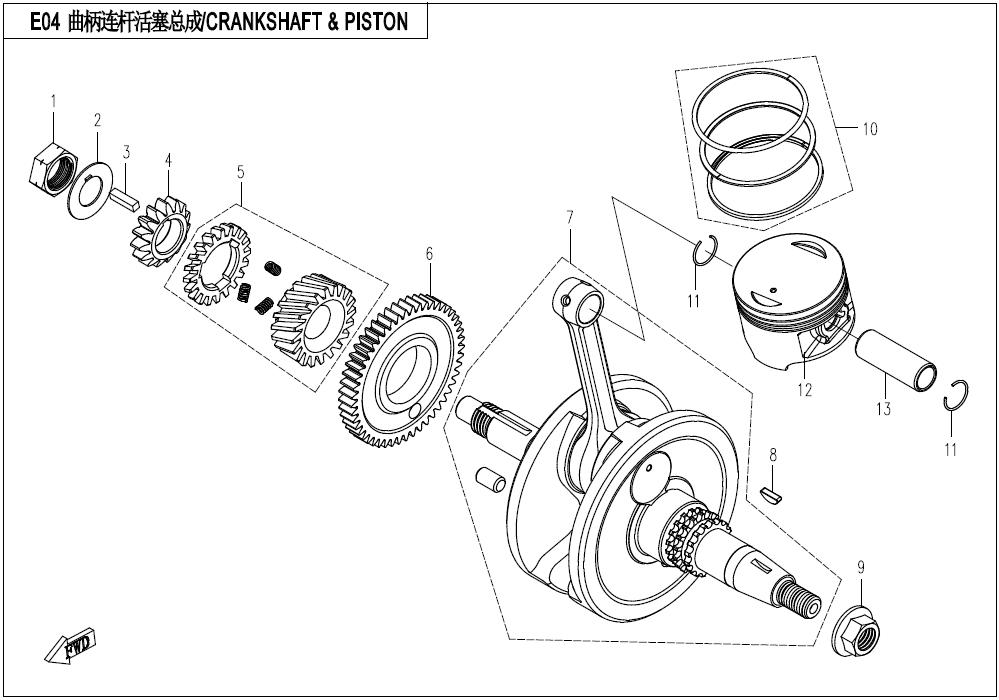

2026 CF MOTO PAPIO RACER CRANKSHAFT / CONNECTING ROD & PISTON ASSY. exploded diagram
CRANKSHAFT / CONNECTING ROD & PISTON ASSY. · 8
2026 CF MOTO PAPIO RACER FRONT SUSPENSION exploded diagram
FRONT SUSPENSION · 7
2026 CF MOTO PAPIO RACER PLASTICS 7 exploded diagram
PLASTICS 7 · 6
2026 CF MOTO PAPIO RACER PLASTICS 8 exploded diagram
PLASTICS 8 · 6

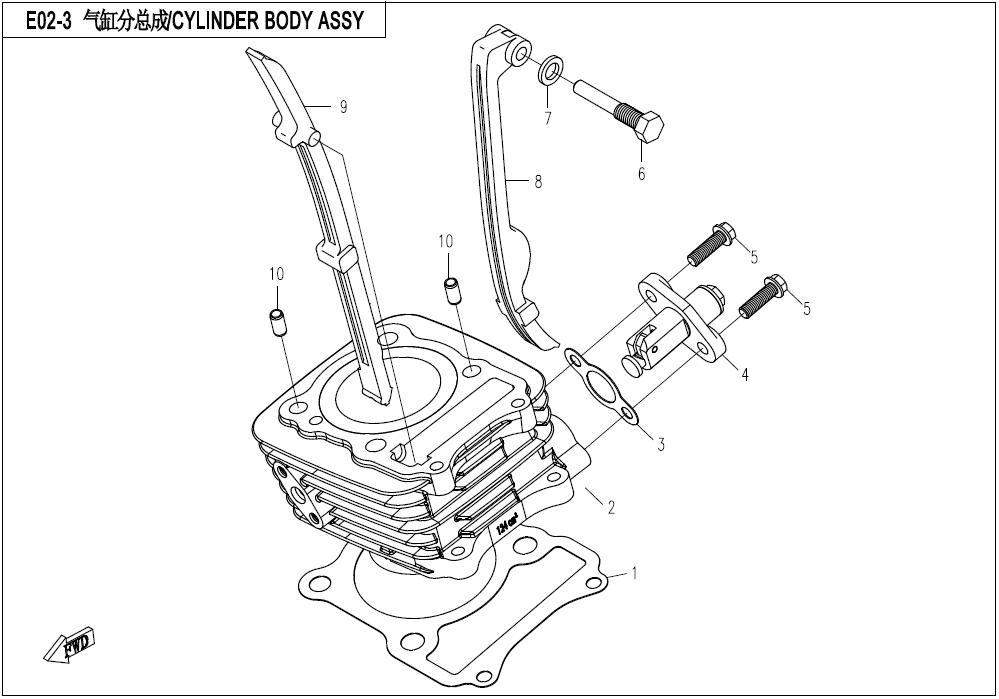

2026 CF MOTO PAPIO RACER CYLINDER BODY ASSY. exploded diagram
CYLINDER BODY ASSY. · 6

Browse the catalogue interactively

Open Engine in the interactive 2026 CF MOTO PAPIO RACER catalogue to drill into diagrams, check availability and add parts to your cart.
