2025 CF MOTO 700 MTOEM parts & exploded diagrams
MY market914 parts15 groups12+ diagrams
Vehicle #1956
- CC
- —
- HP
- —
- 年款
- —
Parts by assembly group
Exploded diagrams
Part numbers on this vehicle
Each number has a dedicated cross-reference & fitment page.

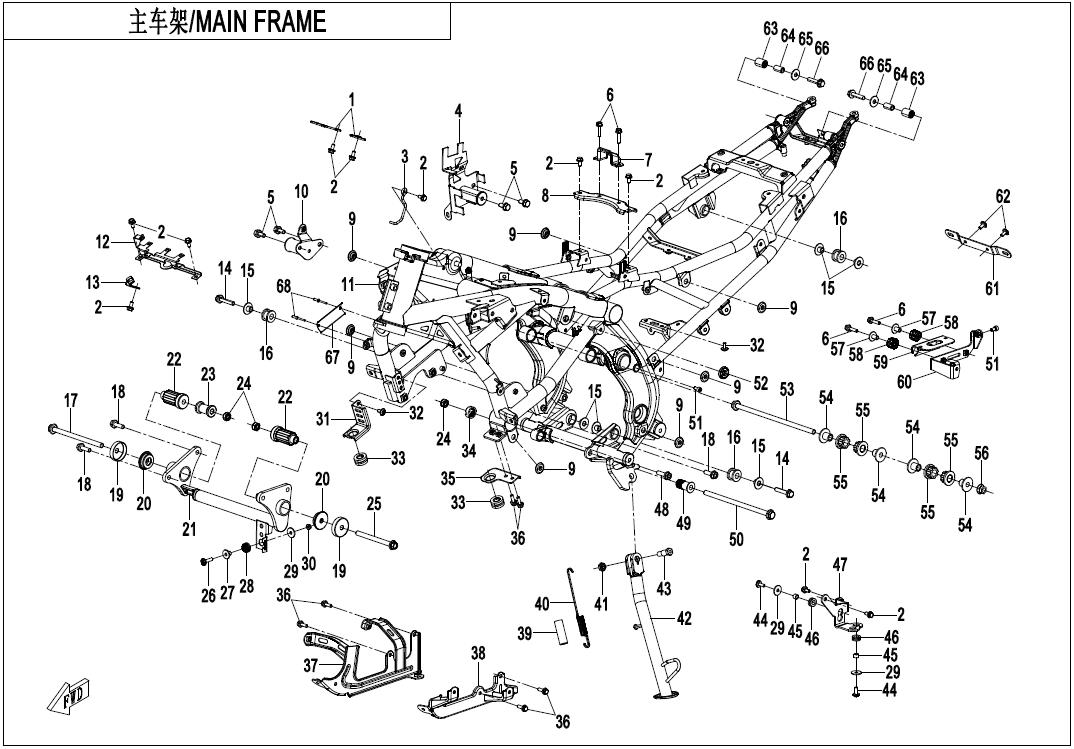

- 6GUV-031000-2003-0BP00 — FRAME ASSY (MAUD SPIRIT BLACK)
- 6NTV-030010-2700 — BRACKET, HANDLEBAR CONNECTOR
- 6GUV-030391-2000 — Front Brake Fluid Pipe Clip
- 30006-080040810 — BOLT
- 6GU#-020002-6001 — BUSHING
- A000-020004 — DAMPER, MUFFLER
- 30001-102150110 — BOLT M10x1.25x150
- 30006-080025810 — BOLT
- 6NT1-000231 — FRONT DUST COVER, ENGINE
- 6NT1-000250 — FRONT LH CUSHION RUBBER 2, ENGINE
- 6GUV-000210-2000-0BP00 — Engine Front Bracket Assy Maud Spirit Black
- 6NT1-000240 — FRONT LH CUSHION RUBBER 1, ENGINE
- 6NT1-000221 — FRONT RH BUSHING, ENGINE
- 30203-102110 — NUT M10x1.25
- 30001-102110110 — BOLT
- 30006-060025870 — BOLTM6x25

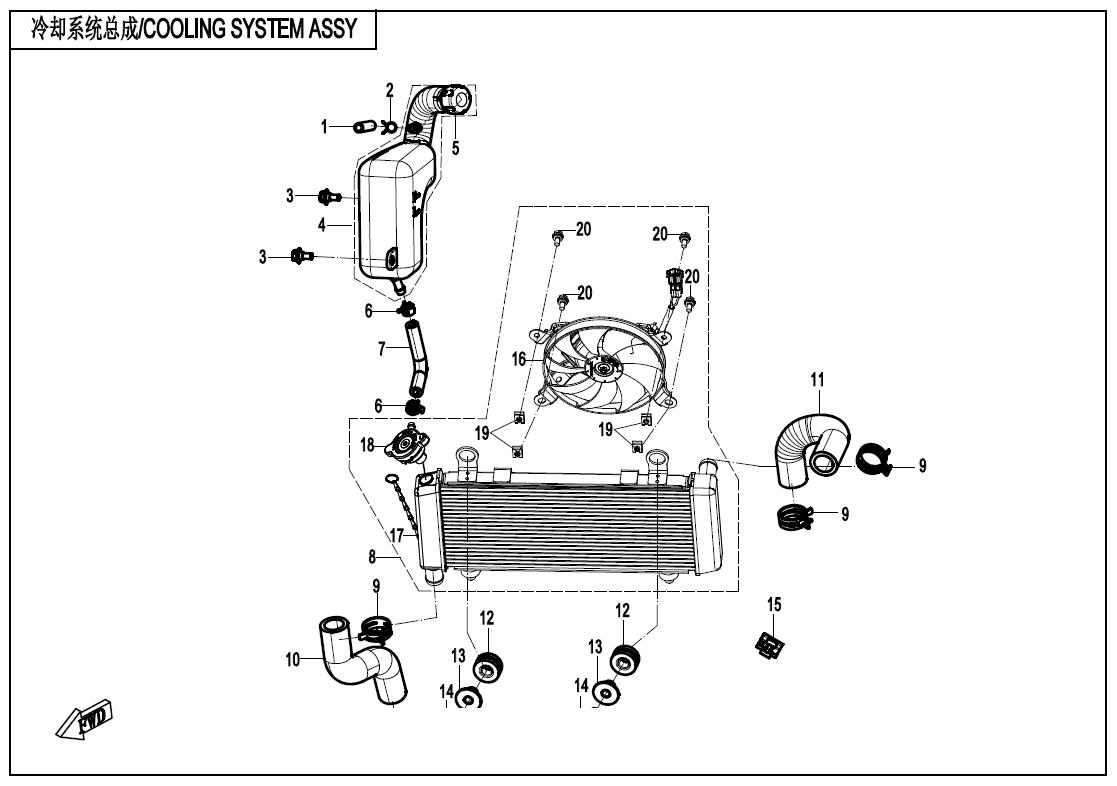

- 9060-180029 — RADIATOR SLEEVE TUBE
- 6WWV-030019-5000 — RUBBER BUSHING
- 30301-060470 — WASHER
- 30204-060870 — NUT
- 6GUV-030410-5000 — RH LOWER BRACKET, RADIATOR
- 6WWV-046702-5000 — INNER HEX SCREW M6x12
- A000-180005 — RADIATOR SHOCK ABSORBER RUBBER 2
- 6NT1-000292 — NUT M18
- 6NT1-030031 — LH LOWER BRACKET, RADIATOR
- 30006-060016810 — BOLT

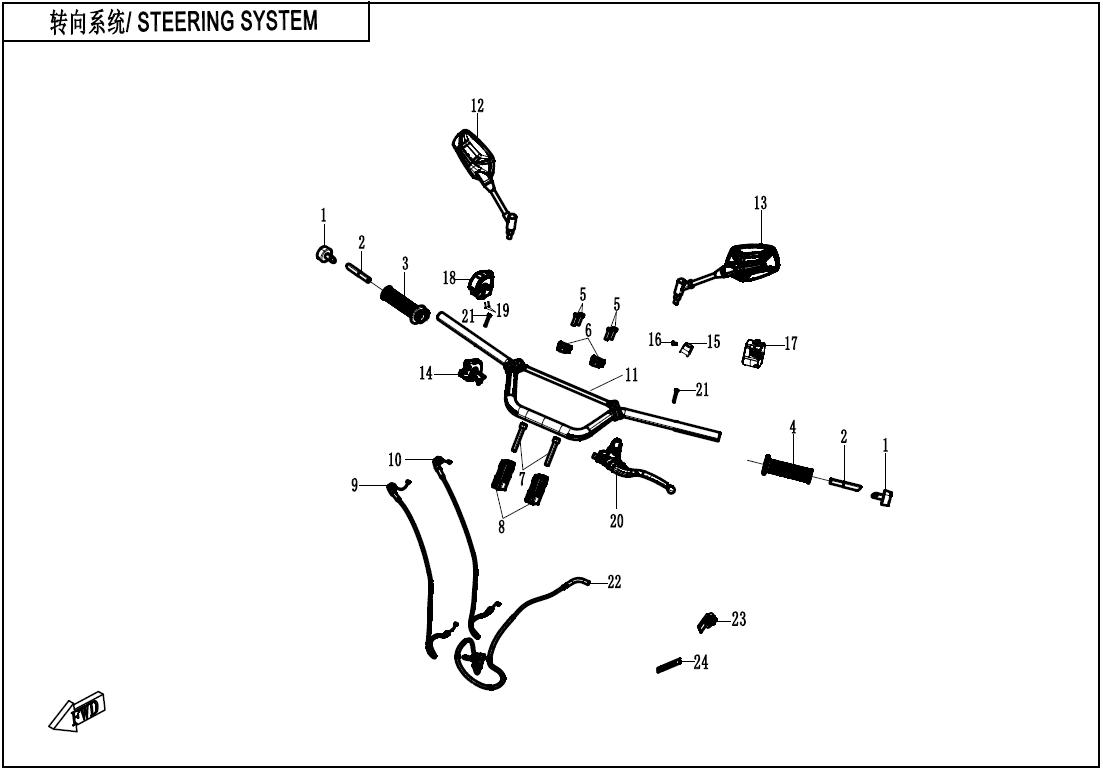

- 6GUV-100100-2002 — Handlebar Assy
- 6WWV-200300-5001 — LH REAR VIEW MIRROR ASSY
- 6WWV-200400-5001 — RH REAR VIEW MIRROR ASSY
- 6AQV-100700-6001 — THROTTLE LEVER ASSEMBLY
- 6GUV-169470-2000 — Abs Switch
- 30105-040008470 — SCREW
- 6GUV-166000-2000 — Lh Handlebar Switch Assy
- 6GUV-167000-2000 — Rh Handlebar Switch Assy
- 30137-250120010 — SCREW
- 6WWV-100200-5003 — CLUTCH LEVER ASSY
- 30105-040030410 — SCREW
- 6GUV-100600-2000 — Clutch Cable
- 6KJ0-100002 — CLUTCH PULL BINDING
- A000-100002 — CLUTCH CABLE CLIP
- 30903-0403510 — COTTER PIN

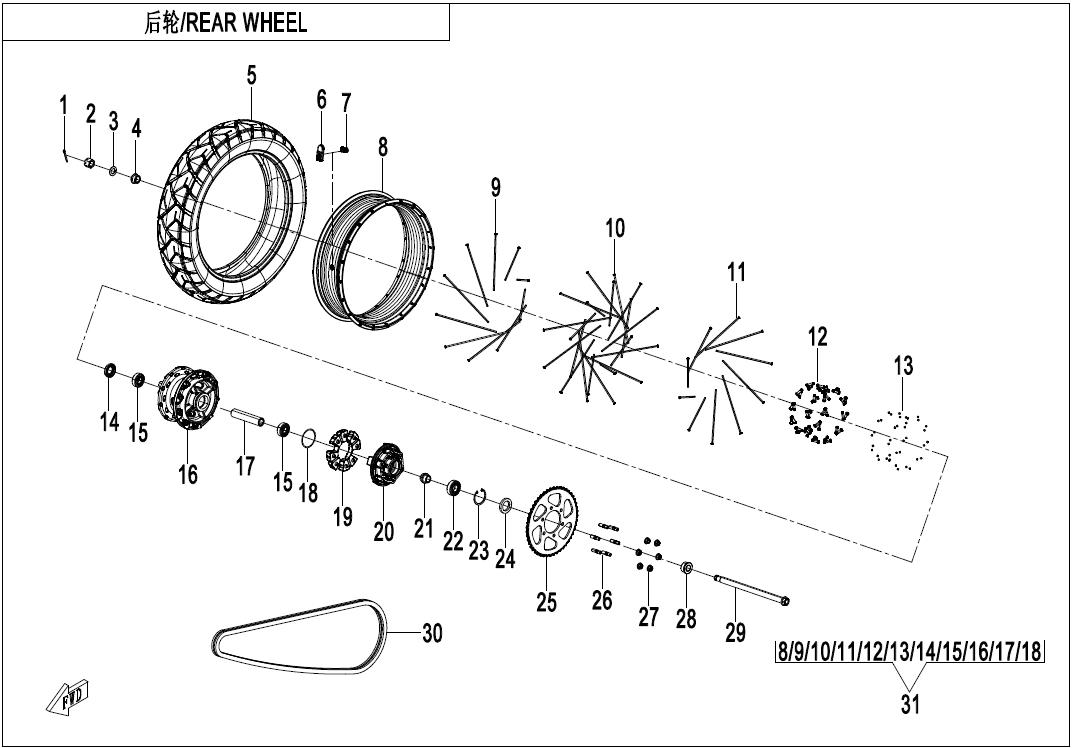

- A000-110011 — NUT, REAR WHEEL
- 6GUV-110005-2000 — Plain Washer
- 6NT1-110003 — REAR WHEEL RH SHAFT SLEEVE
- SH-30705-1772 — TIRE 150/70 R17 M/C 69V
- 6WWV-150850-5A01 — TIRE PRESSURE SENSOR
- 6ARV-070030-1000-M1 — INFLATION VALVE
- 6GUV-110201-2000-M2 — Rear Wheel Rim
- 6GUV-110201-2000-M1 — Rear Wheel Rim
- 6GUV-110204-2000-M1 — Spoke 2
- 6GUV-110203-2000-M1 — Spoke 1
- 6GUV-070207-2000-M1 — Spoke
- 6GUV-070203-2000-21 — Nipple
- 6GUV-070209-2000-22 — Screw
- 30501-028800N — OIL SEAL
- 30400-02001 — BEARING
- 6GUV-110202-2000-M1 — Rear Wheel Middle Hub
- 6GUV-110208-2000-M1 — Rear Wheel Middle Spacer
- 30503-060800N — O-RING 60x3.10
- 6GUV-110004-2000 — Sprocket Seat Damper
