2025 CF MOTO 700 MT — Filters parts
MY market17 genuine parts5 diagrams
Subgroups
Part numbers
Every genuine filters part fitted to the 2025 CF MOTO 700 MT. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 9060-180029 | RADIATOR SLEEVE TUBE | FRAME ASSY | Enquire | |

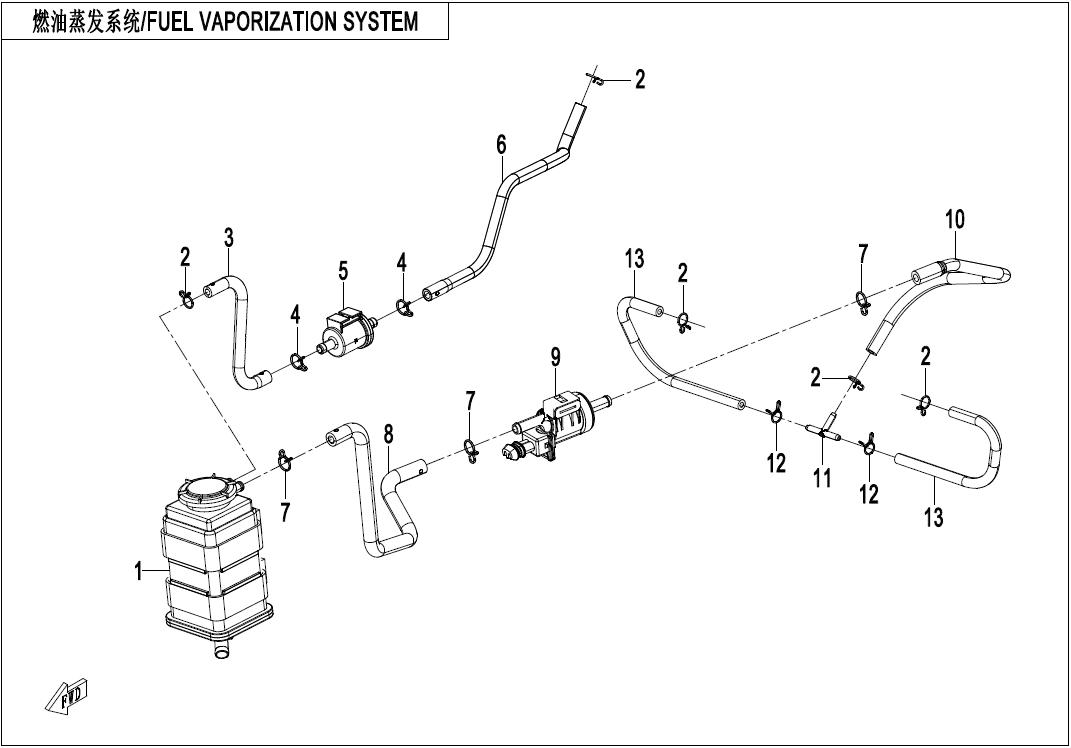

| 6NTV-360002-B000 | FUEL DESORPTION PIPE 2 | FUEL VAPORIZATION SYSTEM | Enquire | |
| 0HTV-111000-3001 | AIR FILTER | AIR FILTER | Enquire | |
| 0HTC-111100 | FILTER ELEMENT | AIR FILTER | Enquire | |
| 0HU0-179000 | GULP VLAVE | AIR FILTER | Enquire | |
| 0HTC-110003 | AIS AIR OUTLET PIPE | AIR FILTER | Enquire | |
| 0HTC-110002 | AIS AIR INLET PIPE | AIR FILTER | Enquire | |
| 0HTC-140005 | RESTRICTION PLU | AIR FILTER | Enquire | |
| 0700-011310 | OIL PIPE 5 | UPPER & LOWER CRANKCASE | Enquire | |
| 0700-0112A0-1BP00 | OIL PIPE 4 (MAUD SPIRIT BLACK) | UPPER & LOWER CRANKCASE | Enquire | |
| 0700-070300 | OIL PIPE 1 | UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012210 | OIL PIPE 3 | UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012710 | OIL PIPE 2 | UPPER & LOWER CRANKCASE | Enquire | |
| 0700-011103 | BREATHER PIPE | UPPER & LOWER CRANKCASE | Enquire | |
| 0700-011401 | BREATHER CONNECTING PIPE | UPPER & LOWER CRANKCASE | Enquire | |

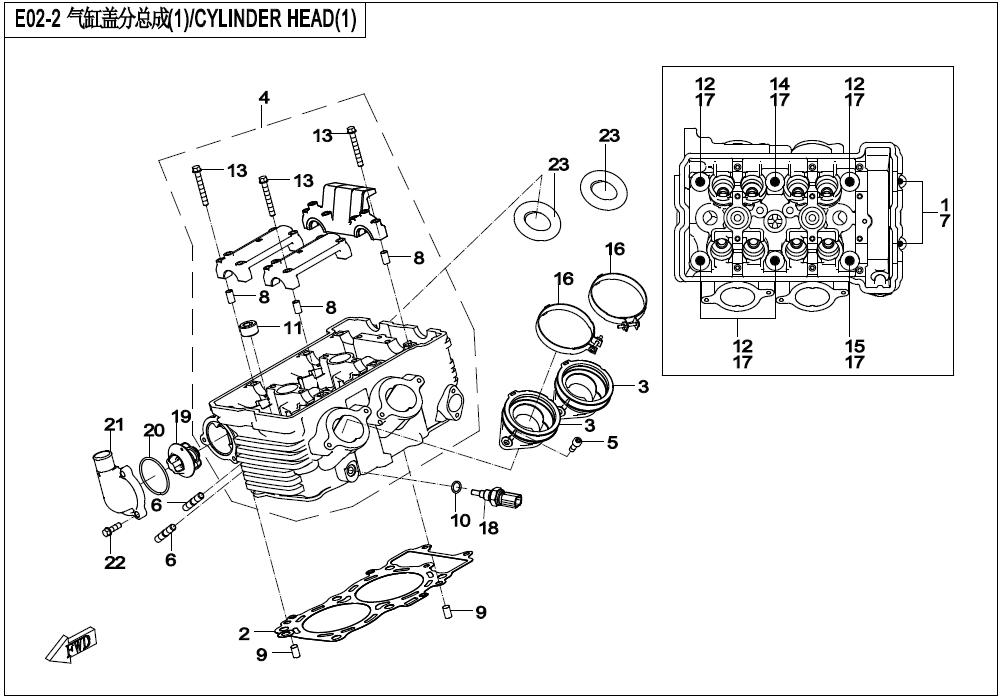

| 0700-022320-20000 | AIR INLET PIPE ASSY | CYLINDER HEAD (1) | Enquire | |
| 0HUV-171000-1200 | FUEL PIPE ASSY | THROTTLE & INJECTOR | Enquire |
Exploded diagrams — Filters
Browse the catalogue interactively
Open Filters in the interactive 2025 CF MOTO 700 MT catalogue to drill into diagrams, check availability and add parts to your cart.
