2022 CF MOTO 250SROEM parts & exploded diagrams

MY market871 parts17 groups12+ diagrams

Vehicle #1946

CC: —
HP: —
年款: —

Parts by assembly group

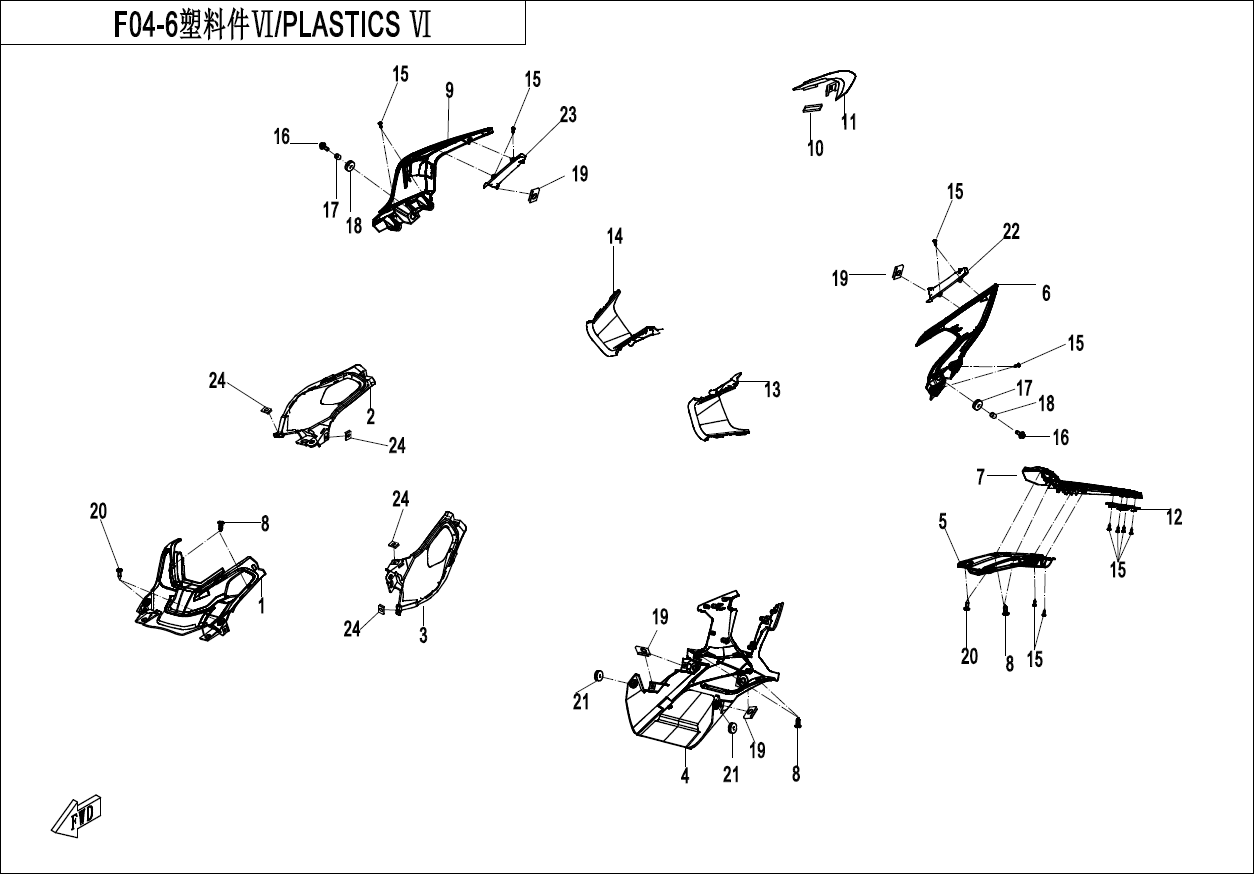

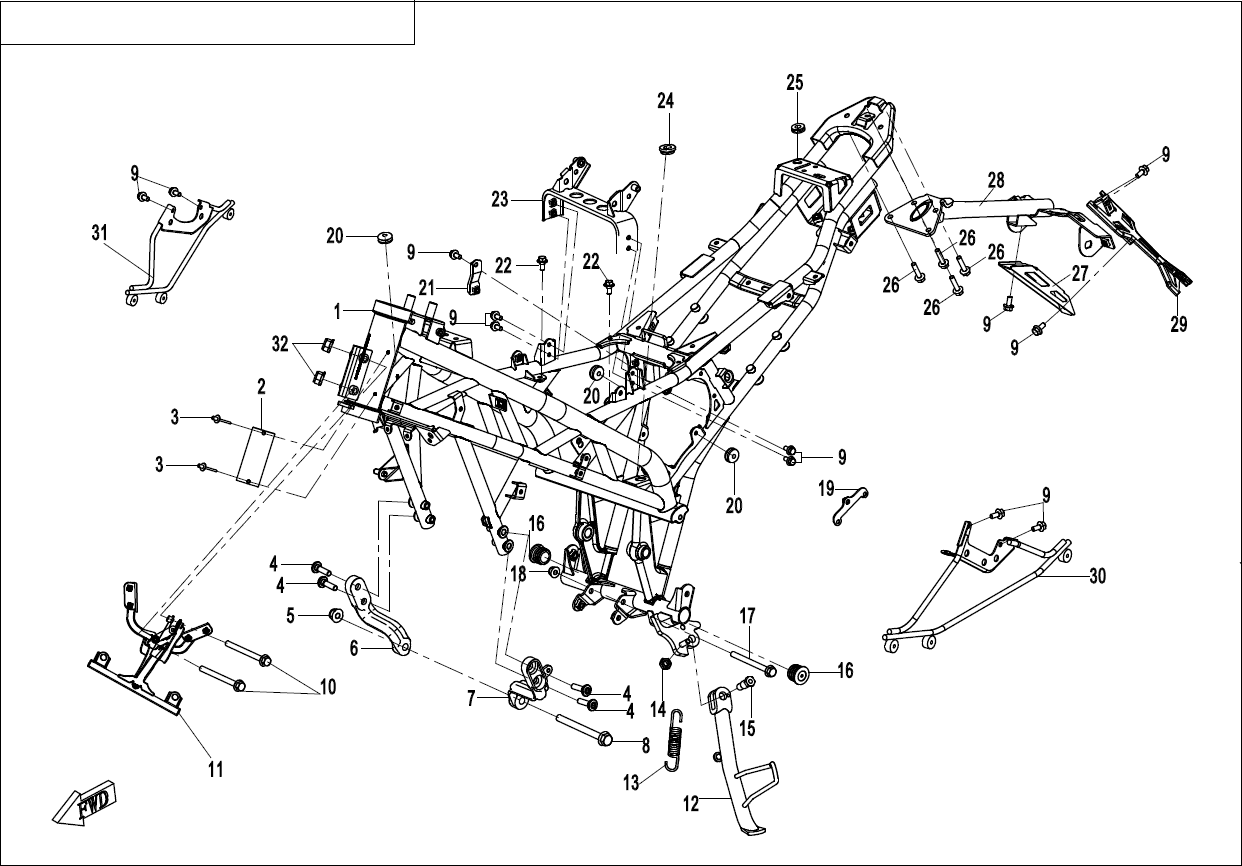

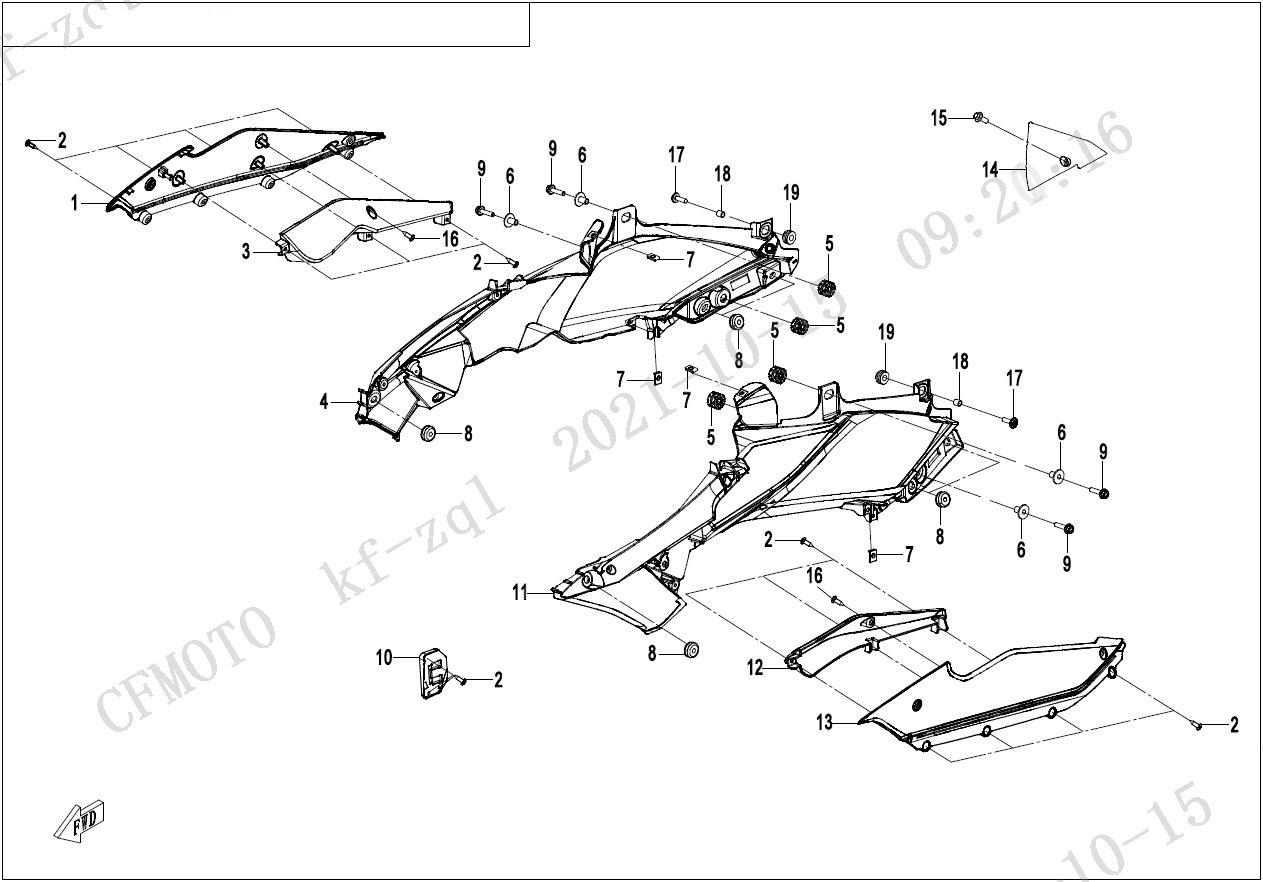

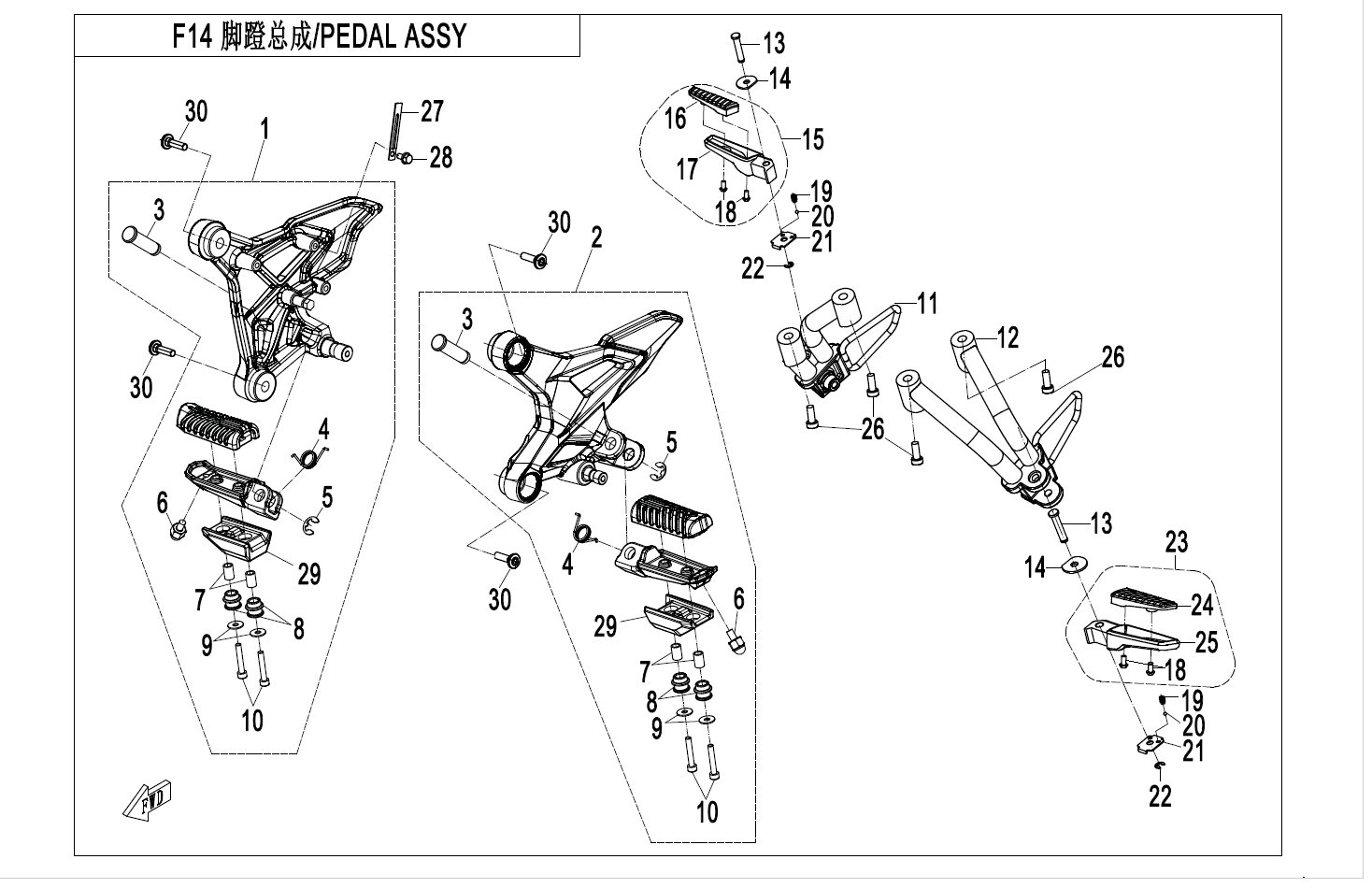

Body327 parts

Engine198 parts

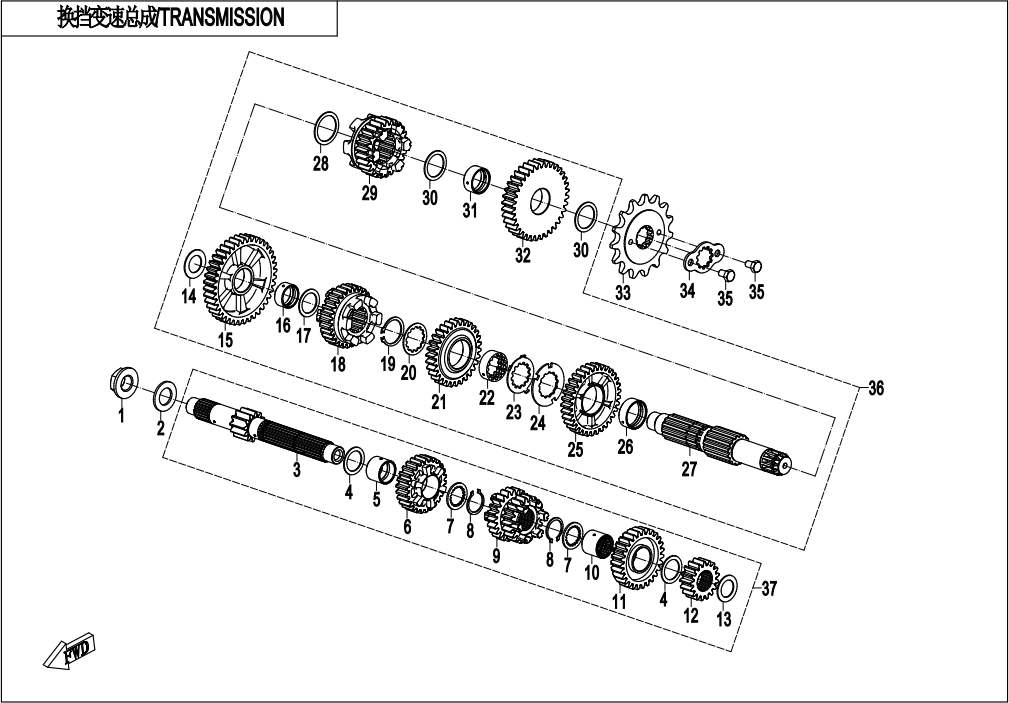

Gearbox86 parts

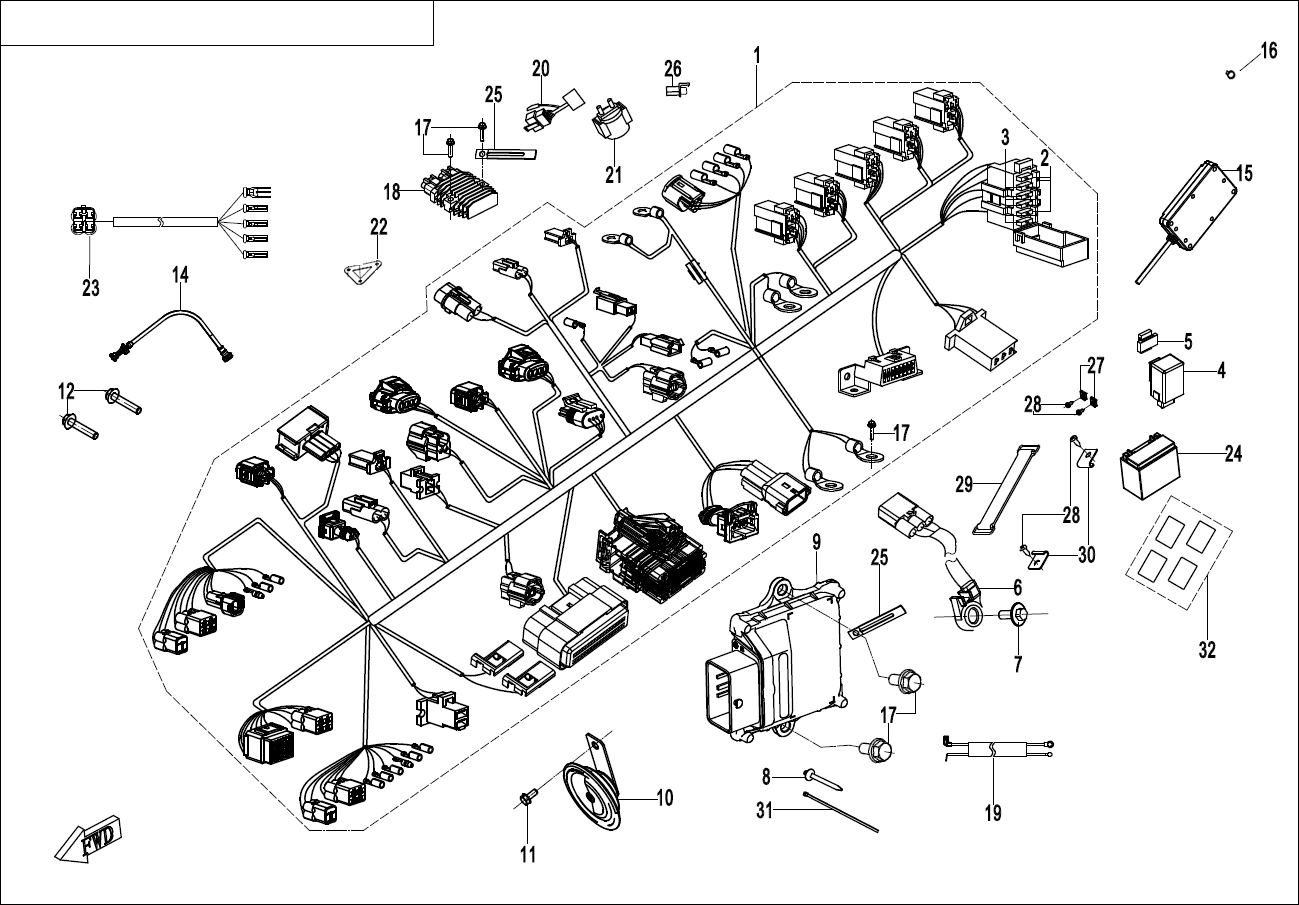

Electrical System44 parts

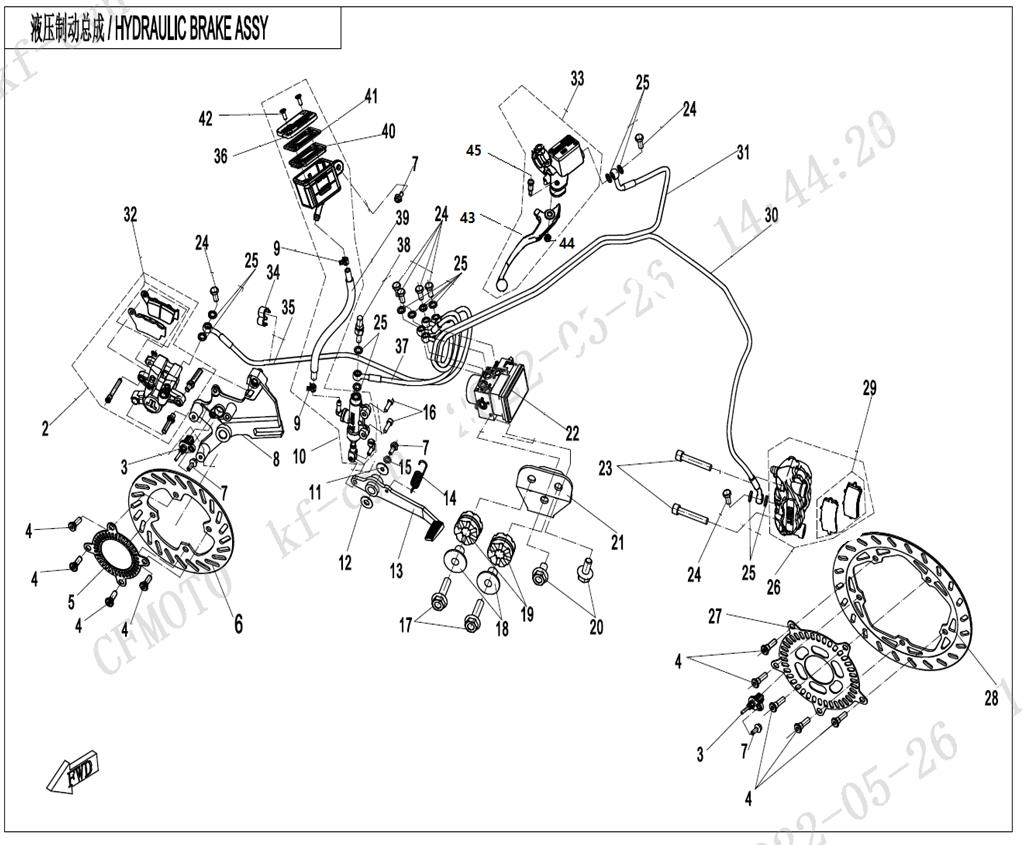

Brake System43 parts

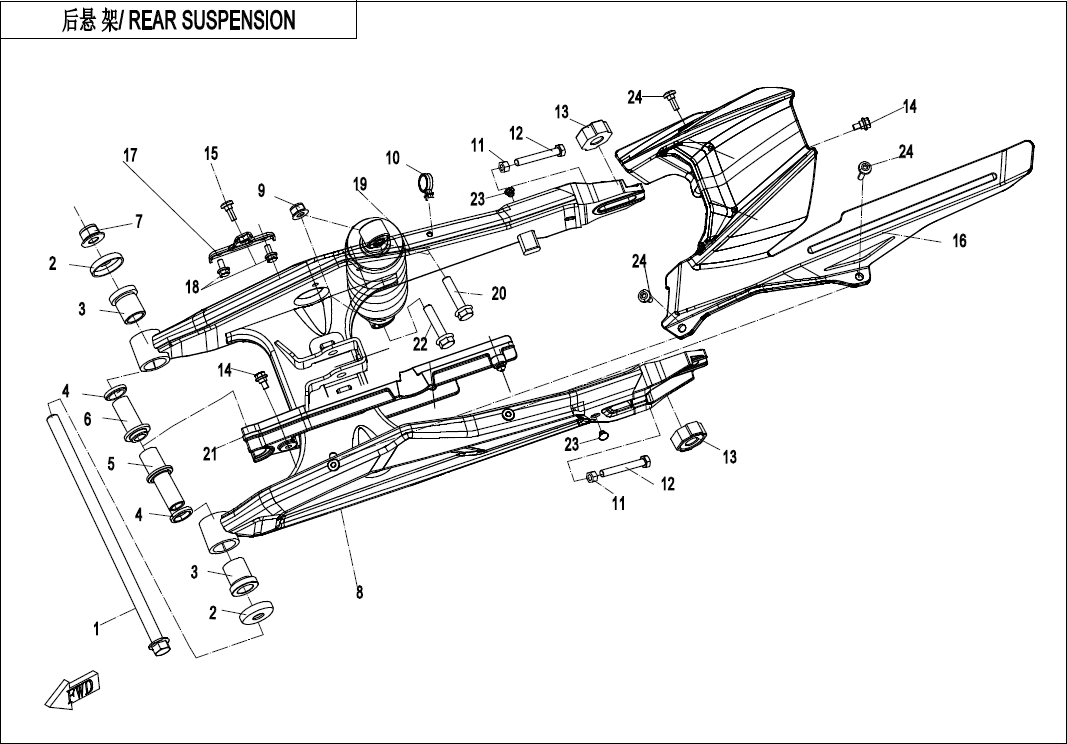

Suspension34 parts

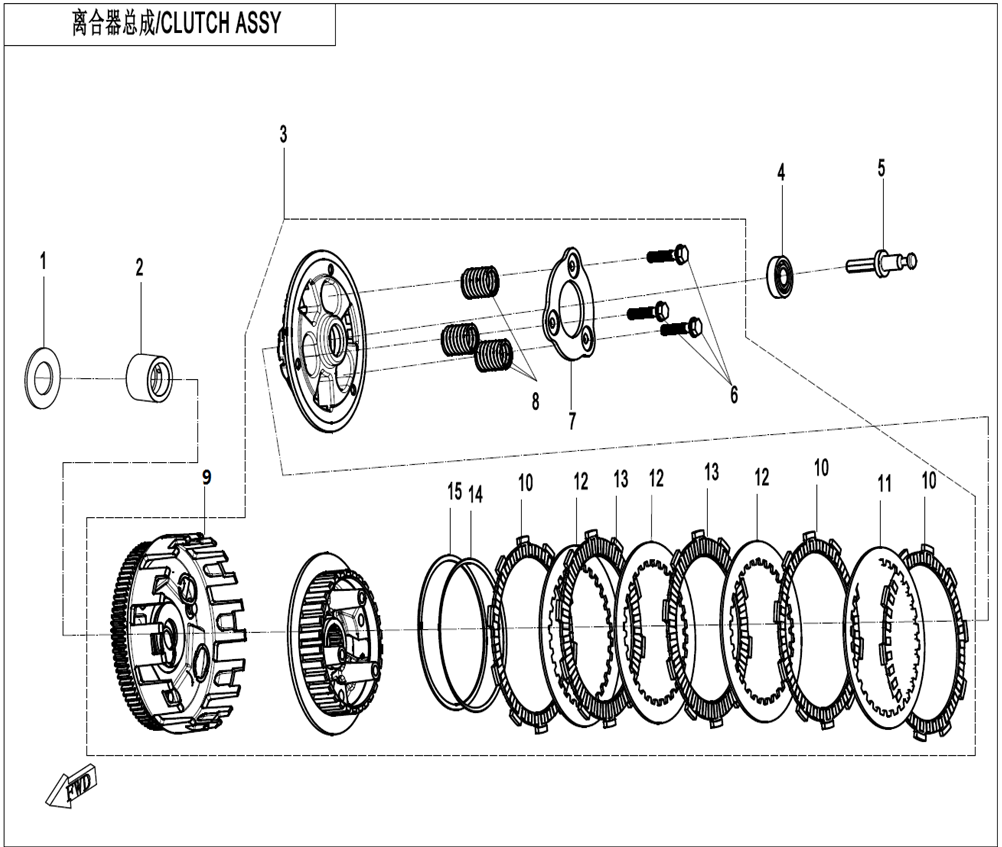

Clutch & Parts32 parts

Wheels & Tyres23 parts

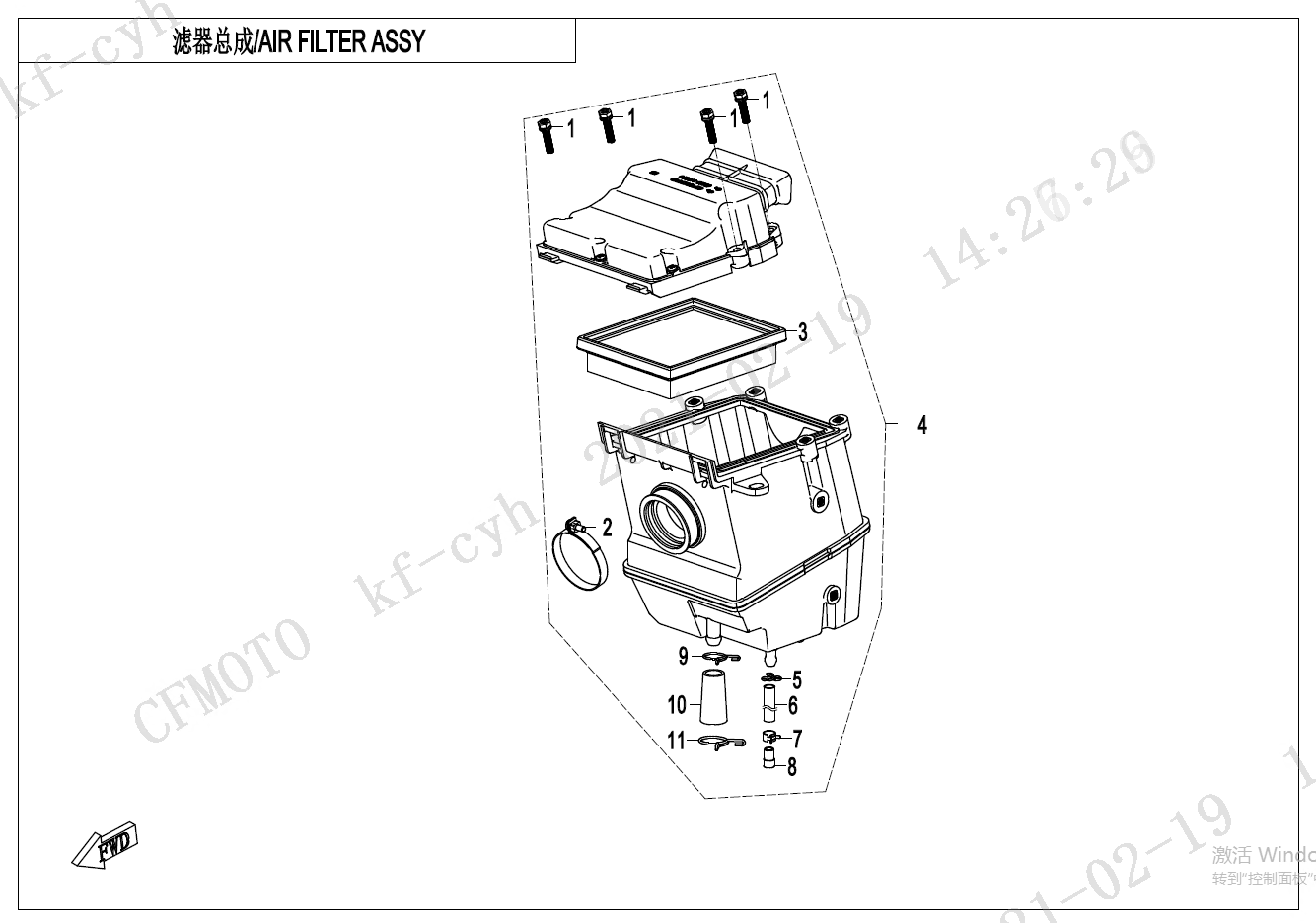

Cooling System17 parts

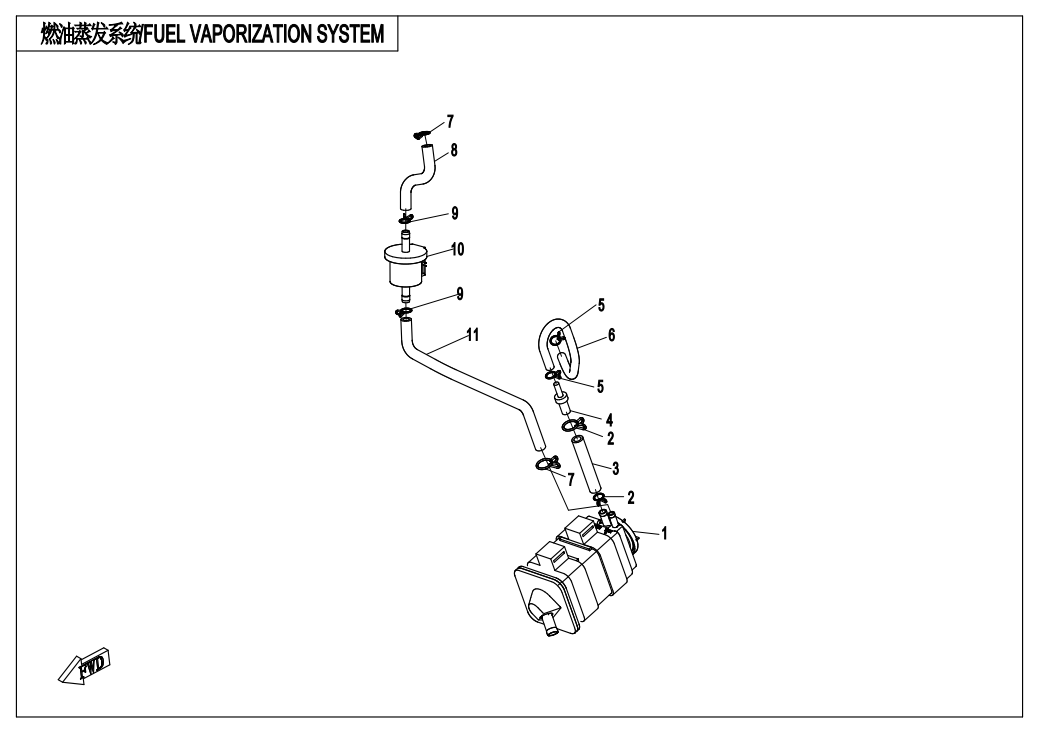

Fuel Supply System16 parts

Filters11 parts

Final Drive7 parts

Interior4 parts

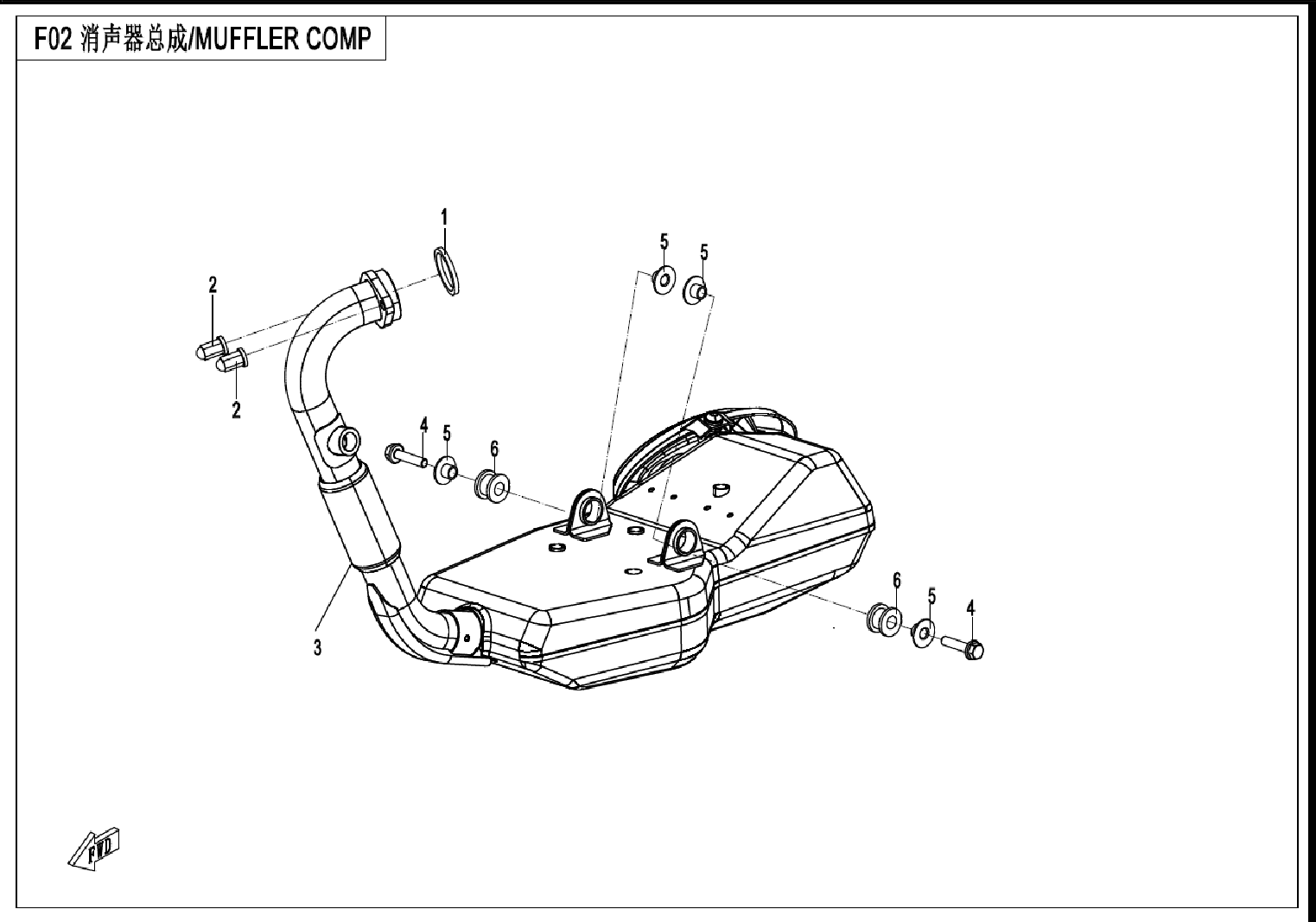

Exhaust System4 parts

Steering System4 parts

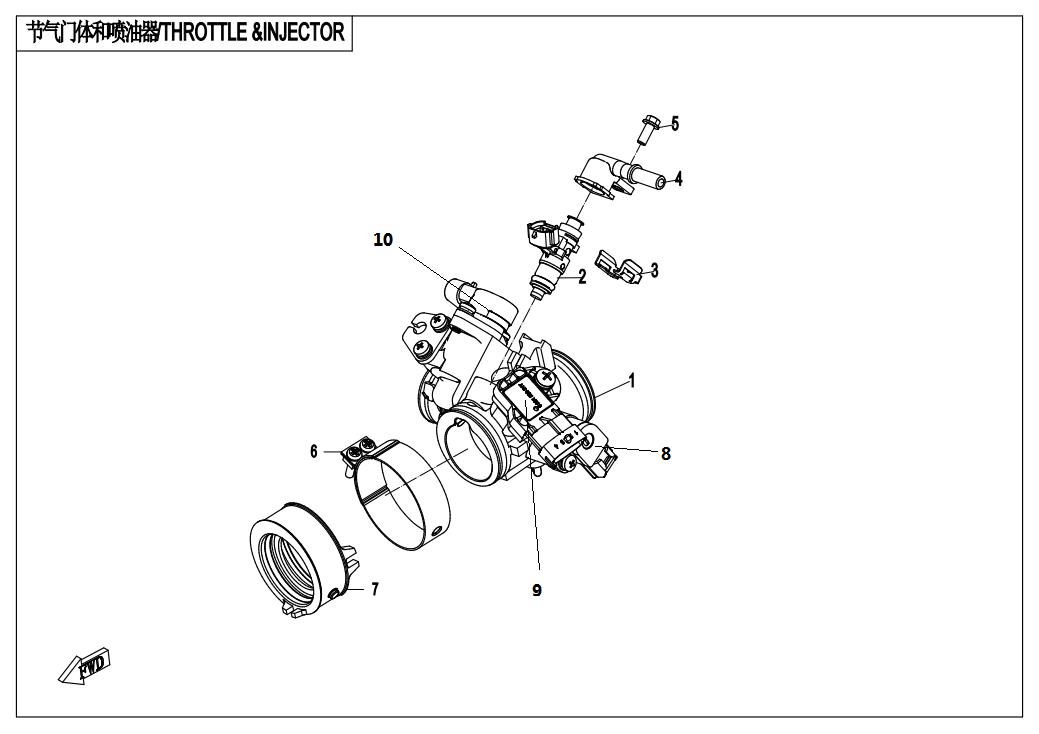

Fuel Preparation1 part

—

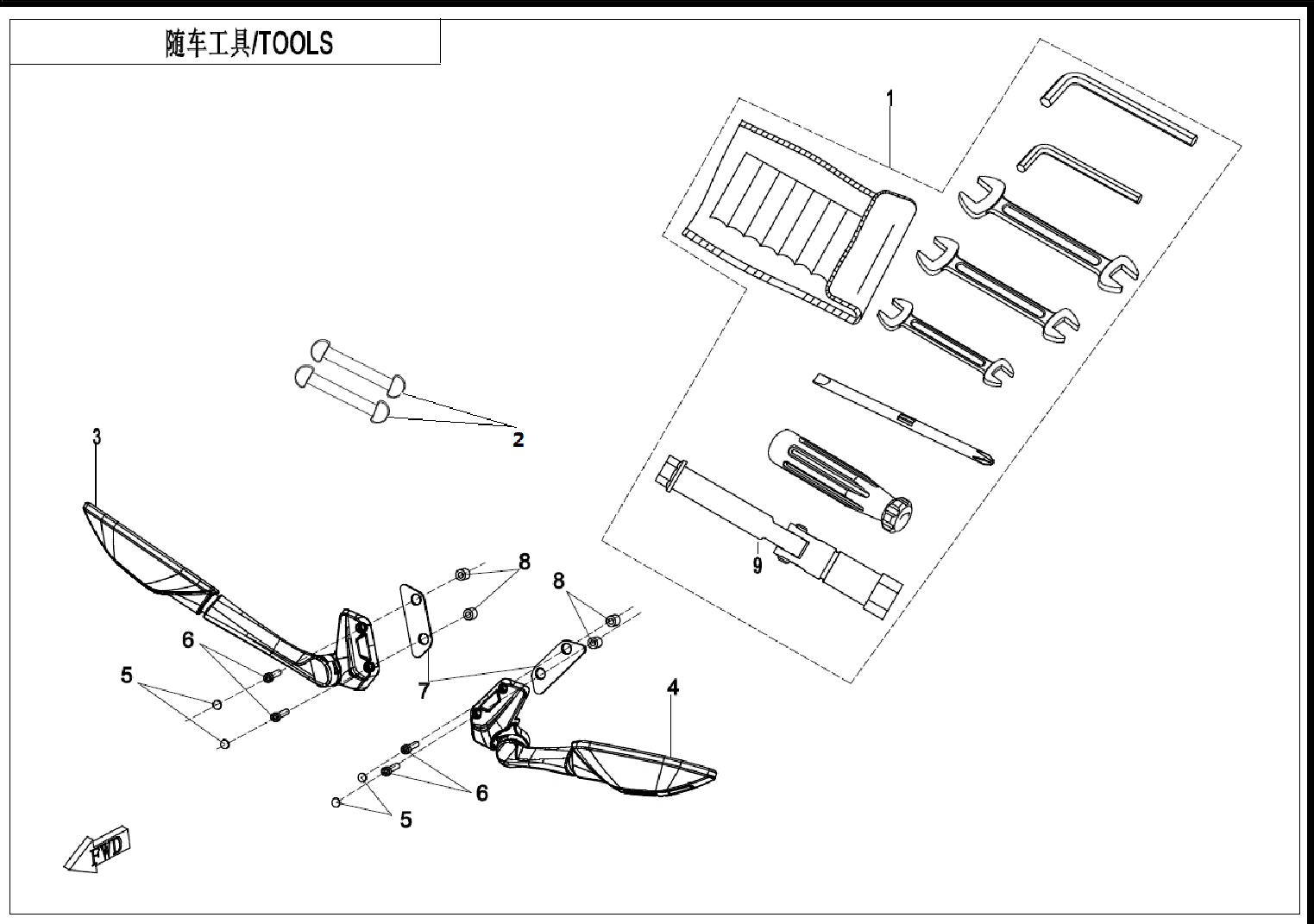

Unclassified174 parts

Exploded diagrams

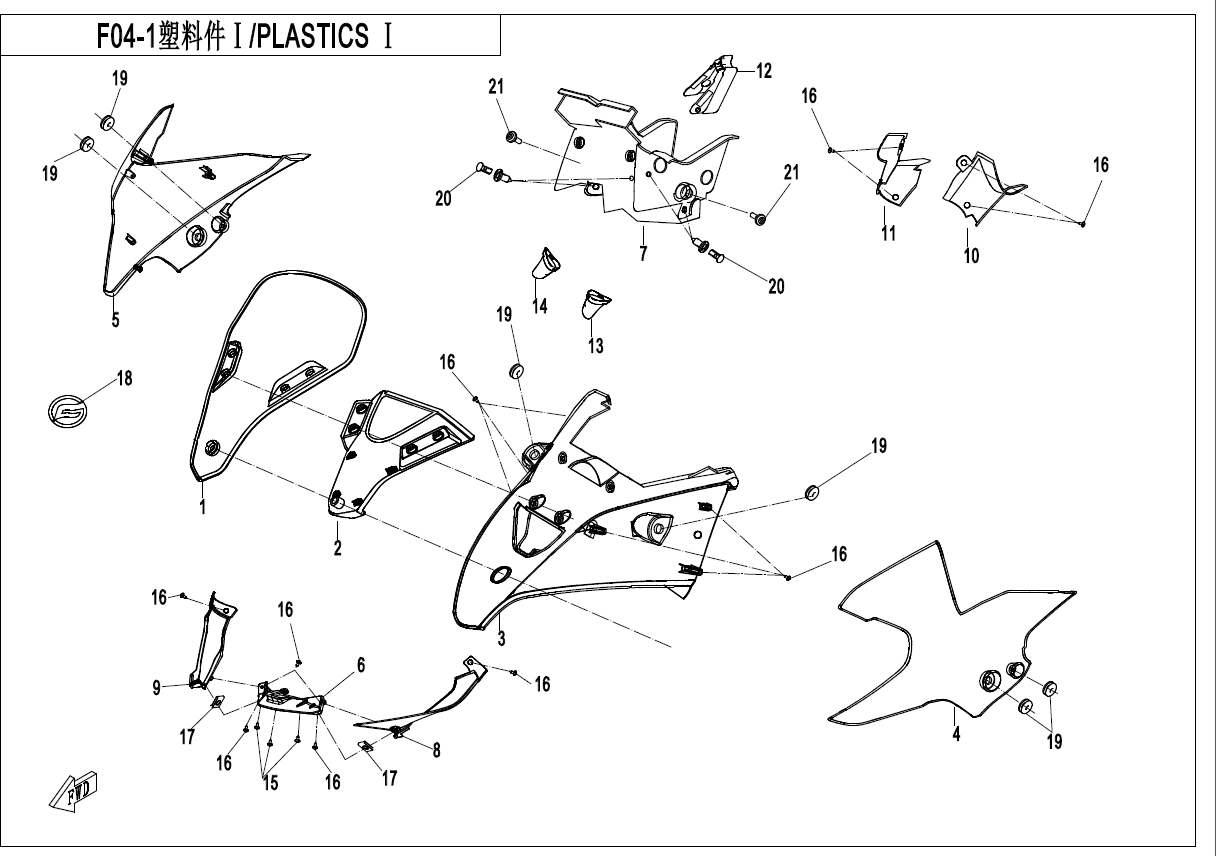

塑料件1(仪表-TFT) PLASTICS1(DASHBOARD-TFT） · 35

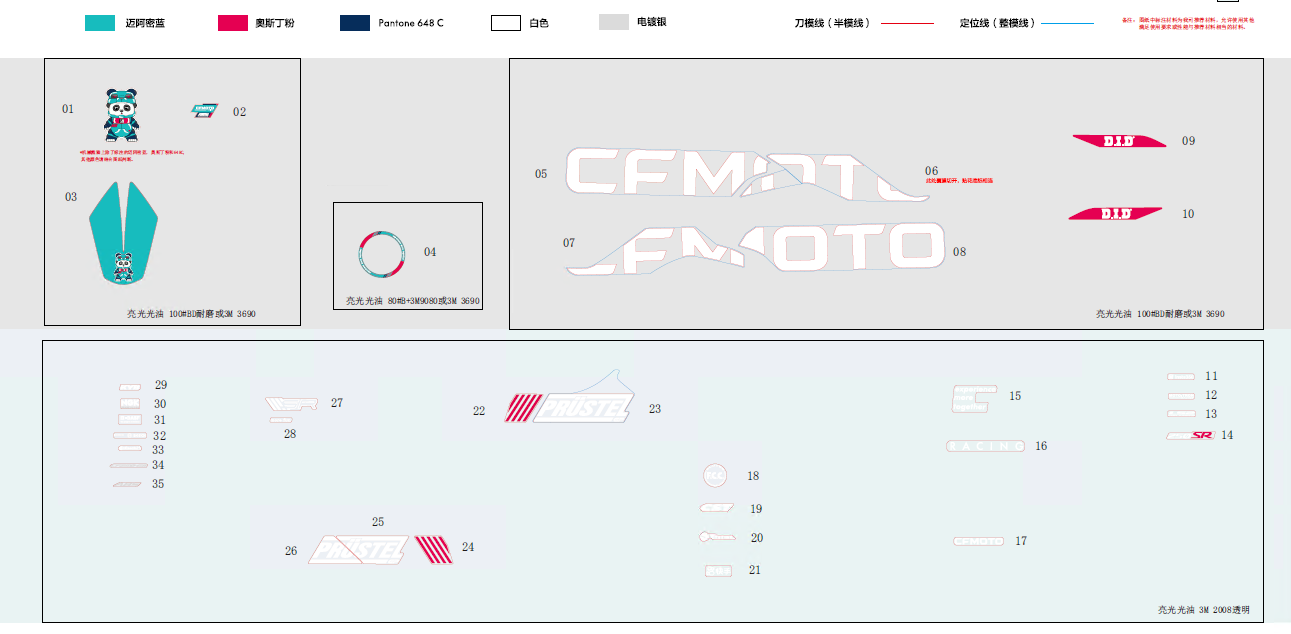

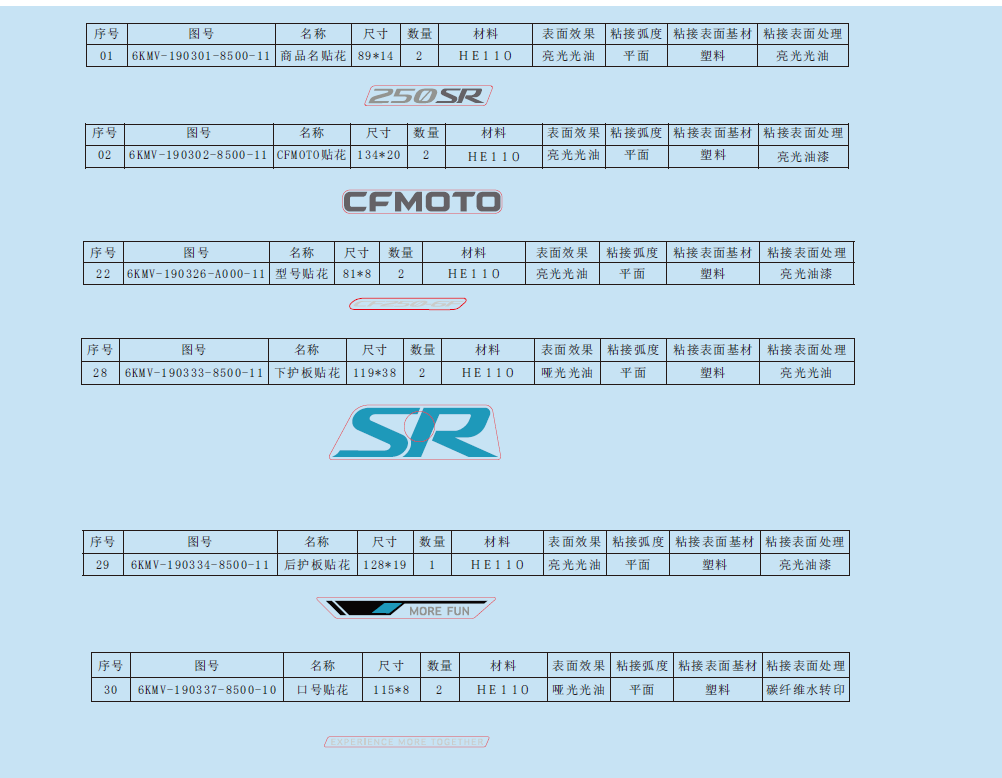

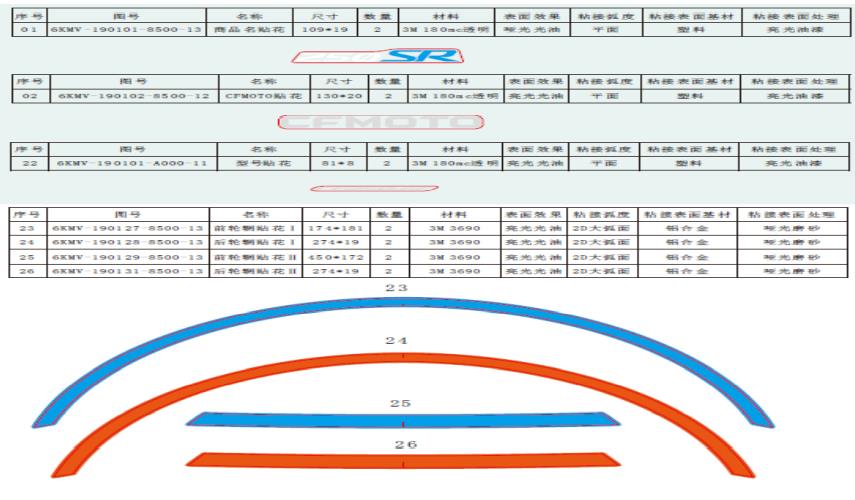

贴花(星光白-ABS) DECAL(NEBULA WHITE-ABS) · 29

Part numbers on this vehicle

Each number has a dedicated cross-reference & fitment page.

6KMV-190117-8500-13 — DECAL 2, RH PANEL
6KMV-190118-8500-13 — DECAL 3, RH PANEL
6KMV-190119-8500-13 — DECAL 4, RH PANEL

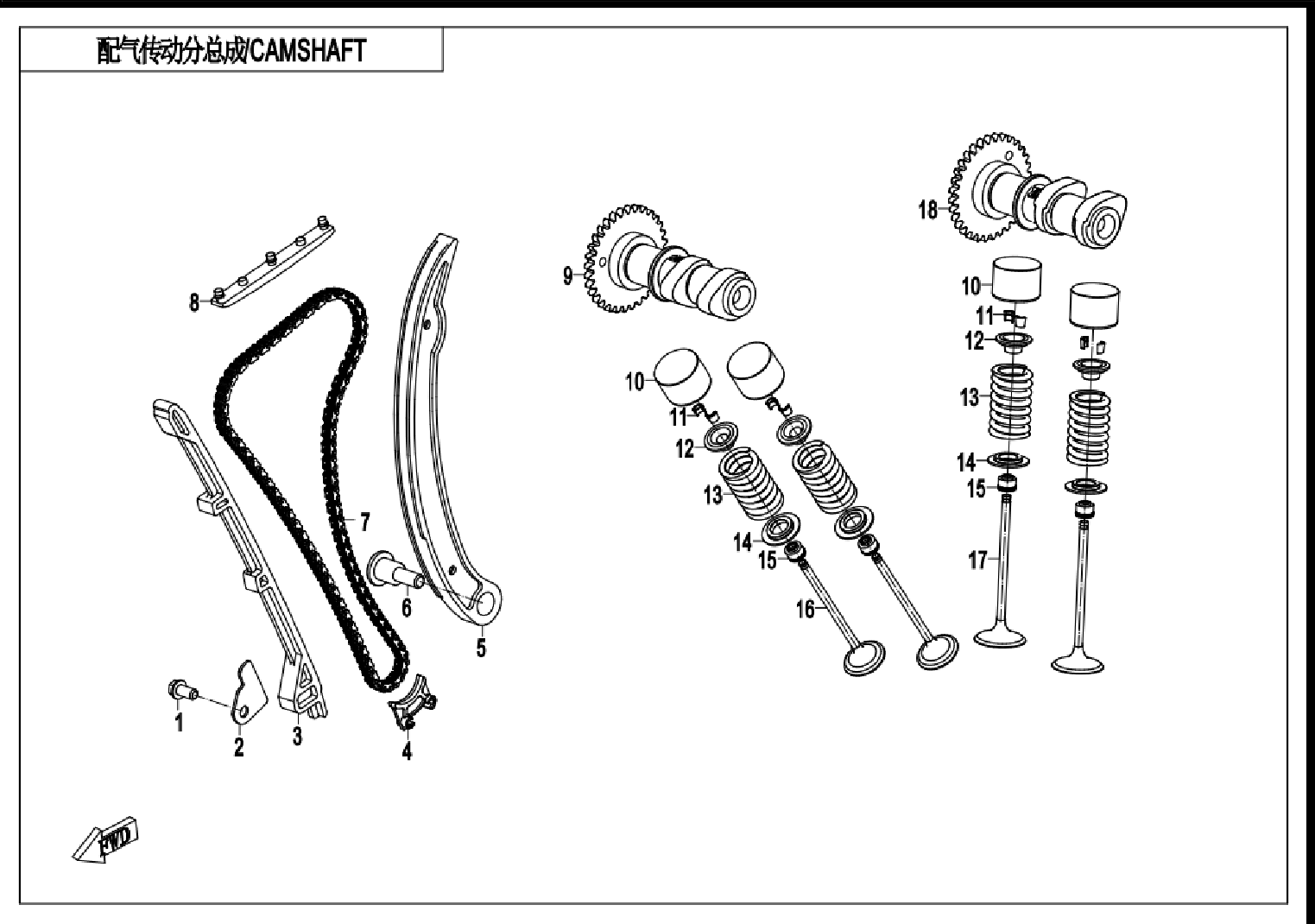

0700-022005-0240 — TAPPET
6KMV-190121-8500-13 — DECAL 5, RH PANEL
6KMV-190122-8500-13 — DECAL 6, RH PANEL
6KMV-190123-8500-13 — DECAL 7, RH PANEL
6KMV-190101-A000-11 — MODEL DECAL
6KMV-190127-8500-13 — DECAL 1, FRONT RIM
0700-022005-0250 — TAPPET
6KMV-190128-8500-13 — DECAL 1, REAR RIM
0700-022005-0260 — TAPPET
6KMV-190129-8500-13 — DECAL 2, FRONT RIM
0700-022005-12800 — TAPPET
0700-022005-0280 — TAPPET
6KMV-190131-8500-13 — DECAL 2, REAR RIM
6KM#-190132-8100-10 — ABS DECAL
6KMV-190133-8500-13 — LH DECAL 1
0700-022005-0290 — TAPPET

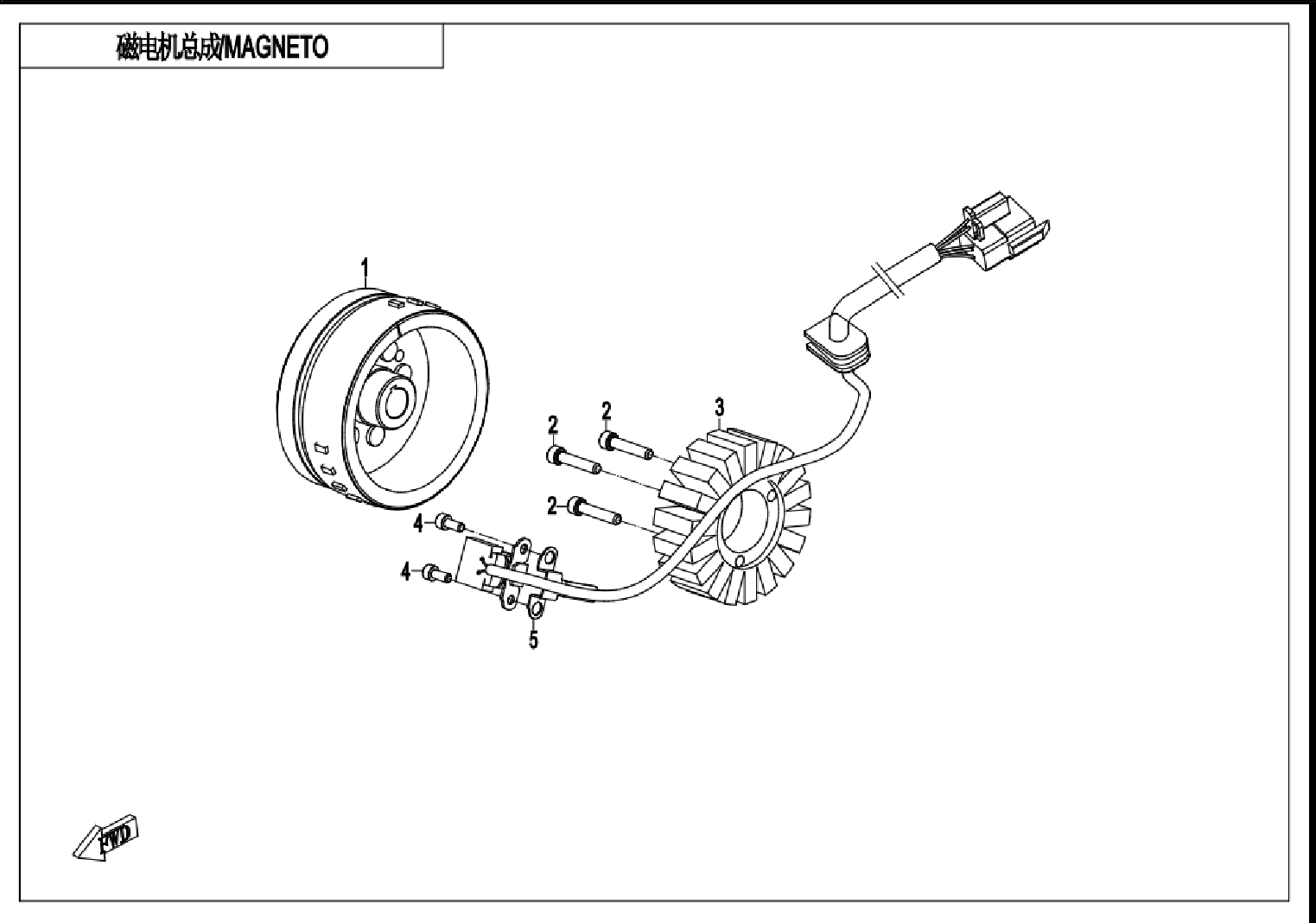

0DM0-031000-10001 — MAGNETO ROTOR ASSY
0060-030003-00001 — INNER HEX BOLT
0DMV-032000-0001 — MAGNETO STATOR ASSY
6KMV-190101-8900-10 — CFMOTO STICKER
6KMV-190332-8500-10 — ABS DECAL
6KMV-190102-A100-10 — MODEL DECAL
6KMV-190103-8900-11 — COMMERCIAL NAME DECAL
6KMV-190104-8900-11 — DECAL, RH TAIL GUARD
30102-050012810 — SCREW
0DM0-030001 — CABLE FIX BRACKET, TRIGGER
6KMV-190105-8900-11 — DECAL, LH TAIL GUARD
6KMV-190106-8900-11 — DECAL, REAR RIM
0700-040001-20000 — BOLT M12x1.25x45
0700-040002-00001 — WASHER 12.5X33X5
6KMV-190107-8900-11 — DECAL, FRONT RIM
6KMV-190108-8901-11 — DECAL, FRONT LH PANEL UPPER DECO PLATE

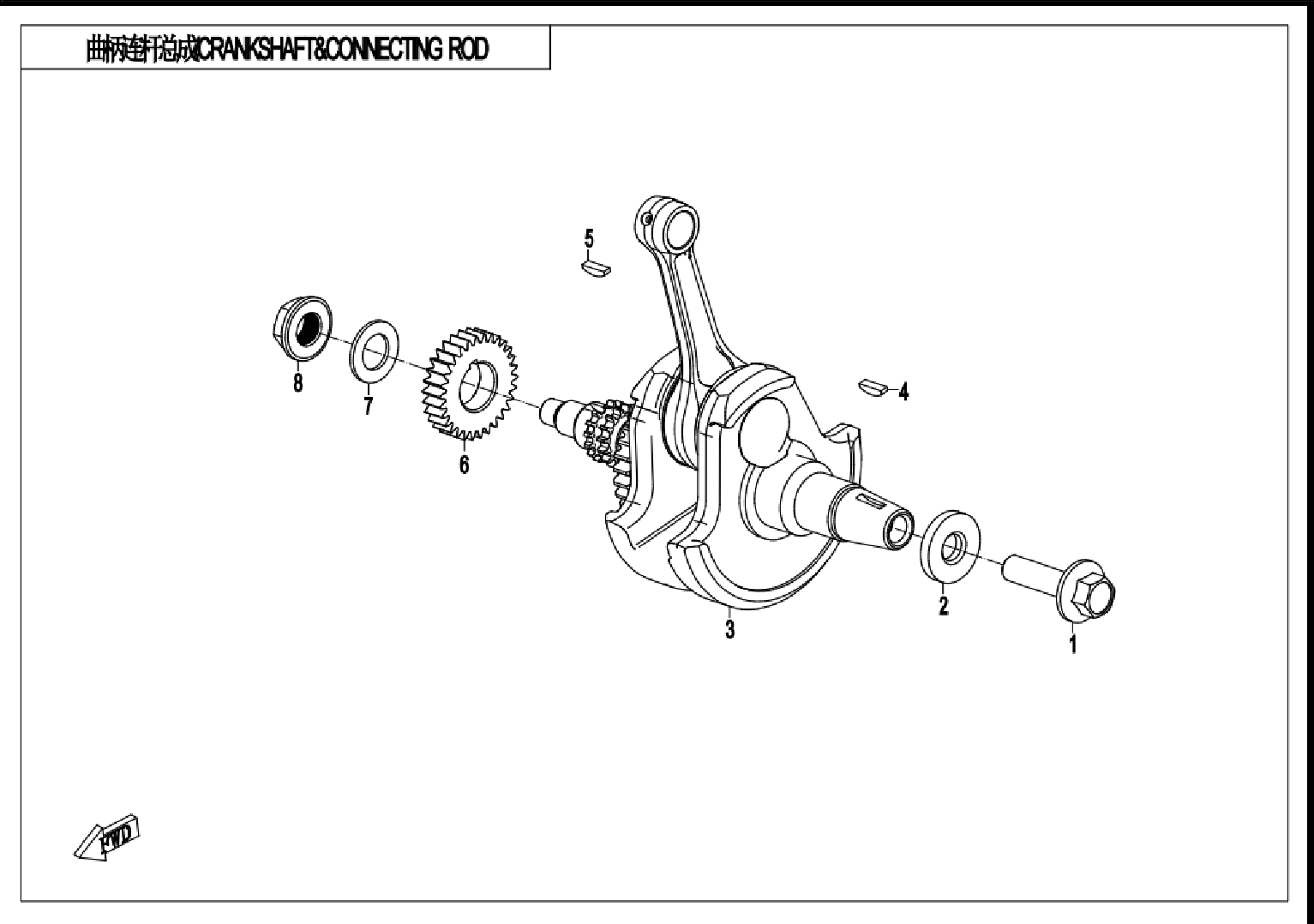

0DM0-041000-00014 — CRANK CONNECTING ROD SUB ASSY
0010-040006 — WOODRUFF KEY
6KMV-190109-8901-11 — DECAL, FRONT RH PANEL UPPER DECO PLATE
0DM0-040009 — WOODRUFF KEY
0DM0-040002 — OUTPUT GEAR
0DM0-040003 — CIRCLIP16
0110-040001-00002 — NUT
0DM0-050004 — WASHER
0DM0-050003 — SHAFT SLEEVE
0DMB-051000 — CLUTCH SUB ASSY
30400-01207 — ROLLER BEARING
0DMB-050001 — TIE-ROD
0DMB-051208 — BOLT M6x30
0DMB-051209 — PRESS SPRING PLATE
6KMV-190110-8901-11 — DECAL, FUEL TANK RH FRONT PANEL
6KMV-190111-8901-11 — DECAL, FUEL TANK LH FRONT PANEL
6KMV-190112-8901-11 — DECAL, LH FRONT PANEL Ⅰ
0DMB-051202 — PRESS SPRING
0DMB-051100 — PRIMARY DRIVEN GEAR ASSY
6KMV-190113-8901-11 — DECAL 1, RH FRONT PANEL
6KMV-190114-8901-11 — DECAL 2, RH FRONT PANEL
6KMV-190115-8901-11 — DECAL 2, LH FRONT PANEL
6KMV-190116-8900-11 — DECAL, RIM
6KMV-190103-8900-10 — COMMERCIAL NAME DECAL
6KMV-190104-8900-10 — DECAL, RH TAIL GUARD
