2025 CF MOTO 675 SR-ROEM parts & exploded diagrams
MY market802 parts16 groups12+ diagrams
Vehicle #1930
- CC
- —
- HP
- —
- 年款
- —
Exploded diagrams — 2025 CF MOTO 675 SR-R
Part numbers on the 2025 CF MOTO 675 SR-R
Each number has a dedicated cross-reference & fitment page.
- 6AQV-011000-1002 — LOCK KIT
- 30102-050008900 — INNER HEX SCREW
- 30102-050025900 — INNER HEX SCREW
- 6KMV-011020-B001 — KEY
- 30102-080025810 — SCREW
- CFCV-CAC002-2000-M1 — CLIP
- 6WWV-046502-5000 — STEPPED SCREW M5
- 6GUV-010010-5600 — SEAT CABLE
- 6GU#-010320-6000 — SEAT LOCK SEAT
- 30006-060022810 — BOLT
- 6L30-020005 — LOCK NUT
- 6090-020010 — EXHAUST PORT GASKET
- 6GUV-021000-5602 — EXHAUST MUFFLER ASSY
- 0HU0-176000 — OXYGEN SENSOR
- 6WWV-020002-5001 — BUSHING, MUFFLER BODY
- 6WWV-020003-5000 — RUBBER SLEEVE, MUFFLER BODY
- 30006-080035810 — BOLT
- 6GUV-020010-5601 — MUFFLER GUARD ASSY
- 6WWV-046701-5000 — INNER HEX SCREW
- 30306-060800 — WASHER
- 30303-060112 — WASHER
- 6GUV-021006-5600 — SCREW M6X12
- 6AQV-021004-3001 — GUARD RUBBER SLEEVE

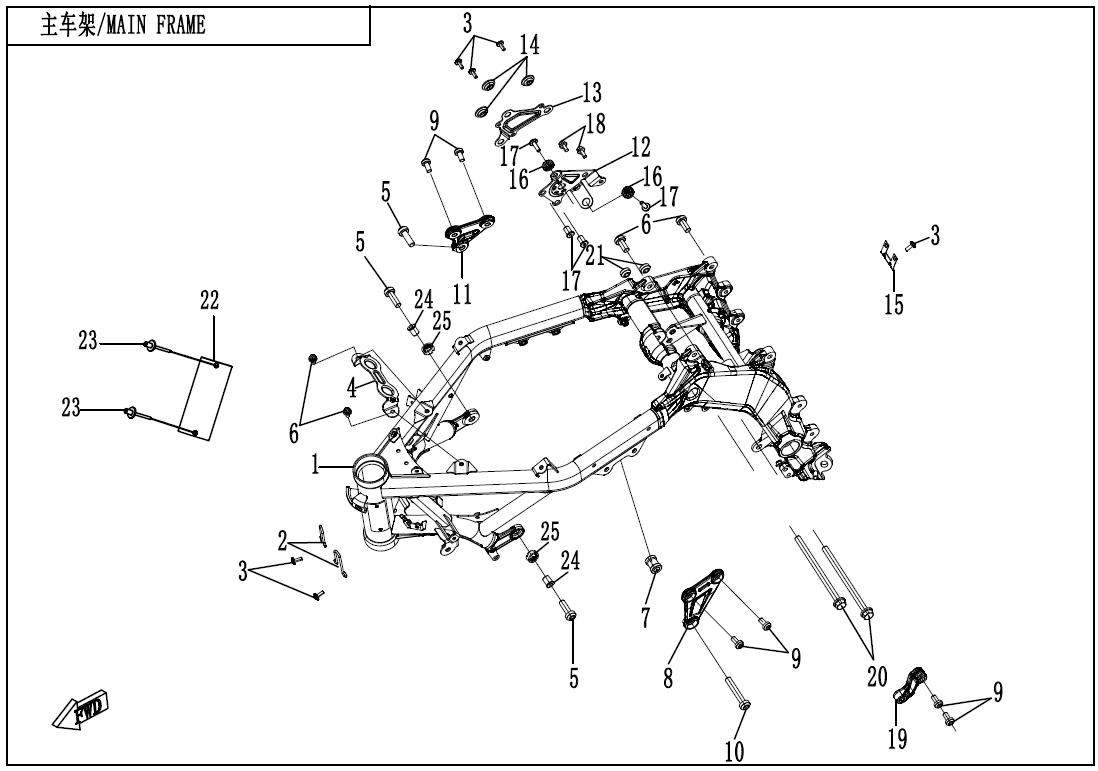

- 6GUV-033000-5606-0BP00 — MAIN FRAME ASSY
- 6GUV-030011-5600 — BRAKE LH CABLE HOOK
- 6WWV-047102-5000 — INNER HEX SCREW M5x14
- 6GUV-030006-5600 — FUEL TANK BRACKET
- 6AQV-030007-6000 — INNER HEX SCREW M10×30
- 30006-060012810 — BOLT
- 6AQV-030004-1000 — BUSHING, ENGINE
- 6GUV-030021-5600 — ENGINE UPPER LH BRACKET
- 6WWV-030013-5000 — SCREW M8X16
- 6L30-030091 — BOLT M10x60
- 6GUV-030022-5600 — ENGINE UPPER RH BRACKET
- 6GUV-030720-5600 — ABS BRACKET
- 6GUV-030007-5600 — ABS DECO GUARD BRACKET
- 6KMV-041112-3000 — M6 RUBBER SLEEVE
- 6GUV-030015-5600 — CONNECTOR ADAPTER BRACKET
- 6WWV-030019-5000 — RUBBER BUSHING
- 6WWV-046902-5000 — INNER HEX SCREW M6x20
- 9060-180029 — RADIATOR SLEEVE TUBE
- 6GUV-030710-5600 — GEARSHIFT LEVER BRACKET
- 30006-102155110 — BOLT
- 30204-102810 — NUT
- 6FIA-190012 — VEHICLE PLATE
- 30902-0401320 — RIVET
- 6AQV-030092-1000 — ADJUSTING SCREW, ENGINE
- 6NT1-000292 — NUT M18
- 6GUV-032000-5603 — REAR FRAME ASSY
- 6L30-030092 — BOLT M10x22
- 6GUV-030150-5600 — REAR FENDER CONNECTING SEAT
- A000-030006 — SIDE BRACKET BOLT
- 6GUV-030400-5600-0BP00 — SIDE STAND ASSY MAUD SPIRIT BLACK
- 6L30-030050 — SPRING, SIDE BRACKET
- 6L30-030071-10000 — SPRING SLEEVE, SIDE BRACKET
- 30208-102010 — NUT
- 6GUV-030090-5600 — DEFLECTOR
- 6WWV-046702-5000 — INNER HEX SCREW M6x12
- 6GUV-030130-5600 — LH PANEL BRACKET ASSY
- 6GUV-030140-5600 — RH PANEL RH BRACKET ASSY
