2025 CF MOTO 675 SR-R — Engine parts

MY market188 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 33Cylinder Head & Parts · 14Seals & Gaskets · 21Lubrication System · 6Belt/Chain Drive · 9Engine Hardware · 154

Part numbers

Every genuine engine part fitted to the 2025 CF MOTO 675 SR-R. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
30102-050008900INNER HEX SCREWLOCK KITEnquire
30102-050025900INNER HEX SCREWLOCK KITEnquire
30102-080025810SCREWLOCK KITEnquire
CFCV-CAC002-2000-M1CLIPLOCK KITEnquire
6WWV-046502-5000STEPPED SCREW M5LOCK KITEnquire
6WWV-046701-5000INNER HEX SCREWMUFFLEREnquire
6GUV-021006-5600SCREW M6X12MUFFLEREnquire
6WWV-047102-5000INNER HEX SCREW M5x14MAIN FRAMEEnquire
6AQV-030007-6000INNER HEX SCREW M10×30MAIN FRAMEEnquire
6WWV-030013-5000SCREW M8X16MAIN FRAMEEnquire
6WWV-046902-5000INNER HEX SCREW M6x20MAIN FRAMEEnquire
6AQV-030092-1000ADJUSTING SCREW, ENGINEMAIN FRAMEEnquire
6WWV-046702-5000INNER HEX SCREW M6x12REAR FRAMEEnquire
0010-021019-0010BOLT M6x12REAR FRAMEEnquire
8080-041130EXPANSION RIVET ASSYPLASTICS 2Enquire
6GUV-050704-5600LOWER TRIPLE CLAMP GUARDPLASTICS 3Enquire
6WWV-046602-5000INNER HEX STEPPED SCREW M6x14PLASTICS 3Enquire
30110-420130070SELF-TAPPING SCREWPLASTICS 3Enquire
6KM#-160420-8001SPONGE MATPLASTICS 4Enquire
30110-420095070SELF-TAPPING SCREWPLASTICS 5Enquire
9060-040310CLAMP ASSYPLASTICS 5Enquire
6L30-050002LOCK SCREW, UPPER TRIPLE CLAMPFRONT SUSPENSIONEnquire
6L30-050200STEERING BEARING ASSYFRONT SUSPENSIONEnquire
6WWV-050011-5000INNER HEX SCREW M8x30FRONT SUSPENSIONEnquire
6AQV-0503A0-6000LOWER TRIPLE CLAMP ASSYFRONT SUSPENSIONEnquire
30102-080020810SCREWFRONT SUSPENSIONEnquire
6WWV-050009-5000SCREW M8x25FRONT SUSPENSIONEnquire
30102-080035810SCREWFRONT SUSPENSIONEnquire
6GUV-050100-6001-23LH RESTORED PLUG ASSYFRONT SUSPENSIONEnquire
6GUV-050200-6001-23RH COMPRESSION PLUG ASSYFRONT SUSPENSIONEnquire
6GUV-050100-6000-32O-RINGFRONT SUSPENSIONEnquire
6GU#-050100-6001-24OIL SEALFRONT SUSPENSIONEnquire
6GUV-050100-6000-29OIL SEAL CIRCLIPFRONT SUSPENSIONEnquire
30500-025802NOIL SEALREAR SUSPENSIONEnquire
30800-04005CIRCLIP FOR HOLEREAR SUSPENSIONEnquire
30400-01704BEARINGREAR SUSPENSIONEnquire
30403-02200BEARINGREAR SUSPENSIONEnquire
6WWV-060030-5000-10OIL SEALREAR SUSPENSIONEnquire
6NT1-060002DUST CAP,BIGREAR SUSPENSIONEnquire
6NT1-060003DUST CAP, SMALLREAR SUSPENSIONEnquire
6WWV-070100-5000-21OIL SEALFRONT WHEELEnquire
30800-04705CIRCLIP FOR HOLE 47FRONT WHEELEnquire
30102-060016810SCREWBRAKE SYSTEMEnquire
30400-00880BEARINGBRAKE SYSTEMEnquire
30102-060045870SCREWSTEERING SYSTEMEnquire
30105-040030410SCREWSTEERING SYSTEMEnquire
30137-250120010SCREWSTEERING SYSTEMEnquire
6GUV-100010-5600INNER HEX SCREW M8X25STEERING SYSTEMEnquire
6WWV-110004-5001SUNK SCREW M8x28REAR WHEELEnquire
6WWV-110100-5000-21OIL SEALREAR WHEELEnquire
30800-05205CIRCLIP FOR HOLEREAR WHEELEnquire
30006-060035810BOLTFUEL TANKEnquire
6070-120400CLAMP(Φ14.5)FUEL TANKEnquire
30601-111010CLAMPFUEL TANKEnquire
0180-014010WIRE CLAMPFUEL TANKEnquire
6WWV-047002-5000INNER HEX SCREW M6x25SEATEnquire
6WWV-046802-5000INNER HEX SCREW M6x16SEATEnquire
30102-080020870SCREWFOOTRESTEnquire
30802-00603SPLIT WASHER 6FOOTRESTEnquire
6WWV-047101-5000INNER HEX SCREW M5X14FOOTRESTEnquire
6ARV-140002-1000SCREW M8X28FOOTRESTEnquire
30903-0322210COTTER PINFOOTRESTEnquire
6AQV-140620-1000LIMIT SCREWFOOTRESTEnquire
30105-050020450SCREWFOOTRESTEnquire
CFCV-CBC005-2000-M1CLIPELECTRIC SYSTEMEnquire
6GU#-150001-6000-M1CLASPELECTRIC SYSTEMEnquire
6AQV-150001-1000-M1CLIPELECTRIC SYSTEMEnquire
CFCV-156103-2000PLUG, T-BOX CONNECTORELECTRIC SYSTEMEnquire
6GUV-181010-6001WATER FILLING PORT CAP ASSYCOOLING SYSTEMEnquire
6AQV-180110-1000RESERVOIR CAPCOOLING SYSTEMEnquire
6GUV-180011-6000SEAL RUBBER RINGCOOLING SYSTEMEnquire
30601-212570CLAMPCOOLING SYSTEMEnquire
30605-132060HOSE CLIPCOOLING SYSTEMEnquire
30601-229060CLAMPCOOLING SYSTEMEnquire
6KM#-181001-8001DAMPER RUBBER MATCOOLING SYSTEMEnquire
30601-109010CLAMPFUEL VAPOPIN SYSTEMEnquire
30601-110010CLAMPFUEL VAPOPIN SYSTEMEnquire
30102-050008870INNER HEX SCREW M5X8FUEL VAPOPIN SYSTEMEnquire
0HTV-114000-7000CLAMP KITAIR FILTEREnquire
0HTV-112000-7000-20SCREWAIR FILTEREnquire
0HTV-011103-7000MAZE RETAINERUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011106-4000NEEDLE BEARINGUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-060011-1000BEARING SLEEVEUPPER & LOWER CRANKCASE ASSYEnquire
30403-01400NEEDLE BEARINGUPPER & LOWER CRANKCASE ASSYEnquire
1F30-011600-10000OIL SEALUPPER & LOWER CRANKCASE ASSYEnquire
0HTV-011104-7000PLUGUPPER & LOWER CRANKCASE ASSYEnquire
0HTV-01FZ01-7000CRANKCASE ASSYUPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011004-1000BEARING RETAINERUPPER & LOWER CRANKCASE ASSYEnquire
0HTV-072004-7001CLIPUPPER & LOWER CRANKCASE ASSYEnquire
30410-01000ROLLER 10x14UPPER & LOWER CRANKCASE ASSYEnquire
0SQV-011103-1000RESTRICTION PLUGUPPER & LOWER CRANKCASE ASSYEnquire
01A0-012010-00001SCREWUPPER & LOWER CRANKCASE ASSYEnquire
0700-012105-00001PLUG, MAIN OIL RAILUPPER & LOWER CRANKCASE ASSYEnquire
0700-012106-00002OIL FILTER BOLTUPPER & LOWER CRANKCASE ASSYEnquire
0HTV-012400-7000OIL PRESSURE SWITCHUPPER & LOWER CRANKCASE ASSYEnquire
0010-021017-0010BOLT M6x25UPPER & LOWER CRANKCASE ASSYEnquire
0HTV-012700-7000BOLT M8X65UPPER & LOWER CRANKCASE ASSYEnquire
0HTV-012200-7000BOLTUPPER & LOWER CRANKCASE ASSYEnquire
0060-013021-00002BOLT M6X85UPPER & LOWER CRANKCASE ASSYEnquire
0SQV-012003-1000BOLTUPPER & LOWER CRANKCASE ASSYEnquire
0700-013008OIL FILLING PLUGLEFT& RIGHT SIDE COVEREnquire
0110-013030O-RINGLEFT& RIGHT SIDE COVEREnquire
30403-01200BEARINGLEFT& RIGHT SIDE COVEREnquire
0010-080009OIL SEALLEFT& RIGHT SIDE COVEREnquire
0SQV-013001-1000RETAINERLEFT& RIGHT SIDE COVEREnquire
0800-062205O-RINGLEFT& RIGHT SIDE COVEREnquire
0DM0-011006O-RINGLEFT& RIGHT SIDE COVEREnquire
0700-013003-10000HOLE CAP, TIMING INSPECTIONLEFT& RIGHT SIDE COVEREnquire
01A0-012003O-RINGLEFT& RIGHT SIDE COVEREnquire
0700-021003-00001CYLINDER HEAD COVER BOLTCYLINDER HEAD COVEREnquire
0700-021200CYLINDER HEAD COVER BOLT SEAL RINGCYLINDER HEAD COVEREnquire
0HU0-021002-00001GULP PINCYLINDER HEAD COVEREnquire
0HTV-021002-7000CYLINDER HEAD COVER SEAL RINGCYLINDER HEAD COVEREnquire
0SQV-170200-1000SPARK PLUG ASSYCYLINDER HEAD COVEREnquire
0SQV-022011-1000BOLTCYLINDER HEAD (1)Enquire
0SQV-022008-1000CYLINDER HEAD BOLTCYLINDER HEAD (1)Enquire
0HTV-022100-7001-0C200CYLINDER HEAD ASSYCYLINDER HEAD (1)Enquire
0SQV-022105-1000BOLTCYLINDER HEAD (1)Enquire
0SQV-022106-1001HEX FLANGE BOLTCYLINDER HEAD (1)Enquire
0DM0-022008-00001CYLINDER HEAD DAMPING BOLTCYLINDER HEAD (1)Enquire
018B-022810COOLANT TEMP. SENSORCYLINDER HEAD (1)Enquire
0180-022003-00002STUDCYLINDER HEAD (1)Enquire
0MQ0-022500THERMOSTATCYLINDER HEAD (1)Enquire
0SQV-022002-1000THERMOSTAT CAP SEAL RINGCYLINDER HEAD (1)Enquire
0700-022004LOCK CLIP, VALVECYLINDER HEAD (2)Enquire
0700-022400-1000SEAL RING, VALVE STEMCYLINDER HEAD (2)Enquire
0SQV-024003-1001CHAIN GUIDECAMSHAFT ASSYEnquire
0SQV-024200-1000TIMING CHAINCAMSHAFT ASSYEnquire
0SQV-024401-1000HYDRAULIC TENSIONER SEAL RINGCAMSHAFT ASSYEnquire
0HTV-024400-7000TENSIONER ASSYCAMSHAFT ASSYEnquire
0010-023010-0010BOLT M6x20CAMSHAFT ASSYEnquire
30004-060012150BOLTCAMSHAFT ASSYEnquire
0HTV-024001-7000TIMING SPROCKETCAMSHAFT ASSYEnquire
0HTV-024600-7000EXHAUST CAMSHAFT ASSYCAMSHAFT ASSYEnquire
0HTV-024500-7000INTAKE CAMSHAFT ASSYCAMSHAFT ASSYEnquire
0HTV-0421A0PISTON PIN ASSYCRANKSHAFT & CONNECTING ROD (1)Enquire
0110-040006-0050CIRCLIP, PISTON PINCRANKSHAFT & CONNECTING ROD (1)Enquire
0SQV-040008-1000PISTON PINCRANKSHAFT & CONNECTING ROD (1)Enquire
0HTV-040009-7000-Q0-00001CONNECTING ROD BEARING REDCRANKSHAFT & CONNECTING ROD (1)Enquire
0HTV-040009-7000-Q0-00002CONNECTING ROD BEARING BLACKCRANKSHAFT & CONNECTING ROD (1)Enquire
0HTV-040009-7000-Q0-00003CONNECTING ROD BEARING BLUECRANKSHAFT & CONNECTING ROD (1)Enquire
0HTV-011001-7000-Q0-00001MAIN BEARING REDCRANKSHAFT & CONNECTING ROD (2)Enquire
0HTV-011001-7000-Q0-00002MAIN BEARING BLACKCRANKSHAFT & CONNECTING ROD (2)Enquire
0HTV-011001-7000-Q0-00003MAIN BEARING BLUECRANKSHAFT & CONNECTING ROD (2)Enquire
0HTV-041000-7000-Q0-00001CRANKSHAFT ASSY MARK ACRANKSHAFT & CONNECTING ROD (2)Enquire
0HTV-041000-7000-Q0-00002CRANKSHAFT ASSY MARK BCRANKSHAFT & CONNECTING ROD (2)Enquire
0SQV-040001-1000BOLTCRANKSHAFT & CONNECTING ROD (2)Enquire
0180-040007WOODRUFF KEYCRANKSHAFT & CONNECTING ROD (2)Enquire
30400-01207ROLLER BEARINGCLUTCH ASSYEnquire
30801-01405CIRCLIPS FOR SHAFTTRAINSMISION SYSTEM (1)Enquire
30406-00303NEEDLE BEARINGTRAINSMISION SYSTEM (1)Enquire
30400-02505BEARINGTRAINSMISION SYSTEM (1)Enquire
0700-061003CIRCLIP 20TRAINSMISION SYSTEM (2)Enquire
0HTV-060005-7000BEARING SEAT RETAINERTRAINSMISION SYSTEM (2)Enquire
0HTV-061010-7000BEARING SEATTRAINSMISION SYSTEM (2)Enquire
0700-066002BEARING 25x62x17TRAINSMISION SYSTEM (2)Enquire
0DM0-062017CIRCLIPS FOR SHAFT 25TRAINSMISION SYSTEM (2)Enquire
30499-02004NEEDLE BEARINGTRAINSMISION SYSTEM (2)Enquire
0700-061016CIRCLIPS FOR SHAFT20TRAINSMISION SYSTEM (2)Enquire
0SQV-062003-100062x28TRAINSMISION SYSTEM (2)Enquire
0SQV-010001-1001COUNTERSHAFT OIL SEAL 40x58x8TRAINSMISION SYSTEM (2)Enquire
0SQV-060012-1000O-RINGTRAINSMISION SYSTEM (2)Enquire
30801-01100CIRCLIPS FOR SHAFTLUBRICATION SYSTEMEnquire
30406-00402ROLLER NEEDLE P4x21.8LUBRICATION SYSTEMEnquire
30406-00400ROLLER PINLUBRICATION SYSTEMEnquire
0SQV-070102-1001-10PLUNGERLUBRICATION SYSTEMEnquire
0HTV-072003-7000O-RINGLUBRICATION SYSTEMEnquire
0HTV-072100-7001OIL COOLER ASSYLUBRICATION SYSTEMEnquire
0700-070200-10001OIL FILTER ASSYLUBRICATION SYSTEMEnquire
0HTV-073100-7000FILTER ASSYLUBRICATION SYSTEMEnquire
0SQV-028002-1000-M1CLAMPLUBRICATION SYSTEMEnquire
0HTV-081000-7000-28O-RING 44.5X2.65WATER PUMPEnquire
0HTV-081000-7000-33CIRCLIP FOR SHAFT AWATER PUMPEnquire
30102-060012810SCREWSTARTING SYSTEMEnquire
0SQV-022410-1000CLAMPTHROTTLE & INJECTOREnquire
0SQV-022009-1000O-RINGTHROTTLE & INJECTOREnquire
30121-080025160SCREWGEARSHIFT LEVEREnquire
6KM#-200003-8001PLUGTOOLSEnquire
30102-060025870SCREWTOOLSEnquire
0HTV-015001-7000-0C200OIL PANOIL PANEnquire
0180-011500MAGNETIC DRAIN BOLTOIL PANEnquire
0HTV-023111-7000-0C200CYLINDER BODYCYLINDER BODYEnquire
0HTV-023001-7000CYLINDER BODY GASKETCYLINDER BODYEnquire
0180-030001-00001BOLTMAGNETO ASSYEnquire
0SQV-011002-1000-Q0-00001BALANCER SHAFT BEARINGBALANCER SHAFTEnquire
0SQV-011002-1000-Q0-00002BALANCER SHAFT BEARINGBALANCER SHAFTEnquire
0SQV-011002-1000-Q0-00003BALANCER SHAFT BEARINGBALANCER SHAFTEnquire
SH-0HTV-0220A0-7000CYLINDER HEAD KITCYLINDER HEAD SYSTEM KITEnquire

Exploded diagrams — Engine

2025 CF MOTO 675 SR-R UPPER & LOWER CRANKCASE ASSY exploded diagram
UPPER & LOWER CRANKCASE ASSY · 21
2025 CF MOTO 675 SR-R TRAINSMISION SYSTEM (2) exploded diagram
TRAINSMISION SYSTEM (2) · 12
2025 CF MOTO 675 SR-R COOLING SYSTEM exploded diagram
COOLING SYSTEM · 11

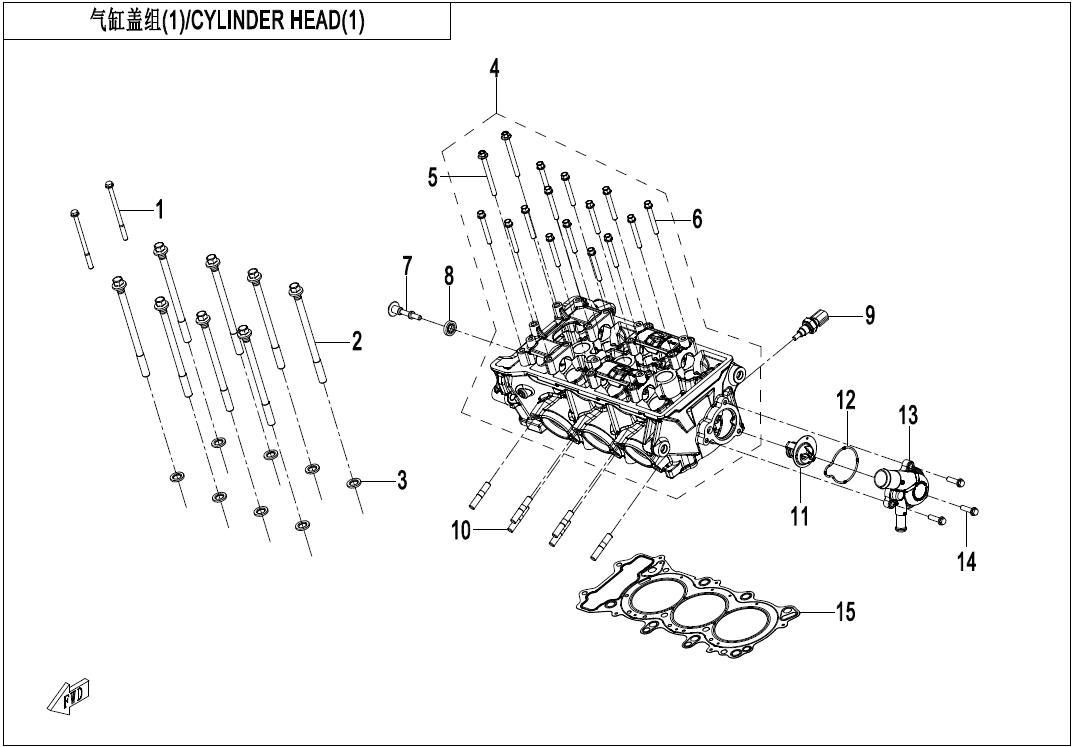

2025 CF MOTO 675 SR-R CYLINDER HEAD (1) exploded diagram
CYLINDER HEAD (1) · 11

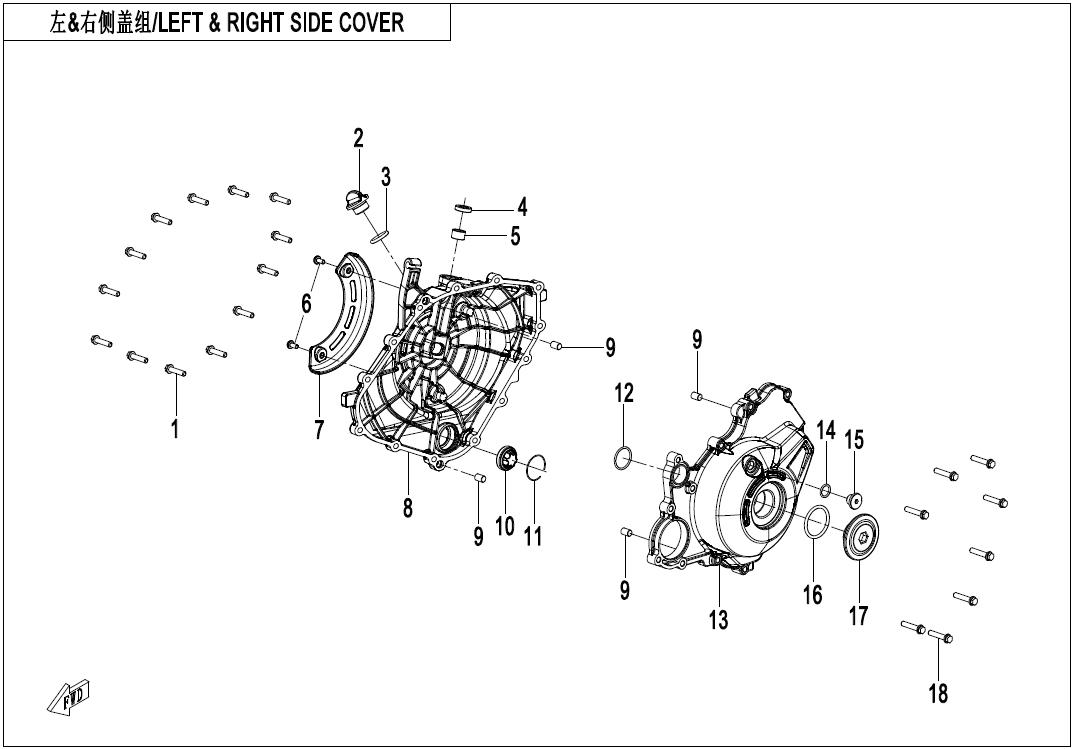

2025 CF MOTO 675 SR-R LEFT& RIGHT SIDE COVER exploded diagram
LEFT& RIGHT SIDE COVER · 10
2025 CF MOTO 675 SR-R LUBRICATION SYSTEM exploded diagram
LUBRICATION SYSTEM · 10

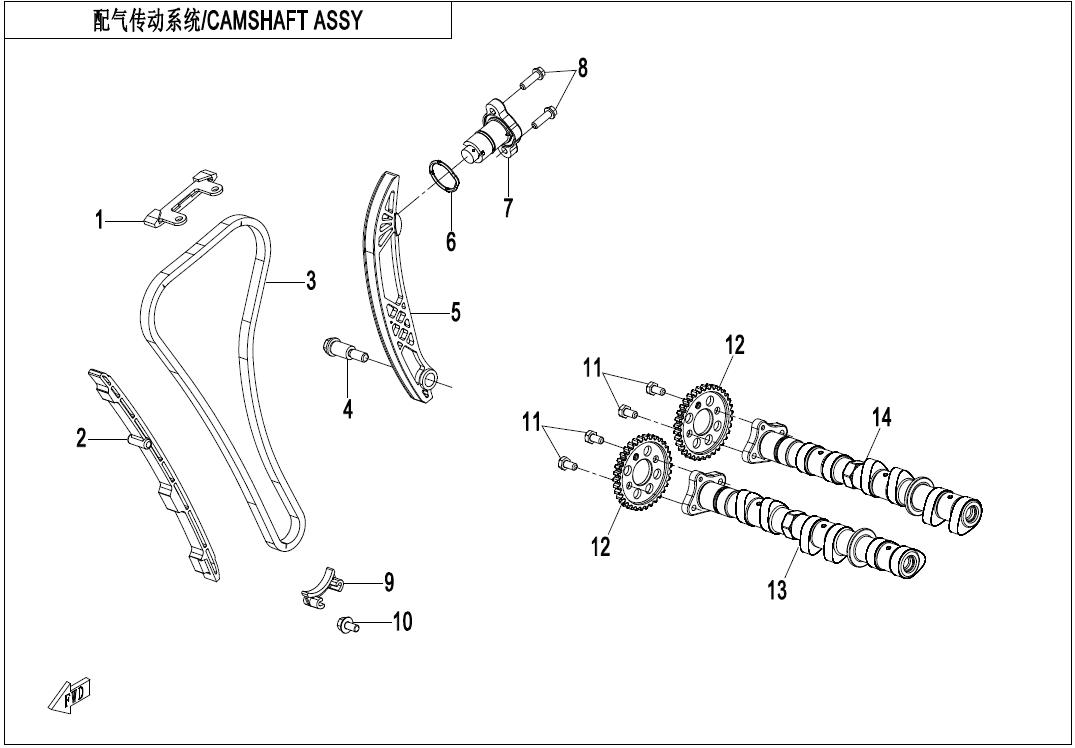

2025 CF MOTO 675 SR-R CAMSHAFT ASSY exploded diagram
CAMSHAFT ASSY · 9

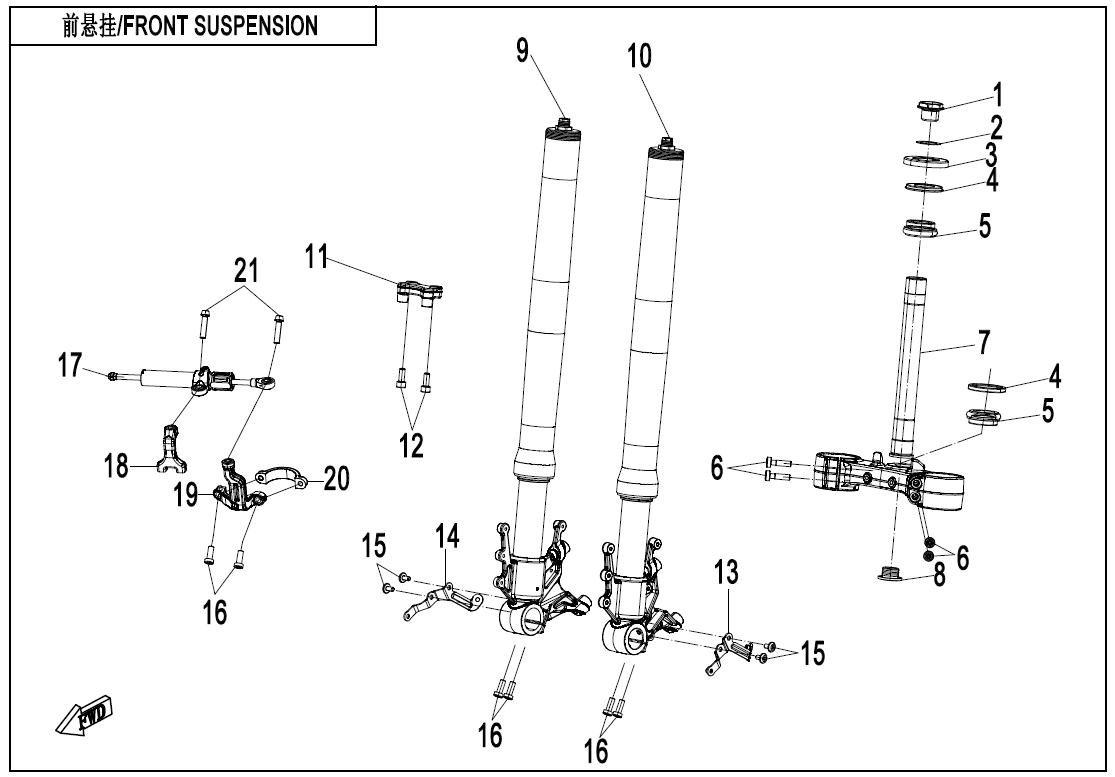

2025 CF MOTO 675 SR-R FRONT SUSPENSION exploded diagram
FRONT SUSPENSION · 8

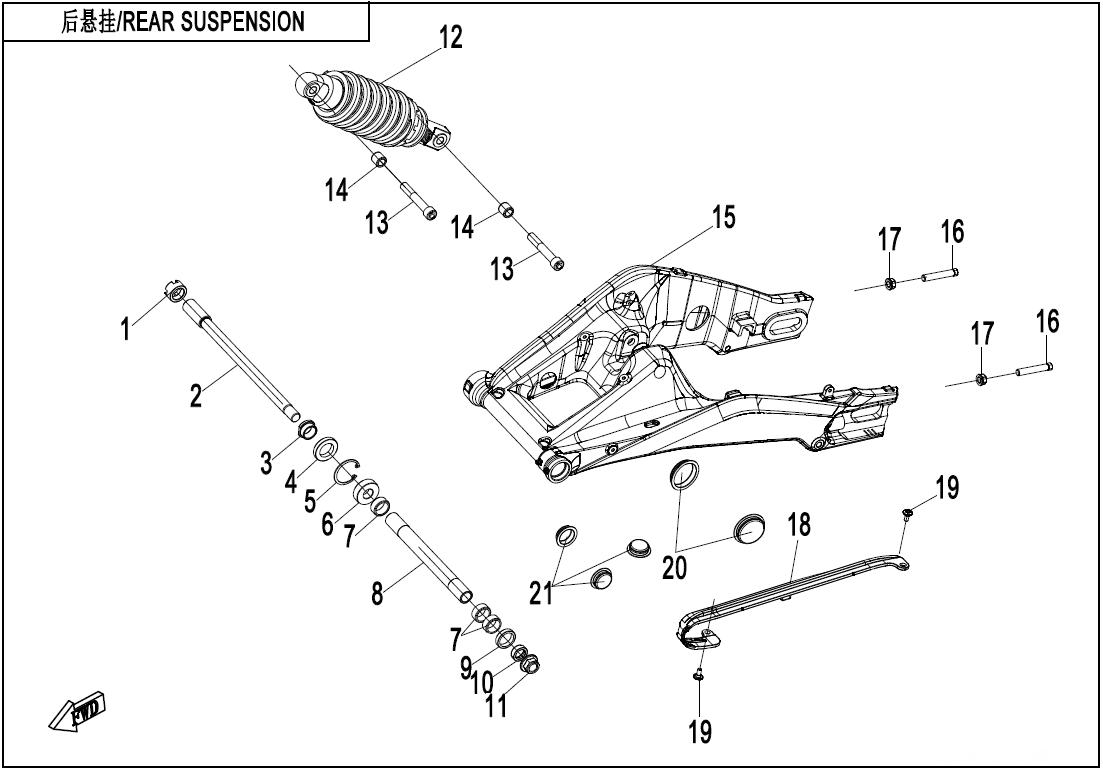

2025 CF MOTO 675 SR-R REAR SUSPENSION exploded diagram
REAR SUSPENSION · 8
2025 CF MOTO 675 SR-R FOOTREST exploded diagram
FOOTREST · 7
2025 CF MOTO 675 SR-R ELECTRIC SYSTEM exploded diagram
ELECTRIC SYSTEM · 7

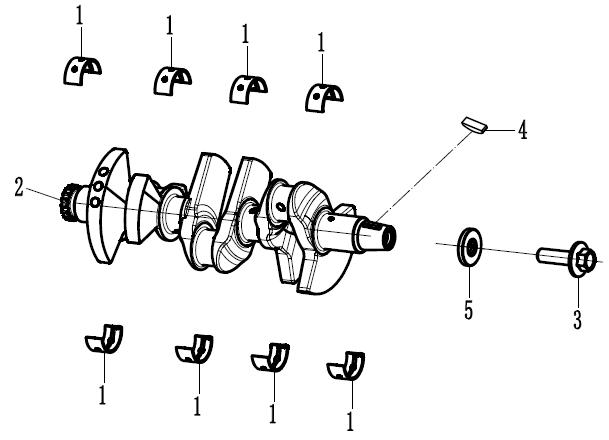

2025 CF MOTO 675 SR-R CRANKSHAFT & CONNECTING ROD (2) exploded diagram
CRANKSHAFT & CONNECTING ROD (2) · 7

Browse the catalogue interactively

Open Engine in the interactive 2025 CF MOTO 675 SR-R catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Body · 265Gearbox · 91Suspension · 47Brake System · 46Electrical System · 43Wheels & Tyres · 27Cooling System · 19Clutch & Parts · 18Steering System · 14Fuel Supply System · 13Filters · 12Exhaust System · 7Final Drive · 3Interior · 1Unclassified · 75
