CFORCE 1000 OVERLAND — Engine parts

UK market241 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 83Cylinder Head & Parts · 39Air Supply System · 4Seals & Gaskets · 60Lubrication System · 12Belt/Chain Drive · 8Engine Hardware · 208

Part numbers

Every genuine engine part fitted to the CFORCE 1000 OVERLAND. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
30601-221050CLAMP D21Air Filter Assy 1Enquire
30006-103020810BOLT M10X20 Replacing: 30006-103020840 - BOLT M10X20Air Injected SystemEnquire
30110-480160010SELF-TAPPING SCREWBrake System-Rh(Russia)Enquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCamshaft Of Cylinder 1 AssyEnquire
30601-108010CLAMPCooling SystemEnquire
CFCV-CAC002-2000-M1CLIPCooling SystemEnquire
0JY0-040003-00012PLAIN BEARING, CONNECTING ROD, REDCrankshaft & Connecting Rod & Piston AssyEnquire
0JWV-051102-3000BEARINGCvt Assy 1Enquire
30006-060035810BOLTCvt Assy 1Enquire

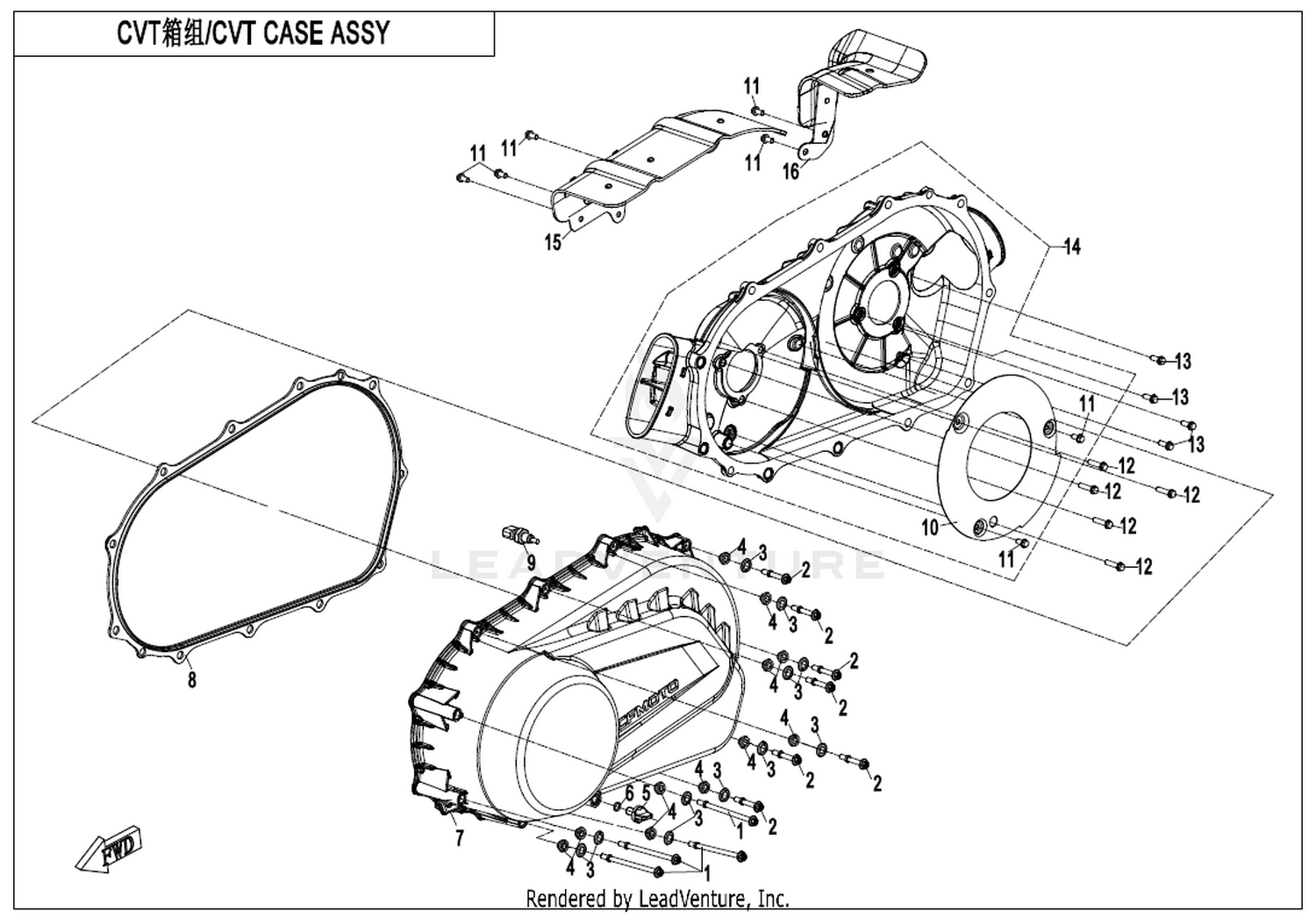

0700-012701O-SEAL RINGCvt Case Assy 1Enquire
0GSV-013002-3001BOLT, CVT COVERCvt Case Assy 2Enquire
018B-022810COOLANT TEMP. SENSORCvt Case AssyEnquire

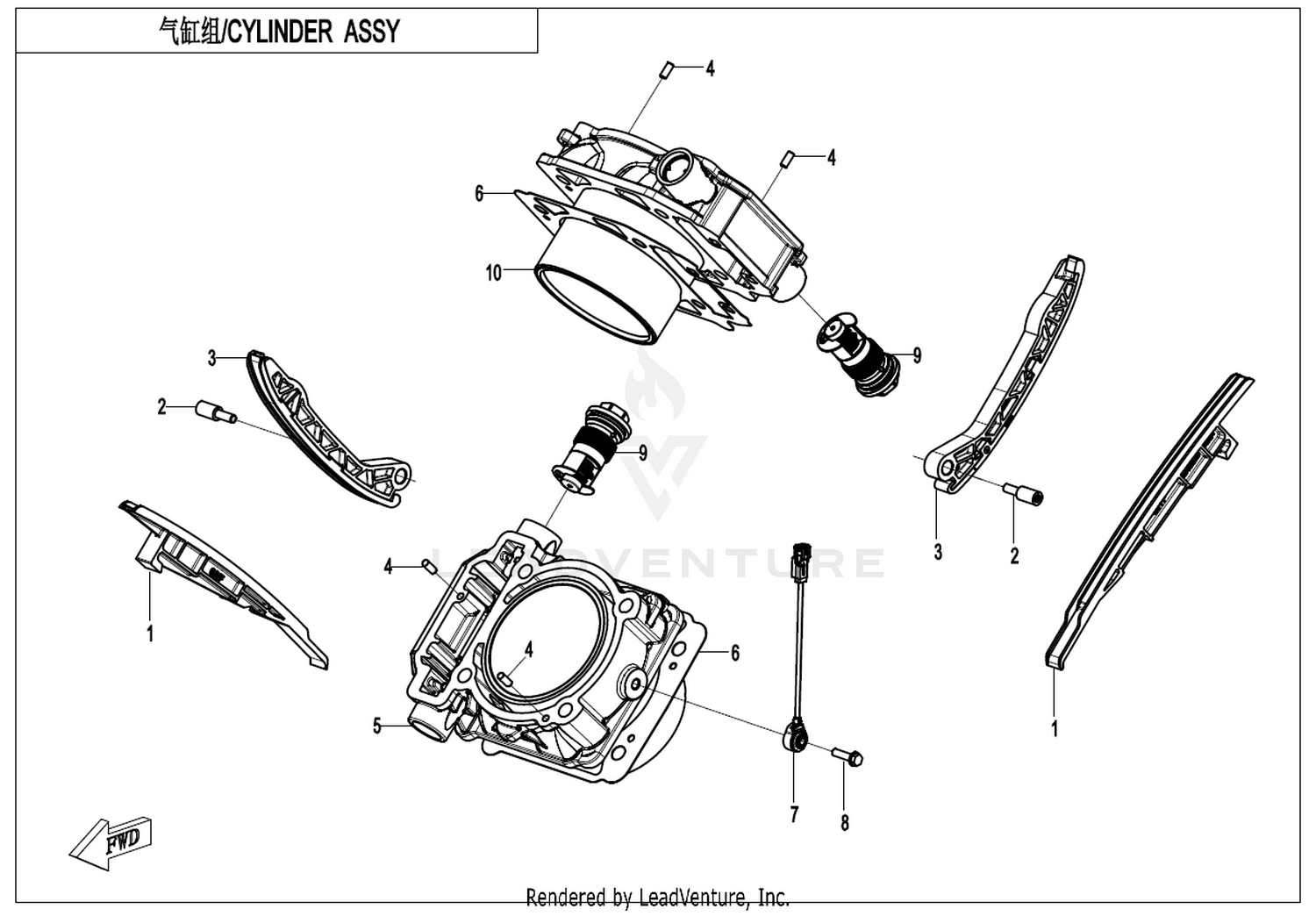

0JWV-024400-3002TENSIONER ASSYCylinder BodyEnquire

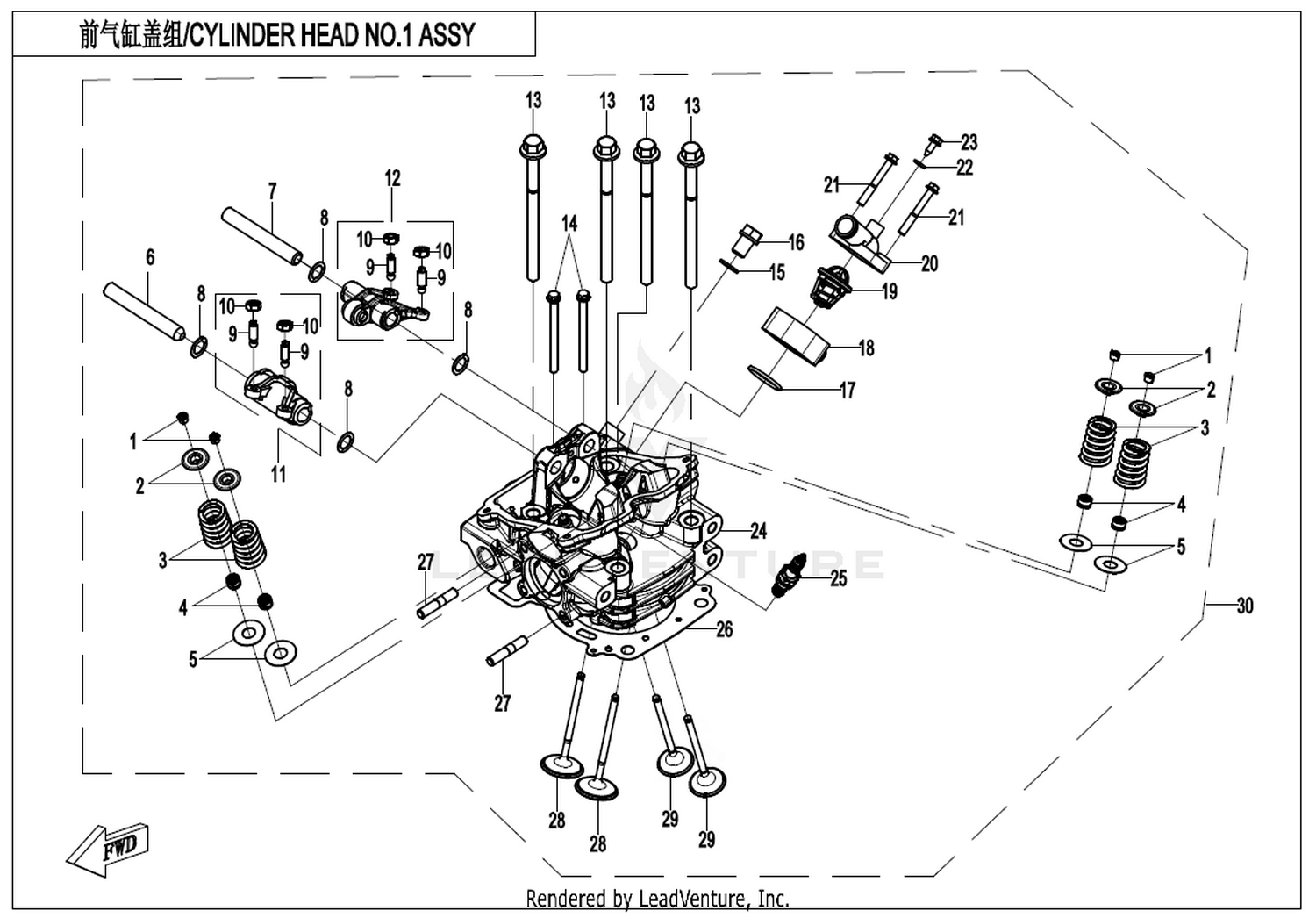

0800-022600-20000ROCKER ARM ASSY, AIR EXHAUSTCylinder Head No.1 AssyEnquire
30502-028000NO-RING 28X265Cylinder Head No.1 AssyEnquire
0JWV-022102-2000SCREW 5.5X16 Replacing: 30132-550160030 - SCREW ST5.5X16Cylinder Head No.1 AssyEnquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCylinder Head No.2 AssyEnquire

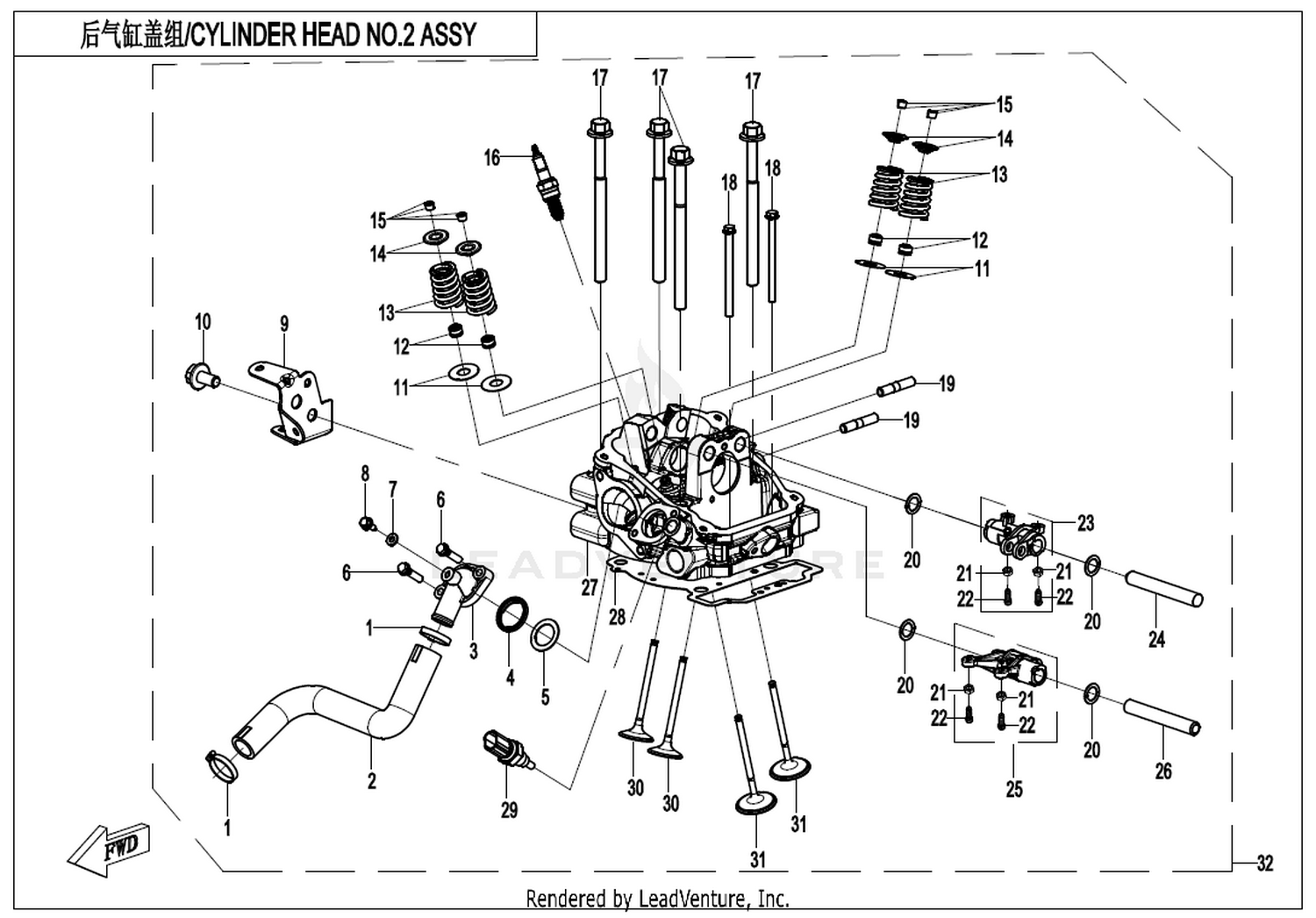

0JWV-026002-3000PIPE BRACKETCylinder Head No.2 AssyEnquire
6WWV-046702-5000INNER HEX SCREW M6x12Dashboard(8 Inch)Enquire
30102-060016830INNER HEX SCREW M6X16Electric SystemEnquire
CFCV-CBC005-2000-M1CLIPElectric SystemEnquire
9AWA-044051PLUG, TUBEFrame 1Enquire

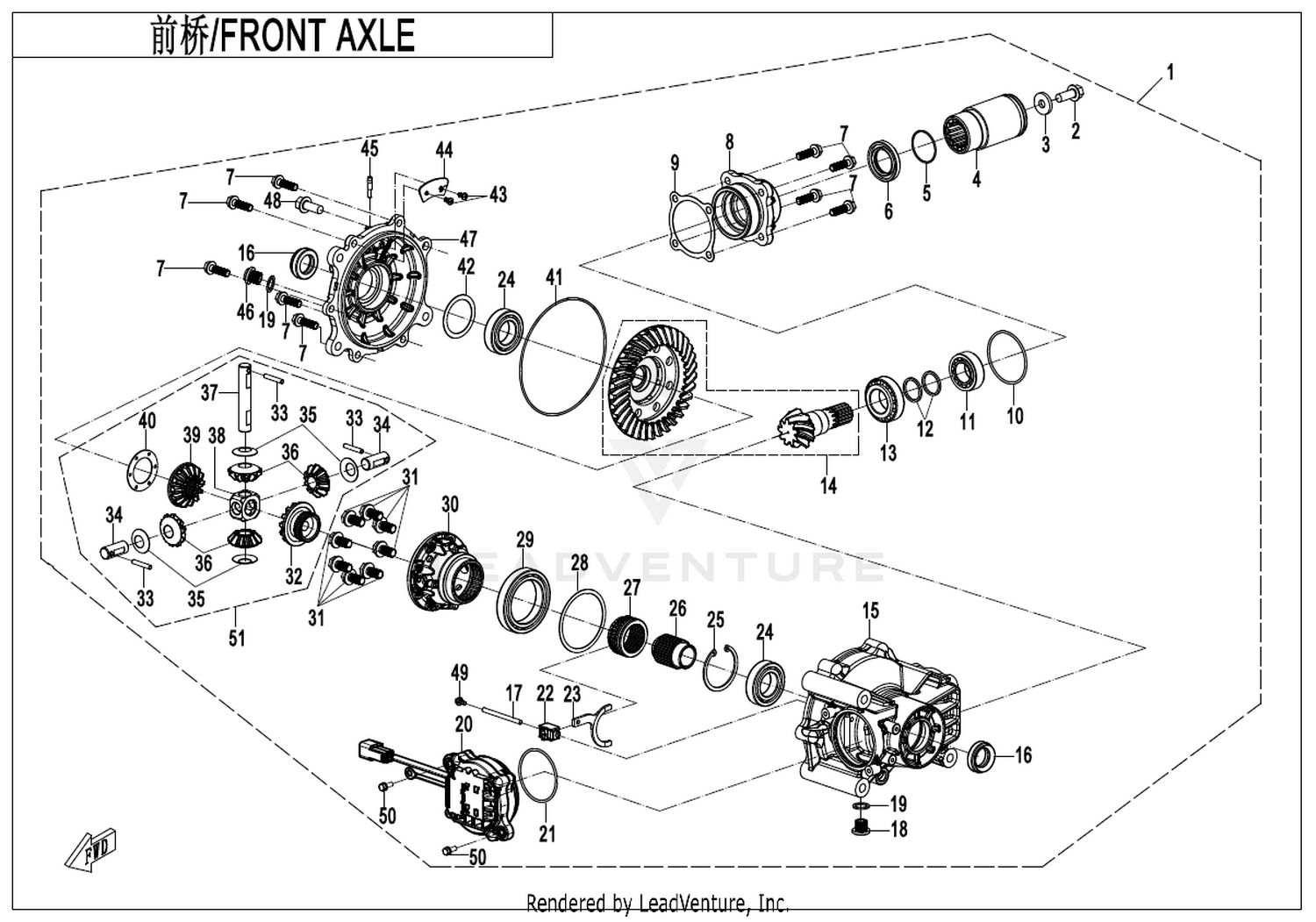

0180-311001OIL SEAL 24X38X8Front AxleEnquire
30110-420095070SELF-TAPPING SCREWFront Plastics(7\'\' Dashboard)Enquire
9DQV-050900-3000DAMPING SLEEVE ASSYFront SuspensionEnquire
0JY#-170005-1500BRACKET, RH FUEL INJECTOR HOSEFuel Injection SystemEnquire
7020-120006CLAMP D16.6AFuel TankEnquire
30121-080020870SCREWHandlebarEnquire
6GU#-150001-6000-M1CLASPHandlebarEnquire
080V-025002-1000SEAL RING, MANIFOLD Replacing: 0800-025002 - SEAL RING, MANIFOLDIntake Manifold Assy(With Fuel Desorption Port)Enquire
0180-331004O-RING 64.5X3Intake Manifold Assy(With Fuel Desorption Port)Enquire
0JYV-202400-5000-20CLAMPIntake Manifold Assy(Without Fuel Desorption Port) 1Enquire
0180-012006-10000OIL SEAL Replacing: 0180-012006 - OIL SEAL 30X45X7Left Crankcase AssyEnquire

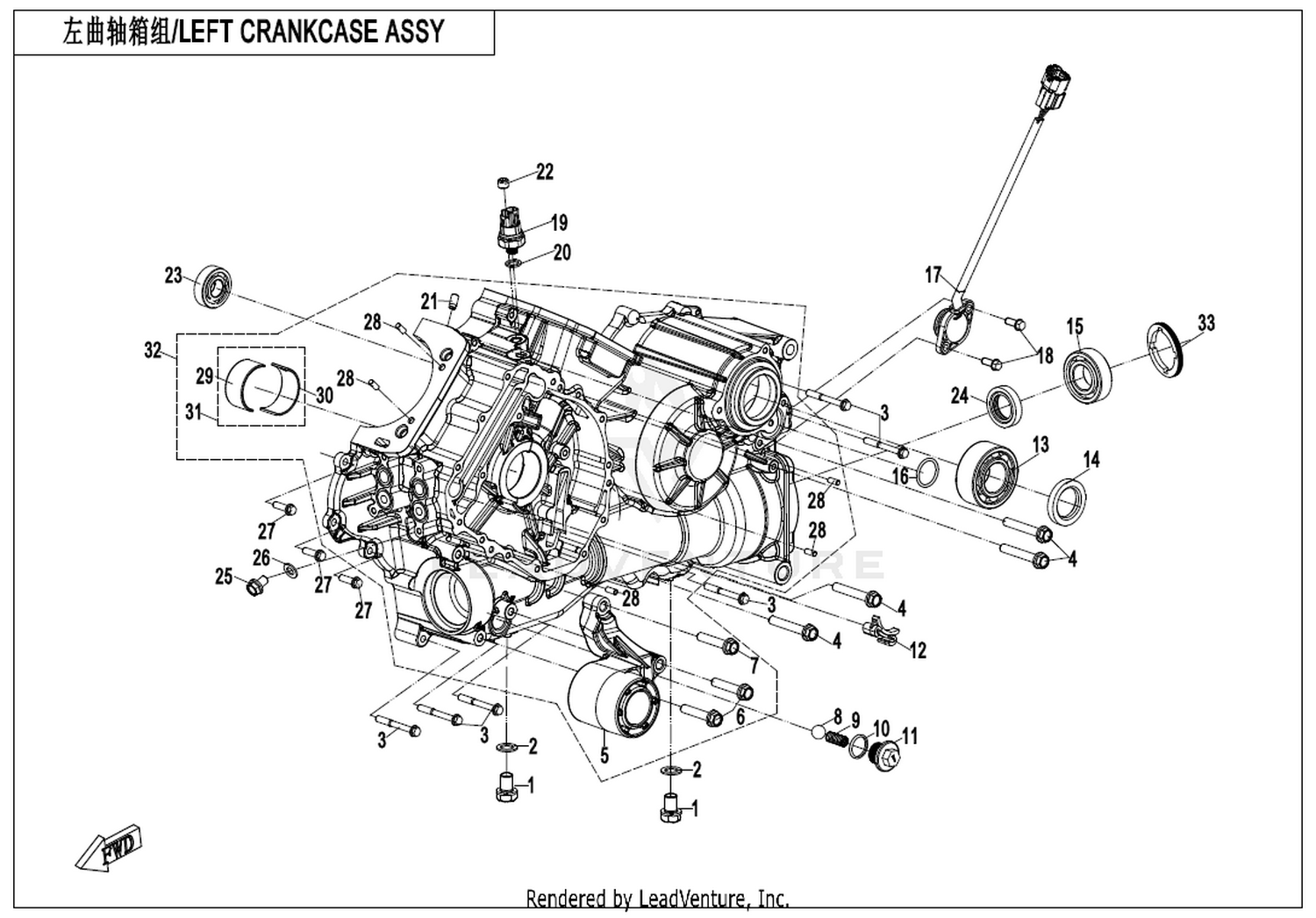

0010-011002OIL SEALLeft Crankcase AssyEnquire
0JWV-011102-3000-Q0-00002MAIN BEARING 1 BLUELeft Crankcase AssyEnquire
0JWV-011103-3001-Q0-00001MAIN BEARING 2Left Crankcase AssyEnquire
01A0-012010-00001SCREWLeft Crankcase Cover AssyEnquire
0180-014010WIRE CLAMPLightsEnquire
30102-080020810SCREWMagneto AssyEnquire
7030-021305A-TYPE SCREW CLAMPMufflerEnquire
6WWV-046701-5000INNER HEX SCREWMufflerEnquire
0800-014006O-RING 16.5X2Oil Cooling SystemEnquire
0010-030002-00001BOLTOil Pump AssyEnquire
30406-00402ROLLER NEEDLE P4x21.8Oil Pump AssyEnquire
0180-334005-0010INNER HEX SCREW M8X45Rear Axle(No Differential)Enquire

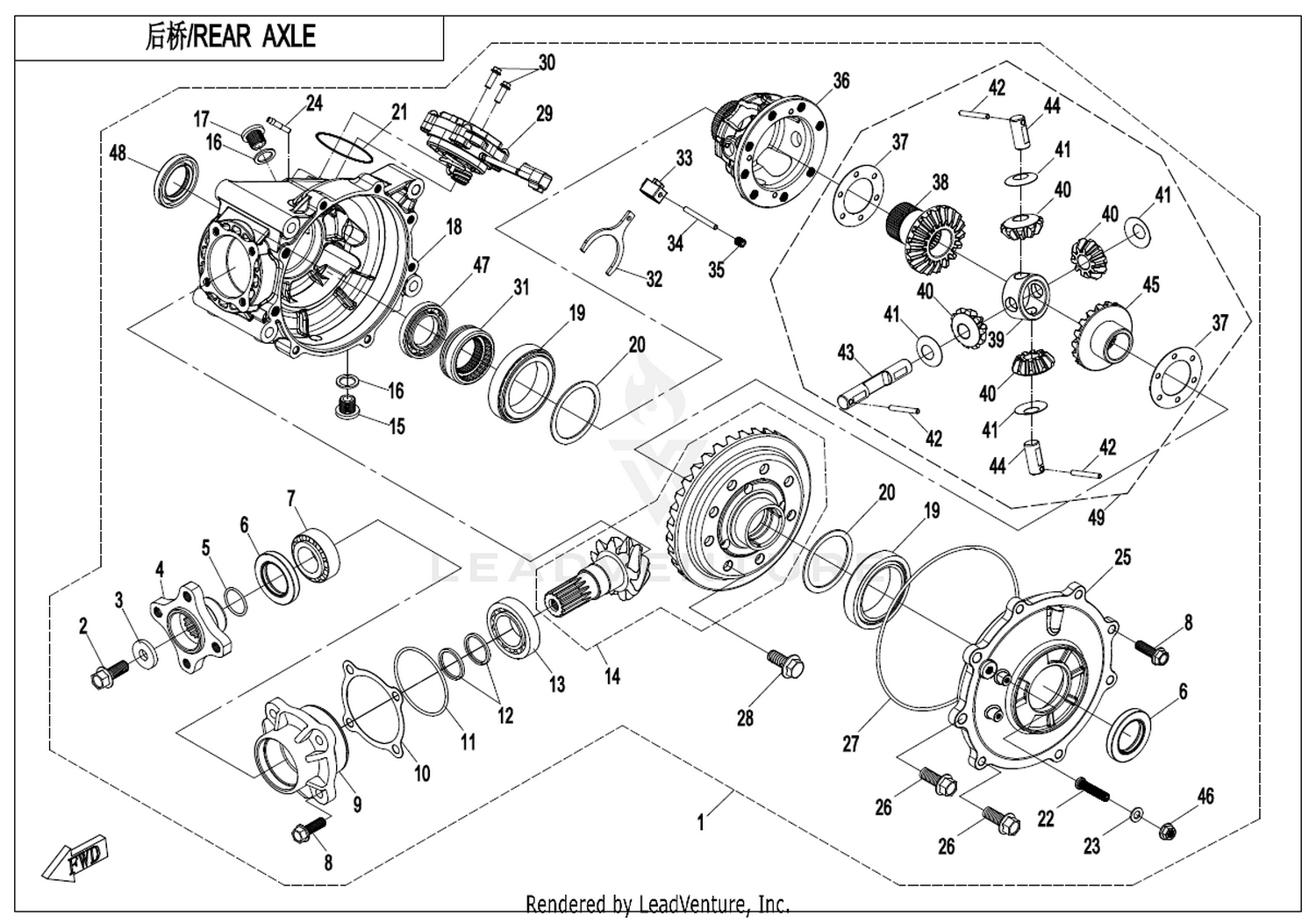

30130-080010810SCREWRear Axle(On Cammand)Enquire

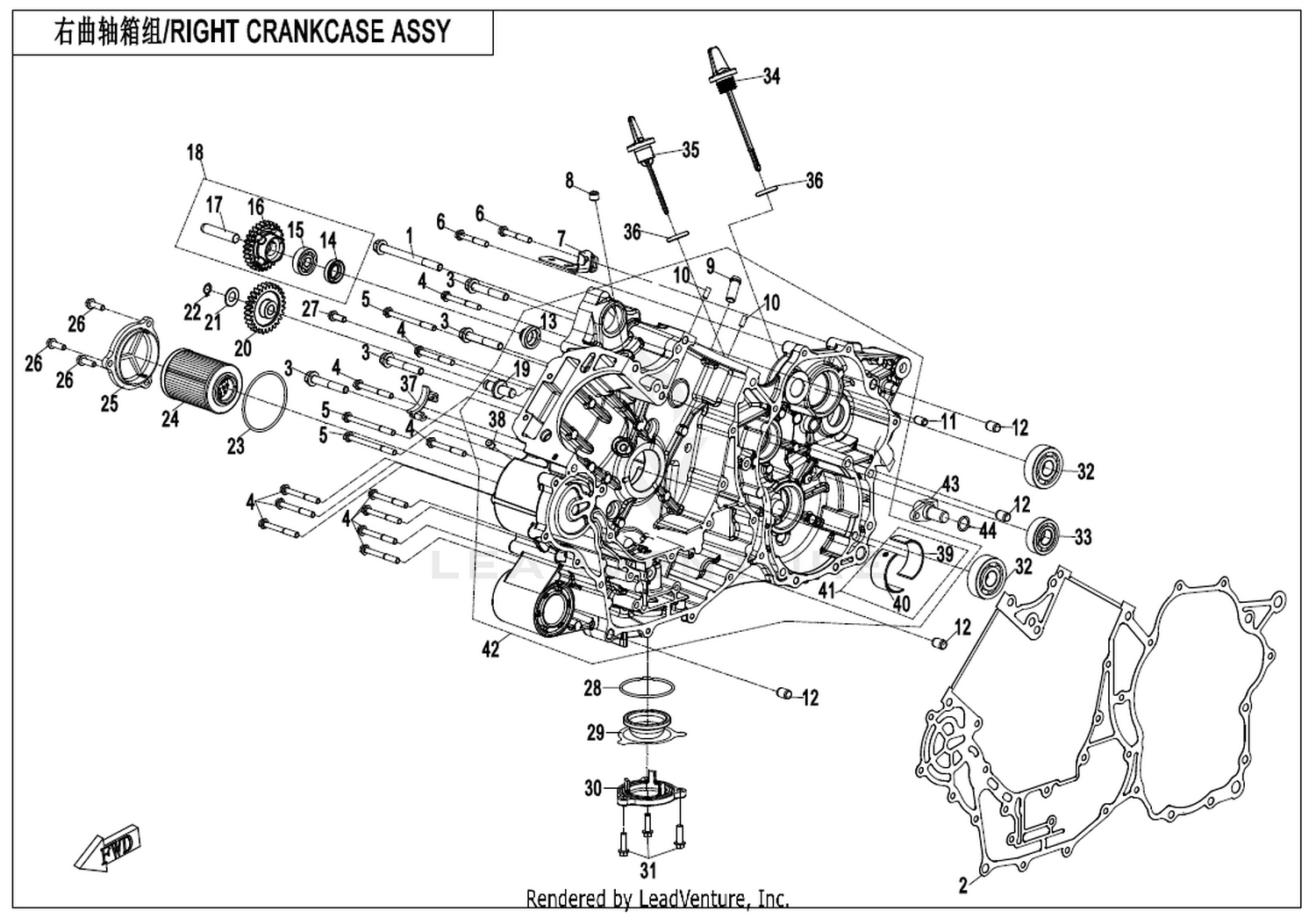

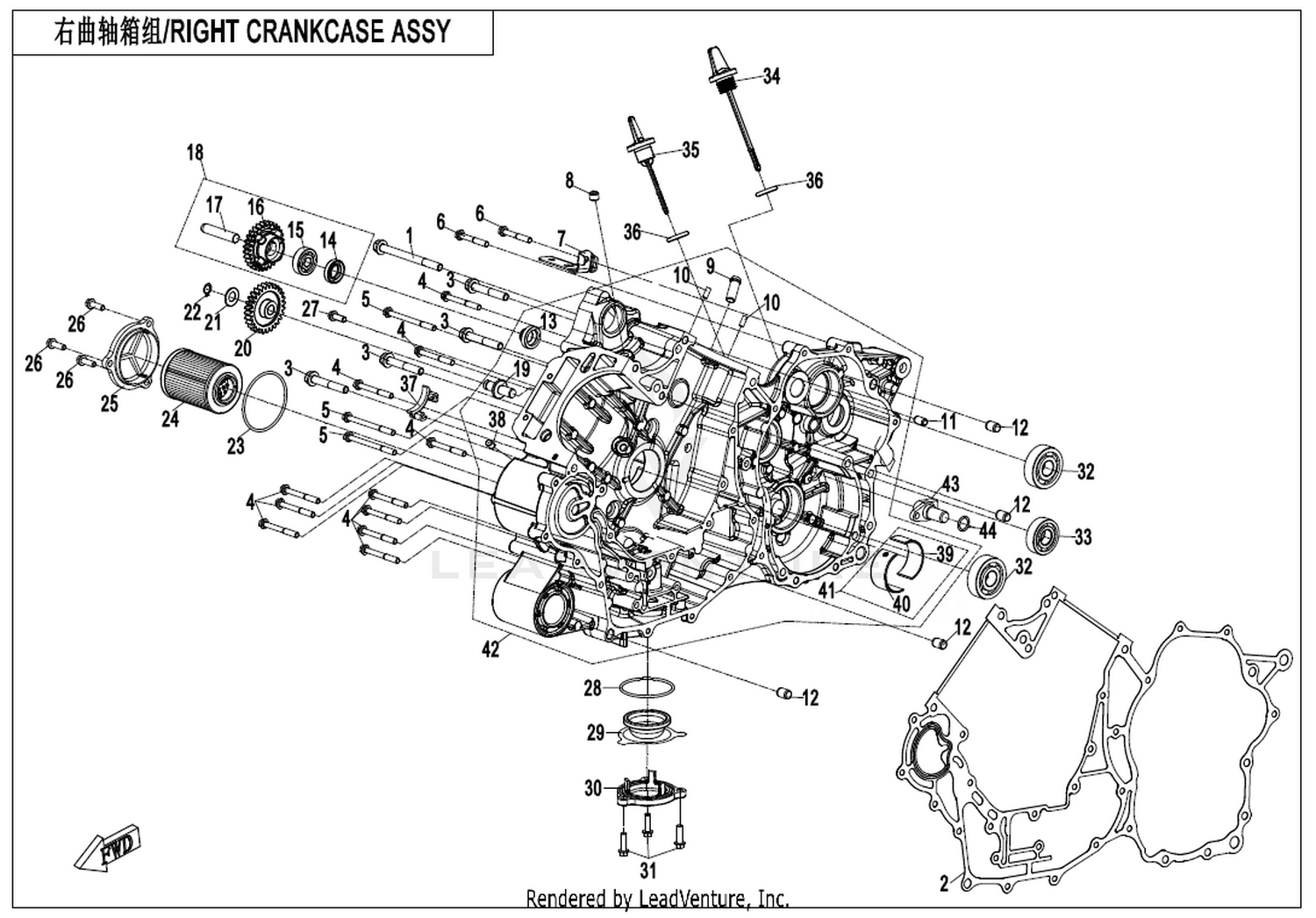

0800-011203-10000OIL SEALRight Crankcase Assy 1Enquire
30499-01700BEARING 6303Right Crankcase Assy 1Enquire
0110-013030O-RINGRight Crankcase Assy 1Enquire
0JWV-011102-3001-Q0-00001MAIN BEARING 1Right Crankcase Assy 1Enquire
0JWV-0111B0MAIN BEARING ASSY BLUERight Crankcase Assy 1Enquire
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50Right Crankcase AssyEnquire
30400-01003BEARING 6200-RS/P6Right Crankcase AssyEnquire
30400-01704BEARINGRight Crankcase AssyEnquire
0JWV-0111A0MAIN BEARING ASSY REDRight Crankcase AssyEnquire
30502-032800NO-RING 32X18Steering System(Eps)Enquire
9010-400102-10000COTTER PIN Replacing: 9010-400102 - COTTER PINTowbar(Pin Shaft Connection)Enquire

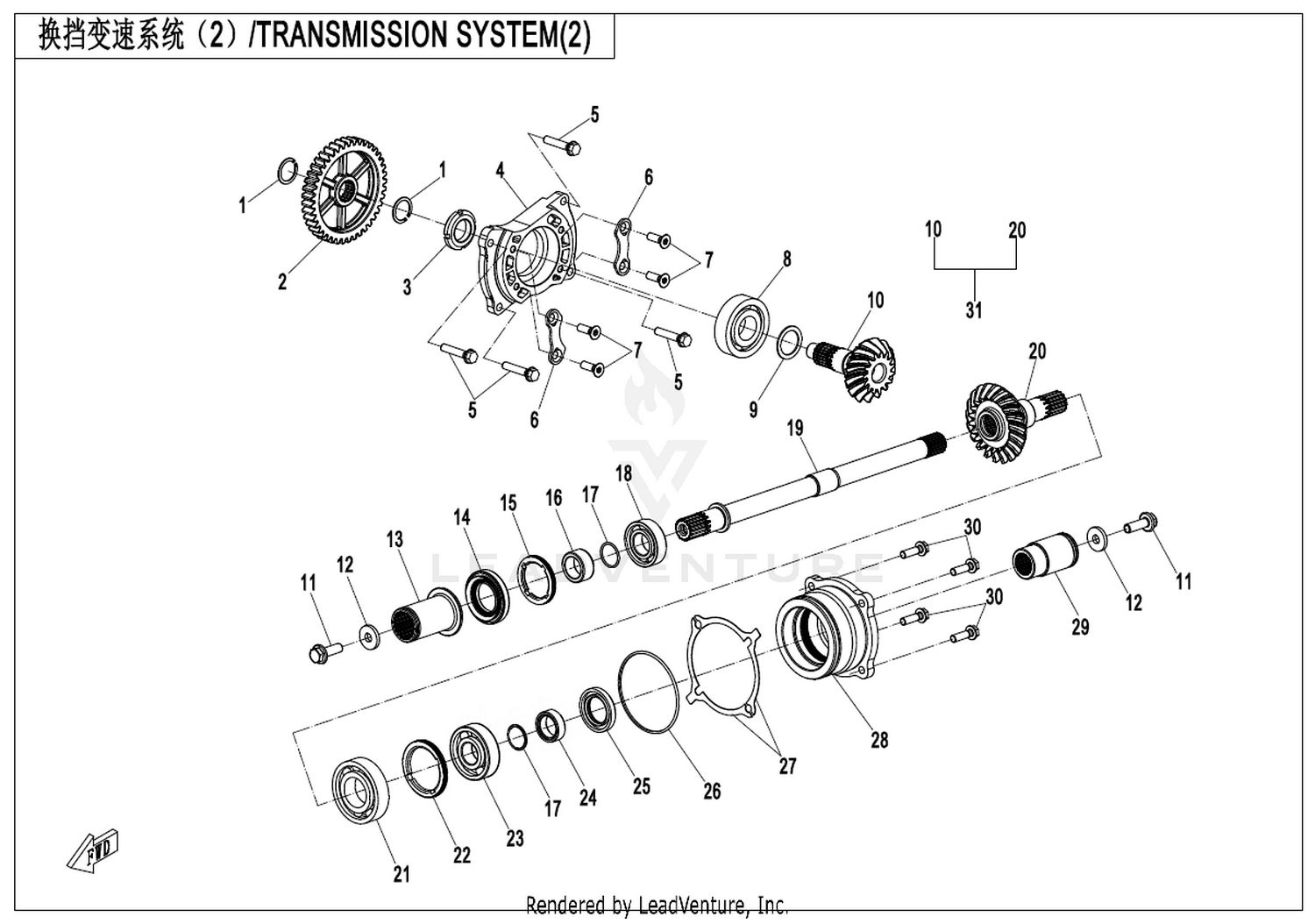

0180-061007-0050CIRCLIP 25Transmission System(2)Enquire
0180-062104-0010LIMITATOR, BEARINGTransmission System(2)Enquire
0180-060008BEARING RETAINER, FRONT OUTPUT SHAFTTransmission System(2)Enquire
30408-01000BEARINGWater Pump AssyEnquire
0JYV-112000-5000-22CLAMPAir Filter Assy 1Enquire
30903-0202010COTTER PIN. 2X20 Replacing: 30903-0202040 - COTTER PIN. 2X20Brake System-RhEnquire
30102-060016810SCREWBrake System-Rh(Russia)Enquire
0JWV-024007-3000TIMING SPROCKET BOLTCamshaft Of Cylinder 1 AssyEnquire
0JWV-024010-3000CAMSHAFT, FIRST CYLINDERCamshaft Of Cylinder 1 AssyEnquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCamshaft Of Cylinder 2 AssyEnquire
0JY0-040003-00022PLAIN BEARING, CONNECTING ROD, BLACK Replacing: 0JY0-040003-00020 - PLAIN BEARING, CONNECTING ROD BLACK@MIDDLECrankshaft & Connecting Rod & Piston AssyEnquire
9060-040310CLAMP ASSYCvt Air Pipe & Side CoverEnquire
0JWV-052202-3000BEARINGCvt Assy 1Enquire
0JWV-051103-3000CIRCLIPCvt AssyEnquire
30801-03505CIRCLIP FOR SHAFTCvt AssyEnquire
0GSV-013004-3000BOLT 1, CVT COVER Replacing: 0800-021101-1000 - BOLT, CYLINDER HEAD COVERCvt Case Assy 2Enquire
0JWV-013202-6000DRAIN BOLTCvt Case AssyEnquire
0JWV-013004-3000WIND GUARDCvt Case AssyEnquire
0800-023001-00002SCREW, TENSIONER PLATE Replacing: 0800-023001 - SCREW, TENSIONER PLATE NLA USE 0800-023001-00002Cylinder BodyEnquire
0JYV-023120-5002-Q0-00001REAR CYLINDER BODY ASSY MARK 1Cylinder BodyEnquire
0800-021002-00001SEAL RING, CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
0JYV-022500-4001SWING ARM, INTAKECylinder Head No.1 AssyEnquire
0800-022012SEAT,THERMOSTATCylinder Head No.1 AssyEnquire
0JWV-022100-3000FRONT CYLINDER HEAD ASSYCylinder Head No.1 AssyEnquire
0010-022802SEAL RINGCylinder Head No.2 AssyEnquire
0JWV-026002-3001PIPE BRACKETCylinder Head No.2 AssyEnquire
0JWV-026100-3000REAR CYLINDER HEAD ASSYCylinder Head No.2 AssyEnquire
6WWV-046802-5000INNER HEX SCREW M6x16Dashboard(7 Inch)Enquire
30110-421130010SELF-TAPPING SCREWDashboard(8 Inch)Enquire
30132-480130030SELF-TAPPING SCREW ST4.8X13Electric SystemEnquire
0JYF-0000A1ENGINE OIL SEAL AND O-RING KITEngine Oil Seal & O-RingEnquire
6100-030004RUBBER CAP, LHFrame 2Enquire
0180-310005O-RING 141X2.4Front AxleEnquire
9GQ0-050710BEARING, HUB Replacing: 30499-03080 - BEARING HUB DAC3055WFront SuspensionEnquire
30601-112010CLAMPFuel TankEnquire
0130-011114-00001BOLTIntake Manifold Assy(With Fuel Desorption Port)Enquire
30400-02501BEARINGLeft Crankcase AssyEnquire
0180-332002-0010BOLT M8X12.5, FLANGELeft Crankcase AssyEnquire
0JY0-013103OIL SEAL 32X55X10Left Crankcase Cover Assy 1Enquire
0JWV-015002-3000LH CRANKCASE COVER GASKETLeft Crankcase Cover AssyEnquire
30906-0504000PINRear Axle(On Cammand)Enquire
0120-061000OIL SEAL 35X58X5Rear Axle(On Cammand)Enquire
5BWB-280302CIRCLIPRear Cv ShaftEnquire
5BWV-040015-5000INNER HEX SLEF-TAPPING SCREWRear PlasticsEnquire
9AWV-061600-8000-23-M2O-RING ARear Shock Absorber(Gas,Yitong)Enquire
30411-03081HUB BEARING Replacing: 30411-03080 - HUB BEARINGRear SuspensionEnquire
0JWV-011103-3000-Q0-00001MAIN BEARING 2 REDRight Crankcase Assy 1Enquire
30406-00500ROLLER NEEDLE P5X11.8Right Crankcase AssyEnquire
30801-01005Circlips For Shaft 10Right Crankcase AssyEnquire
Q830-310006-10000O-RING 55X2.5Right Crankcase AssyEnquire
01A0-012003O-RINGRight Crankcase Cover AssyEnquire
0010-090006-00001SCREWSeat(Deluxe)Enquire
30401-03001BEARINGStarting SystemEnquire
30124-080025810SCREW M8X25Transmission System(2)Enquire
0010-021019-0010BOLT M6x12Transmission System(3)Enquire
30400-01707BEARINGTransmission System(3)Enquire
0110-080005Oil Seal 10X20X5Water Pump AssyEnquire
0110-090008-0030BOLT M6X14Air Injected SystemEnquire
0JWV-024005-3000TIMING SPROCKETCamshaft Of Cylinder 1 AssyEnquire
30601-111010CLAMPCooling SystemEnquire

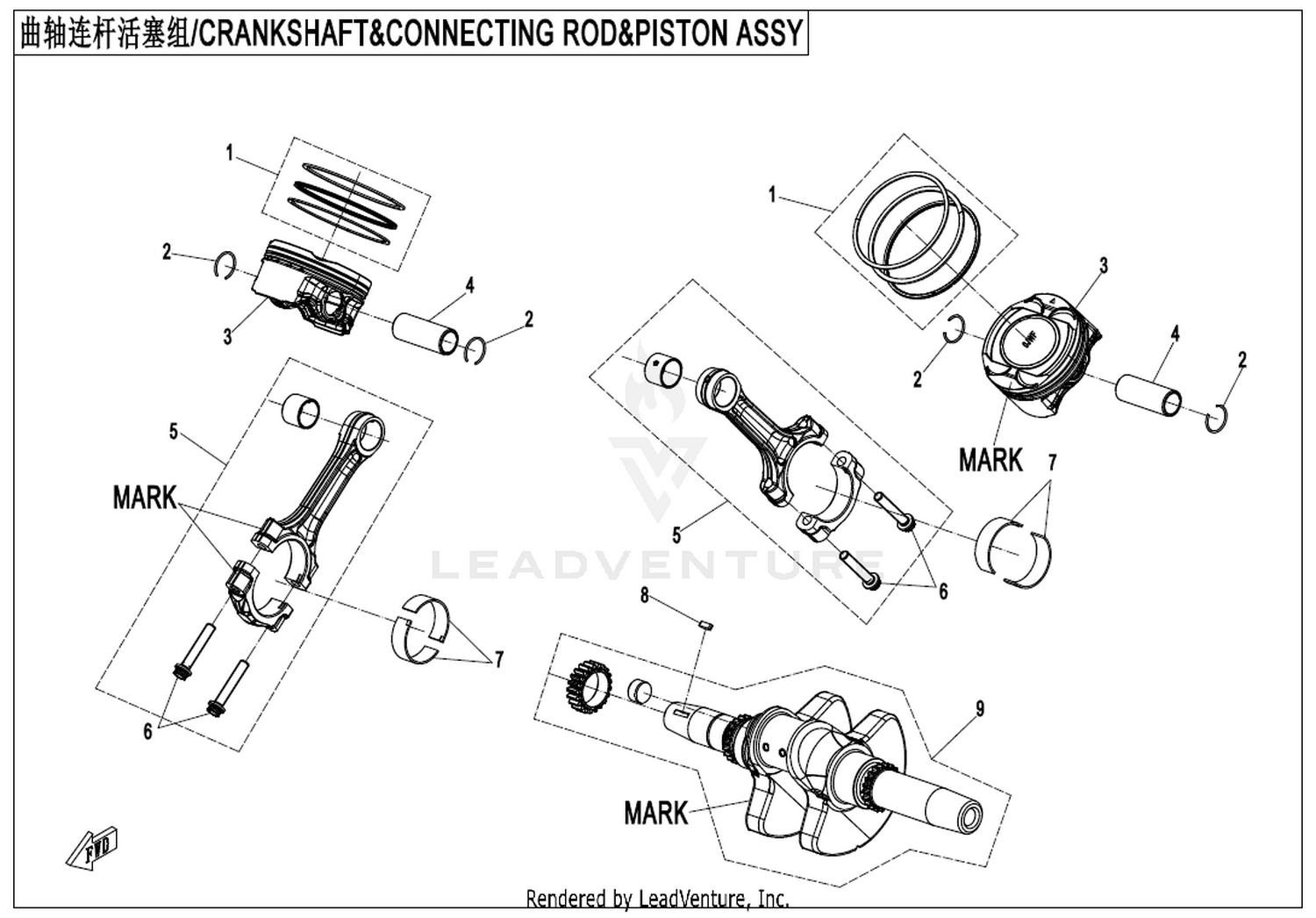

0800-040002-00001PISTON PIN Replacing: 0800-040002 - PISTON PINCrankshaft & Connecting Rod & Piston AssyEnquire
0JY0-040003-00032PLAIN BEARING, CONNECTING ROD, YELLOWCrankshaft & Connecting Rod & Piston AssyEnquire
5ASV-000105-6000CLAMPCvt Air Pipe & Side CoverEnquire
9AWV-044052-8000CAP, OIL FILLERCvt Air Pipe & Side CoverEnquire
0JWV-052203-3000CIRCLIPCvt Assy 1Enquire
0JWV-051302-3000BEARINGCvt Assy 1Enquire

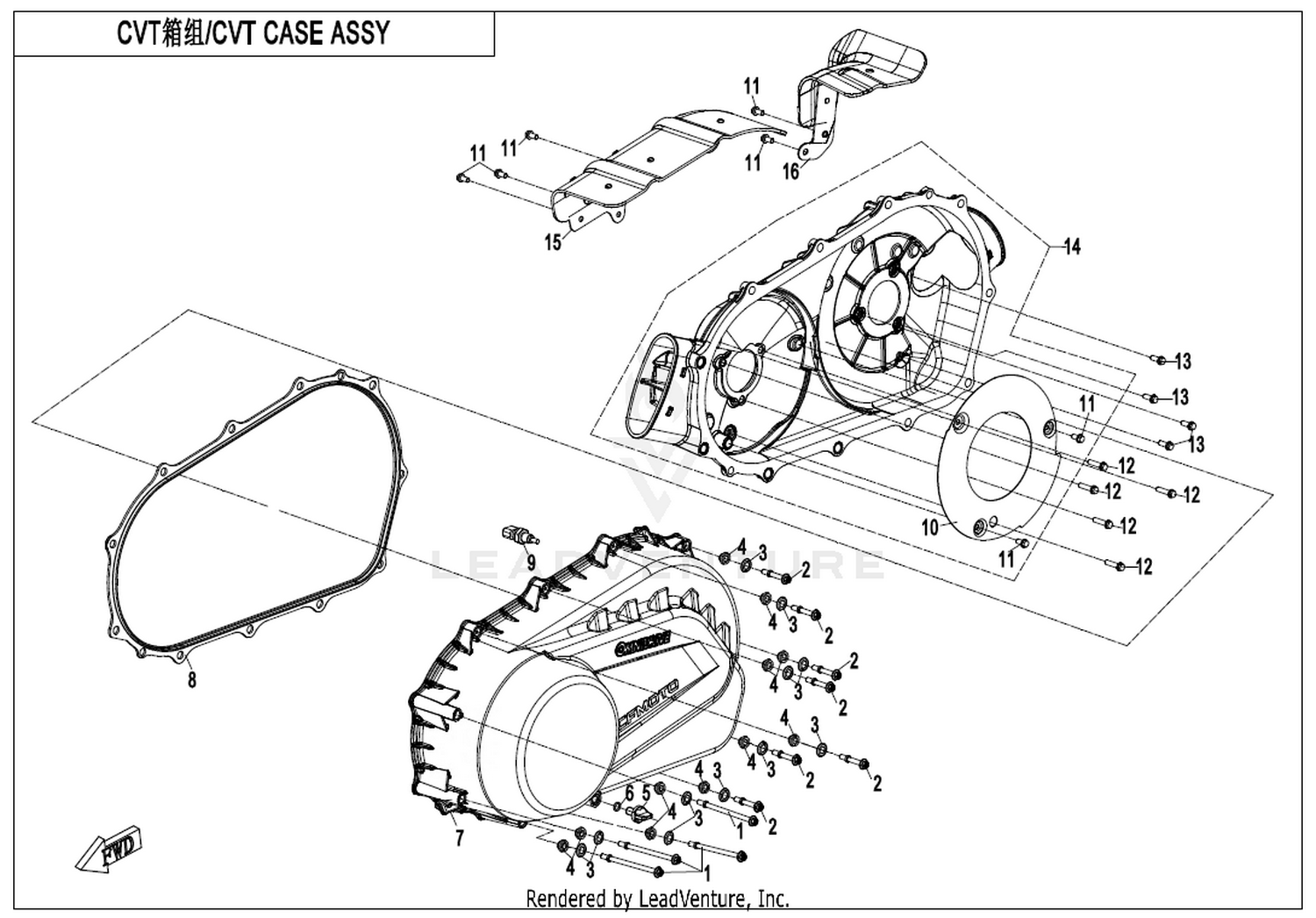

0JWV-013003-3000SEAL RING, CVT COVERCvt Case Assy 1Enquire
0JWV-013103-3000CVT HEAT INSULATOR ASSYCvt Case Assy 2Enquire
0800-023002-00001GASKET, CYLINDERCylinder BodyEnquire
0JYV-023120-5002-Q0-00002REAR CYLINDER BODY ASSY MARK 2Cylinder BodyEnquire
0800-021001CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
0JY0-022003-00001BOLT, CYLINDERCylinder Head No.1 AssyEnquire
0800-022700THERMOSTATCylinder Head No.1 AssyEnquire
0JWD-170200-7000SPARK PLUG KIT (NGK CR8EK)Cylinder Head No.2 AssyEnquire
0800-022510ADJUST SCREWCylinder Head No.2 AssyEnquire
CFCV-156103-2000PLUG, T-BOX CONNECTORElectric SystemEnquire
30105-040008410SCREW M4X8Front AxleEnquire
30800-05505CIRCLIP D55 BLACKFront SuspensionEnquire
0JYA-170001ClaspFuel Injection SystemEnquire
9DS#-120300-6000CAP, FUEL TANKFuel TankEnquire
30802-00605SPLIT WASHERGear ShiftingEnquire
0JYV-202200-5001AUX INTAKE MANIFOLDIntake Manifold Assy(With Fuel Desorption Port)Enquire
0JYV-202000-5002AIR INTAKE MANIFOLD ASSYIntake Manifold Assy(Without Fuel Desorption Port) 1Enquire
0180-332004O-RING 19X2.5Left Crankcase AssyEnquire
0180-023002O-SEAL RINGLeft Crankcase AssyEnquire
0JWV-011102-3001-Q0-00002MAIN BEARING 1Left Crankcase AssyEnquire
0JWV-013102-3000-Q0-00001CVT CASE PLAIN BEARING REDLeft Crankcase Cover Assy 1Enquire
0JWV-015002-3001LH CRANKCASE COVER GASKETLeft Crankcase Cover AssyEnquire
0800-062205O-RINGRear Axle(On Cammand)Enquire
9AWV-061600-8000-25-M2BEARING,UNIVERSAL JOINTRear Shock Absorber(Gas,Yitong)Enquire
9AWA-060106OIL SEAL 24X38X8Rear SuspensionEnquire
30800-06005CIRCLIP FOR HOLERear SuspensionEnquire
0JWV-011103-3000-Q0-00002MAIN BEARING 2 BLUERight Crankcase Assy 1Enquire
0GQV-011020-2600SPEEDOMETER SENSOR Replacing: 0GQV-011020-3100 - SPEED SENSORRight Crankcase Assy 1Enquire
0010-080008DOWEL PINRight Crankcase AssyEnquire
0800-014003O-RING 63X2.5Right Crankcase AssyEnquire
0JWV-011102-3000-Q0-00001MAIN BEARING 1 REDRight Crankcase AssyEnquire
0JWF-0121A0RH CRANKCASE ASSYRight Crankcase AssyEnquire
0010-021017-0010BOLT M6x25Starting SystemEnquire
0800-061007CIRCLIP 29Transmission System(1)Enquire
0110-041007BEARING 28X68X18 Replacing: 30499-02800 - BEARINGTransmission System(2)Enquire
0010-023010-0010BOLT M6x20Transmission System(3)Enquire
30801-01405CIRCLIPS FOR SHAFTBrake System-RhEnquire
30102-060020870INNER HEX SCREW M6x20Brake System-RhEnquire
0JYV-024100-5000TIMING CHAINCamshaft Of Cylinder 1 AssyEnquire
0JYV-042000-4000-Q0-00001CONNECTING ROD ASSY MARK 1Crankshaft & Connecting Rod & Piston AssyEnquire
0180-040007WOODRUFF KEYCrankshaft & Connecting Rod & Piston AssyEnquire
30805-03205CIRCLIPCvt Assy 1Enquire
0JWV-013104-3000CVT HEAT GUARD ASSY 1Cvt Case Assy 2Enquire
0JWV-015003-3000BOLTCvt Case AssyEnquire
0800-023002-00002CYLINDER GASKET Replacing: 0800-023002 - GASKET, CYLINDERCylinder BodyEnquire
0060-013021-00002BOLT M6X85Cylinder Head No.1 AssyEnquire
5BY0-150304CAP, DIAGNOSIS CONNECTORElectric SystemEnquire
30903-0252010COTTER PIN. 2.5X20Front SuspensionEnquire
9AWV-450271-8000LH FRONT BRACKETLeft Crankcase AssyEnquire
0GR0-014003SCREW PLUG ,DECOMPRESSORLeft Crankcase AssyEnquire
0JWV-012200-3000GEAR SENSORLeft Crankcase AssyEnquire
0JWF-0111A0LH CRANKCASE ASSYLeft Crankcase AssyEnquire
0JWV-013102-3000-Q0-00002CVT CASE PLAIN BEARING BLUELeft Crankcase Cover Assy 1Enquire
9AWV-021300-8000-22SCREWMufflerEnquire
0800-062204OIL SEAL 35X50X6Rear Axle(On Cammand)Enquire
9AWV-051600-8000-33-M2BEARING,UNIVERSAL JOINTRear Shock Absorber(Gas,Yitong)Enquire
9AWA-060109BEARING, REAR SWINGARMRear SuspensionEnquire
01A0-013005O-SEAL RINGRight Crankcase Assy 1Enquire
0010-021005DOWEL PINRight Crankcase AssyEnquire
0800-011300-0004OIL FILTER ELEMENT Replacing: 0800-011300-00030 - OIL FILTER, ENGINERight Crankcase AssyEnquire
0700-012013-00002BOLTRight Crankcase Cover AssyEnquire
30102-080050810INNER HEX SCREW M8X50Steering System(Eps)Enquire
0010-021018-0010BOLT M6x55Water Pump AssyEnquire
8010-180024Water Filling Port Cap AssyCooling SystemEnquire
A000-180006CLAMP B30Cooling SystemEnquire
0JYV-042000-4000-Q0-00002CONNECTING ROD ASSY MARK 2Crankshaft & Connecting Rod & Piston AssyEnquire
0JYV-041000-5001-Q0-00001CRANKSHAFT ASSY MARK ACrankshaft & Connecting Rod & Piston AssyEnquire
30604-301300CLAMPCvt Air Pipe & Side CoverEnquire
0JYV-023110-5001-Q0-00001FIRST CYLINDER BODY ASSY MARK 1Cylinder BodyEnquire
0NYV-170300-1000KNOCK CONTROL SENSORCylinder BodyEnquire
30603-125020Clamp D25Cylinder Head No.2 AssyEnquire
9GQ0-290104BIG CLAMPDrivetrain SystemEnquire
30102-102025810SCREWDrivetrain SystemEnquire
30105-050030410SCREW M5X30 Replacing: 30105-050030440 - SCREW M5X30Electric SystemEnquire
30906-0503000PINFront AxleEnquire
30801-03405CIRCLIPS FOR SHAFT 34Front SuspensionEnquire
0JYV-202200-5000AUXILIARY AIR INLET MANIFOLDIntake Manifold Assy(Without Fuel Desorption Port)Enquire
30006-080040110SCREW M8x40Left Crankcase AssyEnquire
0JWV-012200-3001GEAR SENSORLeft Crankcase AssyEnquire
30110-420130070SELF-TAPPING SCREWLightsEnquire
0180-021008-00001BOLTRear Axle(On Cammand)Enquire
Q830-310012-10000O-RING 67.5X2Rear Axle(On Cammand)Enquire
0180-334002O-RING 151X3Rear Axle(On Cammand)Enquire
9AWV-061600-8000-24-M2O-RING BRear Shock Absorber(Gas,Yitong)Enquire
0JWV-011103-3001-Q0-00002MAIN BEARING 2Right Crankcase Assy 1Enquire
0JWV-014001-3000RH CRANKCASE COVERRight Crankcase Cover AssyEnquire
30402-02402NEEDLE BEARING, K24X29X13Transmission System(1)Enquire
0JWV-062103-3001DRIVE BEVEL GEAR BEARING SEATTransmission System(2)Enquire
1F30-162003O-RING 9X1.5Water Pump AssyEnquire
30601-223050CLAMP D23Air Injected SystemEnquire
0JWV-027010-3000CAMSHAFT, SECOND CYLINDERCamshaft Of Cylinder 2 AssyEnquire
8010-180023CAP, RESERVOIR TANKCooling SystemEnquire
6KM#-181001-8001DAMPER RUBBER MATCooling SystemEnquire
9010-180007CLAMP, WATER HOSECooling SystemEnquire
0800-040005CIRCLIP, PISTON PINCrankshaft & Connecting Rod & Piston AssyEnquire
0GQ0-041202BOLT, CONNECTING RODCrankshaft & Connecting Rod & Piston AssyEnquire
0JYV-041000-5001-Q0-00002CRANKSHAFT ASSY MARK BCrankshaft & Connecting Rod & Piston AssyEnquire
0JYV-023110-5001-Q0-00002FIRST CYLINDER BODY ASSY MARK 2Cylinder BodyEnquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5Cylinder Head No.1 AssyEnquire
0180-022003-00002STUDCylinder Head No.1 AssyEnquire
5BWV-000120-5000RH DAMPING SLEEVE, ENGINEEngine Mounting PartsEnquire
9060-060704LOWER MOUNTING SHAFT, REAR BEARING CARRIEREngine Mounting PartsEnquire
9010-270203-00001WIRE CIRCLIP Replacing: 9010-270203 - WIRE CIRCLIPFront Cv ShaftEnquire
9010-050800-20000LOWER BALL PIN ASSY Replacing: 9010-050800-1000 - LOWER BALL PIN ASSYFront SuspensionEnquire
0180-011500MAGNETIC DRAIN BOLTLeft Crankcase AssyEnquire
30006-080035110BOLTLeft Crankcase AssyEnquire
30499-03000BEARING 5206Left Crankcase AssyEnquire
0JWA-012004MIDDLE BEARING RETAINER, FRONT OUTPUT SHAFTLeft Crankcase AssyEnquire
0JWF-0150A0LH CRANKCASE COVER ASSYLeft Crankcase Cover AssyEnquire
30406-00400ROLLER PINOil Pump AssyEnquire
0JWV-014002-3000RH CRANKCASE COVER GASKETRight Crankcase Cover AssyEnquire
30402-02500NEEDLE BEARING, K25X29X10Transmission System(1)Enquire
30801-02905CIRCLIPS FOR SHAFT 29Transmission System(1)Enquire
0JWA-062302-00001OIL SEAL Replacing: 0JWA-062302 - OIL SEAL 35X61X9 (14)Transmission System(2)Enquire
30499-03501BEARINGTransmission System(2)Enquire
0180-062205O-RING 88X2.5Transmission System(2)Enquire
0180-065002OIL SEAL SD15X25X5Transmission System(3)Enquire
30801-01205CIRCLIPS FOR SHAFTTransmission System(3)Enquire

Exploded diagrams — Engine

CFORCE 1000 OVERLAND Left Crankcase Assy exploded diagram
Left Crankcase Assy · 31
CFORCE 1000 OVERLAND Right Crankcase Assy 1 exploded diagram
Right Crankcase Assy 1 · 27
CFORCE 1000 OVERLAND Right Crankcase Assy exploded diagram
Right Crankcase Assy · 24
CFORCE 1000 OVERLAND Cylinder Head No.2 Assy exploded diagram
Cylinder Head No.2 Assy · 17
CFORCE 1000 OVERLAND Cylinder Head No.1 Assy exploded diagram
Cylinder Head No.1 Assy · 14
CFORCE 1000 OVERLAND Transmission System(2) exploded diagram
Transmission System(2) · 12
CFORCE 1000 OVERLAND Crankshaft & Connecting Rod & Piston Assy exploded diagram
Crankshaft & Connecting Rod & Piston Assy · 11
CFORCE 1000 OVERLAND Cvt Case Assy exploded diagram
Cvt Case Assy · 11
CFORCE 1000 OVERLAND Front Axle exploded diagram
Front Axle · 11
CFORCE 1000 OVERLAND Cvt Case Assy 1 exploded diagram
Cvt Case Assy 1 · 10
CFORCE 1000 OVERLAND Cylinder Body exploded diagram
Cylinder Body · 10
CFORCE 1000 OVERLAND Rear Axle(On Cammand) exploded diagram
Rear Axle(On Cammand) · 10

Browse the catalogue interactively

Open Engine in the interactive CFORCE 1000 OVERLAND catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Body · 649Gearbox · 248Wheels & Tyres · 102Brake System · 86Electrical System · 85Suspension · 72Final Drive · 55Filters · 45Steering System · 34Exhaust System · 27Cooling System · 25Clutch & Parts · 22Interior · 15Fuel Supply System · 15Fuel Preparation · 3Unclassified · 192
