30801-03505CIRCLIP FOR SHAFT — Genuine CF MOTO Part
CF MOTOoem
30801-03505 - CIRCLIP FOR SHAFT #15
Verified fitment — 12 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (7)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 0.77 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 0.72 | listing | cfmoto.quadzillaparts.co.uk |

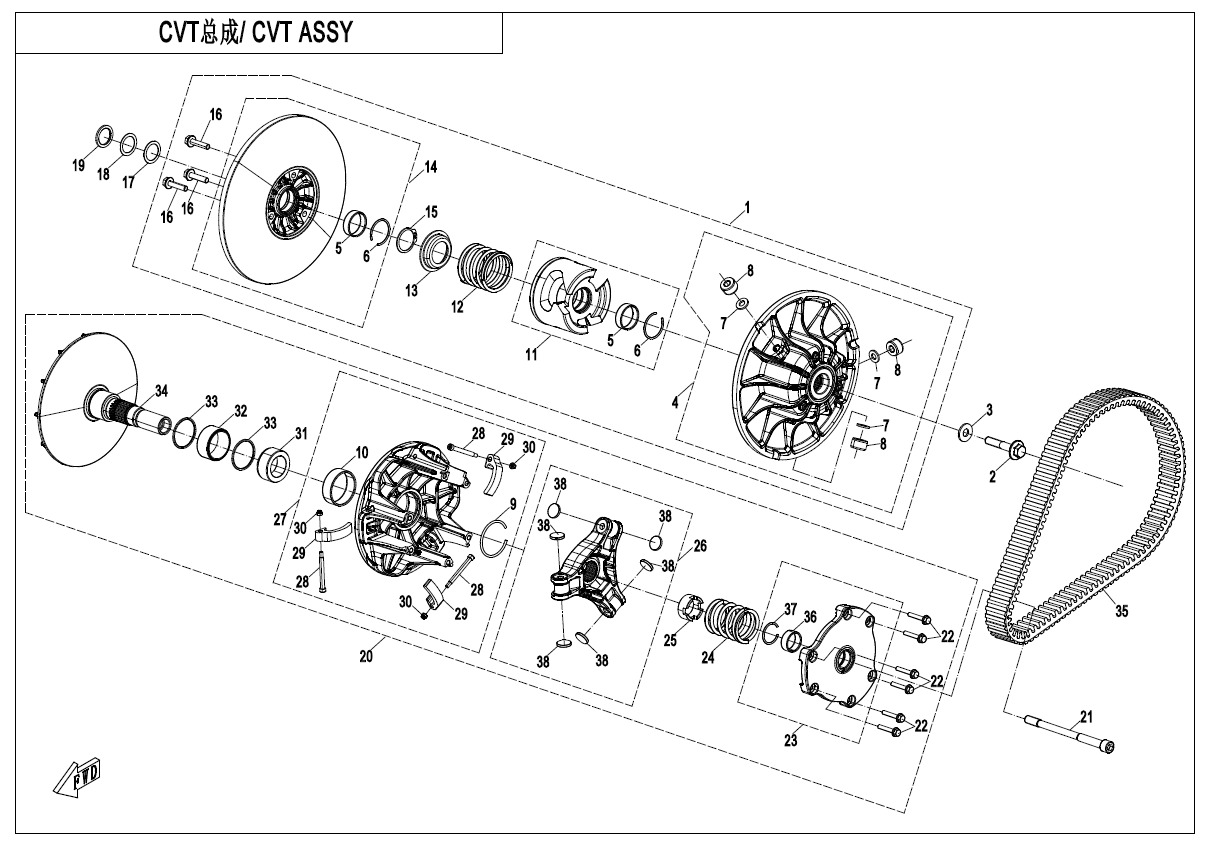

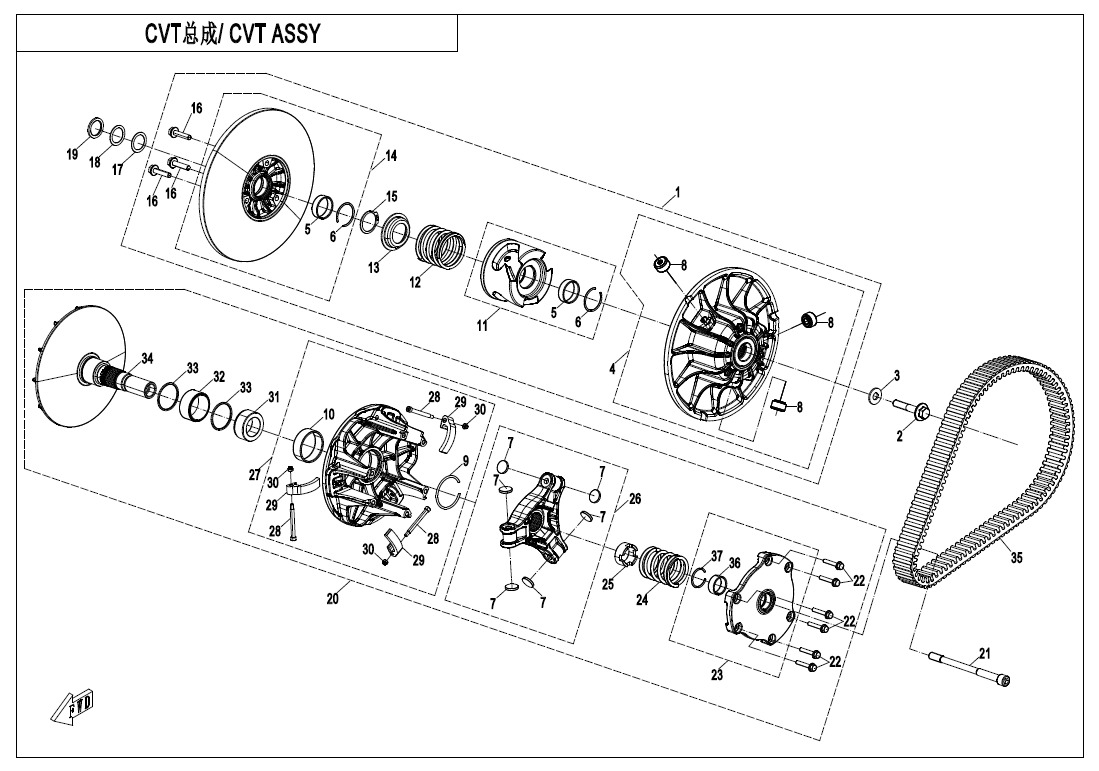

Location in exploded diagrams
Other parts on this diagram — CVT ASSY
- #31 0JWV-051006-3000 — DRIVE PULLEY BUSHING
- #1 0JWV-052000-3000 — DRIVEN PULLEY ASSY
- #2 0JWV-060001-3000 — MAIN DRIVE SHAFT BOLT
- #3 0JWV-050004-3000 — DRIVEN PULLEY BOLT WASHER 12
- #4 0JWV-052100-3000 — DRIVEN FIXED PULLEY ASSY
- #5 0JWV-052202-3000 — BEARING
- #6 0JWV-052203-3000 — CIRCLIP
- #7 0JWV-052006-3000 — WASHER
- #8 0JWV-052003-3000 — DRIVEN FIXED PULLEY ROLLER
- #9 0JWV-051103-3000 — CIRCLIP
- #10 0JWV-051102-3000 — BEARING
- #11 0JWV-052300-3000 — DRIVEN PULLEY CAM ASSY
- #12 0JWV-052001-3000 — SPRING, DRIVEN PULLEY
- #13 0JWV-052002-3000 — DRIVEN PULLEY SPRING SEAT
- #14 0JWV-052200-3000 — DRIVEN SLIDING PULLEY ASSY
- #16 30023-100045160 — BOLT
- #17 0JWV-050002-3000 — DRIVEN PULLEY WASHER 1
- #18 0JWV-050003-3000 — DRIVEN PULLEY WASHER 2
- #19 0JWV-050005-3000 — DRIVEN PULLEY WASHER 4
- #20 0JYV-051000-5000 — CVT DRIVE PULLEY ASSY
- #21 0JWV-050001-3000 — DRIVE PULLEY BOLT
- #22 30006-060035810 — BOLT M6X35
- #23 0JWV-051300-3000 — DRIVE SLIDING PULLEY POSITION DISC ASSY
- #24 0JYV-051002-5000 — SPRING, DRIVE PULLEY
