Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 11.88 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 10.99 | listing | cfmoto.quadzillaparts.co.uk |

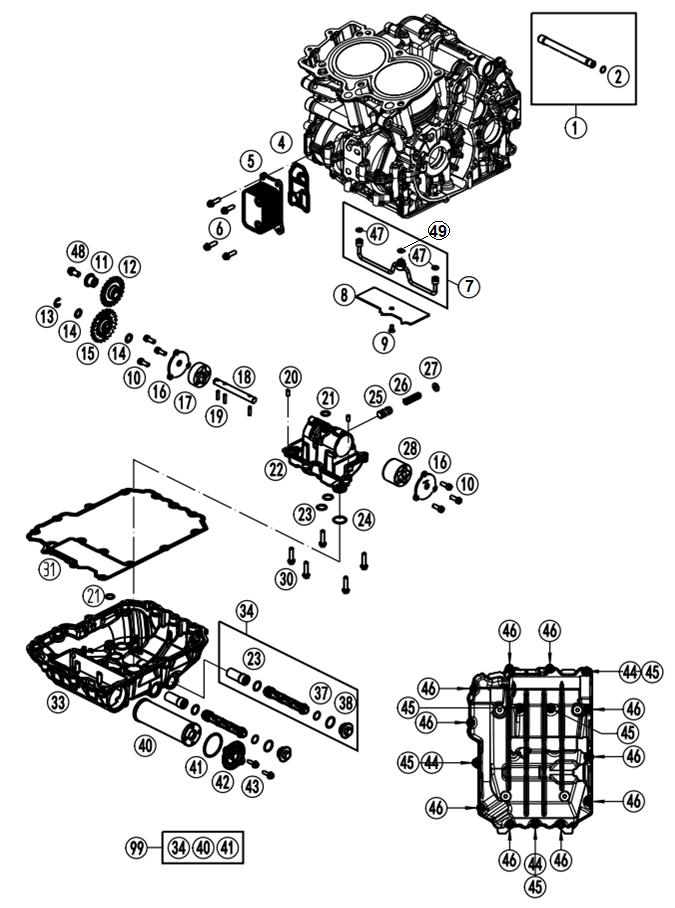

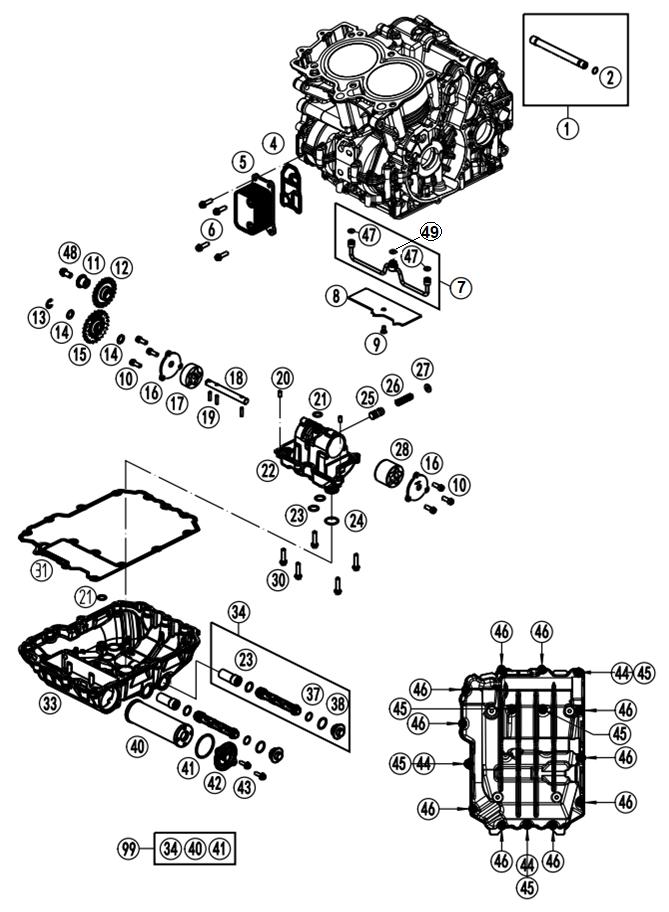

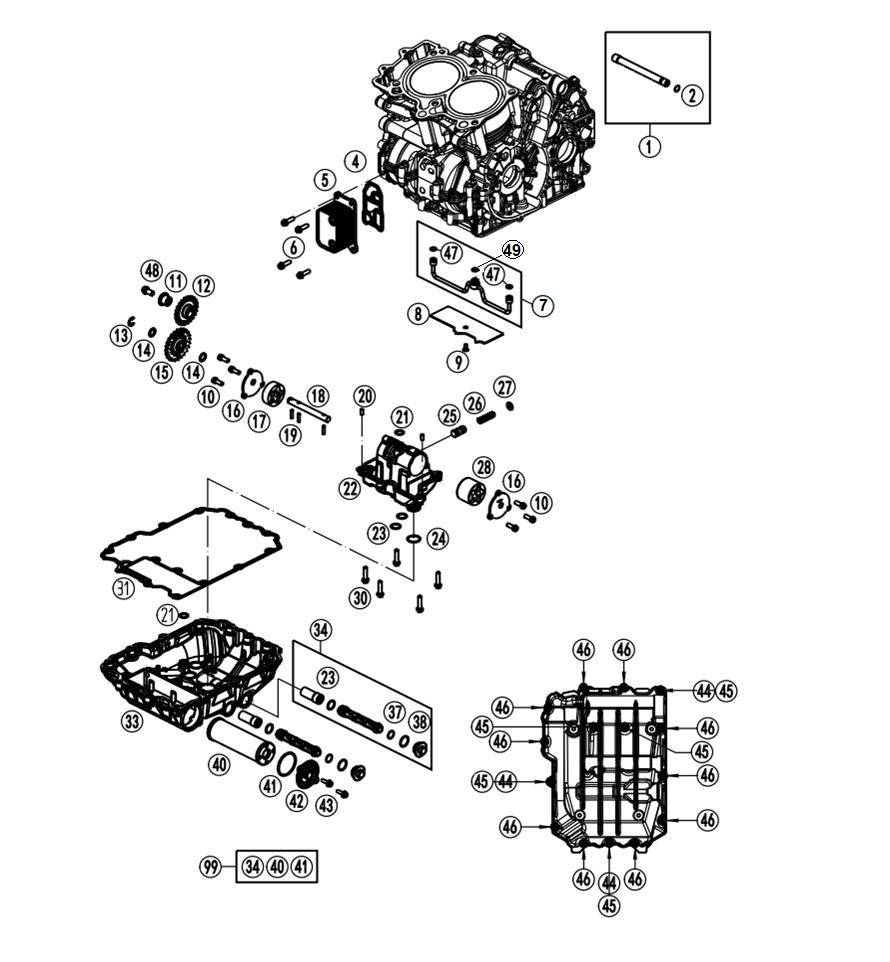

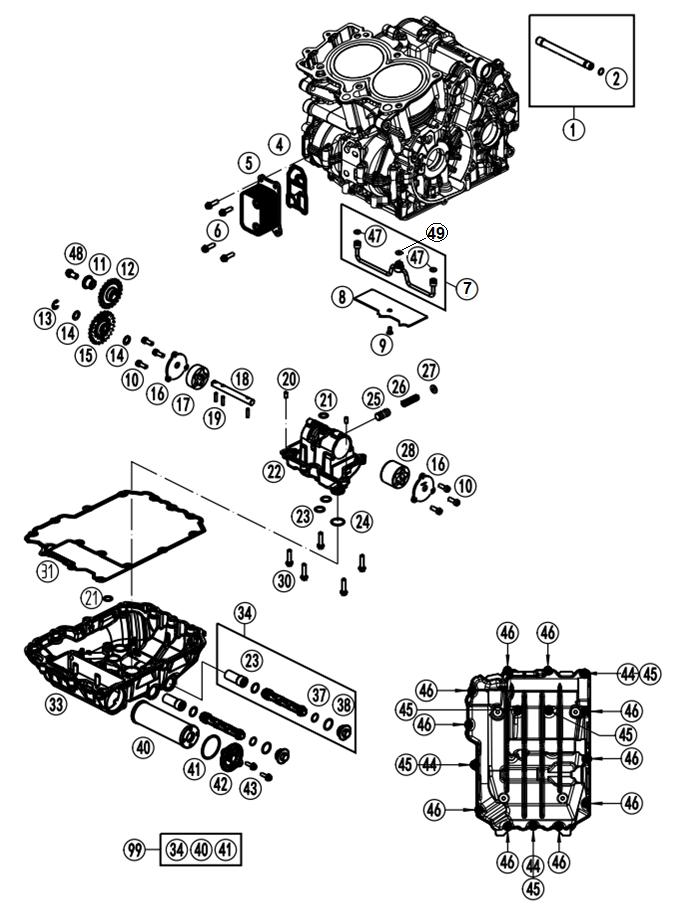

Location in exploded diagrams
Other parts on this diagram — LUBRICATING SYSTEM
- #E07-01 C63530065010 — GEARBOX LUBRICATION
- #E07-02 C0770010010 — O-RING 10X1
- #E07-04 C90038051000 — OIL COOLER GASKET
- #E07-05 C90038050000 — OIL WATTER HEAT EXCHANGER
- #E07-06 C0000250602000S — HH COLLAR SCREW M6X20 T30 SS
- #E07-07 C63538035000 — OIL PIPE
- #E07-08 C63530086010 — PRESSURE PLATE
- #E07-09 C0000190501200S — COUNTER SUNK SCREW M5X12 T25 SS
- #E07-10 C014580060126S — AH COLLAR SCREW M6X12 T30 SS
- #E07-12 C90038001022 — OIL PUMP GEAR 22Z CPL.
- #E07-13 C0799080000 — CIRCLIP 8
- #E07-14 C90038007010 — SHIM 10X16X0.5
- #E07-15 C90038001224 — OIL PUMP GEAR 24T
- #E07-16 C90038008050 — OIL PUMP COVER
- #E07-17 C90038009014 — EATON PUMP SET 14 MM
- #E07-18 C90038002000 — OIL PUMP SHAFT
- #E07-19 C0402041580 — NEEDLE ROLLER D4X15.8
- #E07-20 C0402050980 — NEEDLE ROLLER D5X9.8
- #E07-21 C0770120020 — O-RING 12X2
- #E07-22 C90038012000 — OIL PUMP HOUSING
- #E07-23 C0770140200 — O-RING 14X2
- #E07-24 C0770020020 — O-RING 20X2
- #E07-25 C90038128000 — CONTROL PISTON
- #E07-26 C90038026000 — OIL COMPRESSION SPRING
