Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 32.45 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 30.00 | listing | cfmoto.quadzillaparts.co.uk |

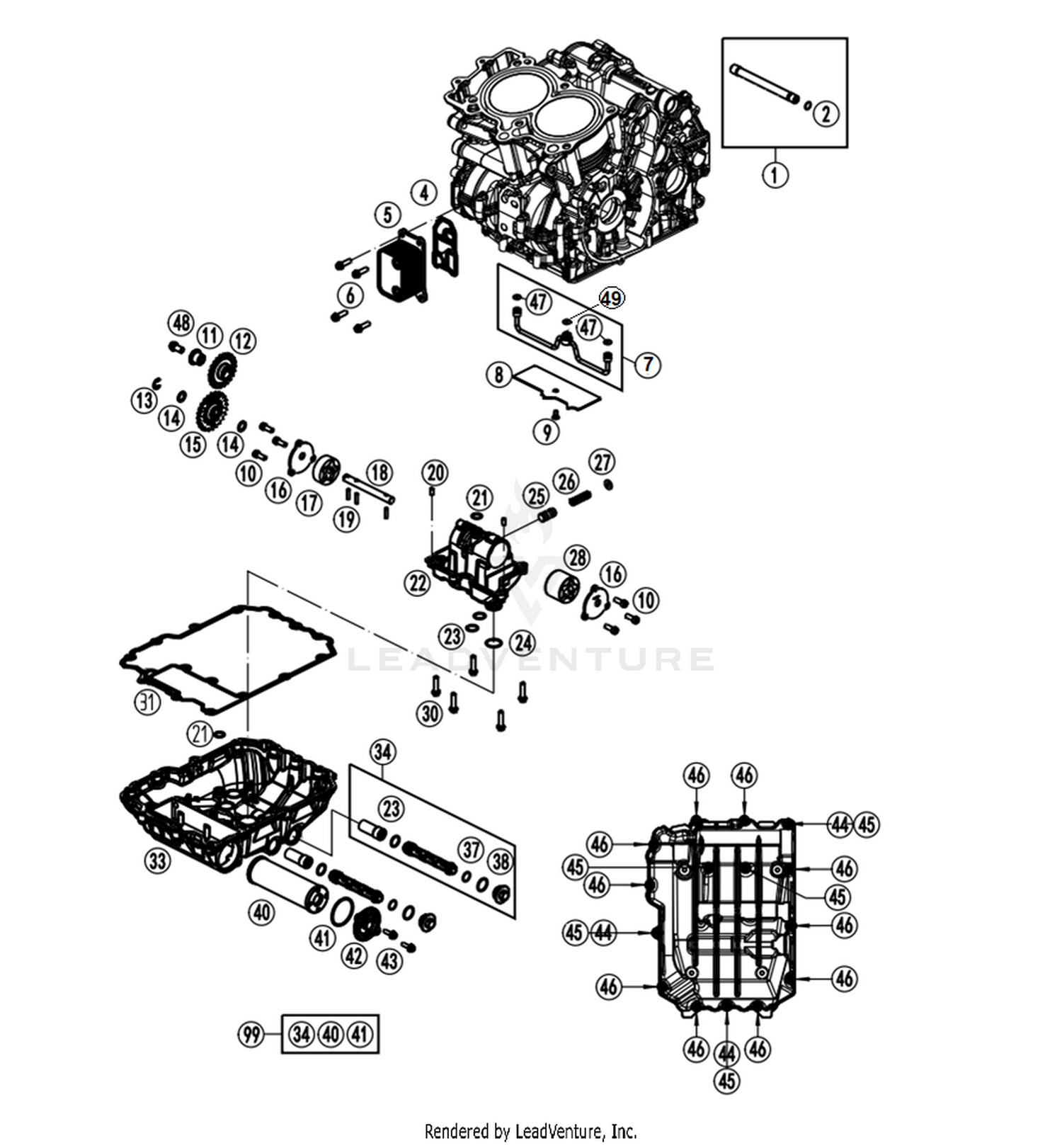

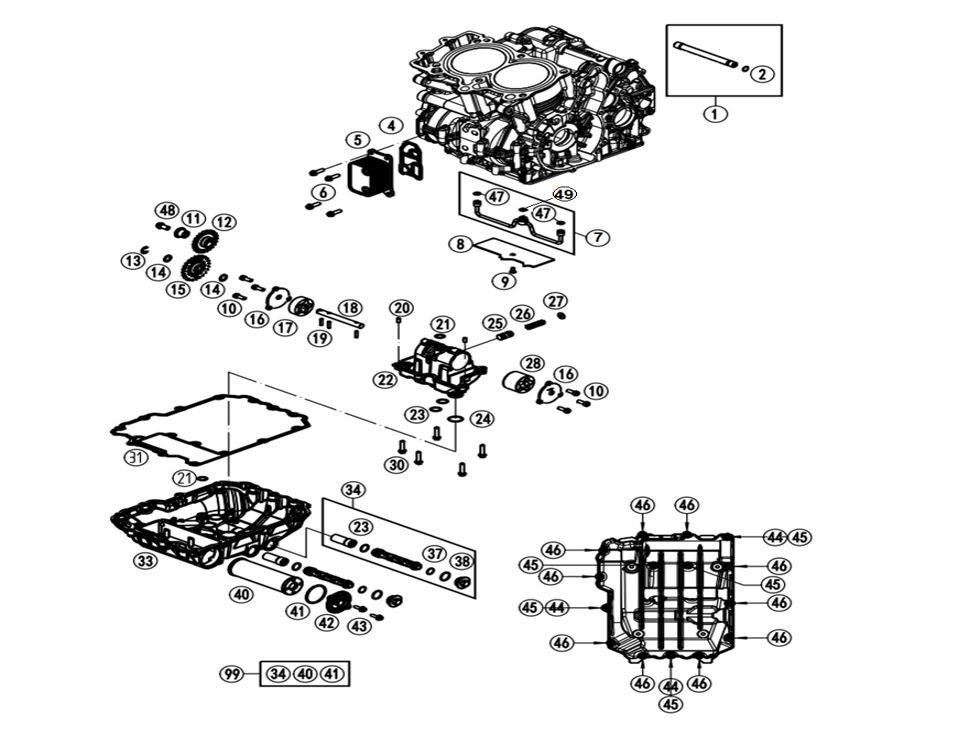

Location in exploded diagrams



Other parts on this diagram — Lubricating System
- #08 C63530086010 — Pressure Plate
- #04 C90038007010 — Shim 10X16X0.5 10X16X0.5
- #20 C0402050980 — Needle Roller D5X9.8
- #26 C90038026000 — Oil Compression Spring
- #34 C61238021300 — Oil Screen Cpl
- #43 C0000250501600 — Hh Collar Screw M5X16 T30
- #49 C0770070025 — O-Ring 7X2.5
- #15 C0770010010 — O-Ring 10X1
- #04 C0000190501200S — Counter Sunk Screw M5X12 T25 Ss
- #15 C90038001224 — Oil Pump Gear 24T
- #21 C0770120020 — O-Ring 12X2
- #27 C90037073000 — Shim
- #37 C0770125015 — O-Ring 12.5X1.5
- #10 C90030024000 — Dowel Pin D8X11
- #99 C00050000068 — Oilfilter Service Kit
- #04 C90038051000 — Gasket With Support Sheet
- #10 C014580060126S — Ah Collar Screw M6X12 T30 Ss
- #16 C90038008050 — Oil Pump Cover
- #22 C90038012000 — Oil Pump Housing
- #28 C90038010000 — Eaton Pump Set 30 Mm
- #38 C0770170200 — O-Ring 17X2
- #45 C0000250603500 — Hh Collar Screw M6X35 T30
- #05 C90038050000 — Oil Watter Heat Exchanger
- #11 C63638003000 — Bearing Bolt
