Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)
Location in exploded diagrams

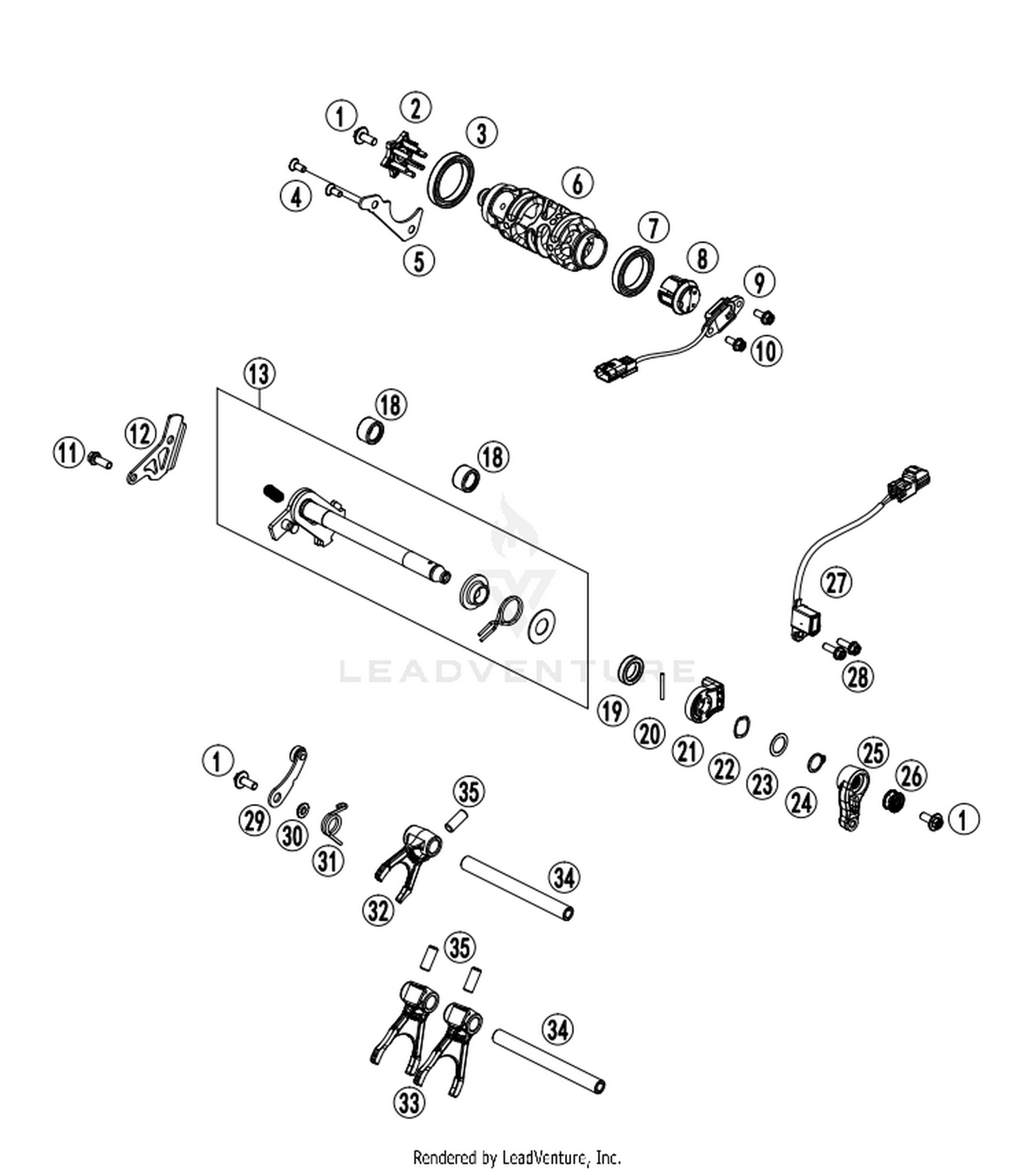

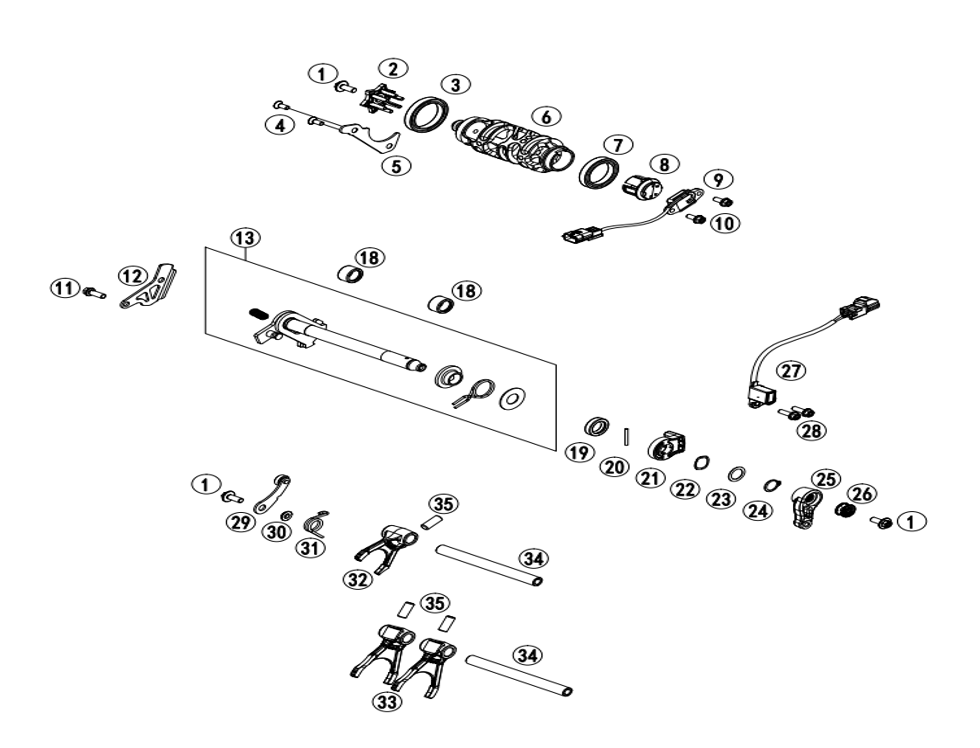

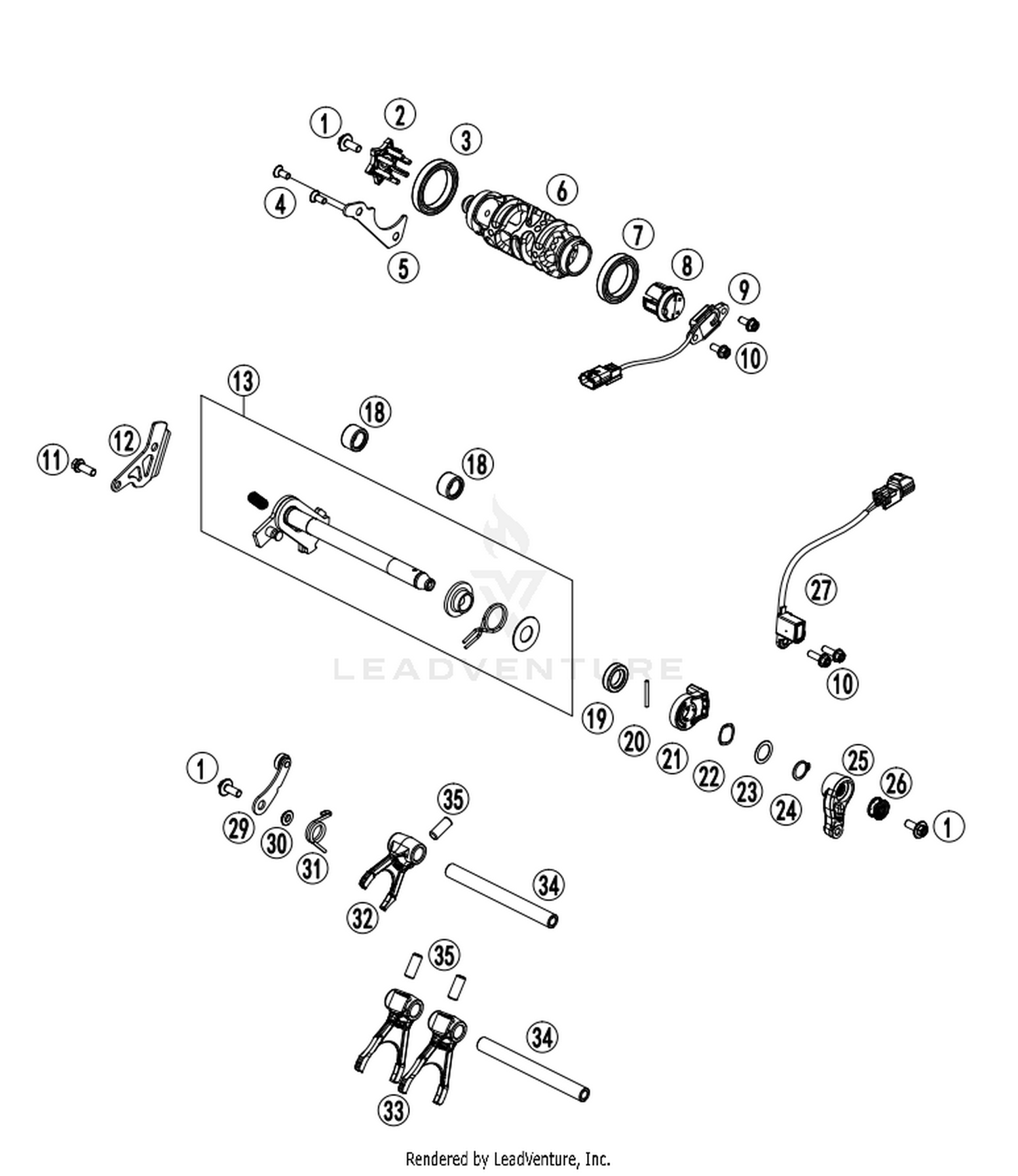

Other parts on this diagram — E06-3 Shifting Mechanism
- #23 C0988142005 — Thrust Shim 14X20X0.5
- #10 C0000250501200 — Hh Collar Screw M5X12 T30
- #34 C75034019100 — Shift Rail
- #04 C0000190501200S — Counter Sunk Screw M5X12 T25 Ss
- #36 C0000250601600S — Hh Collar Screw M6X16 T30 Ss
- #24 C0471140100 — Circlip For Shaft 14X1
- #29 C63534024000 — Locking Lever
- #35 C0402080200 — Needle Roller D8X20
- #05 C90034011200 — Locking Plate
- #10 C0000250501200S — Hh Collar Screw M5X12
- #18 C90032095000 — Needle Bearing Hk 14X20X12
- #19 C0760142460 — Shaft Seal Ring 14X24X6
- 6413400000000 — Link Support Cam
- #28 C63534052000 — Stepped Shim
- #01 C0000240601500S — Hh Collar Screw M6X15 T30 Ss
- #06 C63534012001 — Shifting Drum
- #20 C0007025241 — Dowel Pin D2.5X24
- #25 C6413403000033 — Link Support Cam
- #31 C90034023000 — Spring Arrest Arm
- #02 C90034015000 — Shift Locker Cpl
- #07 C0625068060 — Deep Groove Ball Bearing 30X42X7
- #12 C90033022000 — Bearing Plate
- #21 C90034050000 — Magnet
- #26 C90033041500 — Locking Shim 6.5X16.6X2.5
