Supersession history
This number replaces the older part number C90034019100.
Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
MY (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 16.22 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 15.00 | listing | cfmoto.quadzillaparts.co.uk |
Location in exploded diagrams

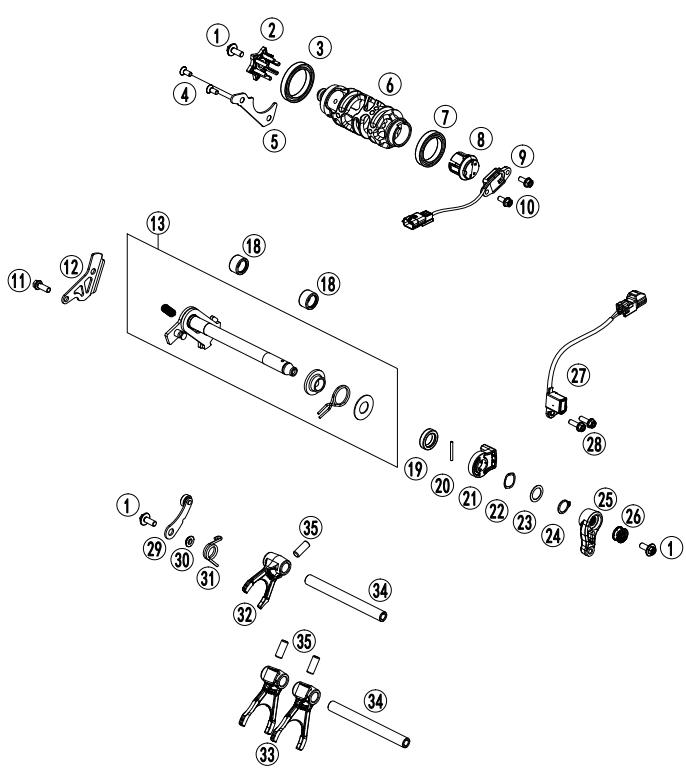

Other parts on this diagram — SHIFTING MECHANISM
- #E06-3-01 C0000240601500S — HH COLLAR SCREW M6X15 T30 SS
- #E06-3-02 C90034015000 — SHIFT LOCKER CPL.
- #E06-3-03 C0625068070 — DEEP GROOVE BALL BEARING 35X47X7
- #E06-3-04 C0000190501200S — COUNTER SUNK SCREW M5X12 T25 SS
- #E06-3-05 C90034011200 — LOCKING PLATE
- #E06-3-06 C63534012001 — SHIFTING DRUM
- #E06-3-07 C0625068060 — DEEP GROOVE BALL BEARING 30X42X7
- #E06-3-08 C90034012020 — MAGNET HOLDER CPL.
- #E06-3-09 C90011023100 — GEAR POSITION SENSOR
- #E06-3-10 C0000250501200 — HH COLLAR SCREW M5X12 T30
- #E06-3-11 C0000250601600S — HH COLLAR SCREW M6X16 T30 SS
- #E06-3-12 C90033022000 — BEARING PLATE
- #E06-3-18 C90032095000 — NEEDLE BEARING HK 14X20X12
- #E06-3-19 C0760142460 — SHAFT SEAL RING 14X24X6
- #E06-3-20 C0007025241 — DOWEL PIN D2.5X24
- #E06-3-21 C90034050000 — MAGNET
- #E06-3-22 C90034050010 — WAVE SPRING
- #E06-3-23 C0988142005 — THRUST SHIM 14X20X0.5
- #E06-3-24 C0471140100 — CIRCLIP FOR SHAFT 14X1
- #E06-3-25 6413403000033 — LINK SUPPORT CAM
- #E06-3-26 C90033041500 — LOCKING SHIM 6.5X16.6X2.5
- #E06-3-27 C90034051100 — SHIFTING SHAFT SENSOR
- #E06-3-29 C63534024000 — LOCKING LEVER
- #E06-3-30 C63534052000 — STEPPED SHIM
