Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

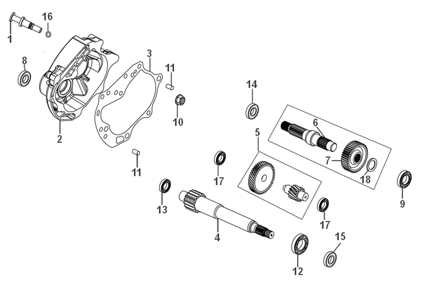

Location in exploded diagrams
Other parts on this diagram — E11 - Transmission Cover
- 961006201300 — Sym Jet 14 50 E5+ RAD.BRG. BALL 6201T/C3
- 91301M7Q000 — Sym Jet 14 50 E5+ O-RING 7.5X1.5
- 91303M9Q000 — Sym Jet 14 50 E5+ O-RING 7.5*1.5
- 91206A1A000 — Sym Jet 14 50 E5+ OIL SEAL 17*30*5
- 91206AMA000 — Sym Jet 14 50 E5+ OIL SEAL 17*30*5
- 91201HHA300 — Sym Jet 14 50 E5+ OIL SEAL 32*47*7
- 91006A1A300 — Sym Jet 14 50 E5+ RADIAL BALL BRG CSB201 C3
- 91004KBN921M1 — Sym Jet 14 50 E5+ BALL RADIAL BEARING CSB203
- 91004KBN921M2 — Sym Jet 14 50 E5+ BALL RADIAL BEARING CSB203
- 90703HC4000 — Sym Jet 14 50 E5+ DOWEL PIN 10*14
- 9430110140 — Sym Jet 14 50 E5+ DOWEL PIN 10X14
- 90703M8Q000 — Sym Jet 14 50 E5+ DOWEL PIN 10*14
- 90309M9Q000 — Sym Jet 14 50 E5+ SELF-LOCK NUT 8MM
- 90309428731M1 — Sym Jet 14 50 E5+ FLANGE NUT
- 961006203310 — Sym Jet 14 50 E5+ RAD.BRG.BALL 6203 C3/2A
- 961506204310 — Sym Jet 14 50 E5+ RAD.BALL.BRG.6204 LLU C3/2A
- 23432APA000 — Sym Jet 14 50 E5+ FINAL GEAR
- 23431APA000 — Sym Jet 14 50 E5+ FINAL SHAFT
- 23431APA300 — Sym Jet 14 50 E5+ FINAL SHAFT
- 23420APA000 — Sym Jet 14 50 E5+ COUNTER SHAFT
- 23411APA000 — Sym Jet 14 50 E5+ DRIVE SHAFT
- 21395APA000 — Sym Jet 14 50 E5+ MISSION CASE GASKET
- 21395XPE000 — Sym Jet 14 50 E5+ Mission case gasket
- 21200APA000 — Sym Jet 14 50 E5+ MISSION CASE
