91206AMA000Sym Fiddle 50 E5 OIL SEAL 17*30*5 — Genuine Sym Part

Verified fitment — 6 vehicles

Fitment is sourced from official parts catalogues, listed per catalogue market.

Manufacturer reference prices

Catalogue / RRP reference only — the live MotoDoc price is on the product page.

Location in exploded diagrams

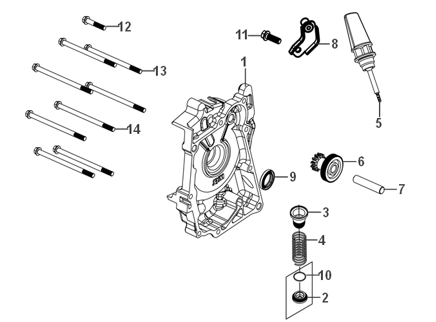

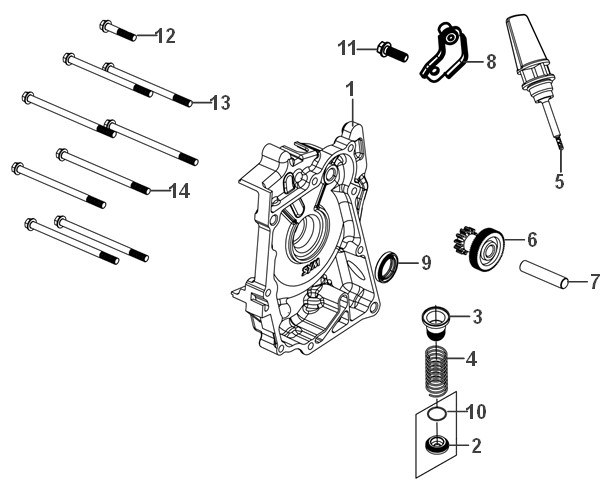

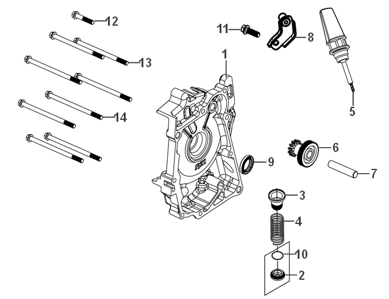

Other parts on this diagram — Right Crank Case Cover

• 960010610002 — Sym Fiddle 50 E5 SH. flange bolt 6x100
• 960010609502 — Sym Fiddle 50 E5 FLANGE BOLT 6x95
• 957010603008 — Sym Fiddle 50 E5 FLANGE BOLT 6X30
• 960010603002 — Sym Fiddle 50 E5 FLANGE BOLT 6*30
• 960010601200 — Sym Fiddle 50 E5 FLANGE BOLT SH 6X12
• 91302M9Q000 — Sym Fiddle 50 E5 O-RING 30.8*3.2
• 91302M9T000 — Sym Fiddle 50 E5 O-RING30.8*3.2
• 91206A1A000 — Sym Fiddle 50 E5 OIL SEAL 17*30*5
• 80109XA1010 — Sym Fiddle 50 E5 RR.MUDGUARD PLATE
• 28102A3F000 — Sym Fiddle 50 E5 STARTER REDUCTION GEAR SHAFT
• 28101A1A000 — Sym Fiddle 50 E5 STARTER REDUCTION GEAR
• 1565AAPA000 — Sym Fiddle 50 E5 OIL LEVEL GAUGE
• 15426GE1920 — Sym Fiddle 50 E5 OIL FILTER SCREW SPRING
• 15426M9Q000 — Sym Fiddle 50 E5 OIL FILTER SCREW SPRING
• 15421H66000CN1 — Sym Fiddle 50 E5 Oil filter screen
• 15421H66000 — Sym Fiddle 50 E5 OIL FILTER SCREEN
• 1236AV02000 — Sym Fiddle 50 E5 TAPPET ADJ HOLE CAP ASSY.
• 12361M9Q000 — Sym Fiddle 50 E5 TAPPET ADJU.HOLE CAP
• 11331AMA000 — Sym Fiddle 50 E5 R. CRANK CASE
• 11331APA000 — Sym Fiddle 50 E5 R CRANK CASE COVER
