Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

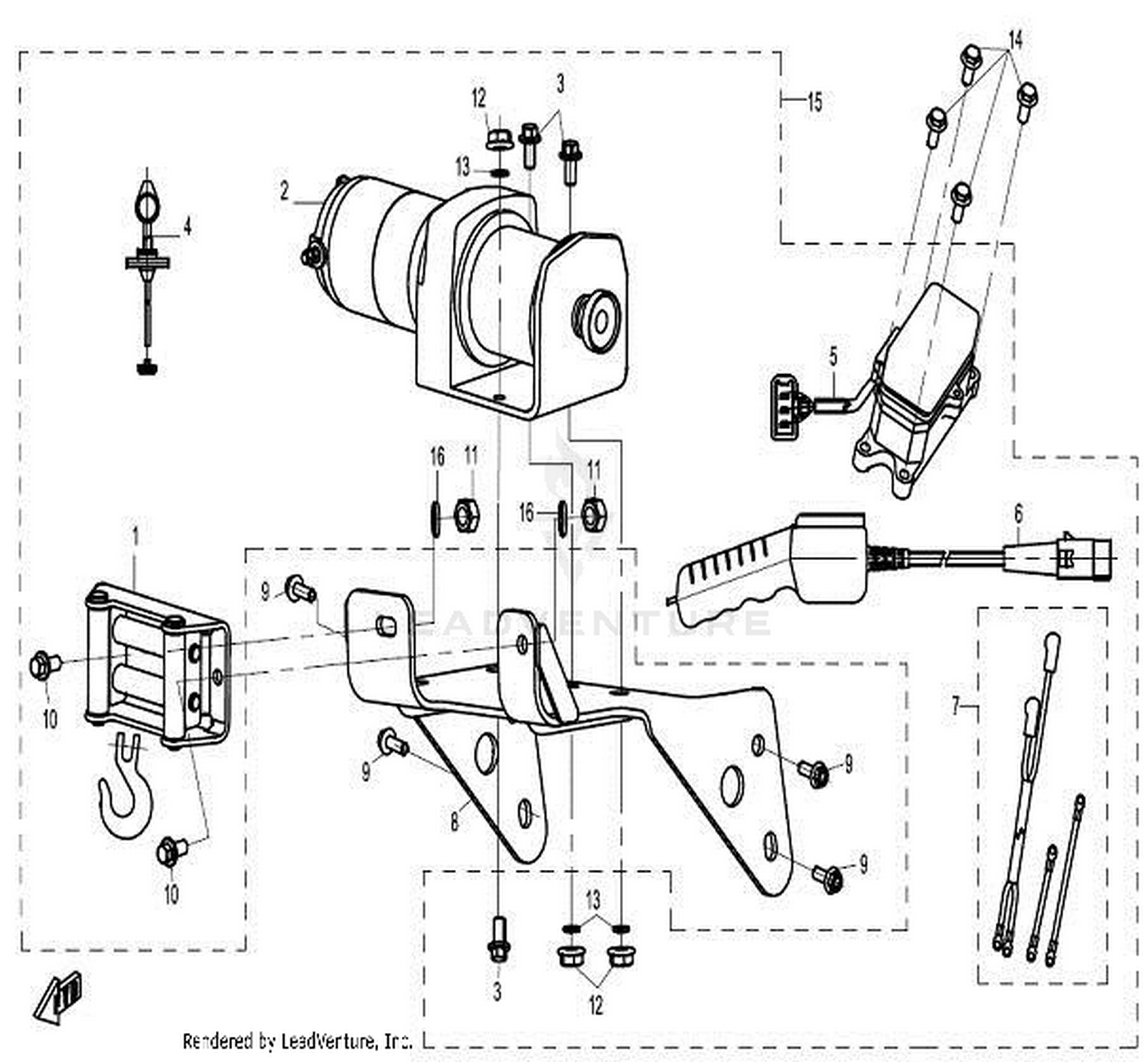

Location in exploded diagrams
Other parts on this diagram — Towing Winch
- #25 30006-080020810 — Bolt M8X20@Color Zinc Plated
- #06 9030-150750-1000 — Control Lever, Winch
- #17 30200-102800 — Nut M10×1.25
- #15 9060-150700-1B000 — Needs Description
- #04 7000-150710 — Control Switch Seat, Winch Sumitomo Plug
- #15 30204-080810 — Lock Nut M8
- #08 30303-100112 — Washer F10
- #08 9030-150730 — Cable Pulley
- #04 9030-150710 — Control Switch Seat, Winch
- #07 9060-150760-1000 — Winch Power Cable
- #07 30303-080112 — Washer F8@Color Zinc Trivalent Chromium
- #02 9060-150740 — Winch Motor Not Waterproof
- #10 9010-150720-4000 — Control Relay Lianda
- #08 9060-037370 — Needs Description
- #05 30006-060020870 — Bolt M6×20
- #01 7020-150700-1B000 — Winch Assy 3000Lbs
- #05 7000-150720 — Control Relay, Winch Sumitomo Plug
- #01 30006-080016810 — Bolt M8X16@Color Zinc Trivalent Chromium
- #15 9060-150700-20000 — Winch Assy 3000Lbs
- #02 9030-150740 — Winch Motor
- #05 9030-150720 — Control Unit, Winch
- #15 30006-102020810 — Bolt M10X1.25X20 M10X1.25X20
- #15 9060-1507B0-0B000 — Winch Assy 3000Lbs
