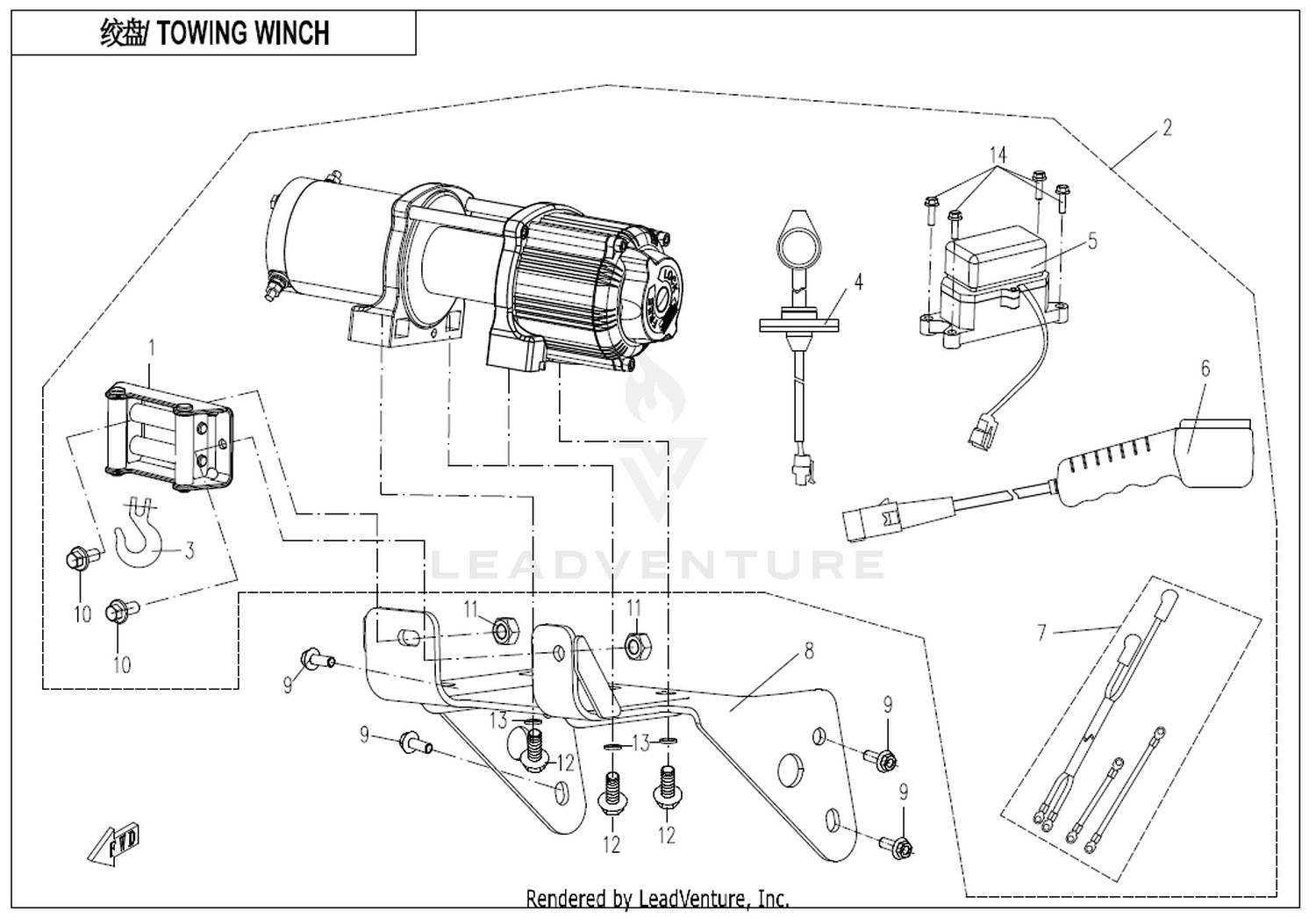

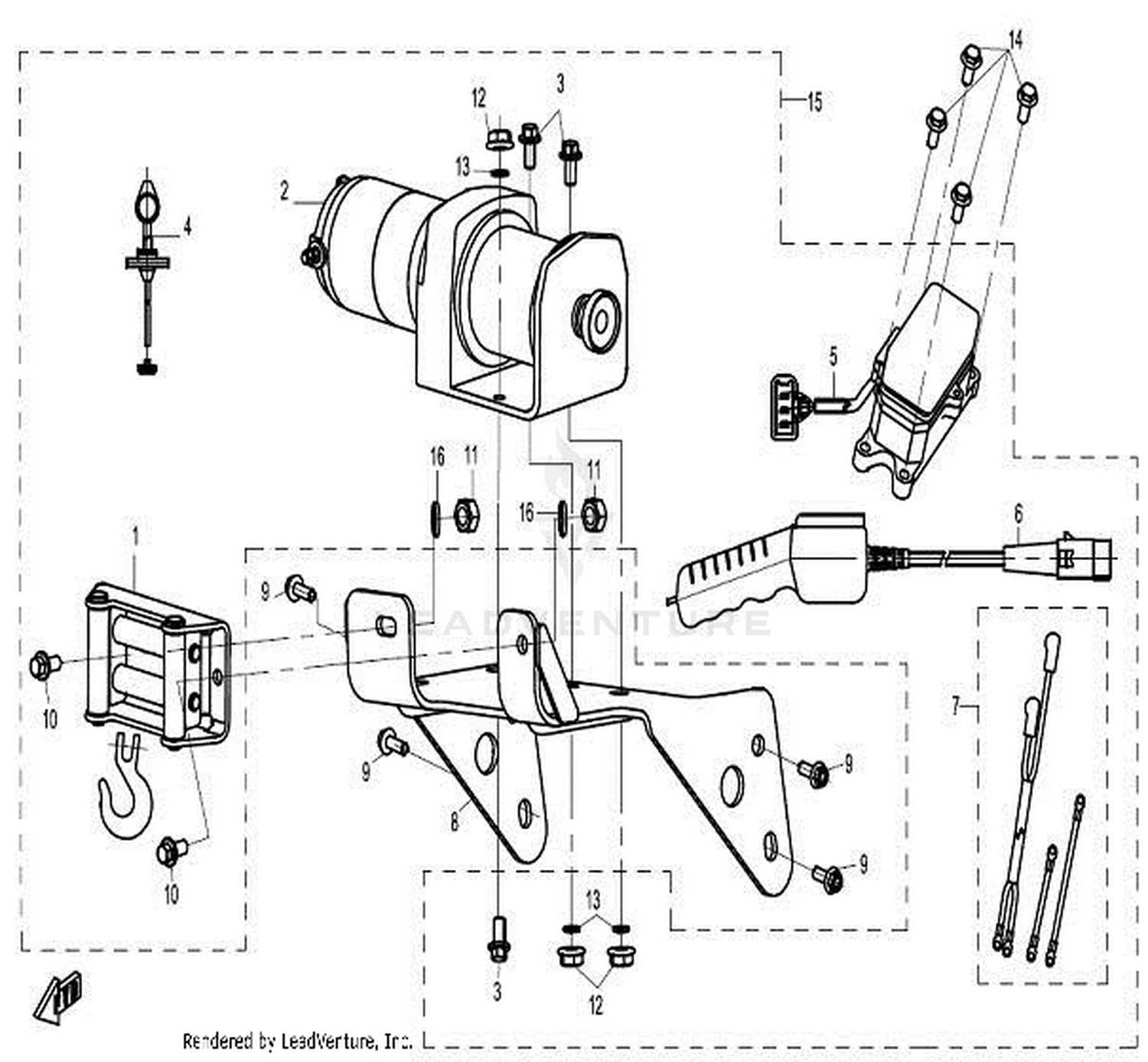

Location in exploded diagrams
Other parts on this diagram — Towing Winch
- #15 30204-080810 — Lock Nut M8
- #15 30006-102020810 — Bolt M10X1.25X20 M10X1.25X20
- #10 9010-150720-4000 — Control Relay Lianda
- #06 9030-150750-1000 — Control Lever, Winch
- #11 30006-080025810 — Bolt M8×25
- #08 9030-150730 — Cable Pulley
- #07 700V-150710-1500 — Cable, Winch Power
- #07 30303-080112 — Washer F8@Color Zinc Trivalent Chromium
- #02 700V-150700-1500 — Winch Assy
- #08 7000-037370 — Mounting Bracket, Winch
- #05 30006-060020870 — Bolt M6×20
- #03 7030-150791 — Hook, Cable
- #01 30006-080016810 — Bolt M8X16@Color Zinc Trivalent Chromium
