Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

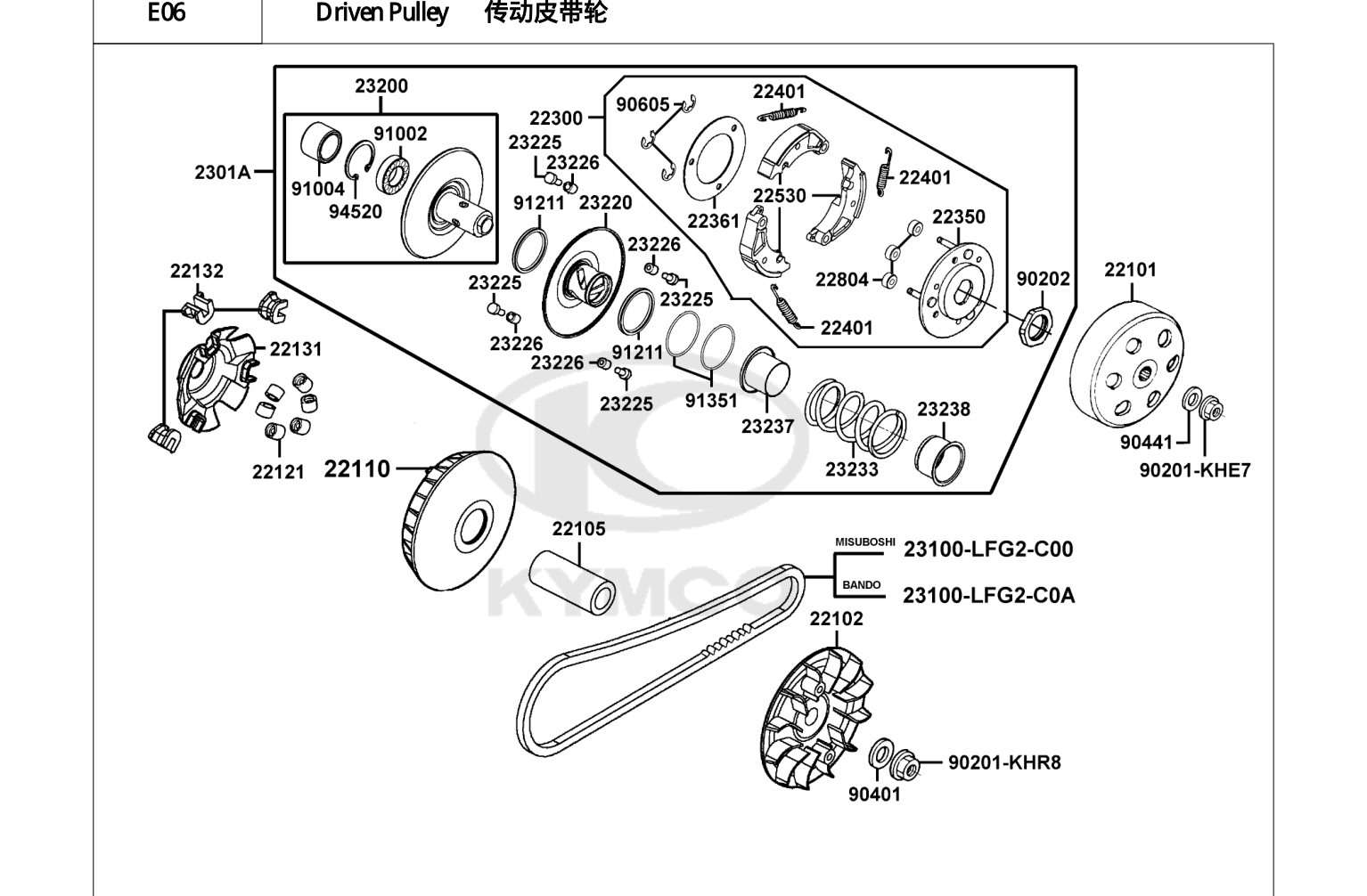

Location in exploded diagrams
Other parts on this diagram — 传动皮带轮
- #22350 22350-KHE7-C00 — PLATE COMP DRIVE
- #22361 22361-LEA7-C00 — PLATE CLUTCH SIDE
- #22401 22401-LFG2-C00 — SPRING CLUTCH
- #22530 22530-KHE7-C00 — WEIGHT CLUTCH
- #22804 22804-GBB2-C00 — RUBBER CLUTCH DAMPER
- #2301A 2301A-LFG2-C00 — PULLEY SUB ASSY
- #23200 23200-KHE7-C00 — FACE ASSY DRIVEN
- #23220 23220-LFG2-C00 — FACE RR MOVABLE DRIVEN
- #23225 23225-KHE7-C00 — PIN ROLLER GUIDE
- #23233 23233-KHE7-C00 — SPG DRIVEN FACE
- #23237 23237-KHE7-C00 — COLLAR SEAL
- #23238 23238-KHE7-C00 — COLLAR SPG
- #90202 90202-1G87-C00 — NUT SPECIAL 28MM
- #90401 90401-KKJ9-C00 — WASHER THRUST 14*28*2
- #91002 91002-GGA7-C00 — BRG BALL RADIAL 6902U
- #91004 91004-KHE7-C00 — BRG NDL 22*29*18
- #91211 91211-KHE7-C00 — SEAL DRIVEN FACE 40*47*4
- #91351 91351-KHE7-C00 — O-RING PINION CAP
- #94520 94520-28000 — CIR CLIP IN 28
- #22101 22101-LBA7-C00 — OUTER CLUTCH
- #22102 22102-KHE7-C00 — FACE DRIVE
- #22105 22105-LBA7-C00 — BOSS DRIVE FACE
- #22110 22110-LFG1-C00 — FACE COMP MOVABLE DRIVE
- #22131 22131-LBA7-C00 — PLATE RAMP
