Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (2)
China (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| AUD | 4.40 | listing | parts.motohub.com.au |

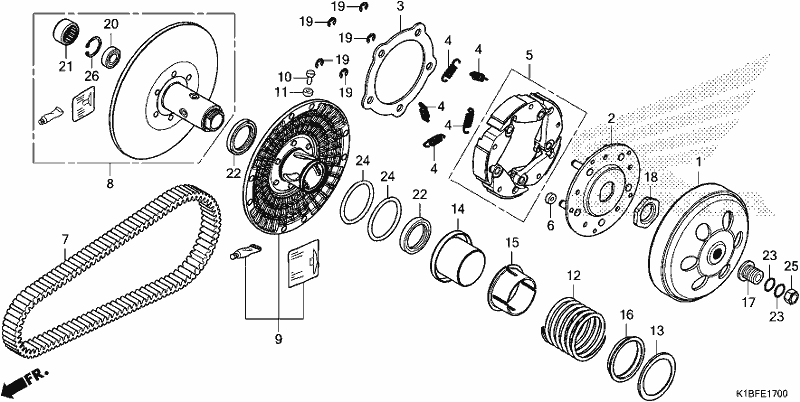

Location in exploded diagrams
Other parts on this diagram
- #1 22100K1BT00 — OUTER COMP CLUTCH
- #2 22350K1BT61 — PLATE COMP DRIVE
- #3 22361K1BT61 — PLATE CLUTCH SIDE
- #4 22401-GG2-900 — SPRING CLUTCH
- #5 22535K1BT00 — WEIGHT SET CLUTCH
- #6 22804-148-000 — RUBBER, CLUTCH DAMPER
- #7 23100K1BT02 — BELT DRIVE
- #8 23205K1BT60 — FACE SET DRIVEN
- #9 23224K1BT00 — FACE SET MOVABLE DRIVEN
- #10 23225-KM1-010 — PIN ROLLER GUIDE
- #11 23226-KM1-010 — ROLLER GUIDE
- #12 23233K1BT00 — SPG DRIVEN FACE
- #14 23237K1BT00 — COLLAR SEAL
- #15 23238-KSV-J10 — COLLAR A, SPRING GUIDE
- #16 23239K1BT60 — COLLAR SPG GUIDE B
- #17 23415-KVZ-K10 — COLLAR, DRIVE SHAFT
- #18 90202-KM1-000 — NUT, SPECIAL, 30MM
- #19 90605-166-720 — CIRCLIP 7MM
- #20 91002-GA7-701 — BEARING, RADIAL BALL, 6902U (TOYO)
- #20 91002-GA7-702 — BEARING, RADIAL BALL, 6902U (NACHI)
- #21 91002-KPB-003 — BRG NDL 25X33X18
- #22 91211-K53-D01 — SEAL DRIVEN FACE 40X
- #23 91301-K04-930 — O-RING 16.5X1.5
- #24 91352-KM1-003 — O-RING, 47X1.9 (NOK)
