Verified fitment — 24 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (24)
- CFORCE RS6 2014
- CFORCE RS6 2015
- CFMOTO X8 2014
- CFMOTO X8 2019
- CFMOTO X8 2012
- CFORCE 550 2016
- TERRAIN 500 2015
- TERRAIN 500 2013
- CFORCE RS6 2016
- CFMOTO X8 2016
- CFORCE 550 2018
- CFMOTO X8 2015
- TERRAIN 500 2011
- CFORCE RS6 2012
- CFORCE 550 2019
- CFMOTO X8 2017
- TERRAIN 500 2016
- TERRAIN 500 2012
- CFMOT0 X8 2011
- CFORCE 550 2015
- CFORCE RS6 2013
- CFORCE 550 2017
- TERRAIN 500 2014
- CFMOTO X8 2013
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 90.84 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 83.99 | listing | cfmoto.quadzillaparts.co.uk |

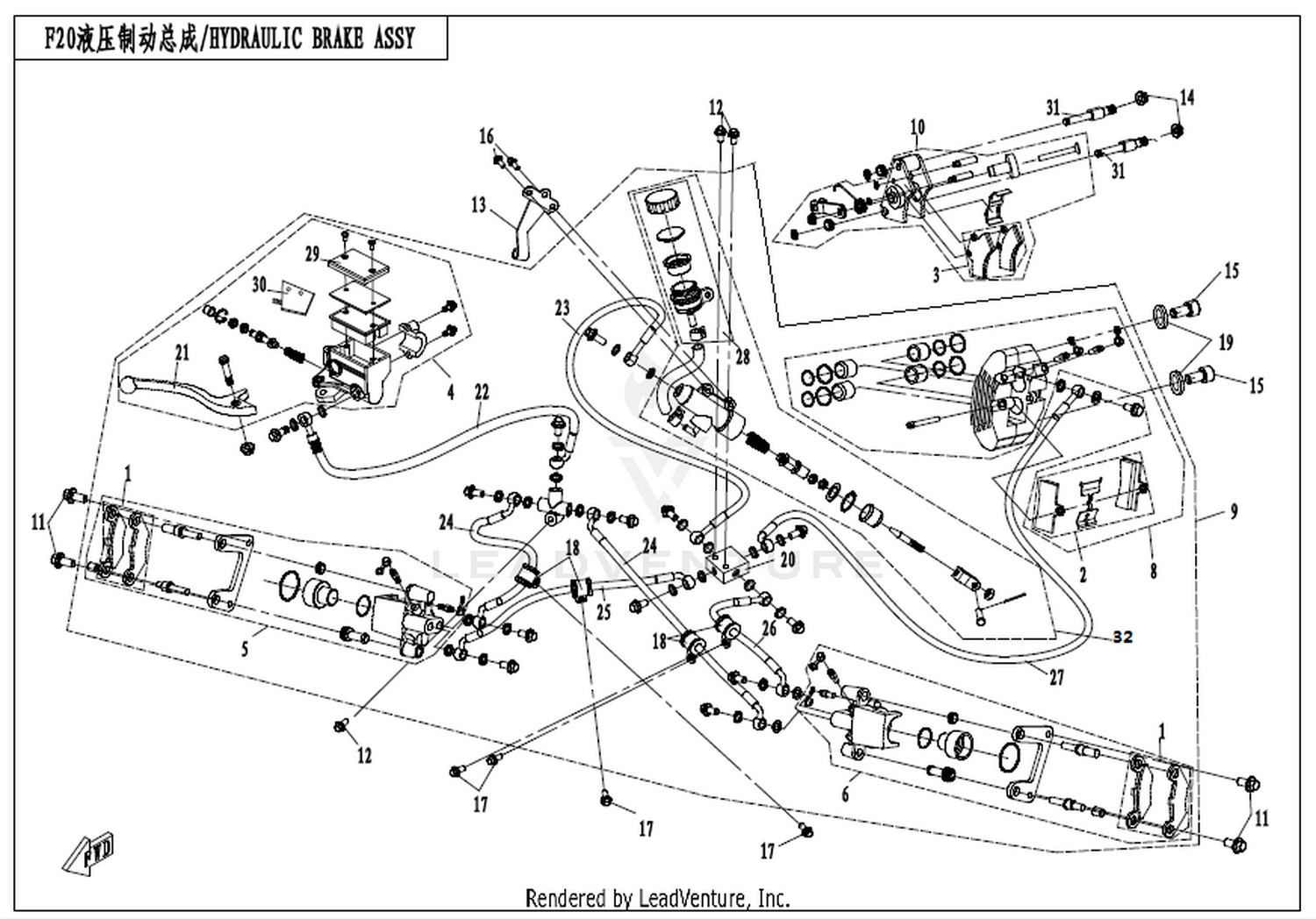

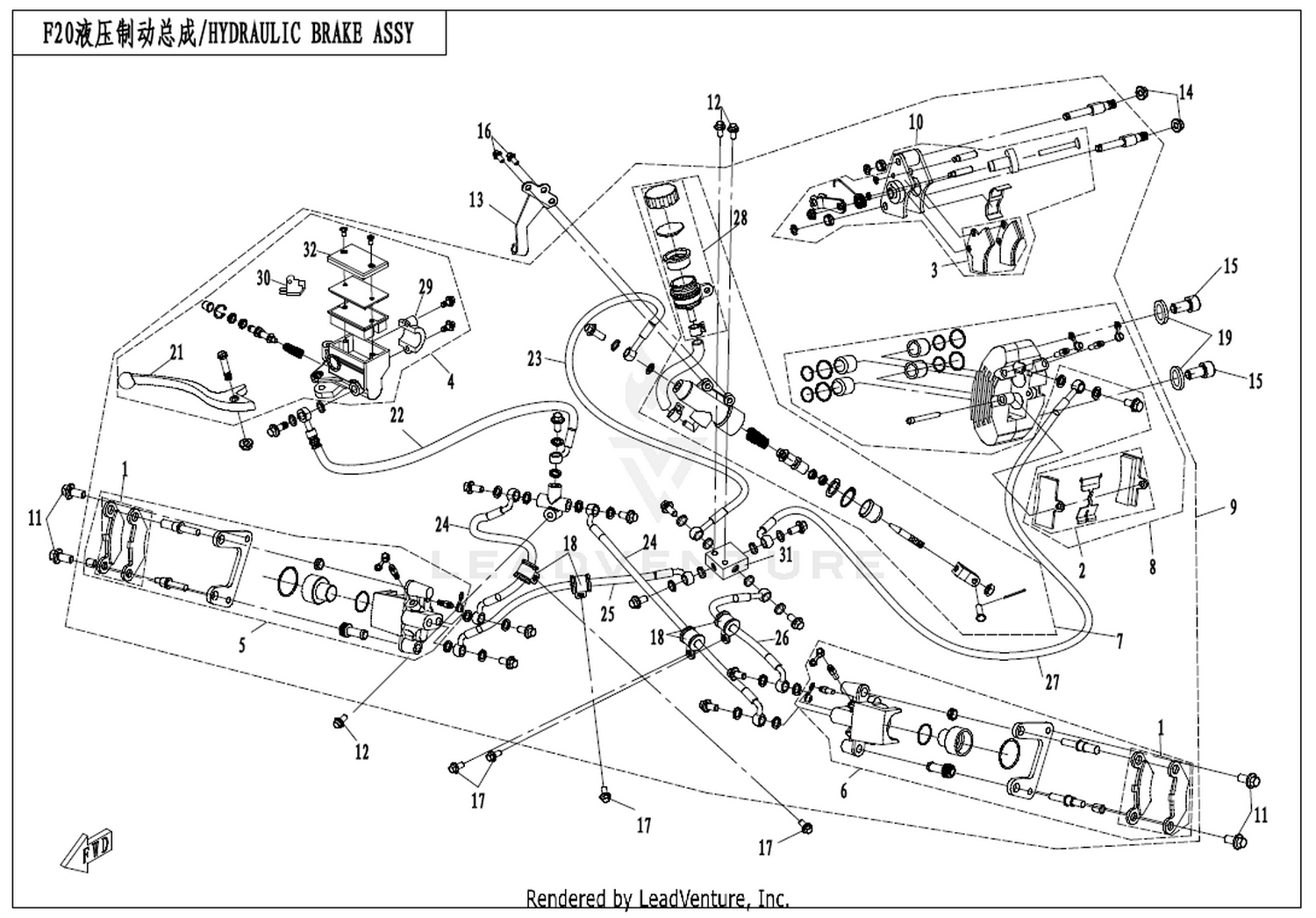

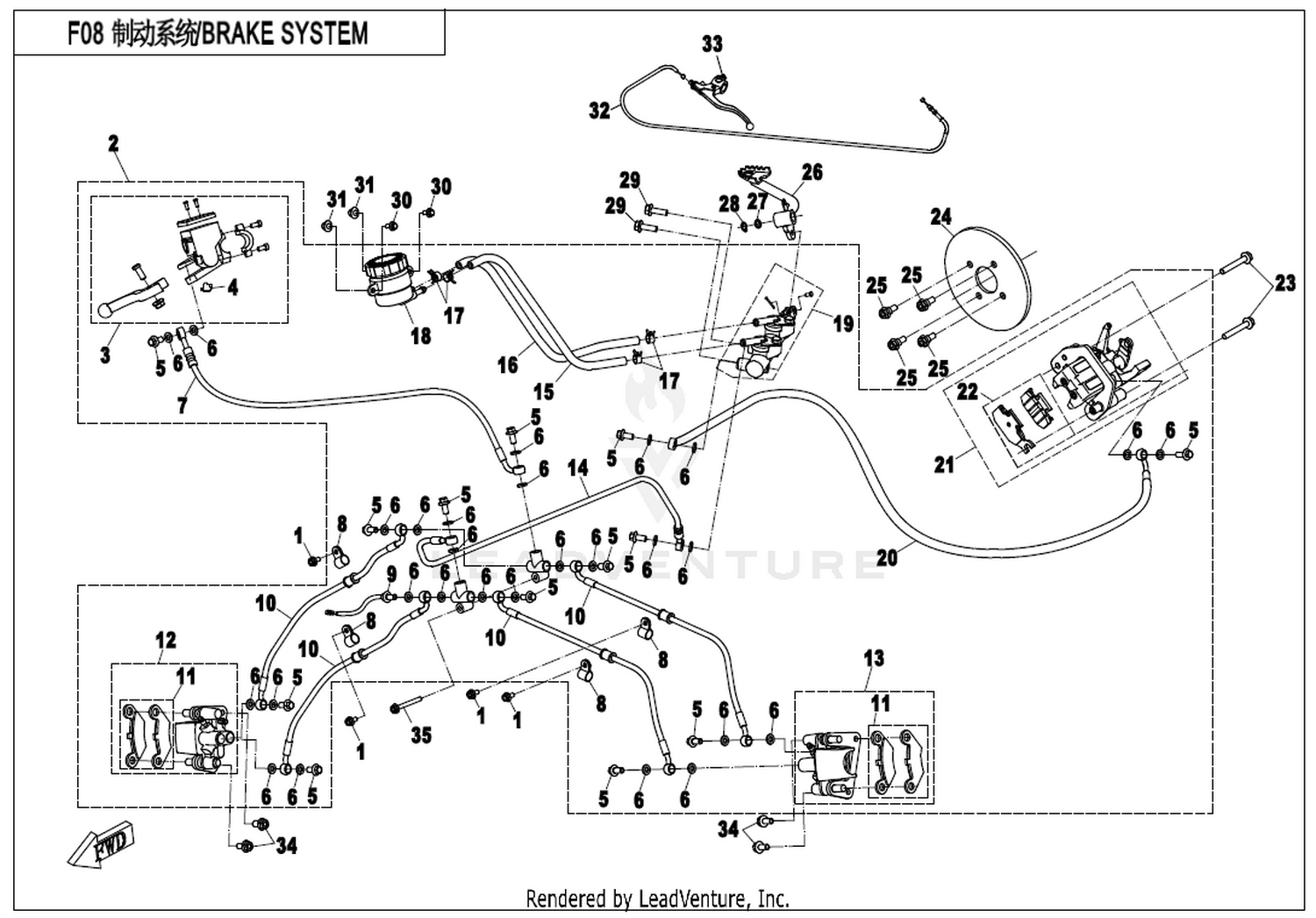

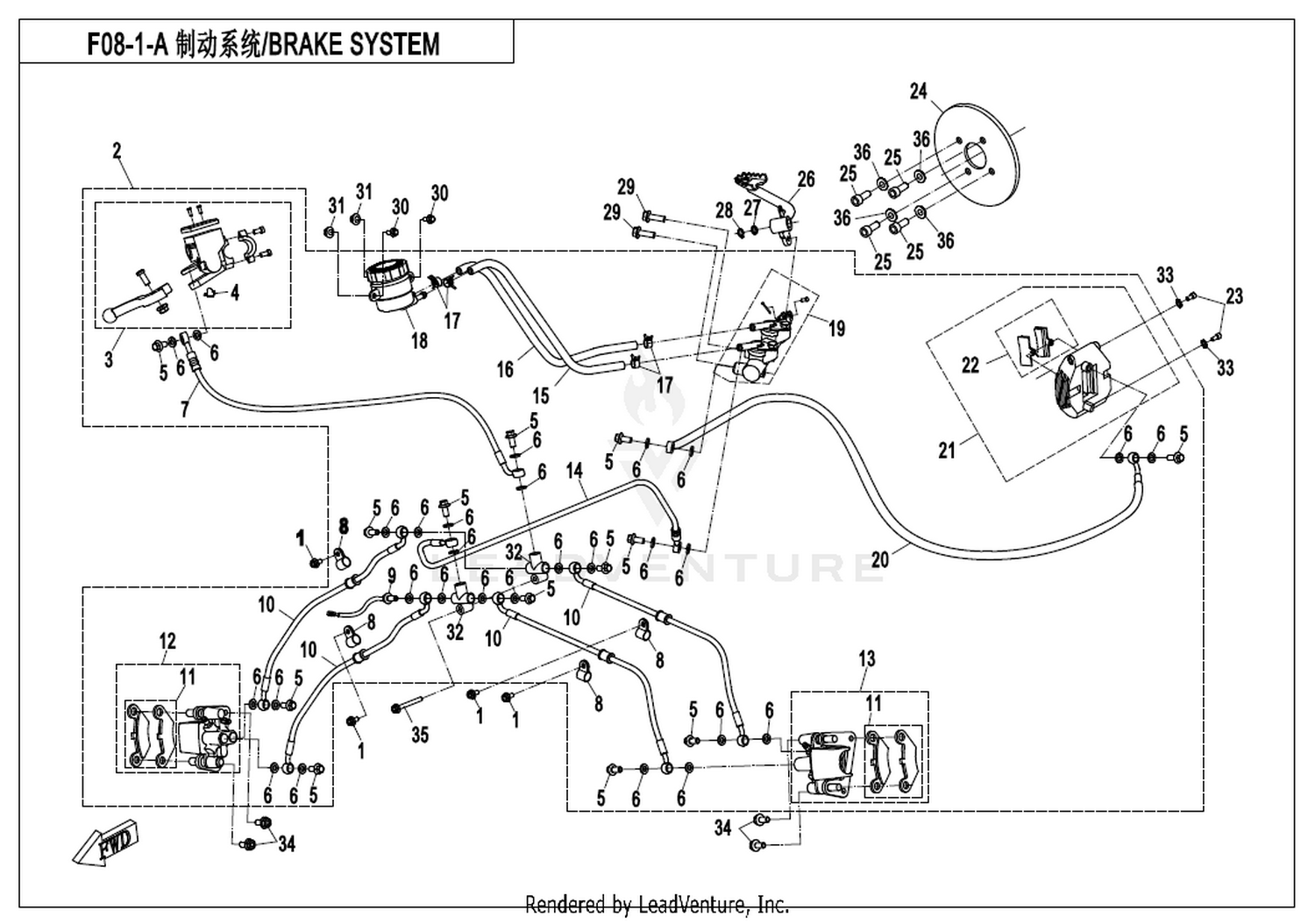

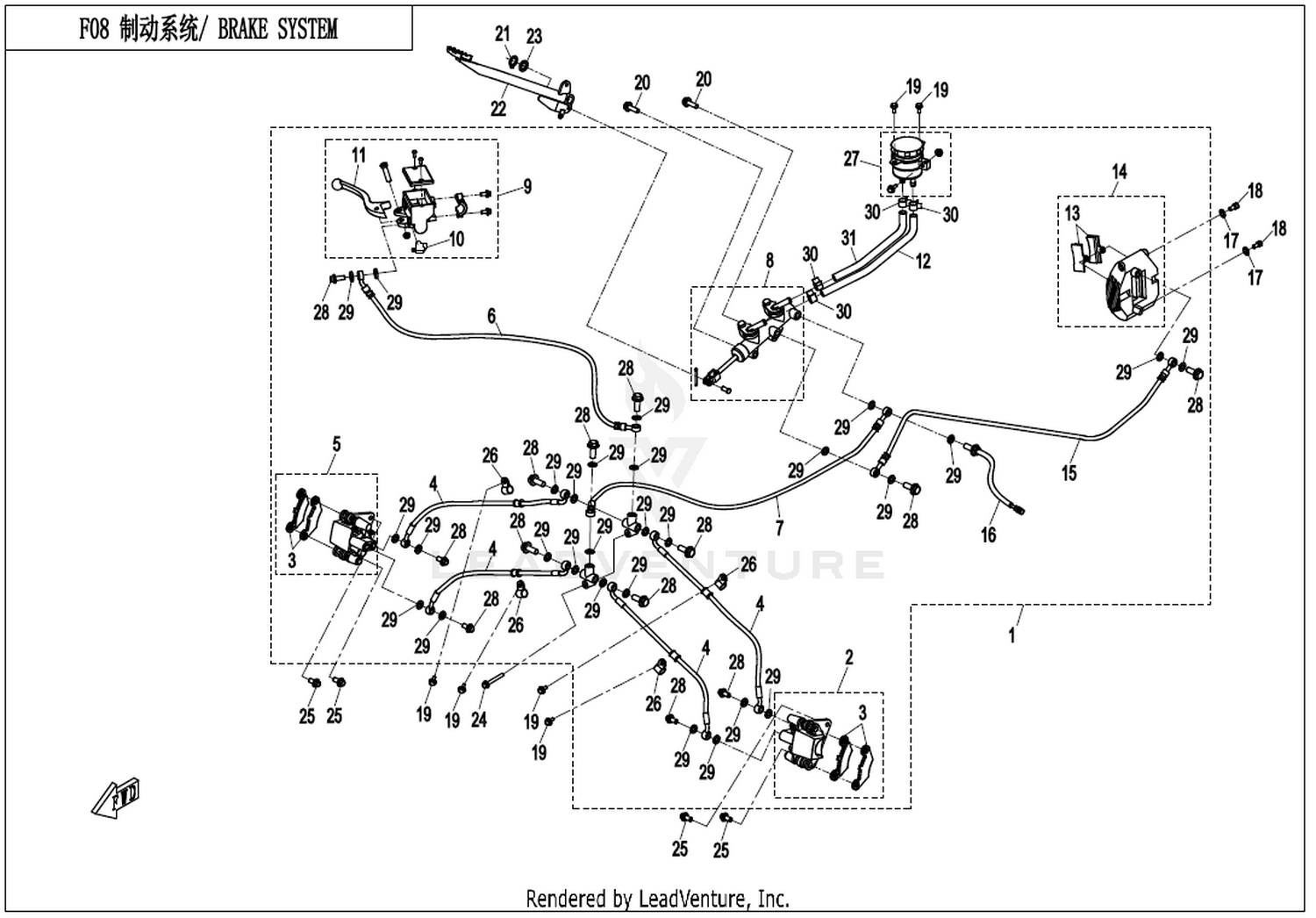

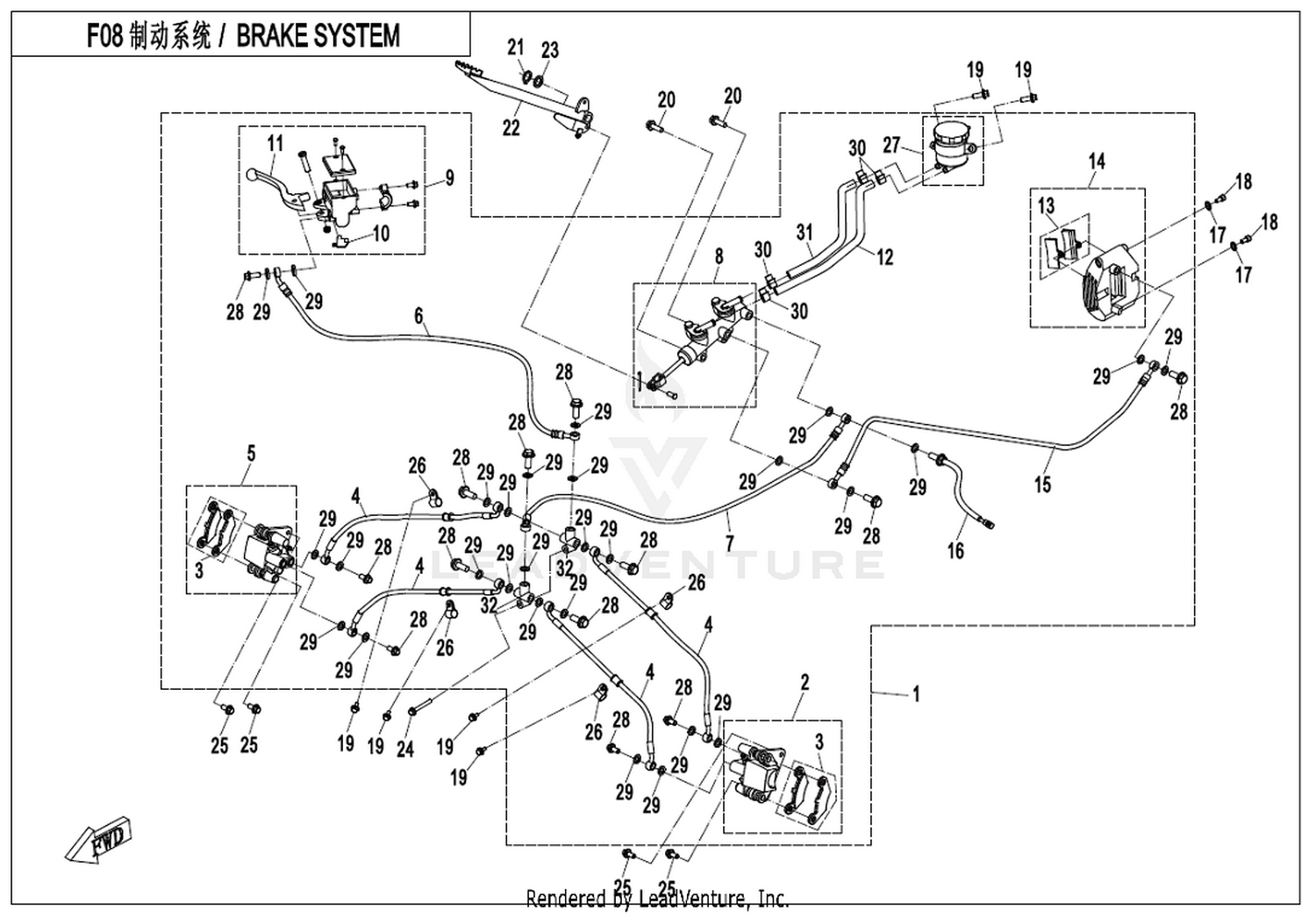

Location in exploded diagrams
Other parts on this diagram — Hydraulic Brake
- #03 9010-0808A0 — Front Brake Pad Assy
- #25 30006-080020810 — Bolt M8X20@Color Zinc Plated
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #23 901B-080130 — Fluid Hose, Master Cylinder
- #29 9010-080616 — Washer , Brake Fluid Reservoir
- #03 9010-0808B0 — Front Brake Pad Assy Sintered Pad
- #02 9010-080700 — Lh Caliper, Front Brake
- #06 30006-060030810 — Bolt M6×30
- #43 9010-080104 — Circlip
- #04 9010-080190 — Fluid Hose, Front Caliper
- #10 9010-080609 — Switch, Front Brake
- #13 9010-0805B0 — Rear Brake Pad Assy Sintered Pad
- #14 9010-080500 — Rear Brake Caliper
- #13-2 901B-030001 — Protection Bracket, Brake Pump
- #17 30300-100142 — Needs Description
- #25 9010-080150 — Foot Brake Fluid Hose, Front Rh Caliper
- #31 9010-080301-10000 — Sliding Shaft
- #13 9010-0805A0 — Rear Brake Pad Assy Including 9010-080510 Two Pieces
- #09 901B-0801B0 — Hydraulic Brake Assy Sintered Pad
- #04 30204-102810 — Nut M10×1.25
- #20 9010-080101 — Cross Joint
- #26 9010-080140 — Foot Brake Fluid Hose, Front Lh Caliper
- #7-1 901B-080400 — Master Cylinder, Pedal Brake
- #03 9010-0803A0 — Friction Disc Assy
