Verified fitment — 24 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (24)
- CFORCE RS6 2014
- CFORCE RS6 2015
- CFMOTO X8 2014
- CFMOTO X8 2019
- CFMOTO X8 2012
- CFORCE 550 2016
- TERRAIN 500 2015
- TERRAIN 500 2013
- CFORCE RS6 2016
- CFMOTO X8 2016
- CFORCE 550 2018
- CFMOTO X8 2015
- TERRAIN 500 2011
- CFORCE RS6 2012
- CFORCE 550 2019
- CFMOTO X8 2017
- TERRAIN 500 2016
- TERRAIN 500 2012
- CFMOT0 X8 2011
- CFORCE 550 2015
- CFORCE RS6 2013
- CFORCE 550 2017
- TERRAIN 500 2014
- CFMOTO X8 2013
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 14.26 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 13.19 | listing | cfmoto.quadzillaparts.co.uk |

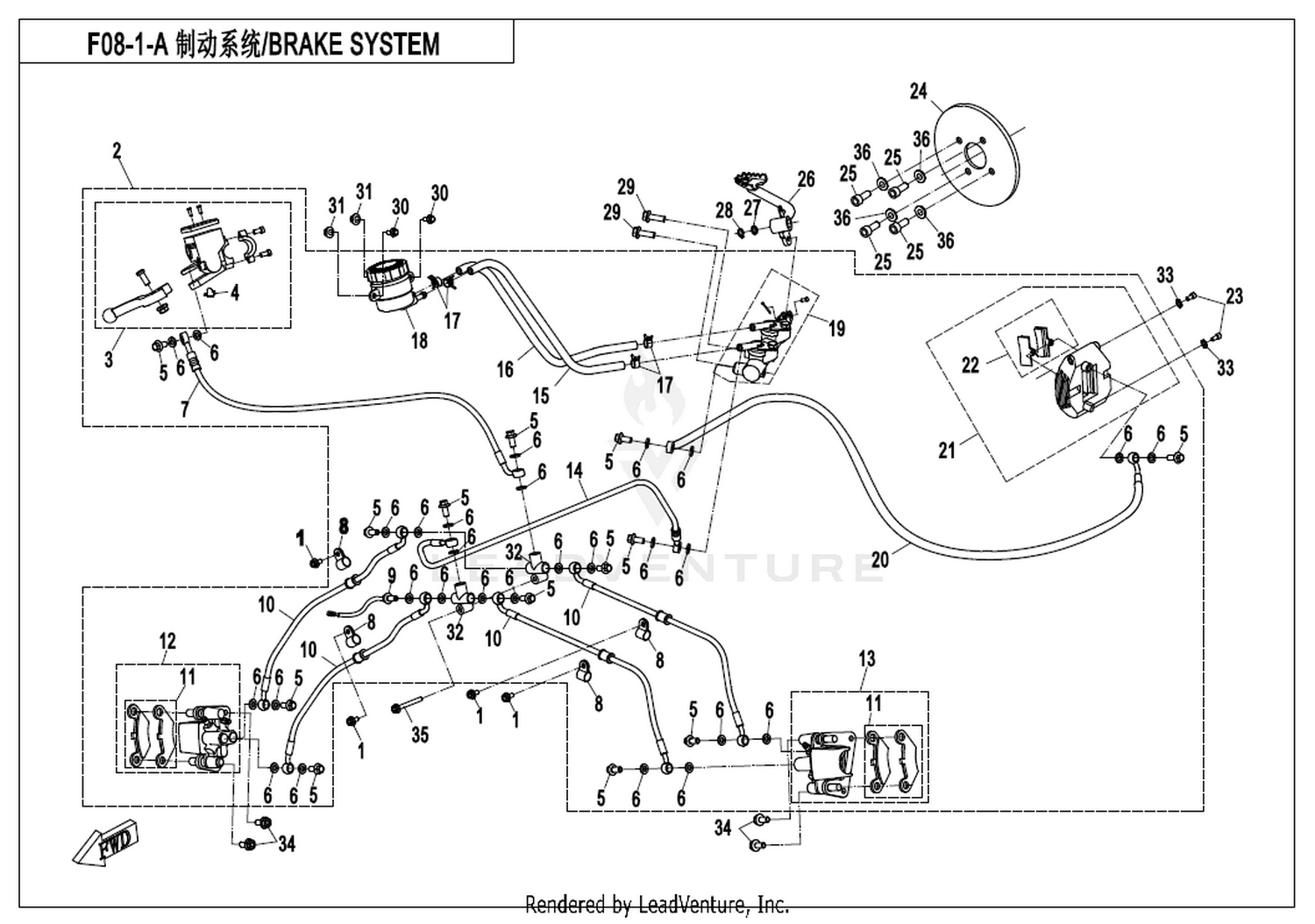

Location in exploded diagrams
Other parts on this diagram — Brake System
- #14 9010-080500 — Rear Brake Caliper
- #23 30306-140112 — Washer F14
- #24 30006-060055810 — Bolt M6X55 M6X55
- #17 7000-082103 — Return Spring
- #16 7020-080160-1000 — Rear Brake Switch Sumitomo Plug
- #15 9CR6-081002 — Fluid Reservoir Hose 2
- #28 9010-080101-B000 — Banjo Bolt
- #04 9010-080190 — Fluid Hose, Front Caliper
- #16 9CR6-081001 — Fluid Reservoir Hose 1
- #13 9010-0805B0 — Rear Brake Pad Assy Sintered Pad
- #03 30801-01405 — Circlips For Shaft 14
- #15 9010-300002 — Washer Dia 10 Dia 10
- #14 30802-00605 — Split Washer 6
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #05 0010-060010 — Washer 10 10
- #03 9010-0808B0 — Front Brake Pad Assy Sintered Pad
- #12 9010-080405 — Clamp
- #16 30006-102055810 — Bolt M10×1.25×55
- #11 30006-080025810 — Bolt M8×25
- #27 30300-100112 — Washer F10
- #13 7000-082108 — Rubber Sleeve, Upper Sliding Shaft
- #02 9CR6-081000-40000 — Hydraulic Brake Assy No Liquid
- #07 9CR6-081030 — Hand Brake Fluid Hose
- #05 9010-080800 — Rh Caliper, Front Brake
