Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)

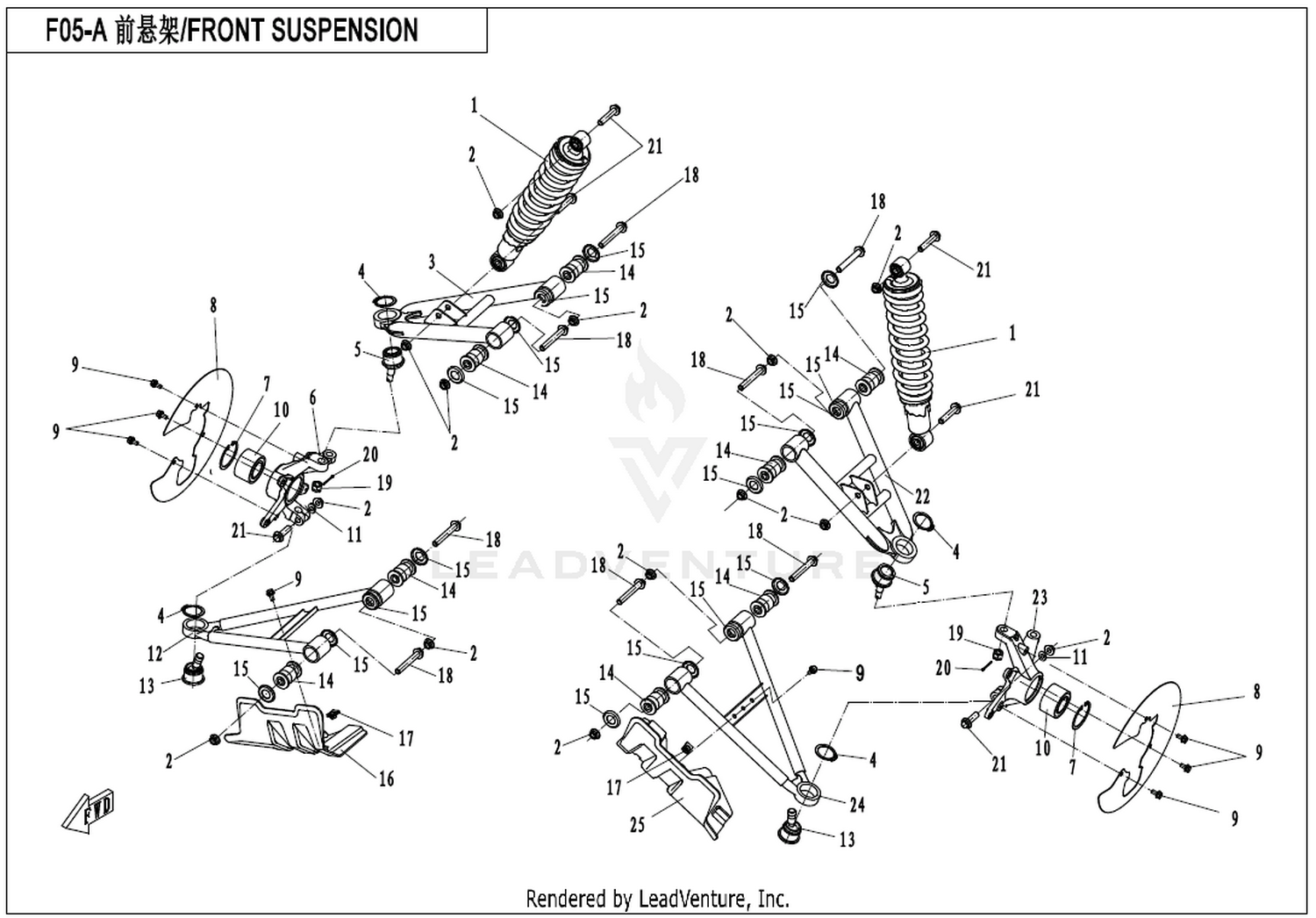

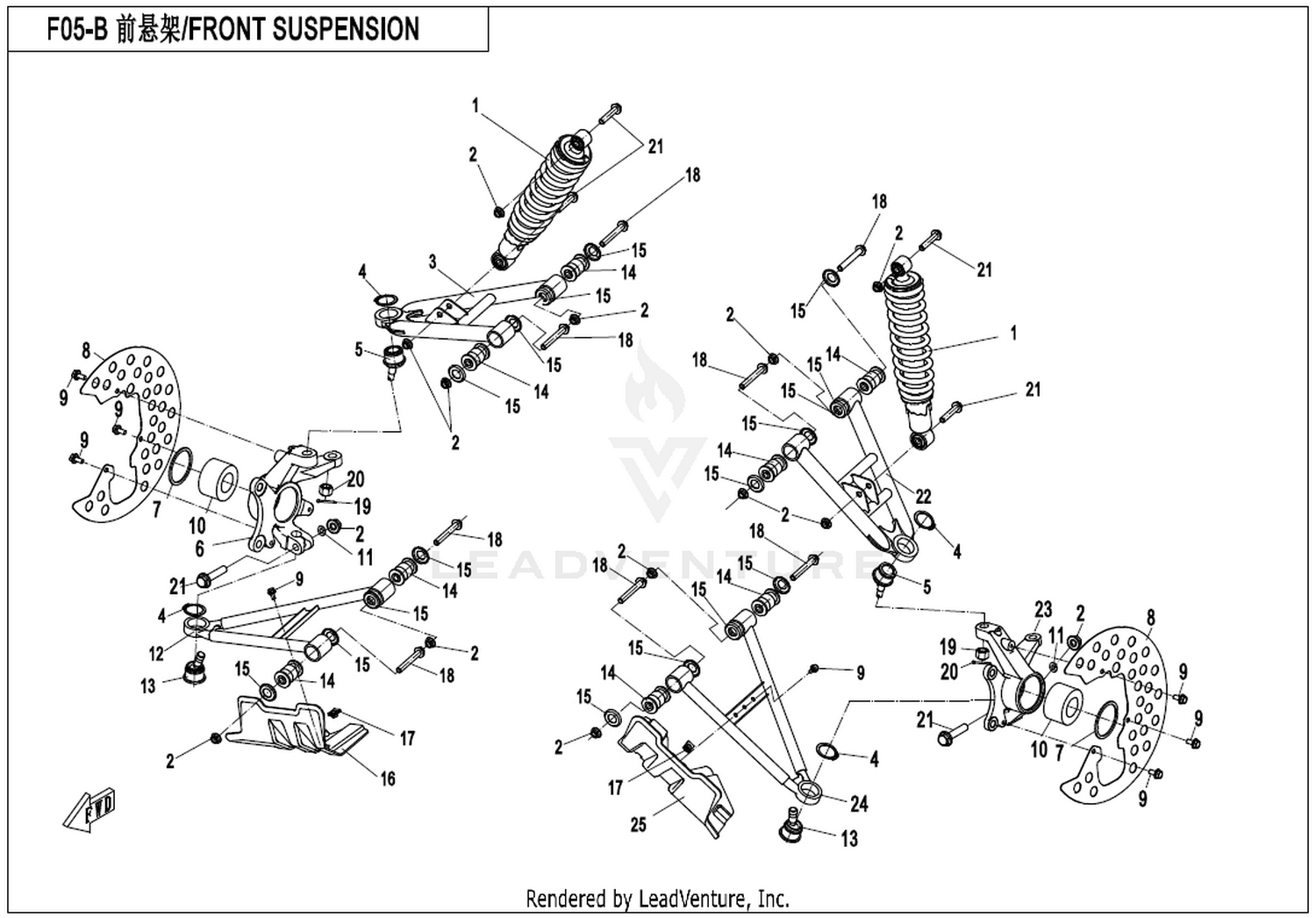

Location in exploded diagrams

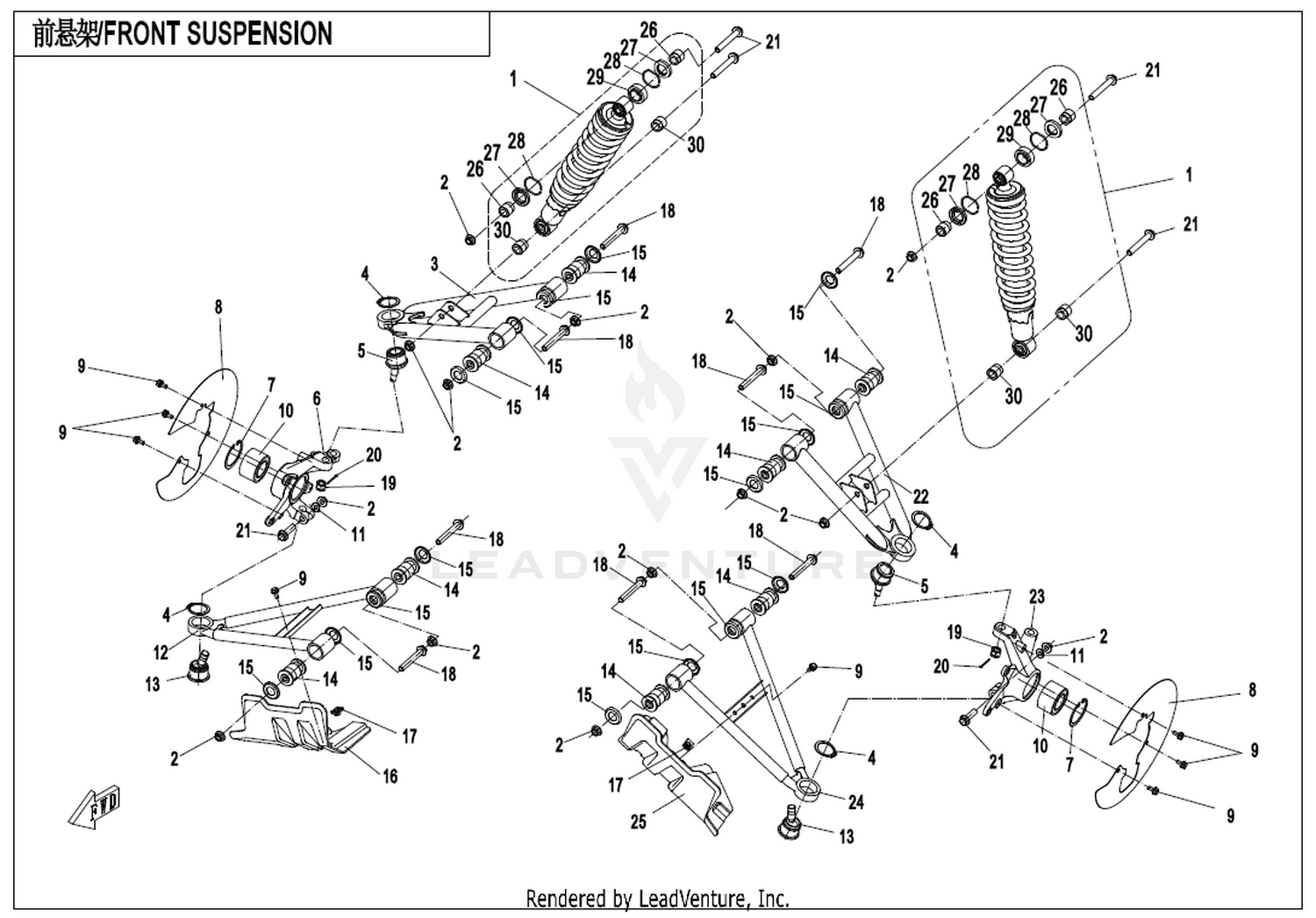

Other parts on this diagram — Front Suspension(Russia)
- #03 9010-050200-A000 — Front Upper Rh Swing Arm Assy
- #25 30800-05505 — Circlip For Hole Black
- #22 30006-102070810 — Bolt M10X1.25X70@Color Zinc Trivalent Chromium
- #20 9010-050400-10000 — Front Upper Lh Swing Arm Assy
- #03 7020-051603-30000 — Circlip
- #22 9010-050200-10000 — Front Upper Rh Swing Arm Assy
- #13 9010-030008-1000 — Guard, Brake Disc Same With Cf800-2,Electrophoresis Black
- #10 9010-050800-1000 — Lower Ball Pin Assy. Ccvi
- #21 9010-100002 — 1-Type Nut M10X1.25
- #15 9010-050002 — Lh Steering Knuckle
- #04 7020-051610-30000 — Bearing Assy
- #20 30801-03405 — Circlips For Shaft 34
- #12 30006-060012810 — Bolt M6×12
- #12 9010-050500 — Cushion Sleeve Assy
- #22 30903-0201610 — Cotter Pin F2×16
- #08 9010-050300-10000 — Front Lower Swing Arm, Lh
- #05 7020-051602-30000 — Shock Absorber Lower Bushing
- #05 401B-050500 — Front Shock Absorber Assy Yit@Russia
- #19 9010-050700 — Top Ball Pin Somic
- #21 30499-03080 — Bearing, Hub 30
- #11 9010-050003 — Cushion Sleeve Cap
- #03 30006-102050810 — Bolt M10×1.25×50
- #25 901B-040023 — Fender, Lh Front Suspension
- #04 30204-102810 — Nut M10×1.25
