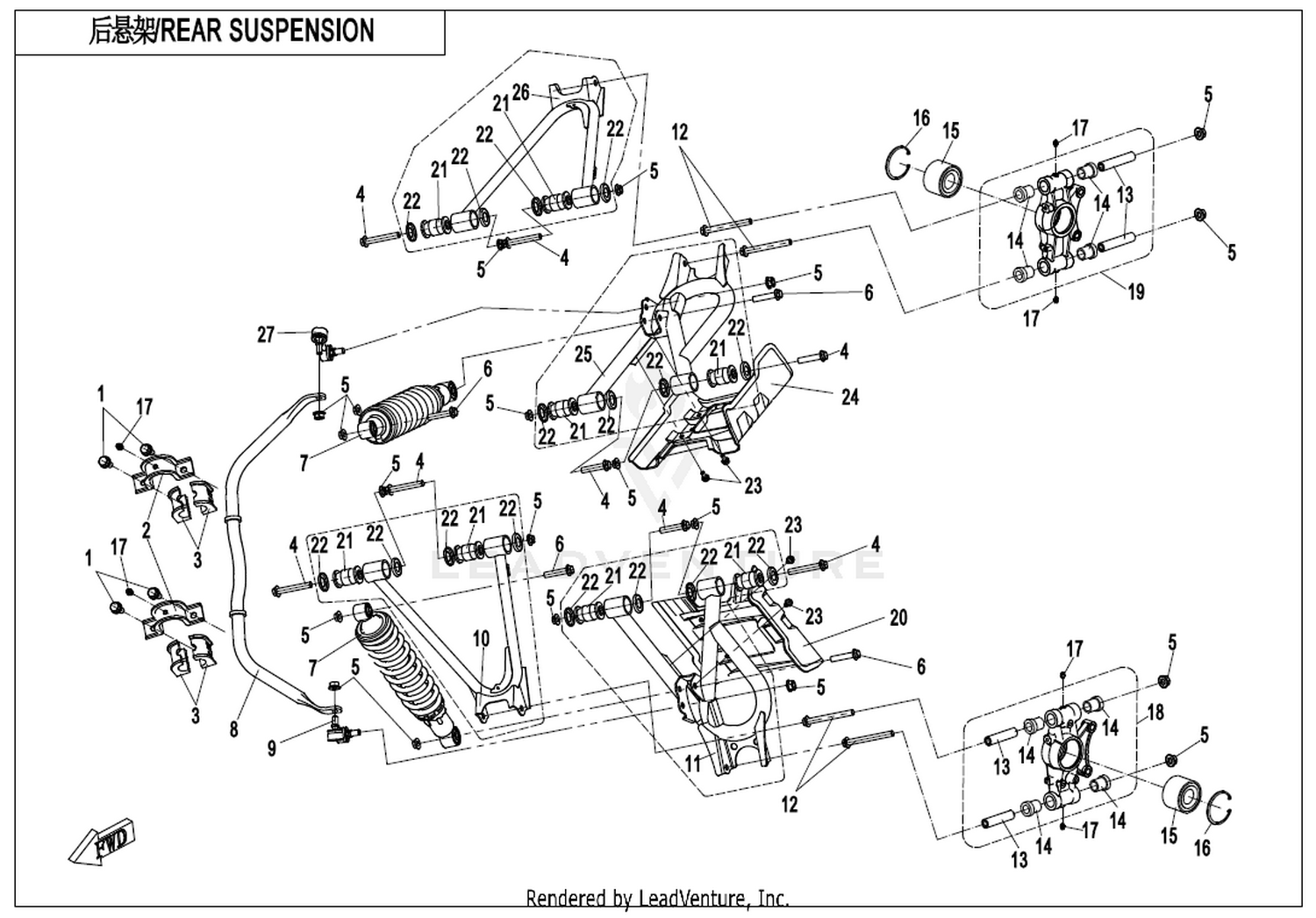

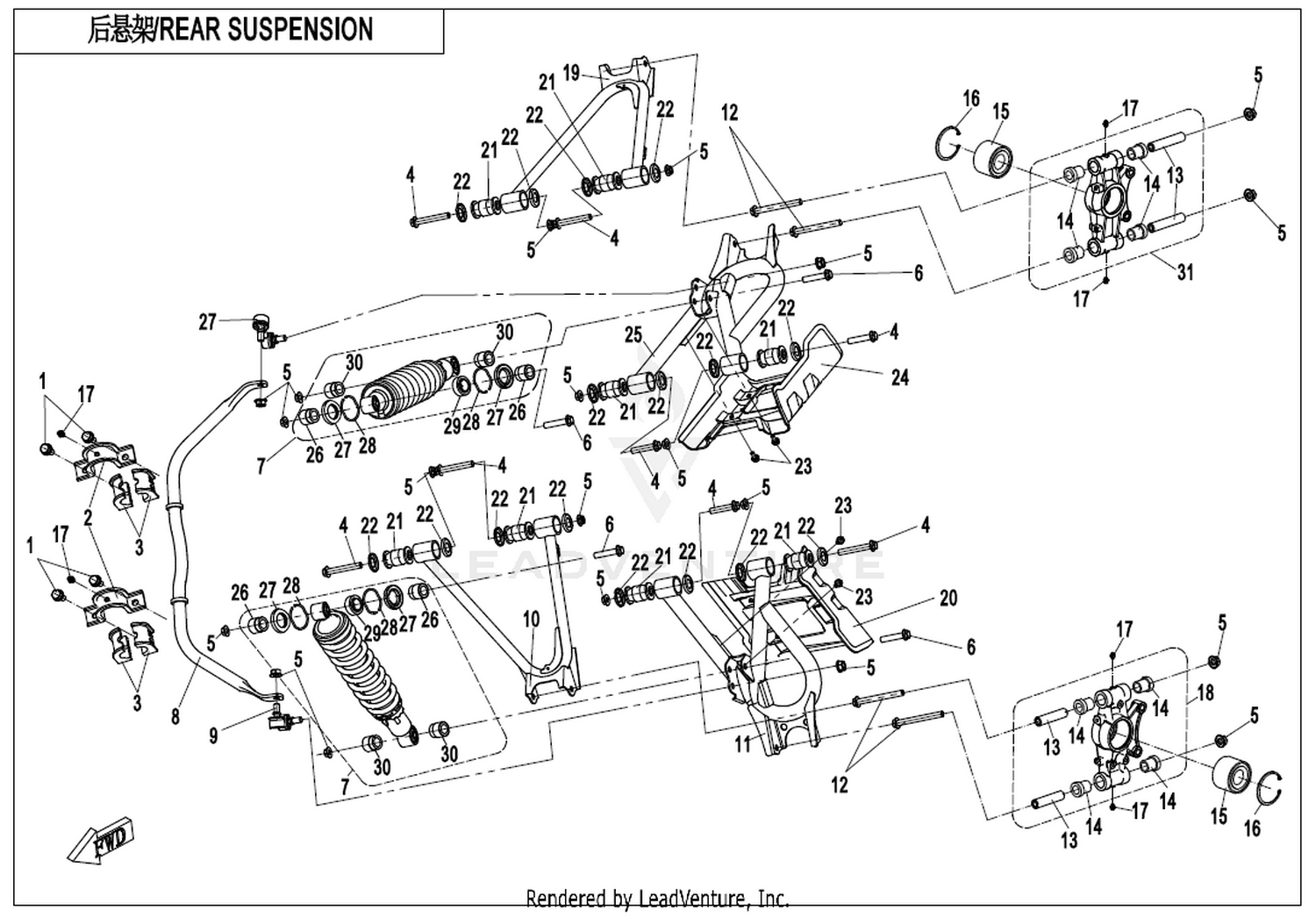

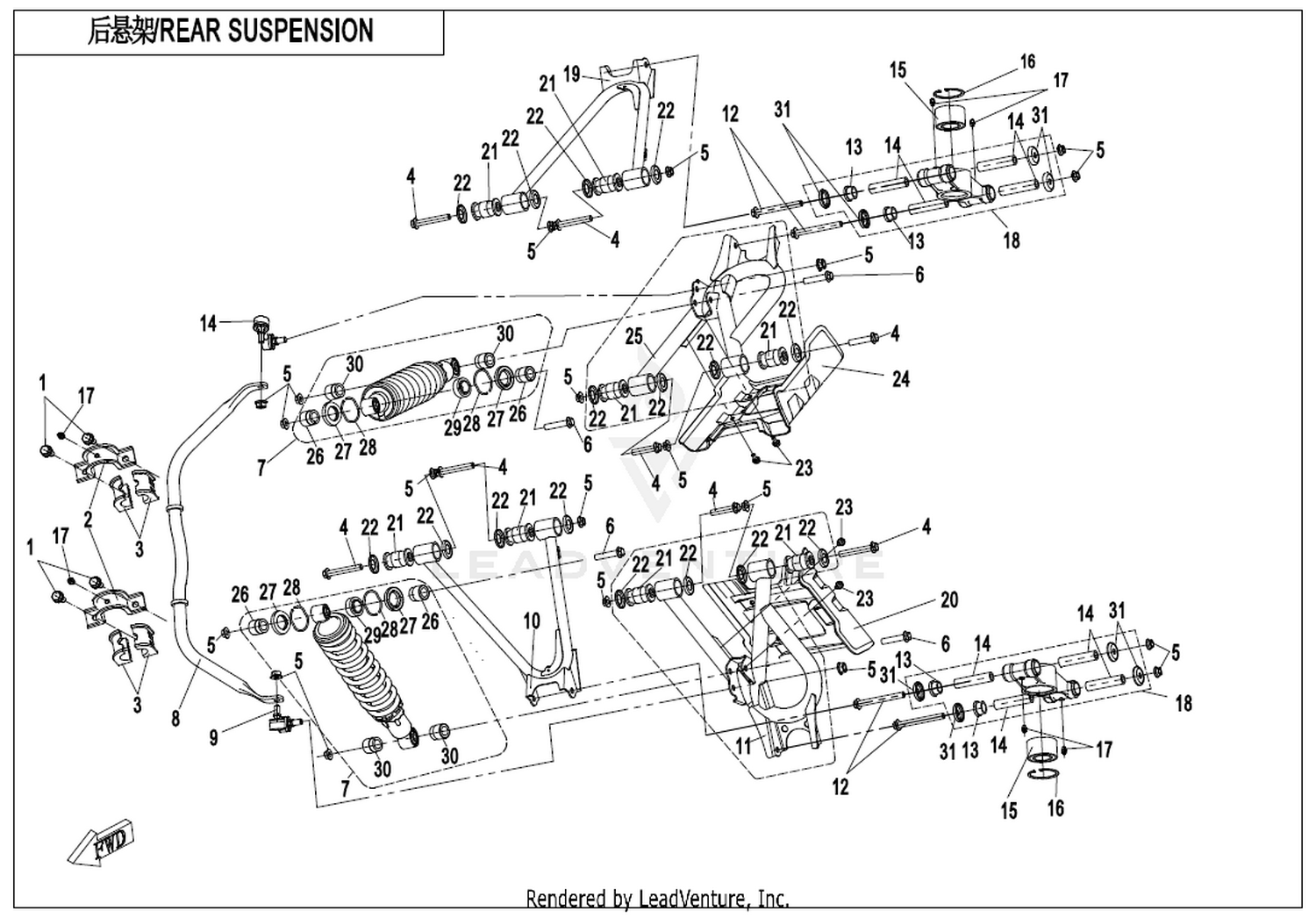

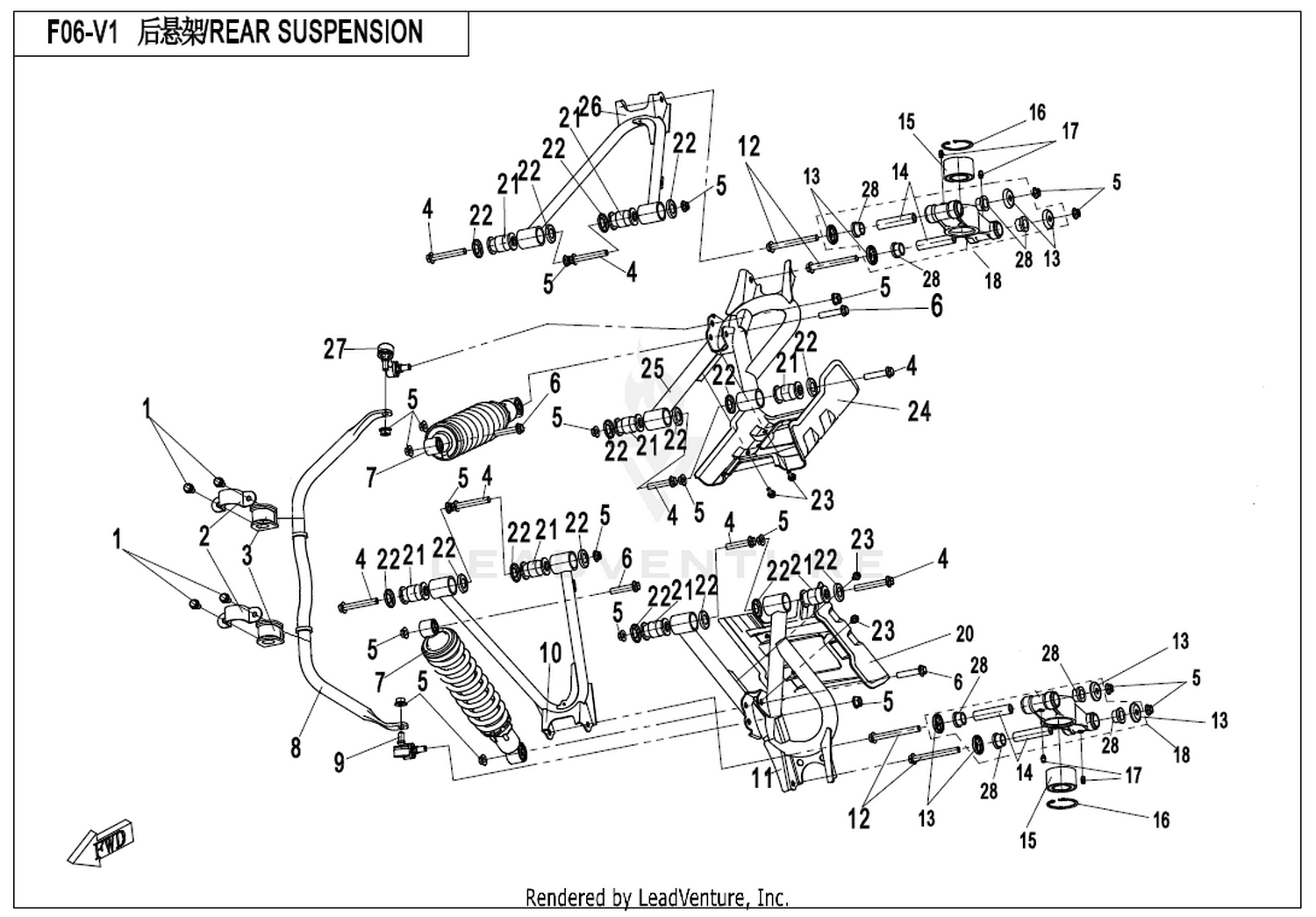

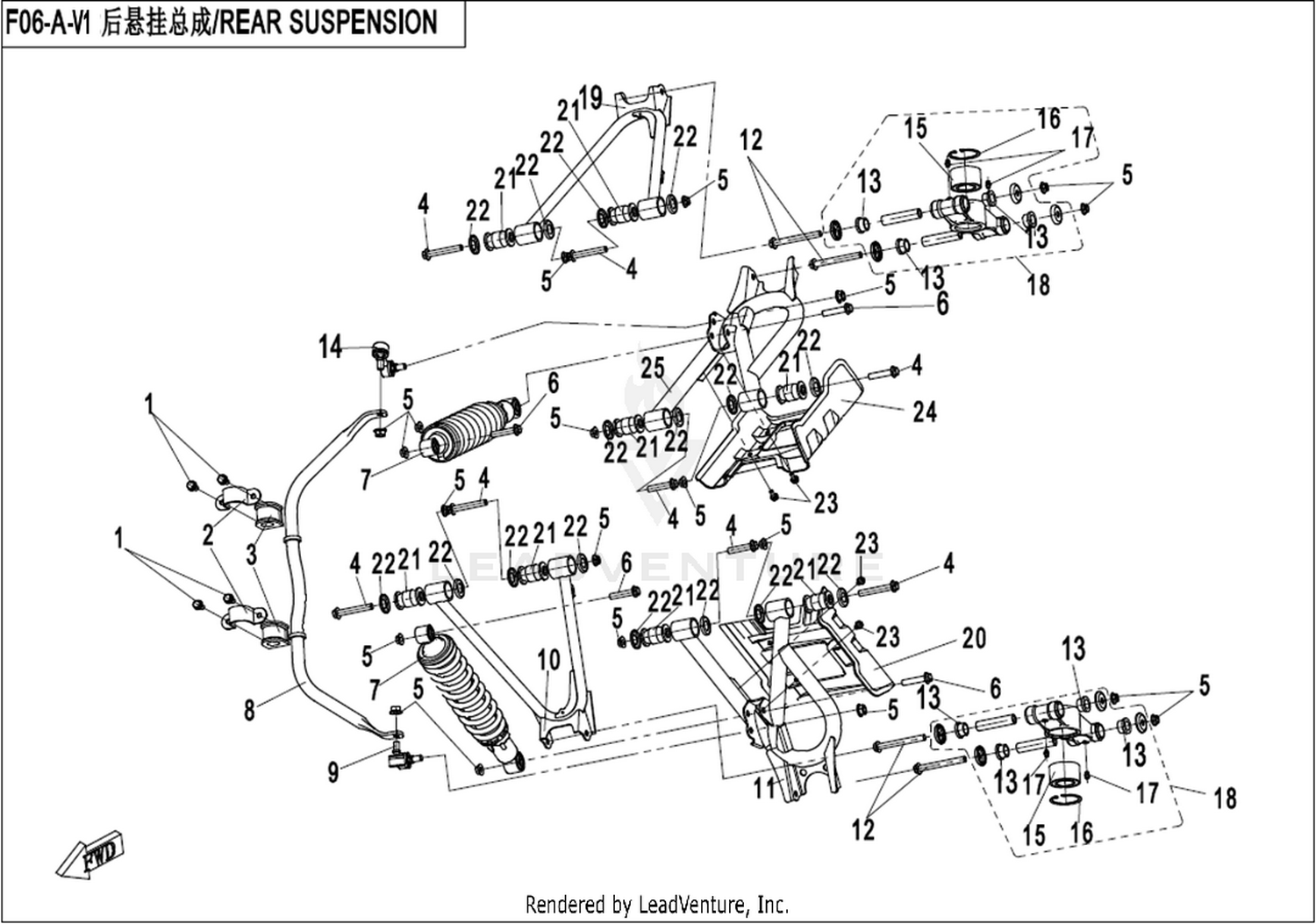

Location in exploded diagrams
Other parts on this diagram — Rear Suspension 1
- #22 30006-102070810 — Bolt M10X1.25X70@Color Zinc Trivalent Chromium
- #07 9010-060600 — Rear Shock Absorber Assy Yit
- #08 9010-060300-10000 — Rear Upper Lh Swing Arm Assy
- #12 9010-050500 — Cushion Sleeve Assy
- #04 30204-102810 — Nut M10×1.25
- #06 401B-060500 — Rear Shock Absorber Assy Yit@Gas Shock Absorber@Bl
- #11 9010-060400-10001 — Rear Lower Swing Arm, Lh 168 Regulations, Increasing The Oil Tube Installation
- #25 30800-05505 — Circlip For Hole Black
- #11 9010-050003 — Cushion Sleeve Cap
- #03 30006-102050810 — Bolt M10×1.25×50
- #07 9010-060600-20001 — Rear Shock Absorber Assy Yit@Black Spring
- #07 30006-102100810 — Bolt M10X1.25X100 M10X1.25X100
- #06 3120100 — Oil Cup
- #12 30006-060012810 — Bolt M6×12
- #18 30006-080012810 — Bolt M8×12
- #07 9010-060600-10001 — Rear Shock Absorber Assy Yit@Red Spring
- #01 9010-060500 — Sway Bar
- #24 9010-060004 — Bushing
- #19 9010-0600A0 — Rear Bearing Carrier Assy
- #24 901B-040022-10000 — Rear Suspension Fender, Rh
- #03 9GQ0-060601-00001 — Cover, Sway Bar
- #07 9010-060600-7000 — Rear Shock Absorber Assy Tuopu@Ordinary
- #03 9010-060700-20000 — Lh Ball Pin Assy Ccvi
- #08 9010-060800-20000 — Rh Ball Pin Assy Ccvi
