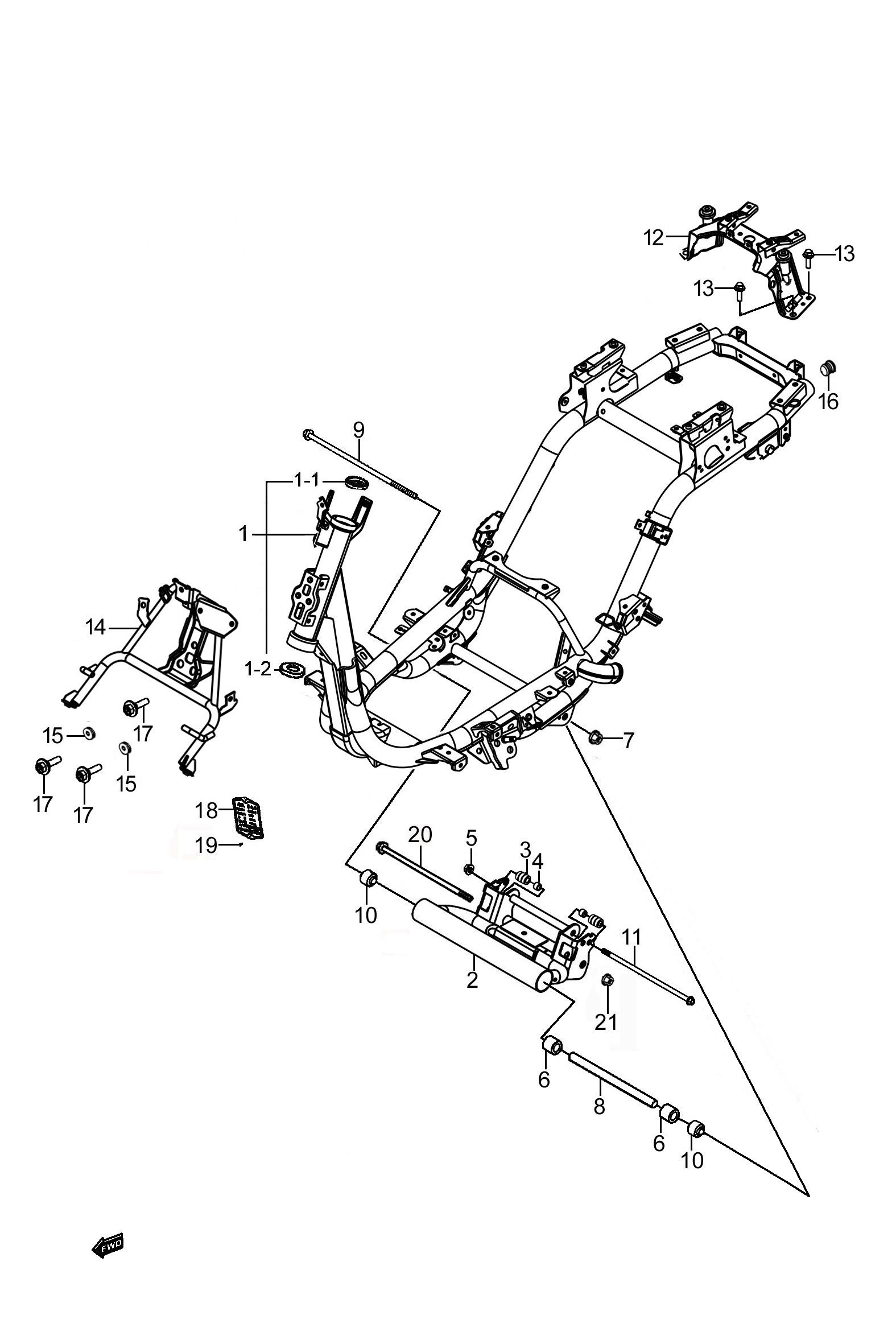

Location in exploded diagrams
Other parts on this diagram — 车架组
- #1 41100H92Y01H000 — 车架组件
- #1-1 51611H2A201H000 — 上转向轴承内座圈
- #1-2 51612H7D000H000 — 下转向轴承内座圈
- #2 41180H7D010H000 — 发动机摇架组成
- #3 41181H7D000H000 — 发动机吊挂缓冲套
- #4 09180H08022H000 — 衬套
- #5 08319-3108A-000 — U型螺母
- #6 62478H7D000H000 — 胶套
- #7 08319-3112A-000 — U型螺母
- #8 61114H7D000H000 — 后摇架枢轴管
- #9 61211H7D000H000 — 后摇架轴
- #10 41186H7D001H000 — 曲轴箱摇架衬套
- #11 09103H08020H000 — 六角法兰面螺栓
- #12 41330H92100H000 — 座垫锁支架组成
- #13 01550-0816A-000 — 六角法兰面螺栓
- #14 48150H92100H000 — 前斜板支架组成
