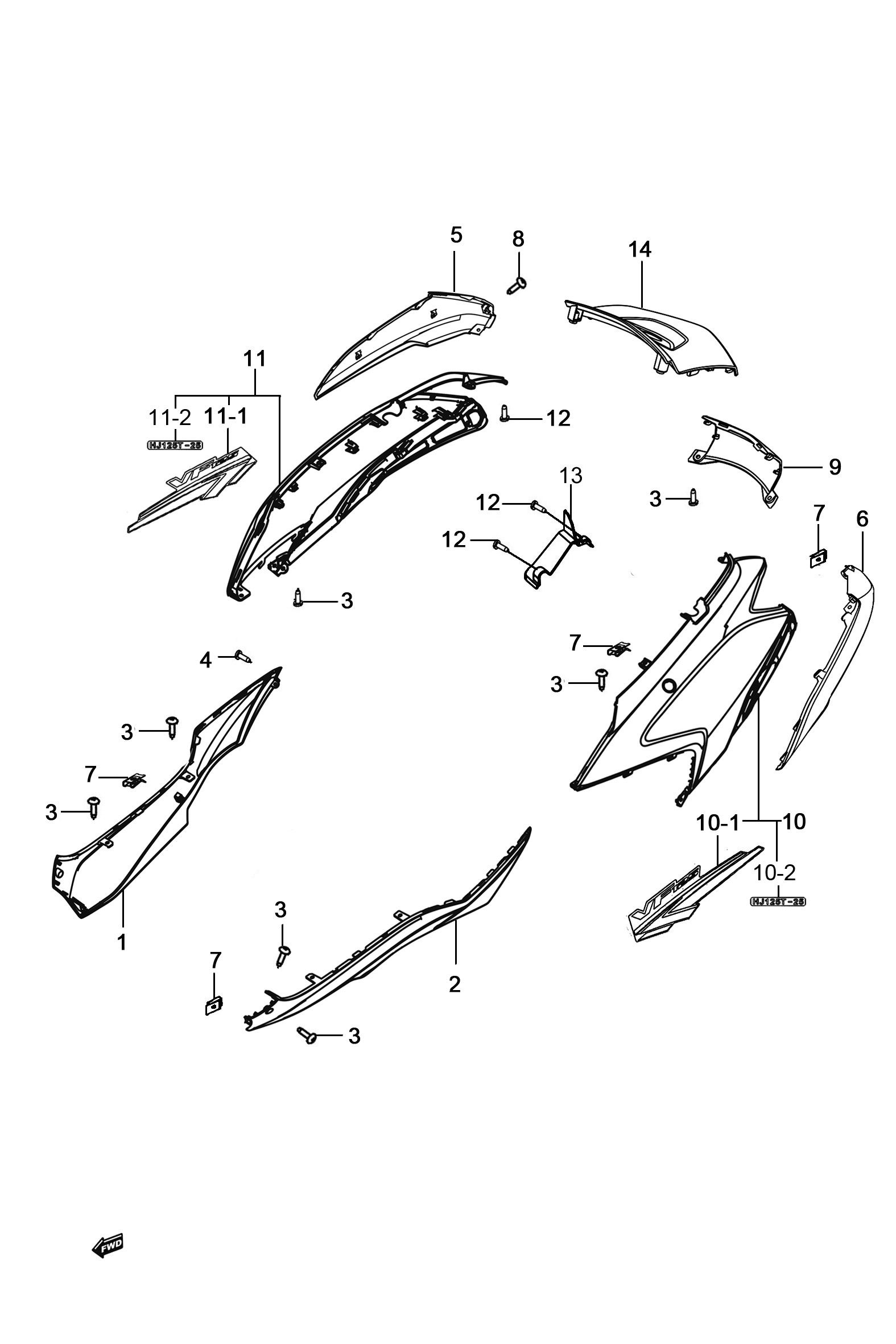

Location in exploded diagrams
Other parts on this diagram — 车体盖组
- #1 48171H7Y000H000 — 前右边条
- #2 48181H7Y000H000 — 前左边条
- #3 03241-0516B-000 — 十字槽自攻螺钉
- #4 48292-32GH0-000 — 膨胀销扣
- #5 47121H7Y000H000 — 后右边条
- #6 47221H7Y000H000 — 后左边条
- #7 09148-05L08-000 — 锁片螺母
- #8 09136H04003H000 — 平垫螺钉组合
- #9 47321H7Y000H000 — 尾边条
- #10 47021H7Y00AHF01 — 左侧盖组合
- #10 47021H7Y00AHF02 — 左侧盖组合
- #10 47021H7Y00AHF03 — 左侧盖组合
- #10 47021H7Y00AHF04 — 左侧盖组合
- #10 47021H7Y00AHF05 — 左侧盖组合
- #10-1 68136H7Y000HTL4 — 左侧盖贴条(TL4)
- #10-1 68136H7Y000HTL5 — 左侧盖贴条(TL5)
- #10-1 68136H7Y000HTL7 — 左侧盖贴条(TL7)
- #10-1 68136H7Y000HUD7 — 左侧盖贴条(UD7)
- #10-2 68131H7Y000HV13 — 侧盖贴条
- #11 47011H7Y00AHF01 — 右侧盖组合
- #11 47011H7Y00AHF02 — 右侧盖组合
- #11 47011H7Y00AHF03 — 右侧盖组合
- #11 47011H7Y00AHF04 — 右侧盖组合
- #11 47011H7Y00AHF05 — 右侧盖组合
