Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)

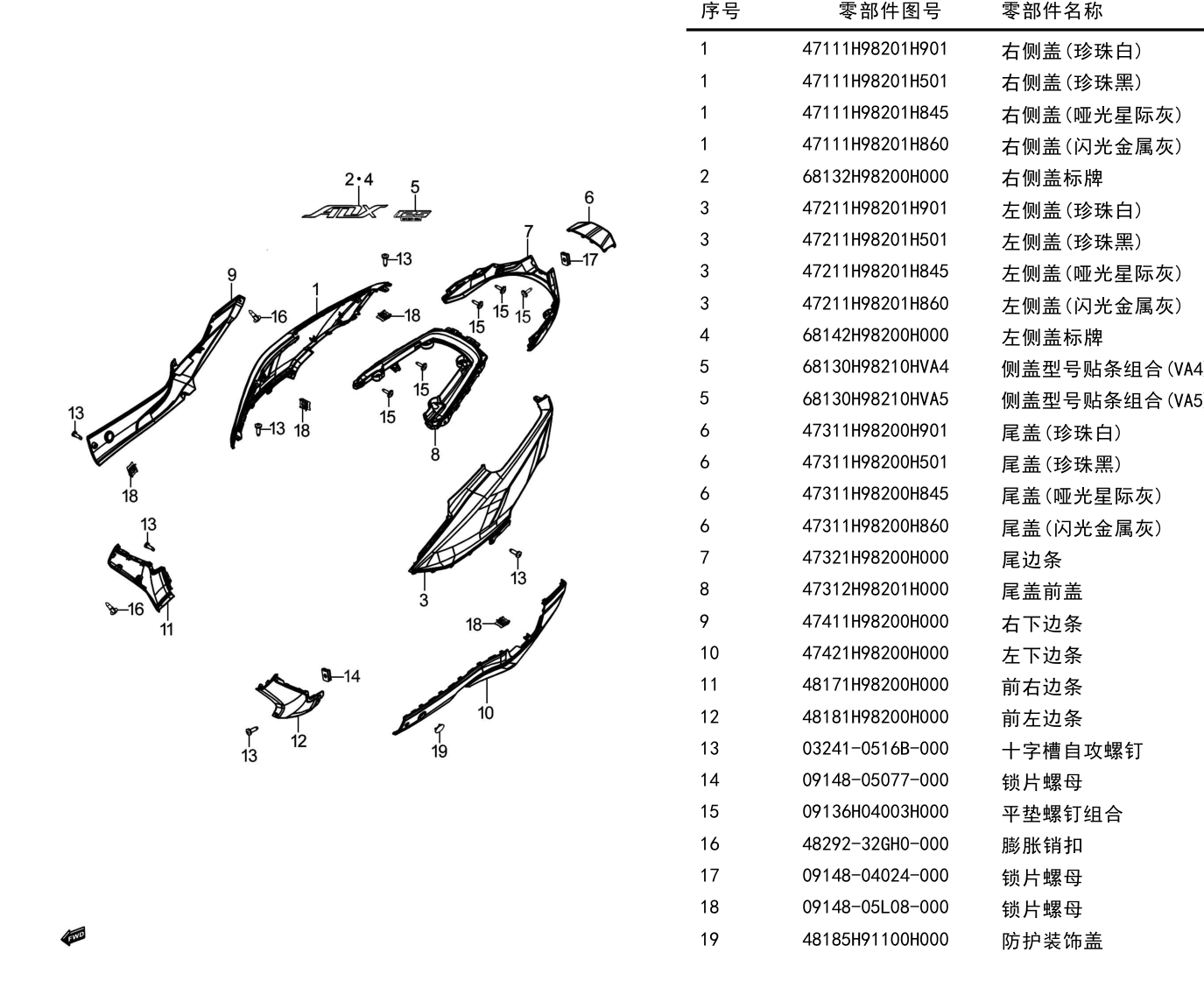

Location in exploded diagrams
Other parts on this diagram — 车体盖组
- #8 47312H98201H000 — 尾盖前盖
- #9 47411H98200H000 — 右下边条
- #10 47421H98200H000 — 左下边条
- #11 48171H98200H000 — 前右边条
- #12 48181H98200H000 — 前左边条
- #13 03241-0516B-000 — 十字槽自攻螺钉
- #14 09148-05077-000 — 锁片螺母
- #15 09136H04003H000 — 平垫螺钉组合
- #16 48292-32GH0-000 — 膨胀销扣
- #17 09148-04024-000 — 锁片螺母
- #18 09148-05L08-000 — 锁片螺母
- #19 48185H91100H000 — 防护装饰盖
- #7 47321H98200H000 — 尾边条
- #1 47111H98201H901 — 右侧盖(珍珠白)
- #1 47111H98201H501 — 右侧盖(珍珠黑)
- #1 47111H98201H845 — 右侧盖(哑光星际灰)
- #1 47111H98201H860 — 右侧盖(闪光金属灰)
- #3 47211H98201H901 — 左侧盖(珍珠白)
- #3 47211H98201H501 — 左侧盖(珍珠黑)
- #3 47211H98201H845 — 左侧盖(哑光星际灰)
- #3 47211H98201H860 — 左侧盖(闪光金属灰)
- #4 68142H98200H000 — 左侧盖标牌
- #5 68130H98210HVA4 — 侧盖型号贴条组合(VA4)
- #5 68130H98210HVA5 — 侧盖型号贴条组合(VA5)
