401B-060100Rear Upper Rh Swing Arm Assy — Genuine CF MOTO Part
CF MOTOoem
Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 103.82 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 95.99 | listing | cfmoto.quadzillaparts.co.uk |

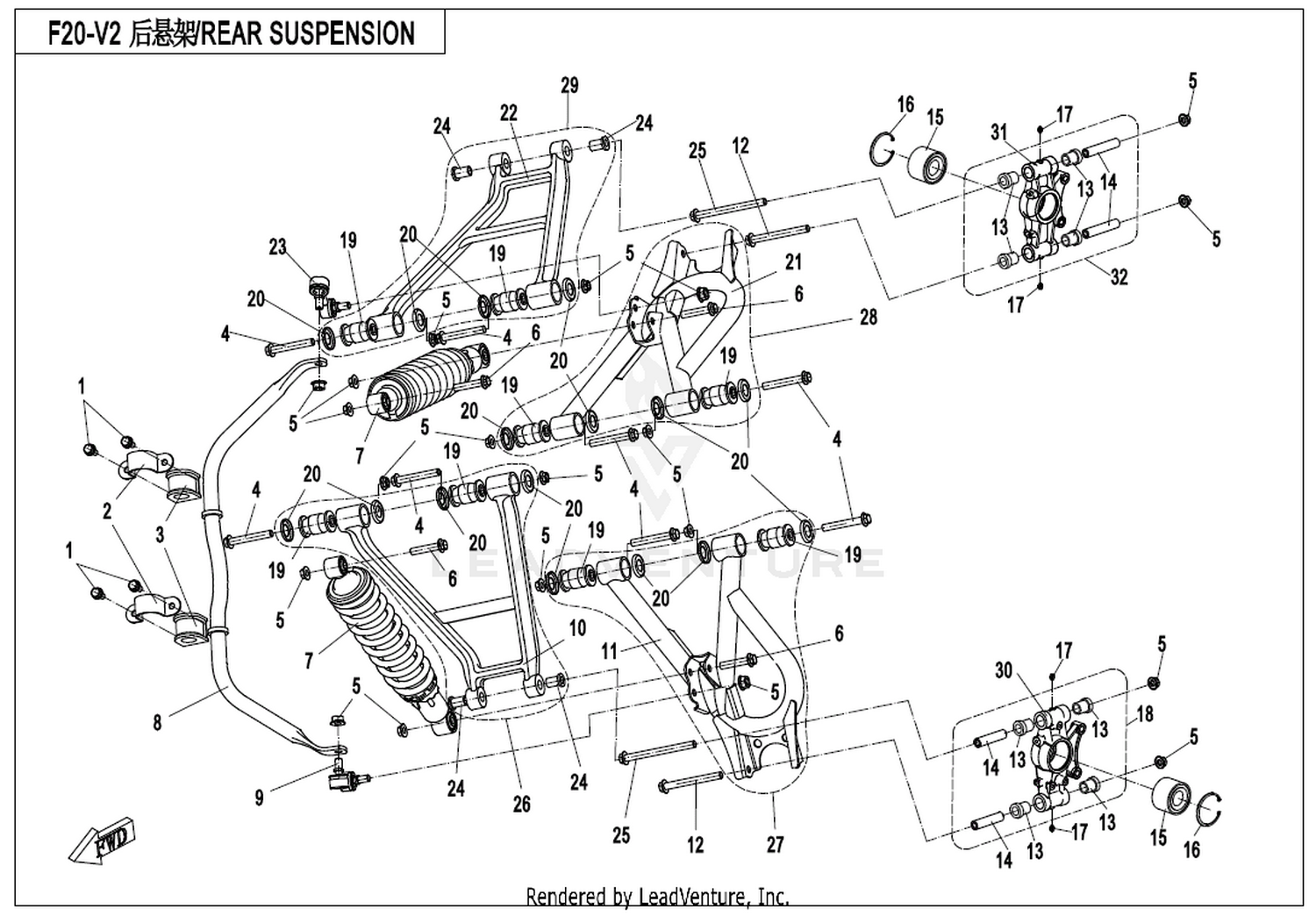

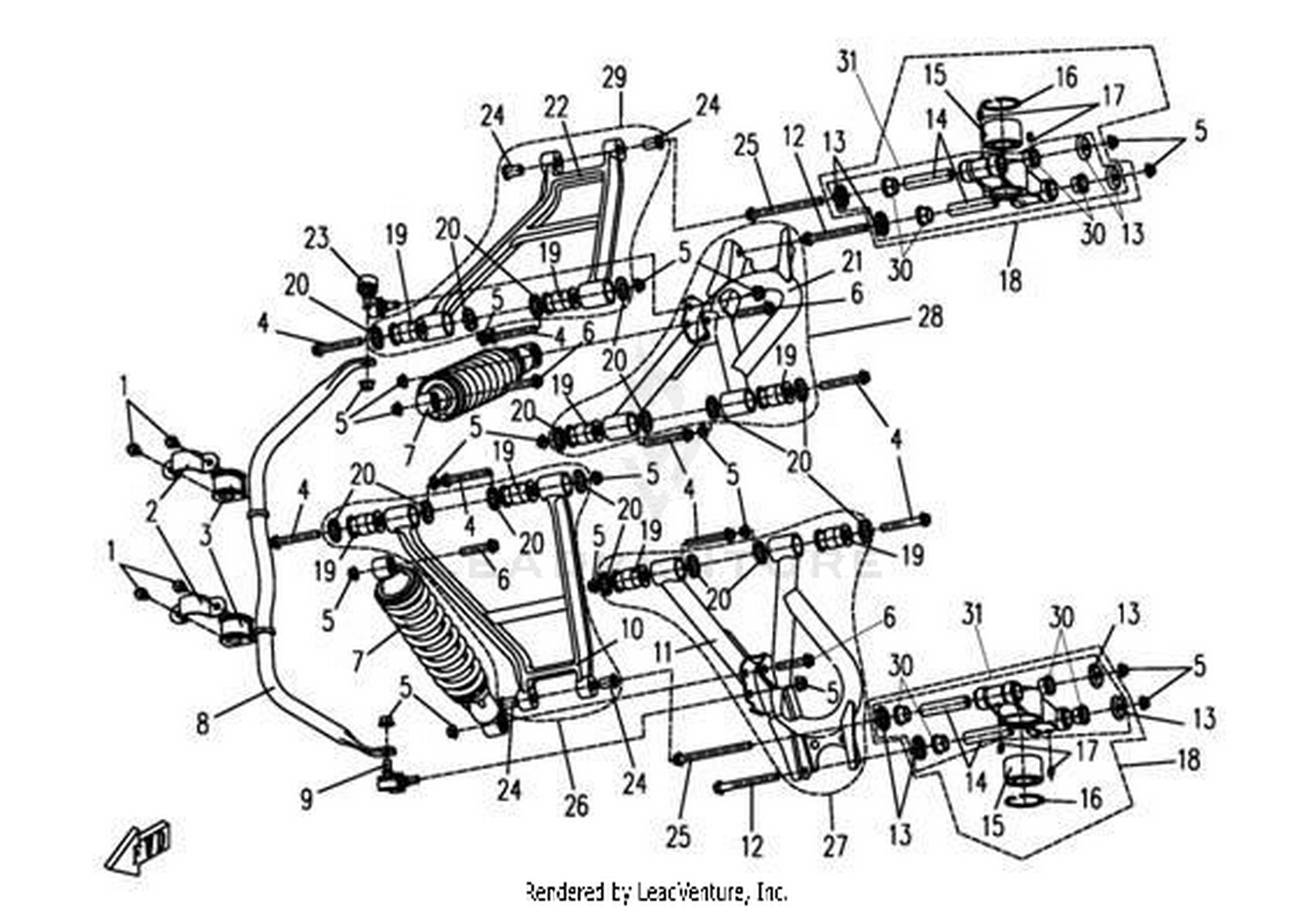

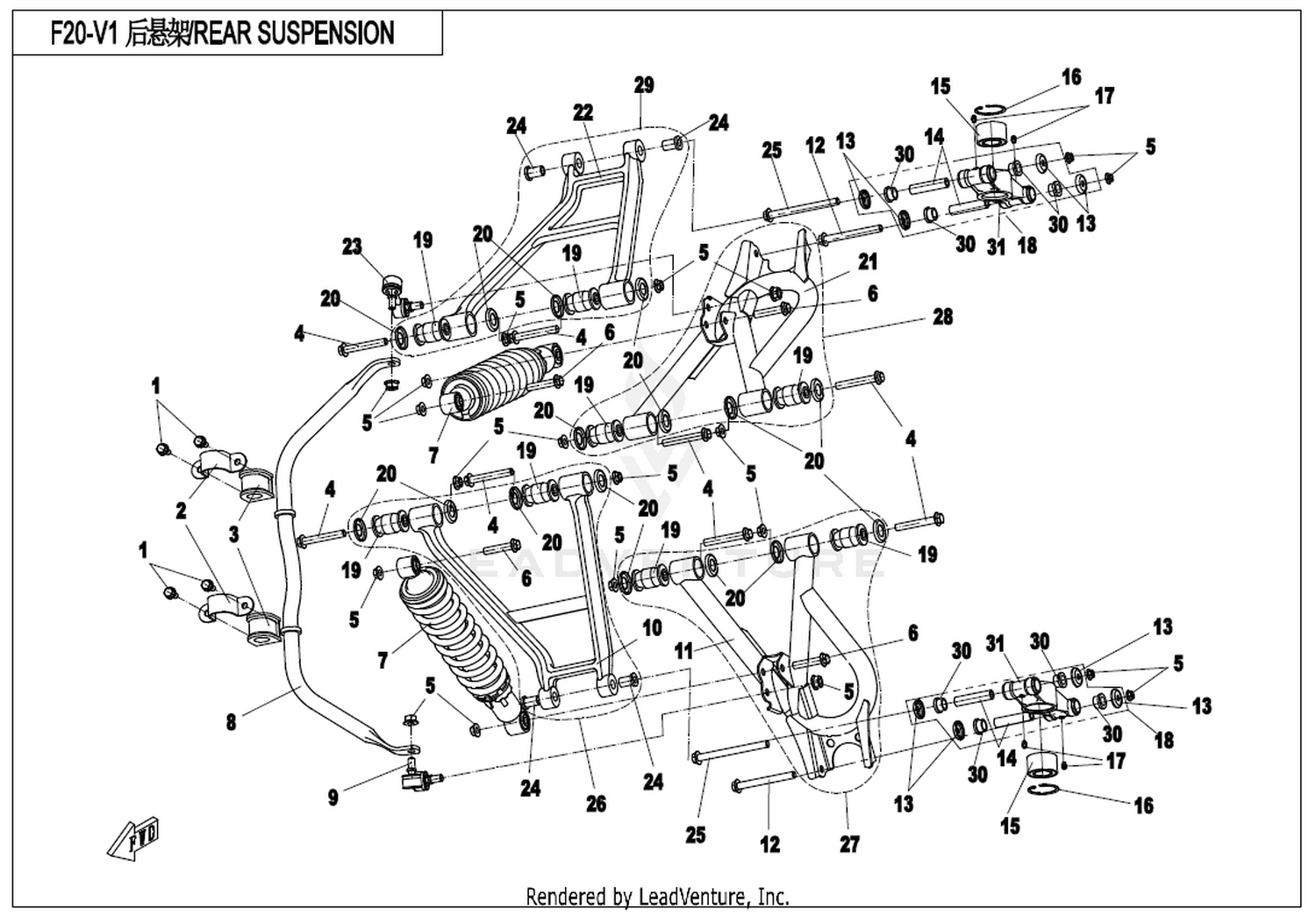

Location in exploded diagrams
Other parts on this diagram — Rear Suspension 1
- #18 30006-080012810 — Bolt M8×12
- #07 9010-060600-10001 — Rear Shock Absorber Assy Yit@Red Spring
- #17 9010-060400-20000 — Rear Lower Swing Arm, Lh Electrophoresis Black
- #06 3120100 — Oil Cup
- #08 9010-060800-20000 — Rh Ball Pin Assy Ccvi
- #03 9010-060002 — Cover, Sway Bar
- #07 9010-060600-20001 — Rear Shock Absorber Assy Yit@Black Spring
- #07 30006-102100810 — Bolt M10X1.25X100 M10X1.25X100
- #19 7020-0607A0 — Lh Rear Bearing Carrier Assy,
- #08 401B-060001 — Rear Swing Arm Sleeve
- #19 7020-060701 — Lh Rear Bearing Carrier
- #02 9GQ0-060003 — Supporter, Sway Bar
- #06 401B-060500 — Rear Shock Absorber Assy Yit@Gas Shock Absorber@Bl
- #24 9060-050003 — Short Bushing, Swing Arm
- #12 9010-050500 — Cushion Sleeve Assy
- #13 30006-102140810 — Bolt M10×1.25×140
- #28 7020-060801 — Rh Rear Bearing Carrier
- #22 30006-102070810 — Bolt M10X1.25X70@Color Zinc Trivalent Chromium
- #01 9010-060500 — Sway Bar
- #23 7020-060702-00001 — Rear Wheel Shaft Bracket Middle Bushing
- #11 9010-050003 — Cushion Sleeve Cap
- #26 401B-060300 — Rear Upper Lh Swing Arm Assy
- #18 7020-0608A0 — Rear Rh Bearing Seat Assy
- #04 30204-102810 — Nut M10×1.25
