Verified fitment — 21 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (21)
- CFORCE RS6 2014
- CFORCE RS6 2015
- CFMOTO X8 2014
- CFMOTO X8 2012
- CFORCE 550 2016
- TERRAIN 500 2015
- TERRAIN 500 2013
- CFORCE RS6 2016
- CFMOTO X8 2016
- CFMOTO X8 2015
- TERRAIN 500 2011
- CFORCE RS6 2012
- CFMOTO X8 2017
- TERRAIN 500 2016
- TERRAIN 500 2012
- CFMOT0 X8 2011
- CFORCE 550 2015
- CFORCE RS6 2013
- CFORCE 550 2017
- TERRAIN 500 2014
- CFMOTO X8 2013
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 7.56 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 7.00 | listing | cfmoto.quadzillaparts.co.uk |

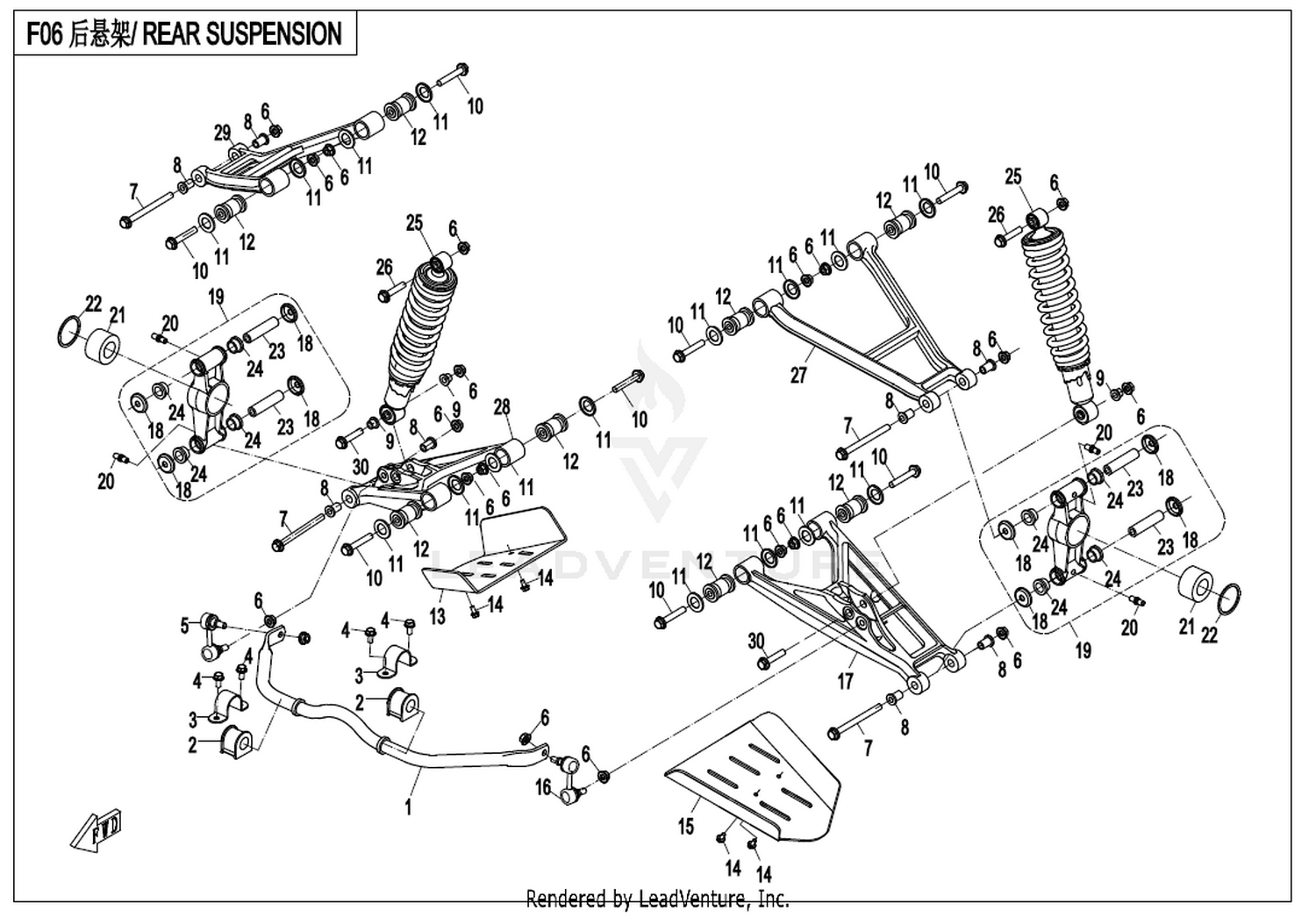

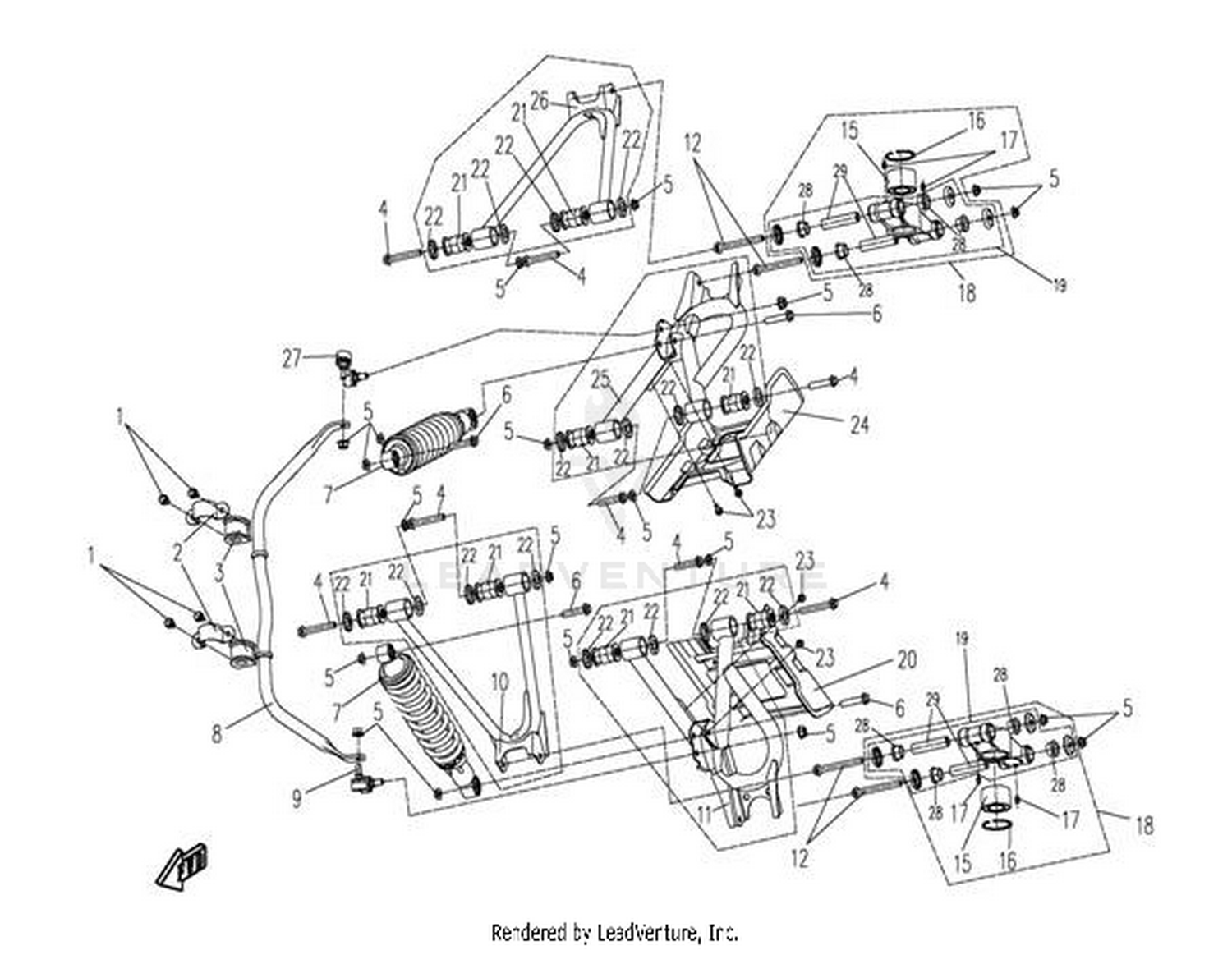

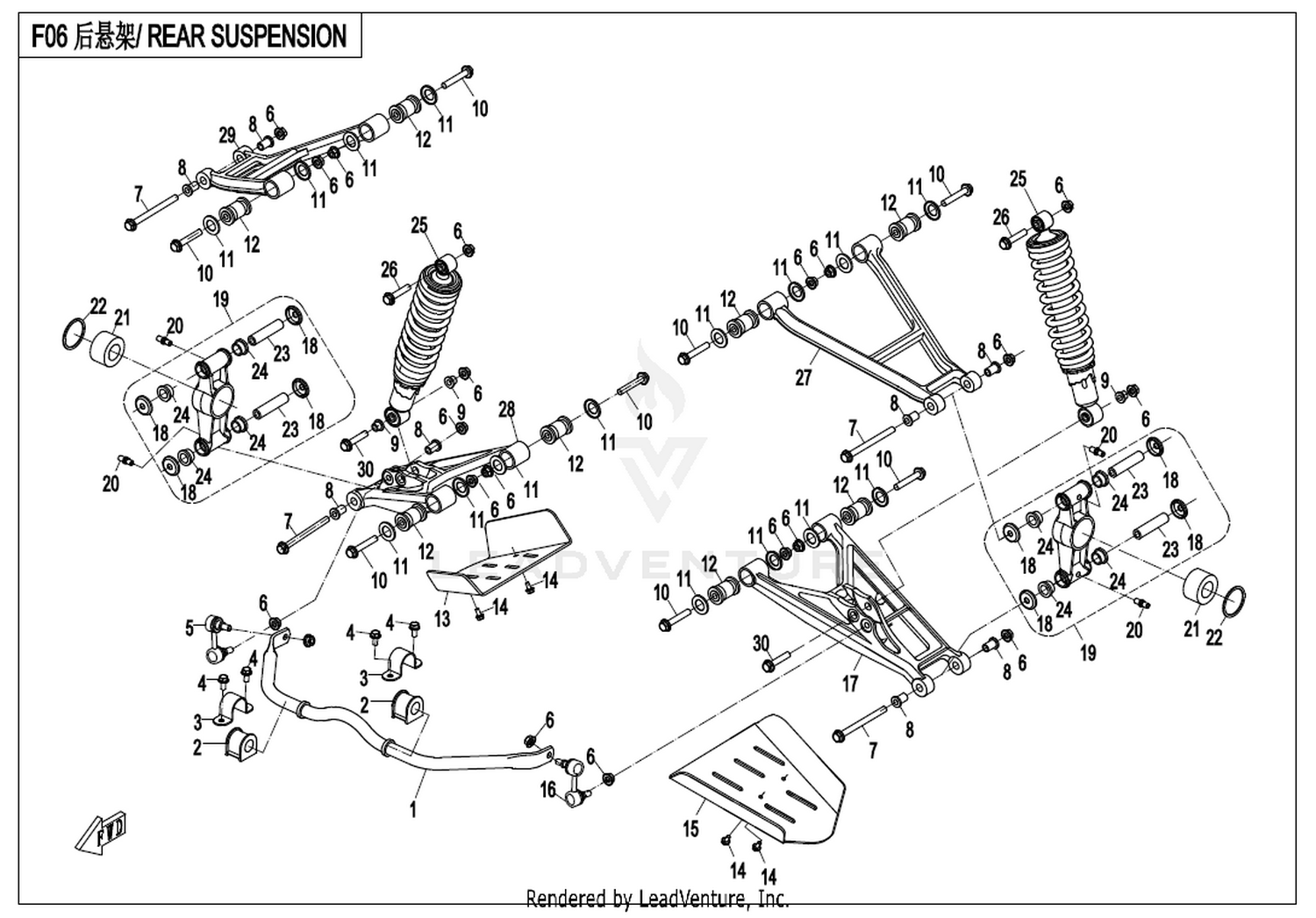

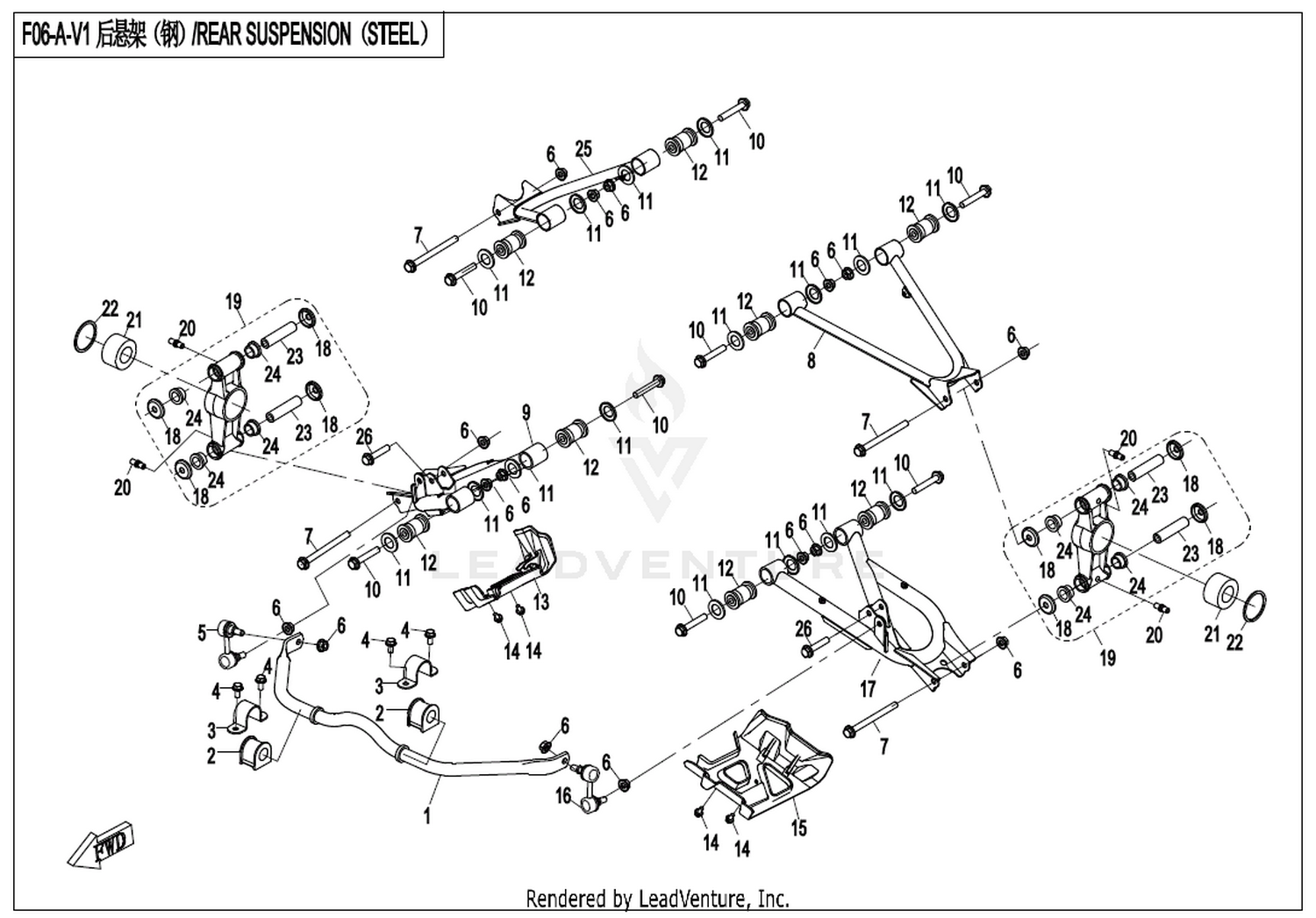

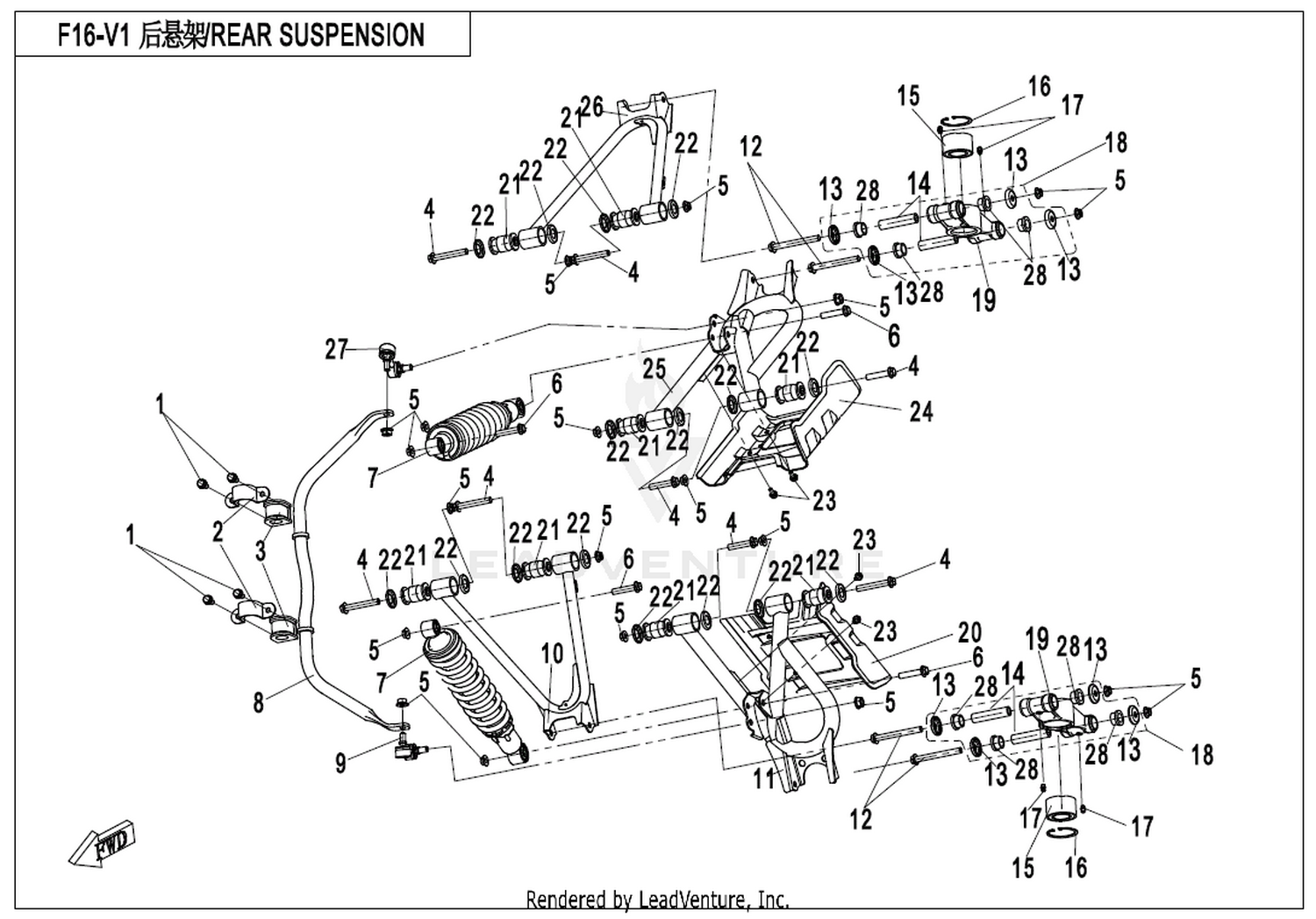

Location in exploded diagrams

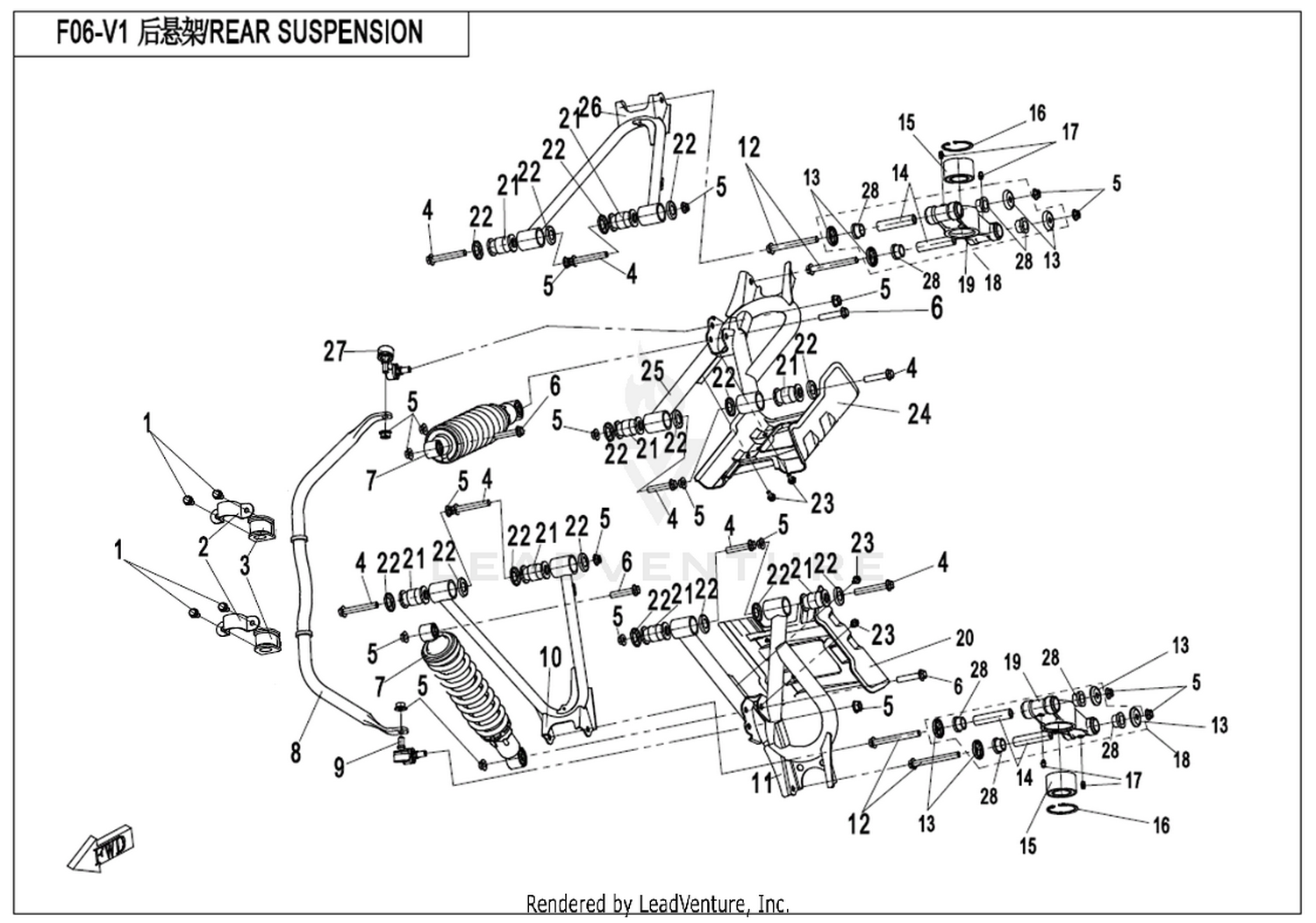

Other parts on this diagram — Rear Suspension 1
- #18 30006-080012810 — Bolt M8×12
- #07 9010-060600 — Rear Shock Absorber Assy Yit
- #07 30006-102100810 — Bolt M10X1.25X100 M10X1.25X100
- #19 9010-0600A0 — Rear Bearing Carrier Assy
- #09 9010-060200-20000 — Rear Lower Swing Arm, Rh Electrophoresis Black
- #07 9010-060600-10001 — Rear Shock Absorber Assy Yit@Red Spring
- #18 9010-060900 — Anti-Dust Cap
- #15 9010-040021-10000 — Lh Fender, Rear Suspension Interference In Parking Cable
- #25 9010-060100-20000 — Rear Upper Rh Swing Arm Assy Electrophoresis Black
- #02 9GQ0-060003 — Supporter, Sway Bar
- #01 9010-060500 — Sway Bar
- #23 9010-060005 — Middle Spacer
- #12 9010-050500 — Cushion Sleeve Assy
- #08 9010-060800-20000 — Rh Ball Pin Assy Ccvi
- #22 30006-102070810 — Bolt M10X1.25X70@Color Zinc Trivalent Chromium
- #03 9010-060700-20000 — Lh Ball Pin Assy Ccvi
- #21 9GQ0-050710 — Bearing, Hub
- #11 9010-050003 — Cushion Sleeve Cap
- #24 9010-060004 — Bushing
- #04 30204-102810 — Nut M10×1.25
- #08 9010-060300-20000 — Rear Upper Lh Swing Arm Assy Electrophoresis Black
- #25 30800-05505 — Circlip For Hole Black
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #03 30006-102050810 — Bolt M10×1.25×50
